10 by 8 Bathroom Layout Ideas: Creative Design Options for a 10 by 8 Bathroom

A 10' x 8' bathroom sits at the sweet spot: generous enough to fit a double vanity and separate tub-shower in some schemes, yet compact enough to demand disciplined circulation. I approach these spaces by balancing functional adjacencies, light, acoustics, and maintenance with a clear focal hierarchy: the vanity as the visual anchor, bathing as a retreat, and storage integrated rather than added.

Space performance in bathrooms benefits from human-centered standards. WELL v2 recommends adequate illumination and low glare for task areas; for grooming tasks, aiming for 300–500 lux at the mirror with 90+ CRI lighting helps achieve accurate color rendering. The Illuminating Engineering Society (IES) provides residential bath guidelines where vertical illumination at the face is critical, best delivered by sconces flanking the mirror rather than a single overhead source. These are not aesthetic footnotes—they directly affect daily usability.

Storage, reach, and comfort matter. From an ergonomics standpoint, maintaining clear pathways of 32–36 inches improves maneuverability, while placing daily-use storage between 30–48 inches AFF keeps essential items within the optimal reach zone. Research from Steelcase on human factors and task zones reinforces that reducing unnecessary movement increases perceived comfort and speed of routines; bathrooms are no exception.

Plan 1: Double Vanity + Alcove Shower

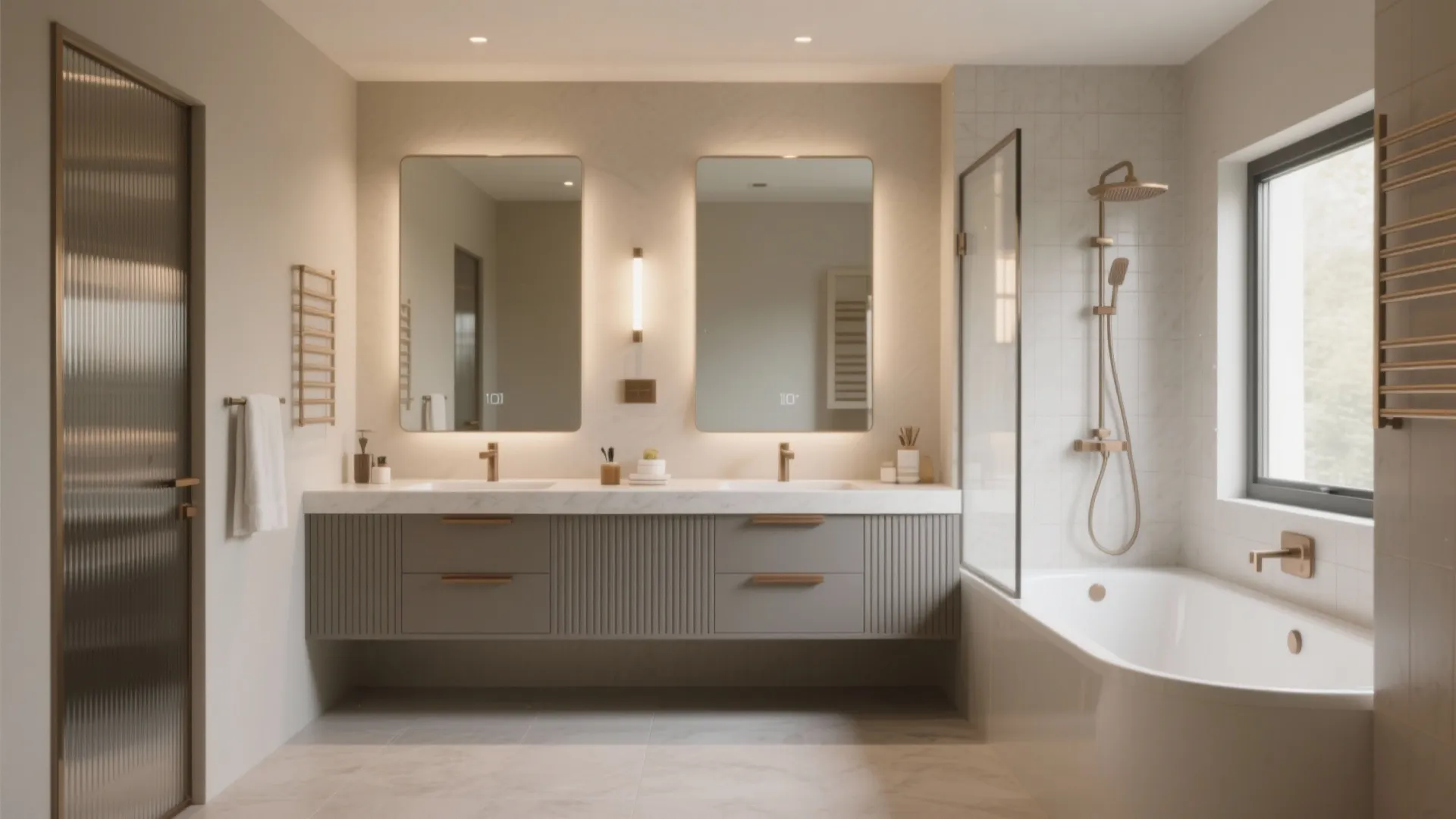

I favor a 60–72 inch double vanity along the 10-foot wall, with an alcove shower (36 x 60 inches) on one short end and a toilet in a semi-screened niche opposite. The sightline lands on the vanity, not the toilet. Keep 36 inches of front clearance to the vanity; a shallow tower (12–15 inches deep) centered above maximizes vertical storage without crowding shoulders. Lighting: two vertical sconces at ~66 inches AFF, 24 inches apart on each sink.

Plan 2: Tub-Shower Combo + Linen Wall

For families, a 60-inch tub-shower on the 8-foot wall works. Adjacent, a 15-inch-deep linen cabinet with vented doors controls humidity. Set the toilet 18 inches off centerline from any flank. I run a wall-to-wall mirror over a 60-inch vanity to widen the sense of space. Ventilation is key: target 8 air changes per hour; select a quiet fan ≤ 1.5 sones to keep acoustic comfort intact.

Plan 3: Walk-In Shower + Floating Vanity

A 42 x 60 inch walk-in shower with a single glass panel keeps light flowing. A floating 54-inch vanity visually enlarges the floor plane, ideal for smaller-feeling bathrooms. Use a linear drain and slight floor pitch for a seamless look. If planning this layout, trial circulation and fixture spacing in a room layout tool to prevent pinch points: room layout tool.

Plan 4: Corner Shower + Freestanding Tub

Place a neo-angle corner shower (typically ~38–42 inches across) opposite a 60–66 inch freestanding tub along the long wall. Keep at least 8–10 inches between tub edge and wall for cleaning access. This composition suits windows; set the tub under glazing and control privacy with top-down shades, ensuring we still meet the target 300–500 lux for grooming at the vanity, supplemented by diffuse ambient light.

Plan 5: Wet Room Zone

Combine tub and shower in one tiled wet room zone (about 5 x 8 feet), separated by a single glass screen from the dry area. The rest of the footprint holds a 48–60 inch vanity and toilet. A central linear drain simplifies slope management. Acoustic comfort improves with softer materials—consider rubber underlayment and textiles to absorb sound.

Plan 6: Side-by-Side Sinks + Storage Tower

A 72-inch vanity with two sinks and a 24-inch center tower creates personal zones. I keep drawers for daily items and tall doors for infrequent storage. The tower’s bottom shelf at ~42 inches AFF hits a comfortable reach for hair tools. Task lighting: dual sconces per sink or an integrated LED mirror with 90+ CRI, dimmable to manage circadian-friendly evenings.

Plan 7: Single Long Vanity + Seated Makeup Area

A 96-inch run with a single sink and a 30-inch seated knee space supports detailed routines. Clear 30 inches for legroom and ensure non-glare lighting at face level; avoid overhead-only fixtures that cast shadows. This plan fits a walk-in shower on the short wall and a toilet niche with a half-height privacy wall.

Plan 8: Compact Jack-and-Jill

For shared access, place a double-entry to a central vanity zone and flanking private compartments for toilet and shower/tub. Pocket doors save swing space. Keep each compartment at a minimum of 36–40 inches wide. Hardware and finishes should be consistent to reduce visual clutter across entries.

Plan 9: Storage-Forward Minimalist

Prioritize wall cabinets (12 inches deep) above a 48–60 inch vanity, a tall 24-inch linen, and recessed niches in the shower. Monochrome palettes with varied textures prevent sterility—matte tiles, ribbed glass, and warm brushed metal. Ergonomically, place everyday drawers at hip level; reserve low toe-kick drawers for bulk items.

Plan 10: Accessible-Friendly Layout

Widen clearances to 36–42 inches; choose a curbless 60 x 60 inch shower with a bench at 17–19 inches high and a handheld at 48 inches AFF. Install blocking for grab bars at 33–36 inches AFF. A wall-hung toilet eases cleaning and allows height tuning. Lever handles and anti-glare, high-CRI lighting improve comfort and safety.

Lighting Strategy for 10' x 8' Bathrooms

I layer lighting: vertical face illumination at the mirror, diffuse ambient lighting (e.g., cove or ceiling with soft lenses), and targeted accent for niches. WELL v2’s Light concept underscores minimizing glare and providing controls; dimmability helps shift from morning brightness to evening calm. IES guidance points to vertical illuminance for grooming; two flanking sconces or integrated vertical LED strips are dependable solutions.

Color, Materials, and Psychology

Color influences perception. Soft neutrals with warm undertones promote calm; cool hues can feel crisp and clinical if overused. Verywell Mind’s color psychology discussions note that blues and greens are associated with tranquility—use them as accents or in tile patterns to avoid overwhelming small spaces. For materials, balance slip resistance (≥ DCOF 0.42 for wet floors) with easy maintenance. Consider low-VOC finishes and closed-loop plumbing fixtures to reduce environmental impact.

Acoustics, Ventilation, and Hygiene

Baths are hard-surface dominant; add acoustic absorption via towels, bath mats, and wall panels. Keep fans quiet (≤ 1.5 sones) and powerful enough for moisture control; a timer or humidity sensor extends runtime post-shower. Separate damp and dry storage to preserve linens; integrate concealed hampers to clean up visual noise.

Circulation and Spatial Ratios

Aim for 36 inches of circulation in front of the vanity and 24 inches beside the toilet to avoid a cramped feel. Align fixtures to create a primary axis and one secondary cross-axis; this establishes rhythm and helps the room feel larger. When reworking walls, simulate different configurations with an interior layout planner to validate clearances and door swings: interior layout planner.

Real-World Detailing Tips

• Recess medicine cabinets to keep depth slim and avoid head bumps.

• Use wall-mounted faucets to free counter space and improve cleaning.

• Set mirrors at user eye height; in mixed-height households, choose taller mirrors and light vertically.

• Niche shelves at 48–54 inches AFF reduce stooping while showering.

• Specify thermostatic valves to stabilize temperature and prevent scalds.

• Prefer matte finishes on large surfaces to limit glare, then add sheen in accents.

Authority References

For lighting quality and health-centric design criteria, I lean on WELL v2 Light guidelines and IES standards for residential bathrooms. Both reinforce vertical illumination at the face and controllability for comfort. Explore: WELL v2 and IES standards.

FAQ

How much clearance should I keep in front of the vanity?

Target 36 inches for comfortable movement. In tighter conditions, 30 inches is workable but feels constrained.

Is a double vanity feasible in a 10' x 8' bathroom?

Yes. A 60–72 inch double vanity fits if circulation is protected and the shower stays 36–60 inches. Keep the toilet niche compact but code-compliant.

What lighting levels do I need for grooming?

Aim for 300–500 lux at face level with 90+ CRI fixtures. Use vertical sconces or integrated mirror lighting to avoid overhead shadows.

Can I include both a tub and a separate shower?

In many 10' x 8' layouts, a compact freestanding tub (60–66 inches) and a 36–42 inch corner or walk-in shower can coexist, provided circulation remains clear.

How do I reduce echo and noise in a hard-surface bathroom?

Add soft elements: towels, mats, shower curtains, and acoustic panels. Choose a quiet exhaust fan ≤ 1.5 sones.

What’s the best storage depth for wall cabinets?

12–15 inches keeps profiles slim while storing essentials. Place daily-use shelves and drawers between 30–48 inches AFF for ergonomic reach.

Are curbless showers practical in this footprint?

Yes, with proper slope and linear drains. They improve accessibility and make the room feel larger by eliminating visual breaks.

Which colors make a bathroom feel calmer?

Soft neutrals with warm undertones, plus accents of blue or green, tend to feel restorative. Keep high contrast to focal points only to avoid visual clutter.

How do I plan for privacy without shrinking the room?

Use half-height walls, frosted glass, or strategic sightlines placing the toilet away from the entry view. Pocket doors help save swing space.

What ventilation rate should I target?

Around 8 air changes per hour is a solid benchmark for moisture control. Pair with a humidity sensor or timer to extend post-shower operation.
