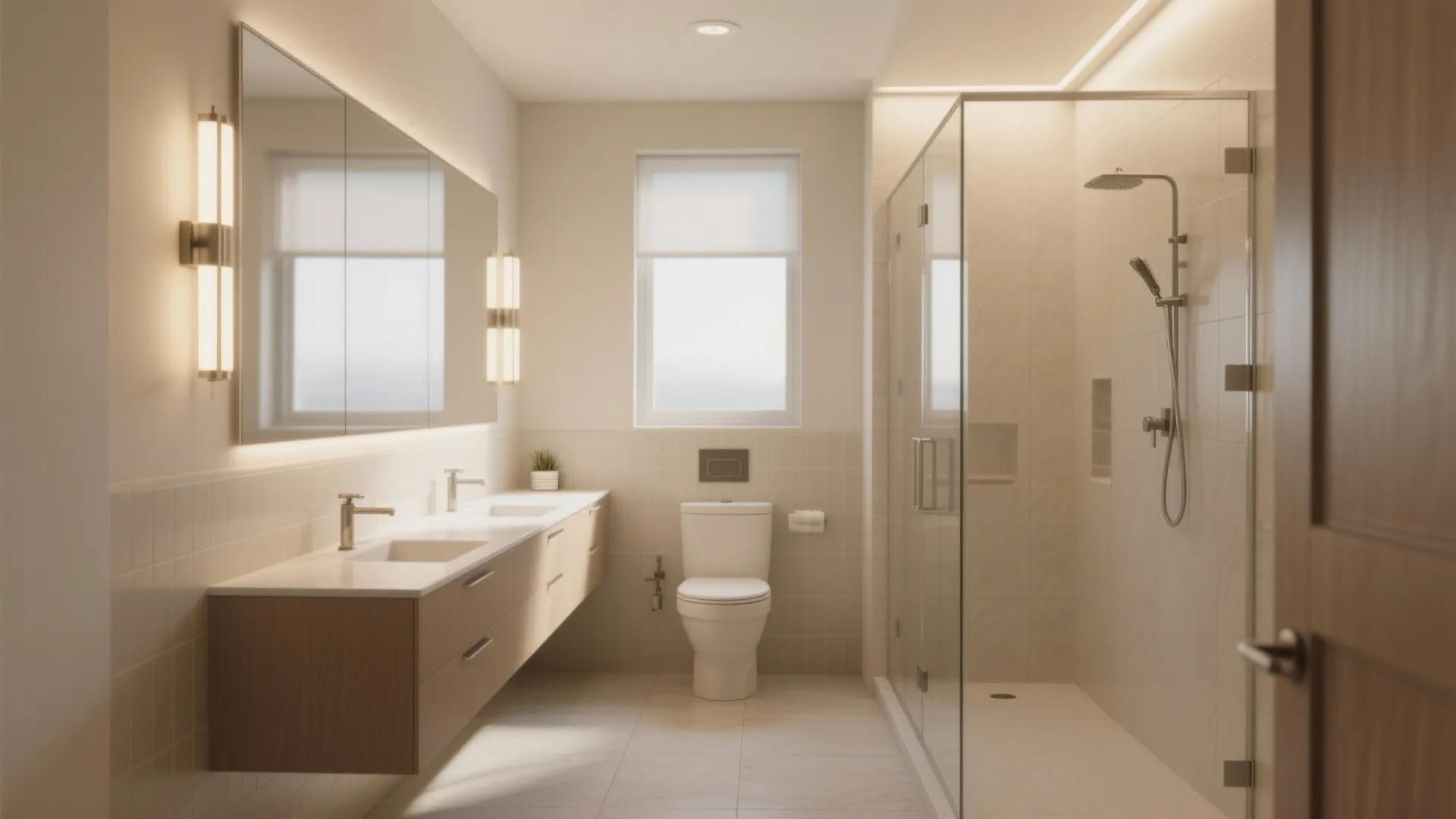

10x5 bathroom layout: Explore the possibilities of a 10x5 bathroom layout for optimal design and functionality

A 10x5 bathroom (roughly 50 sq ft) can feel tight, yet with disciplined layout, light, and material choices, it becomes calm and highly functional. I approach this footprint by prioritizing clear circulation, correct fixture sizing, and layered lighting that avoids glare while enhancing perceived space.

In small baths, lighting and ventilation impact comfort as much as layout. WELL v2 recommends adequate ventilation and controllable illumination for health and visual comfort; the WELL Light concept emphasizes uniform illumination and low-glare strategies that reduce eye strain. Steelcase research also notes that well-orchestrated light supports wellbeing and task performance—principles that translate directly to grooming tasks where color accuracy matters.

Ergonomics and standards shape the plan. I keep minimum 30–32 inches clear in front of the toilet and sink, and target 36 inches where possible for comfortable maneuvering. I follow IES guidance for task illuminance at the mirror (generally 300–500 lux for grooming) and add softer ambient layers to avoid harsh contrast. These numbers are practical and adaptable to fixture output and reflectance of finishes.

Core Layout Patterns for 10x5 Bathrooms

For a 10x5 bath, a linear plan reduces visual clutter and makes plumbing runs efficient. Typical sequence along the 10-foot wall: entry, vanity, toilet, tub/shower. If you prefer a shower-only, a 60x32 or 60x36 alcove with a clear glass panel maintains openness. When testing sequences and clearances, a simple interior layout planner like a room layout tool can help visualize fixture sizes and swing paths.

Option A: Single-Wall Stack (Door on 5-foot End)

I align vanity (24–30 inches), toilet (minimum 28–30 inches width allowance), and a 60-inch tub or shower along one long wall. The opposite wall remains mostly clear, allowing 30–36 inches walkway. This pattern is fast to plumb and keeps the sightline clean, especially with a wall-mounted vanity to reveal more floor.

Option B: Split Wet/Dry Zones

Place vanity on one long wall and a shower-tub on the opposite end with the toilet nestled between, creating a subtle wet zone (shower end) and dry zone (vanity end). This helps with moisture control and daily routines—one person can use the vanity while another showers without bottlenecks.

Option C: Door-Centered Entry with Offset Fixtures

Center the door on the 5-foot wall, then offset the vanity and toilet along opposite walls to keep sightlines open. A frameless glass shower at the back reflects light and visually elongates the room. This plan works well with tall storage integrated above the toilet (ensure a comfortable 24 inches depth clearance above the tank).

Clearances, Human Factors, and Flow

I maintain 15 inches min from centerline of toilet to each side wall (30 inches total), though 16–18 inches feels more natural. For the vanity, 21 inches minimum in front is workable; 24–30 inches is ideal for comfortable movement. If using a swing door, confirm a 30-inch minimum path without collisions; consider a pocket or outward-swinging door in tight conditions.

Lighting Layers and Color Quality

Layering prevents glare and flatness. I pair vertical sconces flanking the mirror (eye-level mounting, around 60–66 inches AFF) for facial modeling with a low-glare ceiling fixture for ambient fill. For grooming, I target 300–500 lux at the face with CRI 90+ and a 3000–3500K color temperature to balance warmth and color accuracy. According to IES standards for indoor lighting, task lighting should be uniform and avoid direct view of bright sources; diffuse lenses or indirect lighting help.

Acoustic and Moisture Control

Compact baths amplify noise. I specify a quiet exhaust fan (around 1.0–1.5 sones) and ensure ducting is short and properly sealed. Position the fan near the shower/tub, and add a timer or humidity sensor to keep RH in check. Moisture-resistant gypsum, proper waterproofing in wet zones, and sealed edges around fixtures prevent long-term damage.

Material Selection and Visual Stretch

Glossy tile can cause glare; I prefer satin or honed finishes to soften reflections. Large-format tiles reduce grout lines and visually widen a narrow room. A continuous floor tile into the shower (with a gentle slope) creates a seamless field. Lighter hues expand perceived volume; if you want contrast, confine darker tones to the floor or a single feature wall to keep the ceiling visually higher.

Storage Without Bulk

Recessed niches in the shower, a shallow medicine cabinet, and a 12-inch deep tower beside the vanity offer real utility without crowding the aisle. I mount shelves at 48–54 inches height to avoid head knocks and keep everyday items accessible.

Fixtures: Sizing and Placement

- Vanity: 24–30 inches wide in this footprint; wall-mounted to increase floor visibility.

- Toilet: Standard 28–30 inches depth; leave 18 inches clear on one side if space allows for comfort.

- Shower/Tub: A 60-inch alcove fits well; if opting for a shower, choose 60x36 where possible for elbow room. Keep glass clear to extend sightlines.

Daylight and Privacy

If you have a window, frosted or patterned glass balances privacy with diffuse daylight. Pair with top-down shades to protect sightlines. Reflective surfaces at the vanity should be controlled so daylight doesn’t cause veiling glare.

Safety and Accessibility Touchpoints

Install grab bars anchored to blocking in the shower; place one at 33–36 inches AFF horizontally. Opt for slip-resistant flooring (≥0.42 DCOF wet). Levers over knobs improve usability with wet hands. Consider a handheld shower at 72 inches AFF on an adjustable slide bar for flexible reach.

2024–2025 Design Notes for Compact Baths

- Minimal hardware and wall-mounted fixtures for easier cleaning.

- Muted, warm neutrals with one saturated accent for depth.

- Integrated LED mirrors with high CRI and dimming.

- Recycled content porcelain and low-VOC sealants for sustainability.

Testing and Visualizing Your Plan

Before committing, mock up clearances with painter’s tape and verify door swings. To compare linear vs split-zone plans, try an interior layout planner to simulate fixture footprints and circulation with a layout simulation tool.

Authority References

For lighting practice and task illuminance ranges, refer to IES standards. For health, ventilation, and light comfort criteria, WELL v2 guidance is useful for setting performance targets in small bathrooms.

FAQ

Q1: What’s the best fixture order in a 10x5 bath?

A1: A linear sequence—vanity, toilet, then tub/shower—along the long wall simplifies plumbing and keeps the path clear. Place the vanity near the door for quick handwashing and efficient circulation.

Q2: How much clearance do I need in front of the toilet and vanity?

A2: Aim for 30–32 inches minimum in front of both; 36 inches feels natural if you can spare it. Keep 15 inches from toilet centerline to each side wall, and more if available.

Q3: What lighting levels should I target?

A3: For grooming, 300–500 lux at the face with CRI 90+ at 3000–3500K gives accurate color rendering. Use vertical lighting at the mirror and a soft ambient ceiling source to avoid shadows and glare.

Q4: Shower or tub in a 10x5 layout?

A4: A 60-inch alcove tub or a 60x36 shower both fit. If you rarely bathe, a shower with clear glass and a low curb will feel larger and improve accessibility.

Q5: How can I add storage without shrinking the room?

A5: Recessed niches, a shallow medicine cabinet, and 12-inch deep towers provide real storage with minimal projection. Wall-mounted vanities keep the floor visible and reduce visual bulk.

Q6: What door type works best?

A6: If swing clearance is tight, consider a pocket door or an outward-swinging door. Verify a 30-inch minimum path free of collisions with the vanity or toilet.

Q7: Which materials enhance durability and comfort?

A7: Satin or honed tiles reduce glare; large formats minimize grout. Choose slip-resistant flooring and well-sealed waterproofing in wet zones to handle humidity and wear.

Q8: How do I manage acoustics and ventilation?

A8: Specify a quiet exhaust fan around 1.0–1.5 sones, locate it near the shower, and use a timer or humidity sensor. Good sealing and short duct runs improve performance.

Q9: What color strategy works in small baths?

A9: Light, warm neutrals expand perceived volume. Keep darker tones to floors or one feature wall. High-CRI lighting helps maintain accurate color, especially for skin tones at the mirror.

Q10: Any sustainability tips for a 10x5 bath?

A10: Use recycled-content porcelain, low-VOC sealants, and water-efficient fixtures. Good ventilation reduces mold risk and extends material life.

Q11: How do I plan for future accessibility?

A11: Reinforce walls for grab bars, choose lever handles, and consider a handheld shower on a slide bar. If possible, a low-threshold or curbless shower simplifies access.

Q12: How can I visualize different layouts quickly?

A12: Tape out footprints on the floor to feel clearances, and use a room layout tool to simulate fixture sizes, door swings, and circulation before you purchase.
