14x70 mobile home floor plan: Explore the versatility of 14x70 mobile home designs

I’ve planned and remodeled dozens of 14x70 mobile homes, and the sweet spot always comes from clarity: define zones, keep circulation tight, and layer light to make the footprint feel bigger than its dimensions suggest. A 14x70 (about 980 sq ft) can live like a compact ranch if you choreograph storage, sightlines, and acoustics with intention. Steelcase research notes that 70% of workers value spaces that support both focus and collaboration, a principle that translates at home into quiet nooks and social hubs living side by side without friction. WELL v2 also underscores the role of daylight and glare control in comfort and sleep quality, pushing us to prioritize window placement and task lighting early in the plan.

In practice, I weigh light, color, and ergonomics alongside circulation math. The Illuminating Engineering Society (IES) targets around 300–500 lux for kitchens and 200–300 lux for living rooms, a useful baseline for crafting layered lighting that avoids harsh contrasts. Color psychology can subtly expand perceived volume—Verywell Mind highlights that cooler hues like soft blues and greens tend to calm and visually recede, which helps narrow rooms feel more open. These principles, paired with smart storage walls and acoustic dampening, turn a 14x70 into a well-composed home rather than a long corridor with doors.

Core Layout Strategies for a 14x70

A typical 14x70 supports two archetypes: front living + rear primary suite, or center living + split bedrooms. I often start with a center-living split for privacy and a shorter hallway. If you’re testing variations—open kitchen peninsula vs. island, pocket doors vs. swing—use a room layout tool to visualize circulation and furniture clearance:

room layout tool

Key moves I rely on:

1. Consolidate wet zones: Stack kitchen, bath, and laundry along a shared plumbing wall to reduce cost and free more uninterrupted storage on the opposite wall.
2. Circulation on the “quiet” side: A single traffic spine minimizes interruption to furniture walls and window positions.

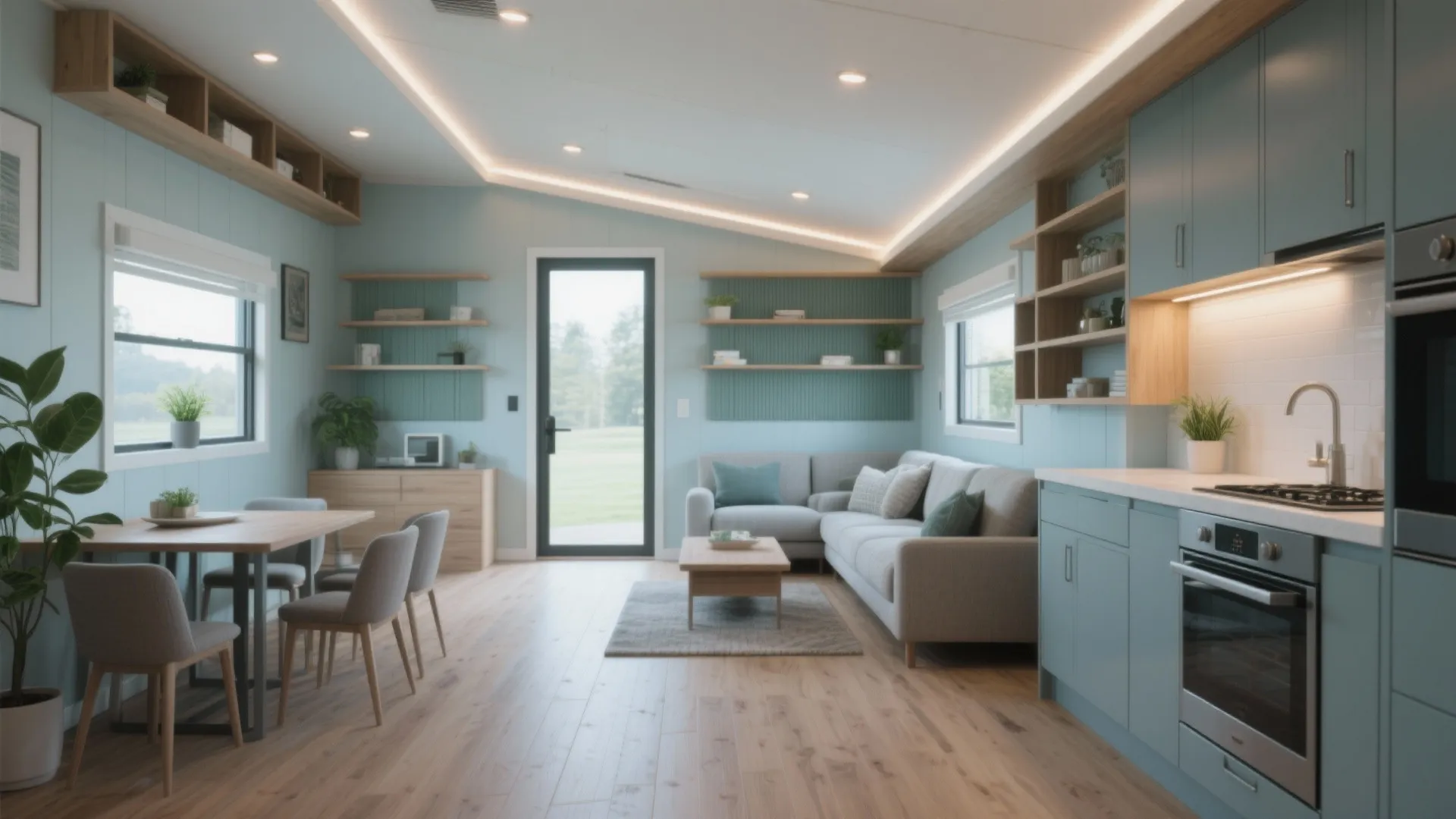

3. Open up the social core: Partial-height shelving or a low hutch replaces a full wall between living and dining for borrowed light and longer sightlines.
4. Pocket and barn doors: Where swing clearances are tight (bath, laundry), pocket doors can buy back usable floor area.

Suggested Room-by-Room Dimensions

These are planning targets that balance comfort with the 14-foot width:

1. Living room: 12–14 ft length x full width minus hallway (9'–10' clear), seating for 4–5. Maintain 36” main aisle, 18” side clearances.
2. Kitchen: 8–12 ft run; 42” between counters for two-person work zones (NKBA guidance), 48” preferred if island seating is included.
3. Dining: 6' x 8' minimum; allow 36” pullback behind chairs.
4. Primary bedroom: 10' x 12' target; flank queen bed with 24” nightstand clearances.
5. Secondary bedroom: 8' x 10' minimum; consider a murphy or lofted bed with integrated storage.
6. Bathroom: 5' x 8' classic; 30” clear at lavatory, 24” towel reach; use a 60” tub/shower combo or 36” x 48” shower if accessible needs exist.
7. Laundry: 3' x 5' closet for stacked units; pocket door and upper cabinets for detergents.

Three Proven Floor Plan Options

Option A: Center Living, Split Bedrooms

Living + dining in the middle, primary suite at one end, secondary bed and bath at the other. Pros: privacy and shorter hallways. Add a peninsula kitchen with a 9–12” overhang for quick dining, and a 30”–36” deep storage wall opposite.

Option B: Front Living with Bay Window

Living at the hitch end with a shallow bay for depth and light; kitchen mid-home; bedrooms to the rear. This works well when the front faces a view or street and you want a defined entertaining zone.

Option C: Galley Kitchen + Flex Room

Continuous galley along one side with a sliding glass door opposite for daylight. Clip a 7' x 9' flex room near the entry: office by day, guest room by night with a wall bed and acoustic paneling.

Lighting and Daylight Tactics

Layered lighting is non-negotiable in narrow plans. I aim for:

1. Ambient: Slim LED downlights spaced ~4–5 ft, 2700–3000K for living, 3000–3500K for kitchen. Target 200–300 lux living, 300–500 lux kitchen (IES guidance).
2. Task: Under-cabinet LEDs (400–600 lumens/ft) to cut shadows; bedside sconces with 90+ CRI for reading.
3. Accent: Wall washers on the long wall to visually widen; picture lights or a linear uplight to stretch the ceiling.
4. Daylight control: Sheer + blackout layers in bedrooms to support circadian rhythm per WELL v2 recommendations on light and glare management.

Color, Materials, and Acoustics

Cool, desaturated hues on the long walls push boundaries outward; a slightly deeper shade on the short walls introduces rhythm and breaks the “bowling alley” feel. Keep floors consistent—one species or tone from front to back—to reduce visual fragmentation. For sound, line the bedroom party walls with mineral wool and 5/8” Type X gypsum; add soft finishes (rugs, fabric headboards, curtains). In kitchens and baths, choose water-resistant LVP with a 20-mil wear layer and matte cabinetry to reduce glare. Sustainable swaps: low-VOC paints, FSC-certified plywood, and LED fixtures with replaceable drivers.

Storage and Furniture Planning

1. Built-in wall: A 14–16” deep storage wall along the long side of the living area swallows clutter—closed bases, open uppers.
2. Bed platforms: 12–14” high drawers for seasonal items; headboard niches with integrated USB.
3. Corner banquette: In dining, a 60” x 84” L-shaped bench adds seating without increasing circulation demands.
4. Sofa sizing: 78–84” max with a 24” deep lounge chair opposite; keep 30–36” pathway clear to bedrooms.

Mechanical, Windows, and Doors

Place the furnace and water heater centrally to shorten runs; cluster wet rooms to minimize pipe length. Opt for 30–36” wide doors in main areas; use solid-core doors at bedrooms for acoustics. Window rhythm: evenly spaced 3060 or 3050 units aligned to furniture walls. Try a 6068 slider off dining for spill-out and daylight; add exterior shading where western exposure causes heat gain.

Cost-Savvy Upgrades

1. Plumbing wall consolidation and a simple roofline keep budgets predictable.
2. Swap to a 200A panel if you’re planning induction cooking and heat pump HVAC.
3. Prioritize insulation upgrades (floor and roof) before luxury finishes; comfort pays back daily.
4. LED dimming controls and occupancy sensors in secondary spaces manage energy without fuss.

Safety and Accessibility Touches

Zero-threshold shower in at least one bath, blocking in walls for future grab bars, 42” clear in the kitchen work aisle if possible, lever handles, anti-scald valves, and layered lighting with nightlights in circulation zones. If mobility is a concern, consider a slightly reduced island depth and 5' turning circles at bath and entry.

Sample 14x70 Layout Blueprint (Text-Only)

Entry at mid-home into living (10' x 13'), open to dining (6' x 8') and galley kitchen (10' run + 42” aisle). To the left: short hall to secondary bedroom (9' x 10') and main bath (5' x 8') with stacked laundry closet. To the right: primary suite (10' x 12') with 5' x 5' walk-in and 5' x 8' bath option. Continuous storage wall opposite the kitchen; sliding door to a small deck off dining.

Design Workflow: Test Before You Commit

I iterate fast: block out major walls, drop standard appliance modules, check door swings, then run two or three furniture layouts before finalizing window positions. A good interior layout planner helps simulate clearances and daylight angles when you adjust ceiling fixtures or swap in a peninsula:

interior layout planner

References I Rely On

For evidence and benchmarks, I cross-check with WELL v2 Light and Mind features for daylight and glare control, and IES recommended practices for task levels in kitchens and living areas. Steelcase’s workplace findings around focus vs. collaboration zones map surprisingly well to creating quiet bedrooms and social living cores in compact homes.

FAQ

How many bedrooms fit comfortably in a 14x70?

Two bedrooms are ideal, with either one or two bathrooms. A split-bedroom plan preserves privacy and keeps the hall short.

What is the best kitchen layout for this width?

A galley or single-wall kitchen with a peninsula works best. Aim for a 42” work aisle (48” if you have seating), aligning with NKBA workflow guidance.

How do I make the narrow width feel wider?

Use continuous flooring, light neutral walls with a slightly darker tone on short walls, wall washers to brighten the long wall, and low-profile furniture. Cooler hues can help spaces recede visually, as noted in color psychology research.

What lighting levels should I target?

Per IES guidance, plan about 200–300 lux for living rooms and 300–500 lux for kitchens. Layer ambient, task, and accent lighting with dimmers.

How can I reduce noise between rooms?

Use mineral wool in partitions, solid-core doors at bedrooms, soft finishes, and consider resilient channels if you’re particularly sensitive to sound.

Where should I place windows?

Distribute evenly along the long walls and prioritize corners of living and dining. Add a slider by the dining area for daylight and outdoor access. Control glare with layered window treatments.

Is an island possible in a 14-foot-wide plan?

Yes, but keep it compact (24–30” deep) and maintain a 42–48” aisle. A peninsula often yields better circulation in this width.

What’s the smartest storage strategy?

Dedicate one long wall as a storage spine: 14–16” deep built-ins with a mix of closed bases and open display. Use platform beds and a laundry closet with upper cabinets.

How do I balance open space with privacy?

Place living/dining centrally with bedrooms at opposite ends, and use partial-height shelving or glass partitions to keep sightlines open while defining zones.

Which HVAC and electrical upgrades matter most?

A heat pump for efficient heating/cooling, a 200A panel for induction and EV future-proofing, and well-sealed ducts. Prioritize insulation in floor and roof cavities.

What flooring works best for durability?

Water-resistant LVP with a 20-mil wear layer handles kitchens, baths, and entries well. Keep the same tone throughout to visually expand rooms.

How do I plan for aging in place?

Zero-threshold showers, blocking for grab bars, lever handles, wider main doorways (34–36”), and layered lighting with nightlights in circulation zones.

Can I add a home office without losing a bedroom?

Yes—use a 7' x 9' flex room with a wall bed, or carve a workstation niche into the storage wall with acoustic panels above.

What’s a typical budget priority order?

Envelope and insulation, HVAC and electrical capacity, lighting and controls, then cabinets and surfaces. Placing plumbing on one wall helps control costs.
