3D Tiles for Room: Transform Your Space with Dimension: Fast-Track Guide to Choosing 3D Tiles for Any Room in Minutes

3D tiles do more than decorate a wall—they manipulate light, shadow, and touch to change how a room feels and functions. In space planning, I use dimensional surfaces to create focal points, balance proportions, and absorb sound where flat finishes fall short. Research supports the human response to depth and texture: Gensler’s Workplace Survey found that well-designed, visually engaging environments can boost perceived workplace effectiveness by up to 20%, particularly when choice and sensory variety are present. WELL v2 also ties visual complexity and glare control to comfort and cognitive performance, reinforcing that depth and texture aren’t just cosmetic; they impact how people think and feel.

Lighting is the make-or-break factor. The Illuminating Engineering Society (IES) recommends 300–500 lux for most living and working tasks; with 3D tiles, grazing light at this level can enhance relief without harsh contrasts. Meanwhile, WELL v2 emphasizes Unified Glare Rating (UGR) targets ≤19 in task zones to avoid visual fatigue. When I layer dimmable 2700–3500K lighting across textured walls, I get crisp definition during the day and a softer, more intimate grain in the evening—proof that photometrics and surface geometry should always be designed together. For color mood, Verywell Mind’s color psychology overview notes that warmer hues create energy while cool tones support calm; 3D tiles amplify these effects by catching more light across each facet.

Acoustics matter too. Steelcase research highlights noise as a top distraction in open environments; small surface modulations help diffuse mid- to high-frequency sound. Pairing 3D ceramic or gypsum with acoustic backing panels near conversation zones can subtly lower reverberation, improving speech clarity without covering every wall. Materials and pattern depth influence reflection and diffusion, so testing a single panel under real light and sound conditions pays off.

What Are 3D Tiles and Where They Work Best

3D tiles are rigid or semi-rigid wall or ceiling modules with raised profiles: flutes, waves, pyramids, or organic reliefs. I specify them to: (1) frame focal walls behind sofas, beds, or reception desks; (2) define transitions—such as a hallway to living area; (3) manage acoustics in media rooms; (4) anchor small rooms that need a strong visual rhythm. Use them sparingly on a single plane for emphasis, or wrap a corner to elongate a short wall.

Planning the Layout and Visual Balance

Dimension demands discipline. I start with a grid: centerlines aligned to doors, windows, or furniture axes. Tile scale matters—larger modules calm a space; small modules add sparkle but can feel busy. Maintain a strong datum (like sill height or head height) so the relief feels integrated. When I test different wall compositions, I simulate sightlines from doorways and seating using a room layout tool to avoid awkward terminations and ensure the tile rhythm supports circulation. Try a layout simulation tool to check how light rakes across the pattern at different times of day.

Consider spatial ratios. A 60/30/10 balance—60% calm surfaces, 30% textured, 10% accent—keeps rooms readable. If ceilings are low, use vertical ribbed tiles to visually lift; if a room feels narrow, horizontal flutes widen the field. For open-plan living, I’ll allow texture to cue zones: soft waves in the lounge, quieter micro-relief near the dining area, leaving prep zones smooth for easy cleaning.

Light, Color Temperature, and Glare Control

Grazing versus washing is the key choice. Grazing from 6–12 inches off the surface dramatizes relief; wall washing from 24–36 inches softens. I aim for layered light: a grazing linear at 3000K, ambient downlights at 3500K, and a dimming curve to 10% for evening unwind. Keep beam angles narrow (20–30°) when you want crisp scallops; broaden to 40–60° for uniform wash. Use matte or eggshell finishes on tiles to hit WELL-aligned glare control; high gloss only where you want deliberate sparkle, never near screens or task surfaces.

Material Selection: Ceramic, Gypsum, Concrete, Wood, and Composites

Ceramic/Porcelain: Best for baths and kitchens—stain resistant, easy to wipe, wide relief options. Choose matte glazes to temper specular highlights. Gypsum/Plaster: Light, workable, great for continuous, sculpted surfaces and concealed joints; seal against humidity. Concrete/Ultra-High Performance Concrete: Deep relief and crisp edges; heavy, so confirm substrate strength and mechanical fastening. Wood/Engineered Timber: Warm acoustics and touch; specify FSC-certified veneers and clear Class A/B fire performance for commercial use. PET Felt/Composites: Excellent acoustic absorption, low weight, often recycled content—ideal behind TV walls or in studios.

Ergonomics and Human Factors

Textures at touch height should feel intentional. I keep aggressive profiles above 36 inches in circulation zones to prevent snagging and below 80 inches to stay within reachable maintenance height. In bedrooms, soft profile depths (3–8 mm) near a headboard avoid pressure points. In kids’ rooms, rounded edges and Class A flame-spread materials are non-negotiable. For accessibility, avoid protrusions exceeding 4 inches into paths; keep edge contrast around doorways for visual clarity.

Color Psychology and Finish Pairings

Warm whites and clay tones add comfort; cool grays and blues calm and sharpen. Because 3D tiles catch more light, light colors appear brighter than on flat paint. I’ll often use a split-finish palette: textured wall in a mid-tone matte, adjacent planes slightly lighter to maintain depth. If you want a bold hue, confine it to one textured wall and echo it in soft furnishings for balance.

Acoustic Comfort with 3D Tiles

Profile depth matters. Shallow flutes (5–10 mm) subtly diffuse; deeper pyramids or scallops scatter sound effectively. Backing the tile with a 6–12 mm acoustic underlayment improves low-mid frequency performance. Position textured walls opposite major sound sources—TV speakers, play areas—to break up reflections. In small rooms with parallel walls, use 3D on only one side to avoid flutter echo while keeping the space visually calm.

Sustainability and Maintenance

Prioritize low-VOC adhesives and sealers. Choose durable profiles that withstand cleaning—especially in kitchens and entryways. I ask for EPDs or recycled content where available and specify modular systems that allow panel replacement without demolition. Light-color mattes hide dust better; textured high-gloss shows smudges quickly. Plan a seasonal dusting routine with a soft brush attachment; in baths, a squeegee pass after showers prevents mineral buildup on ceramic relief.

Installation Tips and Avoiding Common Mistakes

Substrate flatness is everything—3D tiles magnify uneven walls. Skim coat, sand, and prime. Dry-lay patterns on the floor; confirm edge alignment and corner returns. Use laser lines for datum control; step back every few rows to check rhythm. For corners, either miter factory edges or cap with a minimal trim that matches the profile. Always coordinate lighting positions before tiling; moving a linear grazer post-install is costly and compromises the effect.

Room-by-Room Applications

Living Room

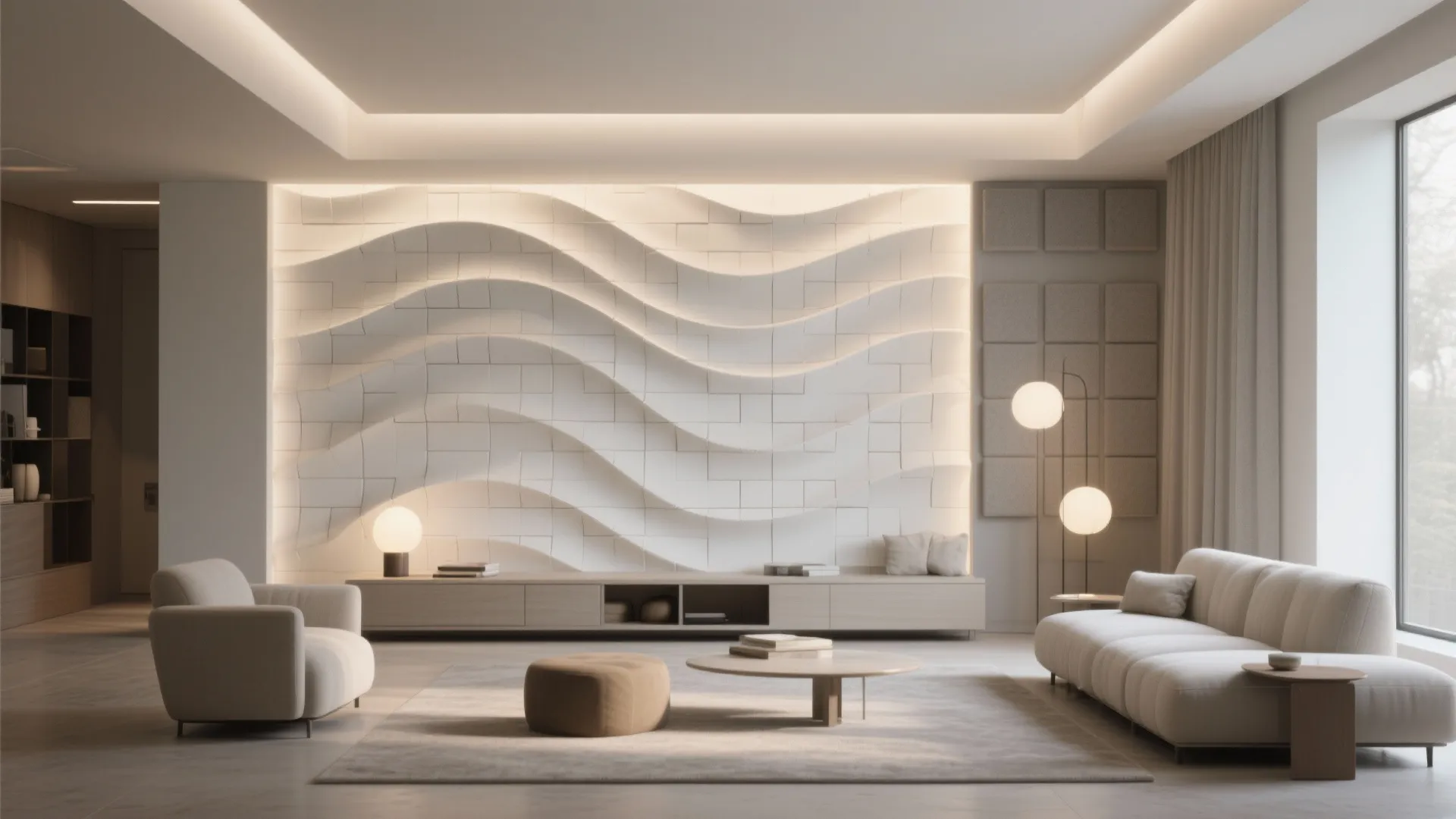

Anchor the TV or fireplace wall with mid-depth waves and a 3000K grazing linear integrated into a shallow cove. Keep adjacent walls smooth to avoid visual overload.

Bedroom

Use soft-ribbed tiles behind the headboard, dim to 10–20% at night. Choose breathable materials and tactile finishes for a cocooned feel.

Kitchen

Small-format porcelain flutes on the backsplash give depth without trapping grime; pair with under-cabinet grazing lights at 3500K.

Bathroom

Matte porcelain relief tiles reduce glare; slope transitions carefully to shed water. Warm 2700–3000K light flatters skin tones.

Home Office

Micro-relief behind the desk improves video backgrounds and diffuses sound. Keep UGR low with shielded fixtures and reflective glare off screens in check.

Visualization and Iteration

Before committing, I mock up one panel under the planned lighting. A fast digital iteration also prevents regret—test multiple relief scales, beam angles, and color temperatures with an interior layout planner to preview sightlines and contrast. It’s far easier to adjust a sconce offset in a room design visualization tool than to rewire after tiling.

FAQ

Q1: Do 3D tiles make small rooms feel smaller?

A1: Not if you manage scale and lighting. Use larger, calmer profiles and a soft wall wash to keep the space airy. Vertical ribbing can visually lift low ceilings and actually make a compact room feel taller.

Q2: What lighting works best with 3D tiles?

A2: A combination of grazing linears (6–12 inches from the wall) and ambient downlights. Target 300–500 lux overall per IES guidance, with dimmable 2700–3500K for comfort and WELL-aligned glare control.

Q3: Are 3D tiles suitable for bathrooms and kitchens?

A3: Yes—choose porcelain or glazed ceramic for moisture and stain resistance. Seal grout, maintain good ventilation, and prefer matte glazes to reduce glare on wet surfaces.

Q4: How do 3D tiles affect acoustics?

A4: Relief diffuses mid-high frequencies. For meaningful improvement, combine the tile with acoustic backing or pair it with soft finishes (rugs, curtains) to lower reverberation.

Q5: Can I paint 3D tiles?

A5: Many gypsum and some ceramic profiles accept paint. Use high-adhesion primers and matte or eggshell finishes to avoid harsh highlights on raised facets.

Q6: What’s the ideal color temperature for evening settings?

A6: 2700–3000K creates warmth and reduces alertness before sleep, while 3500K keeps a crisper look for work modes. Dimming is as important as CCT for comfort.

Q7: How do I maintain textured tiles?

A7: Vacuum dust with a soft brush, then wipe with a microfiber cloth. In wet zones, a quick squeegee prevents mineral spots. Avoid abrasive cleaners on matte finishes.

Q8: Are there sustainability options?

A8: Yes—look for recycled-content PET felt panels, FSC-certified wood veneers, or tiles with Environmental Product Declarations. Low-VOC adhesives and modular systems extend life and cut waste.

Q9: Should 3D tiles wrap around corners?

A9: Only when it strengthens the composition. If the corner is a natural endpoint, finish cleanly; if it’s a feature column, a mitered wrap can emphasize verticality.

Q10: How do I prevent visual clutter?

A10: Limit textured coverage to 20–40% of wall area, keep a consistent datum, and contrast with calm adjacent surfaces. Use a single hero pattern per room.
