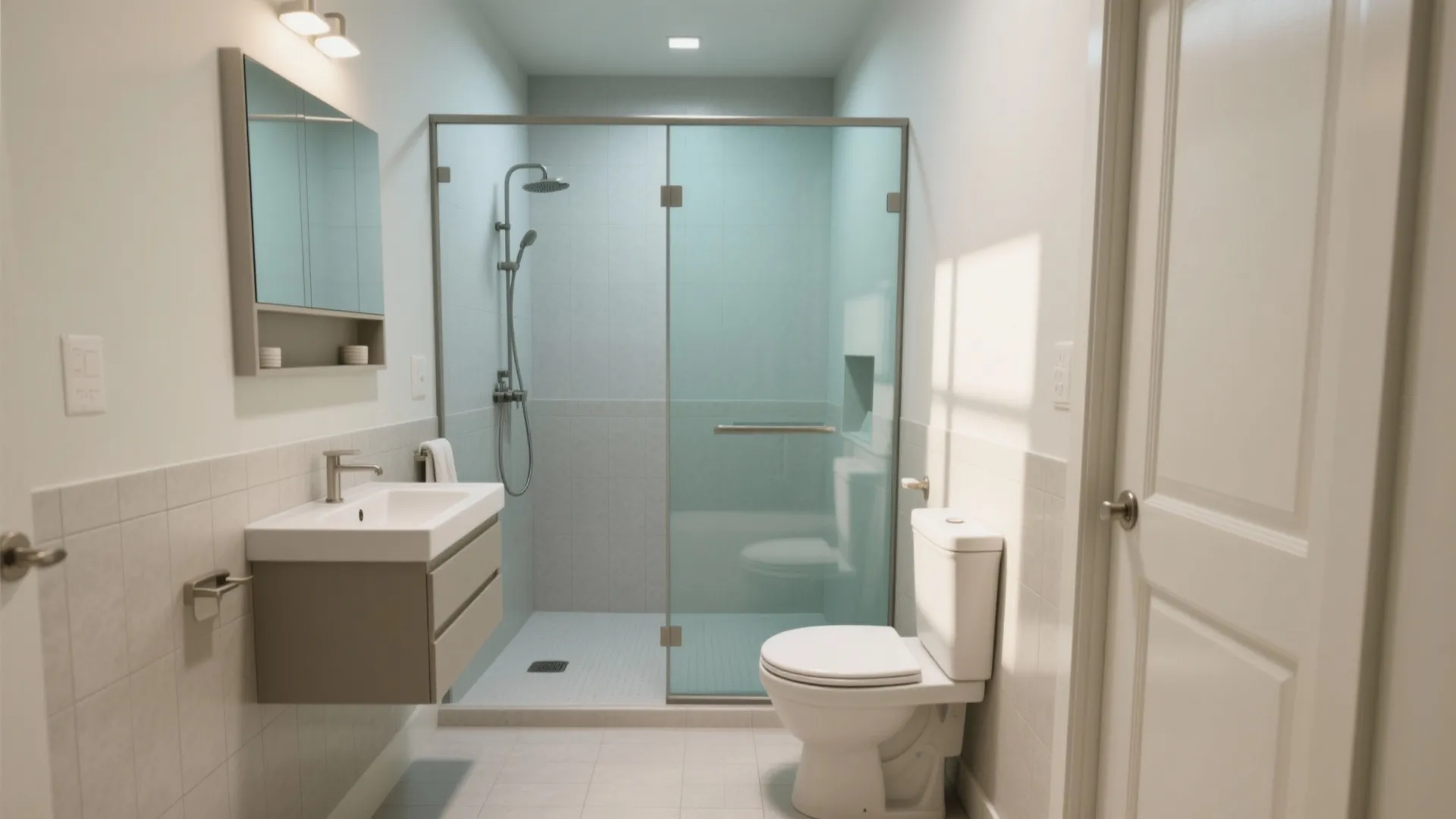

4x5 bathroom layout with shower: Maximizing Space in a Compact Bathroom Design

I routinely design compact bathrooms that work harder than their footprint. A 4x5 bathroom (approximately 20 square feet) can comfortably accommodate a shower, toilet, and basin—if clearances, light, and storage are handled with precision. Done right, the space feels uncluttered, safe, and surprisingly luxurious.

In tight rooms, measurable decisions matter. The NKBA recommends a minimum of 24 in (610 mm) clear space in front of a toilet and lavatory, and at least 30 in (762 mm) by 30 in (762 mm) in the shower for comfortable movement. WELL v2 guidance encourages glare control and adequate illumination, with task lighting around 300–500 lux to support grooming without eye strain. These benchmarks keep the layout functional and healthy. Explore workplace-grade environmental strategies at WELL v2 (v2.wellcertified.com) for light, acoustics, and thermal comfort principles that translate well to residential bathrooms.

Color affects perceived scale. Research summarized by Verywell Mind indicates cool hues—soft blues and desaturated greens—can reduce stress and make enclosed areas feel more open, whereas dense, warm palettes can visually compress space. Pair that with a 3000–3500K warm-white LED for flattering skin tones, and maintain a high Color Rendering Index (CRI 90+) so tile and finishes read true.

Optimal 4x5 Shower-First Layout

When square footage is this tight, the shower placement drives everything. I favor a 30x60 in (approx. 762x1524 mm) alcove shower oriented along the 5 ft wall, with a single-panel fixed glass (partial screen) to keep lines clean and splashing contained. Center the toilet on the opposite long wall and stack the vanity near the entry for clear movement. If you need a planning aid or quick visualization, a room layout tool helps simulate door swings, glass panels, and fixture clearances: room layout tool.

Clearances That Prevent Daily Friction

- Toilet: 30 in (762 mm) total width preferred; 15 in (381 mm) from centerline to each side wall. Maintain 24 in (610 mm) clear in front.

- Vanity: For a 20–24 in (508–610 mm) deep vanity, keep 24 in (610 mm) front clearance. A 16–18 in (406–457 mm) deep compact sink works well in very tight rooms.

- Shower: Minimum 30x30 in (762x762 mm); 32x48 in (813x1219 mm) feels better if achievable. Opt for a linear drain to reduce curb height and improve accessibility.

Door Strategy: Swing, Pocket, or Glass

A standard hinged door requires about 30–32 in (762–813 mm) clear swing and can collide with knees or vanity corners. A pocket door frees that footprint and improves flow. If the building allows, I’ll spec a solid-core pocket door with soft-close hardware to keep noise down and provide privacy. Inside the shower, a fixed panel plus walk-in opening reduces hinges and feels lighter.

Light and Glare Control

Balance ambient and task layers. Aim for 150–200 lux ambient from a low-glare ceiling fixture, then add 300–500 lux task light at the mirror via vertical sconces set 66–72 in (1676–1829 mm) high and 24–28 in (610–711 mm) apart. Keep luminaires with UGR-friendly optics to minimize veiling reflections on glossy tile. Use a dimmable driver for night-time transitions and motion sensor under-vanity toe-kick light for safe nocturnal trips.

Surfaces That Make Small Rooms Feel Bigger

- Large-format tile with tight grout joints visually elongates walls; run it vertically to add perceived height.

- Light, matte finishes reduce glare and shadow harshness; a satin paint in moisture-resistant grade improves upkeep.

- Low-profile trims and recessed niches keep storage flush with walls, avoiding protrusions that clip circulation.

Ergonomics and Human Factors

Mount the vanity at 34–36 in (864–914 mm) to align with typical adult elbow height and reduce back strain. Place the shower valve 38–48 in (965–1219 mm) high and within reach of the entry so you can start water without getting wet. If space allows, install a slim fold-down seat or a 12 in (305 mm) corner shelf for leg support during washing—small touches that increase usability.

Acoustic Comfort

Compact bathrooms amplify sound. A solid-core door and a quiet exhaust fan (≤1.5 sones) limit reverberation. Seal trim gaps, and use silicone rather than hard grout at change-of-plane joints to reduce rattling. Soft elements—bath mat, towels—absorb high-frequency reflections, making the room calmer.

Ventilation, Moisture, and Thermal

Use a dedicated exhaust fan sized to the volume (1 CFM per square foot is a common rule of thumb; verify local code). Set a run-on timer for 20–30 minutes post-shower. A programmable towel warmer and radiant floor mat under the tile keep surfaces dry and comfortable without bulky radiators.

Storage Without Bulk

Recess a 14 in (356 mm) wide medicine cabinet flush to the wall; a mirrored door doubles as task lighting bounce. In the shower, a 24 in (610 mm) tall niche centered at 46–54 in (1168–1372 mm) keeps bottles accessible. If a linen closet is impossible, use over-toilet open shelves with a 10–12 in (254–305 mm) depth to avoid head bumps.

Color Psychology and Mood

Cool, airy palettes with subtle contrast expand perceived volume. A pale greige wall with light gray tile and brushed nickel hardware reads calm and coherent. Introduce a single accent—e.g., a deep teal towel set—to avoid visual clutter. Keep patterns low-contrast; high-contrast stripes can visually fragment small rooms.

Safety and Accessibility

Opt for a low-threshold or curbless shower where feasible. Use 1x1 to 2x2 in mosaic flooring for traction (more grout lines, better slip resistance). Place a grab bar at 33–36 in (838–914 mm) height on the shower’s control wall; a vertical bar at entry aids stepping in.

Two Alternative Layouts

- Wet-room approach: Glass-free, continuous floor with central drain; toilet and vanity share the dry zone near the door. Best for extremely tight footprints and easy cleaning.

- Corner shower: A neo-angle 36 in unit in the far corner opens up the center. Specify a compact, wall-hung vanity to keep the floor clear.

Material Selection and Sustainability

Porcelain tile offers durability and low water absorption. Choose VOC-free paints and FSC-certified hardwoods for any millwork. A WaterSense toilet and a 1.75 gpm showerhead cut consumption while maintaining comfort. LED fixtures with long lifespans reduce maintenance in constrained spaces.

Planning and Visualization Workflow

Before committing to plumbing shifts, I prototype clearances, door choices, and lighting positions in an interior layout planner to catch conflicts early and refine circulation: interior layout planner. Print scaled plans and test with cardboard templates on site; it’s a deceptively powerful way to sense movement width and reach zones.

FAQ

Q1: Can a 4x5 bathroom fit a comfortable shower?

A: Yes. A 30x60 in alcove or a 32x48 in rectangular shower works well. Keep clearances per NKBA guidance—24 in in front of fixtures and at least 30x30 in inside the shower.

Q2: What door type avoids collisions in tight spaces?

A: A pocket door or outward-swing hinge reduces interference with the vanity and toilet. Inside the shower, use a fixed panel with walk-in opening to minimize hardware depth.

Q3: How much lighting do I need?

A: Target 150–200 lux ambient and 300–500 lux at the mirror for grooming, aligned with human-centric lighting principles noted in WELL v2. Add dimming for night use.

Q4: Which colors make the bathroom feel larger?

A: Cool, desaturated hues (soft blues/greens) with light finishes extend perceived space. Research highlighted by Verywell Mind links these tones with calmer mood and reduced stress.

Q5: What’s the best vanity size for a 4x5 room?

A: A 20–24 in deep vanity with a 16–18 in compact basin preserves circulation. Wall-hung models free floor area and visually lighten the room.

Q6: How do I improve storage without clutter?

A: Recessed medicine cabinets, shower niches, and over-toilet shelving at 10–12 in depth provide capacity without intruding into the walkway.

Q7: Is a curbless shower feasible?

A: Often, yes—if the floor can be recessed or built up to achieve slope and waterproofing. Use a linear drain at the entry side and slip-resistant mosaic tile.

Q8: What ventilation rate should I aim for?

A: Size the exhaust fan to room area (commonly 1 CFM per sq ft; verify local code) and add a 20–30 minute run-on timer to clear humidity after showers.

Q9: Which materials are most durable in small bathrooms?

A: Porcelain tile, solid-surface countertops, and moisture-resistant cabinetry perform well. Specify VOC-free finishes to protect indoor air quality.

Q10: How can I reduce noise?

A: Use a solid-core door, an exhaust fan ≤1.5 sones, and seal gaps. Soft finishes (towels, mats) absorb reflections; silicone at joints prevents rattling.

Q11: Where should the shower controls go?

A: Mount them within reach of the entry, 38–48 in high, so you can start water without stepping fully in.

Q12: Do large-format tiles help?

A: Yes. Large tiles with minimal grout lines visually expand walls and are easier to clean. Choose a matte finish to reduce glare in small spaces.
