5 Small ADA Bathroom Layout Ideas: Practical and stylish ADA-compliant bathroom layouts for compact spaces—five ideas I’ve used and tested

I once had a client request a shower that could fit a wheelchair, a pet washing station, and a hidden ironing board all in a bathroom smaller than my college dorm room — I almost laughed, then designed it. Small spaces force you to be inventive, and ADA bathrooms are the ultimate puzzle: you must marry accessibility with elegance. In this piece I’ll share 5 small ADA bathroom layout ideas I’ve used in real projects, each with practical tips and honest trade-offs.

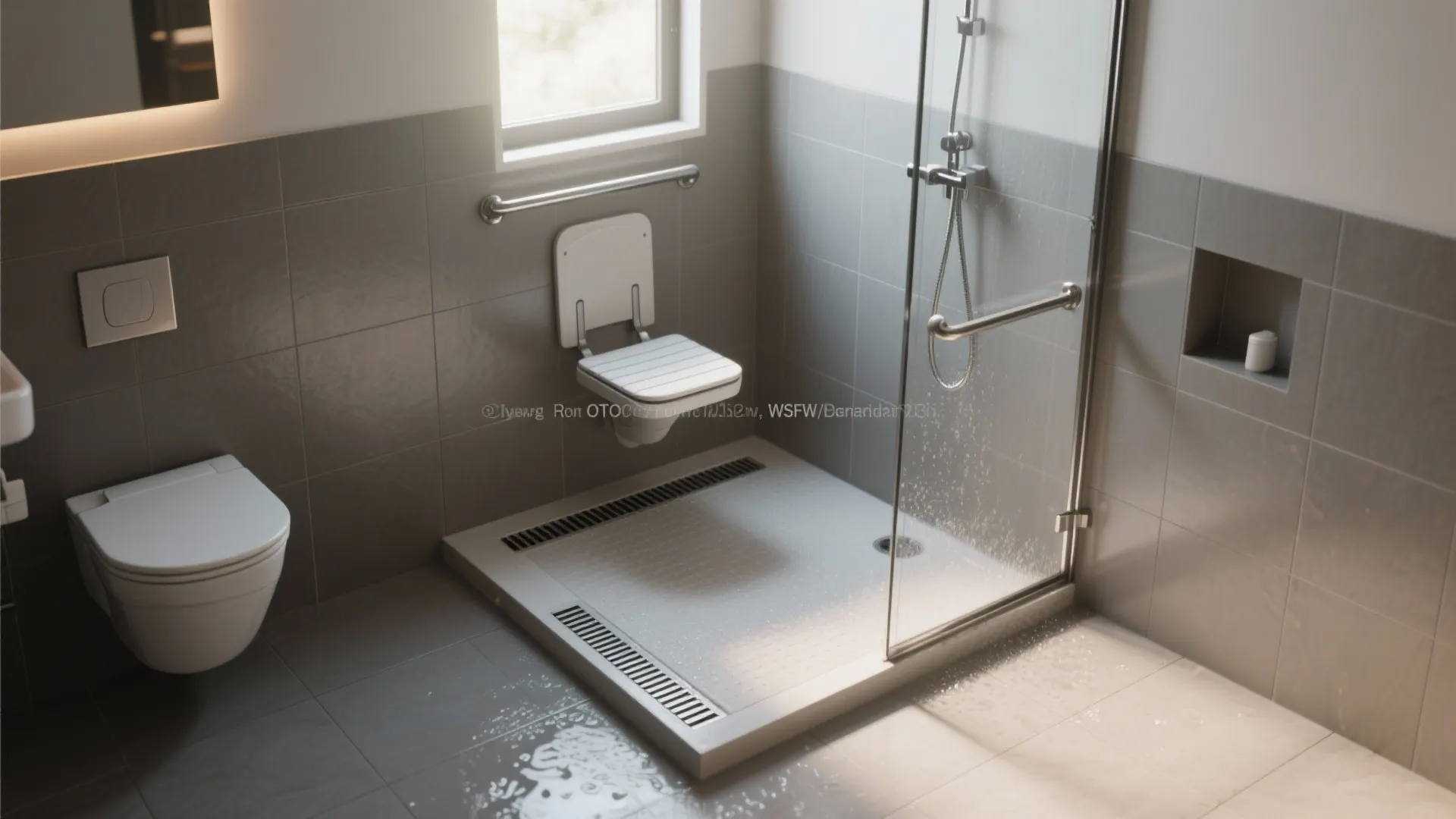

1. Corner Roll-In Shower with Folding Seat

This layout tucks a roll-in shower into a corner, using a diagonal access to save door swing and a folding seat that disappears when not needed. I used this in a 38-square-foot bathroom; the advantages are clear—maximized floor clearance and an unobstructed turning radius. The challenge is water containment: you’ll need curb-free drainage and quality waterproof finishes to avoid splashes crossing into the toilet zone.

save pin

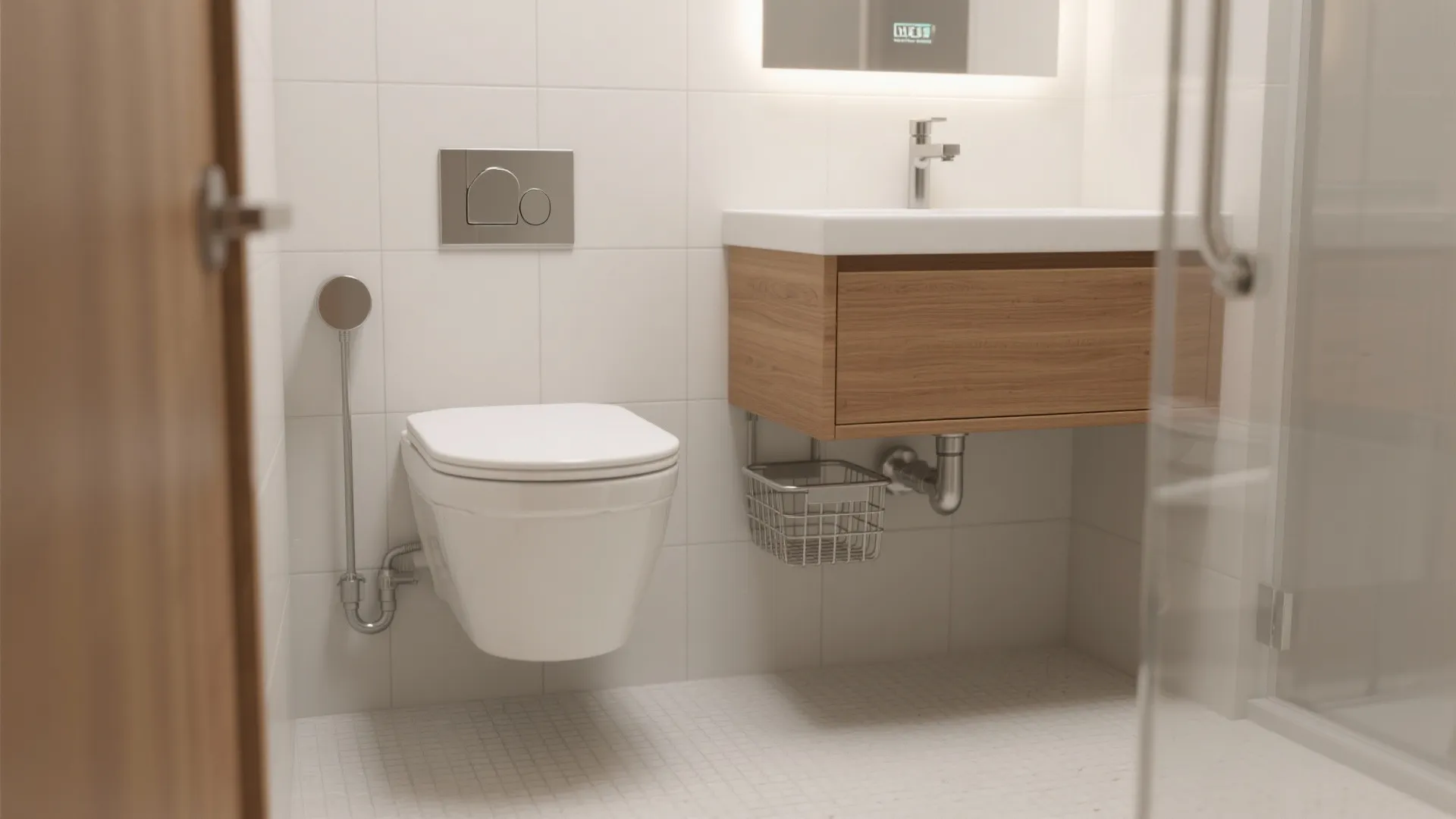

2. Wall-Hung Toilet and Floating Vanity Combo

Keeping fixtures off the floor creates visual space and provides knee clearance for wheelchair users. I often specify a compact wall-hung toilet and a shallow floating vanity with open space underneath. It’s stylish and functional, though plumbing in the wall can add cost and require a stud-depth in-wall tank system. For tight budgets, a recessed carrier frame is a smart compromise.

save pin

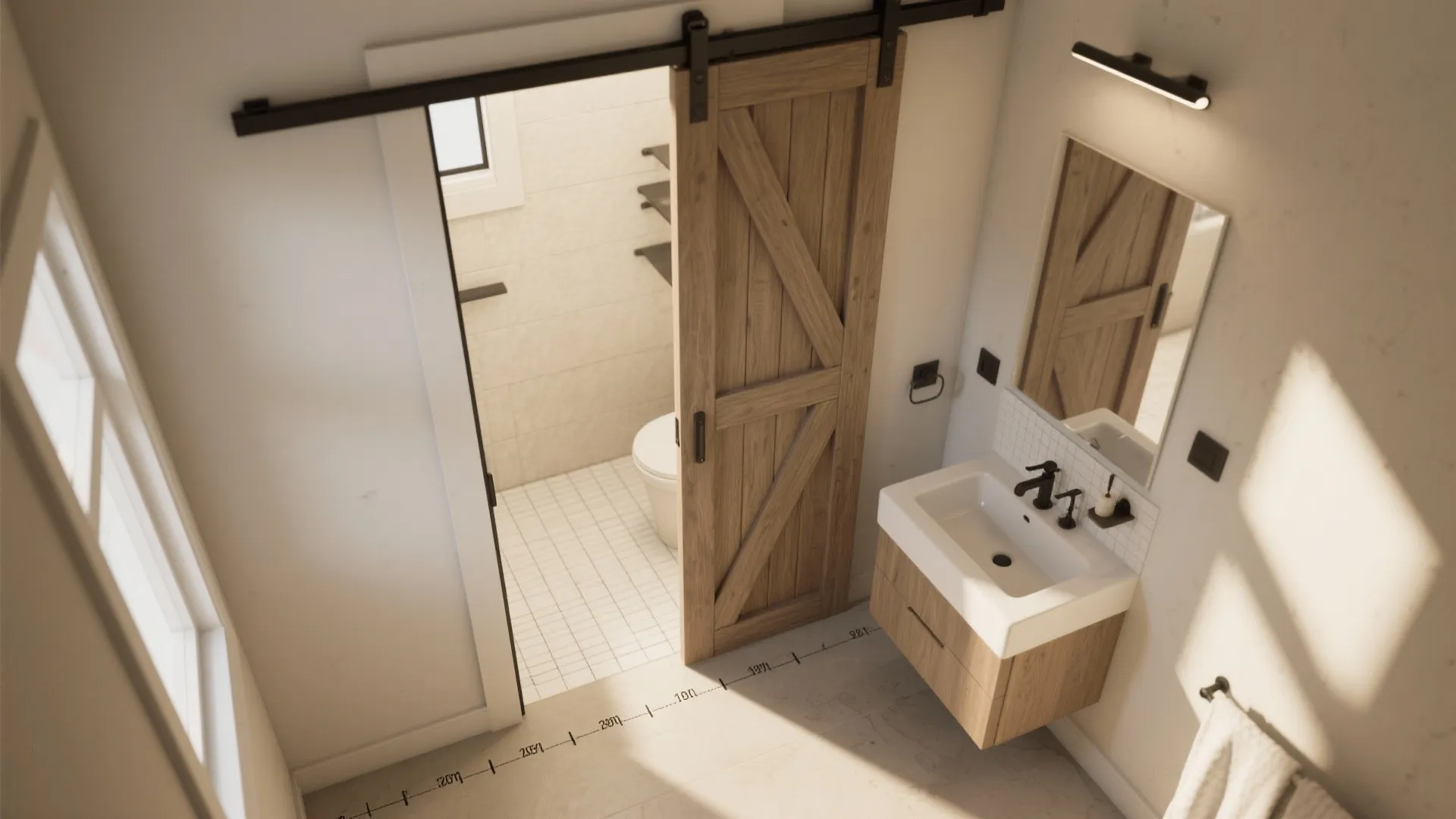

3. Sliding Pocket Door with Pivot Sink

A standard swing door wastes precious room; a sliding pocket door gives you the clearance you need. Pair it with a pivot or offset sink that allows approach from the side—this combination improved circulation in a project where the doorway sat directly opposite the toilet. The drawback is installing a pocket door in a load-bearing wall can be tricky, but in many apartments a surface-mounted barn-style sliding system achieves similar space gains.

save pin

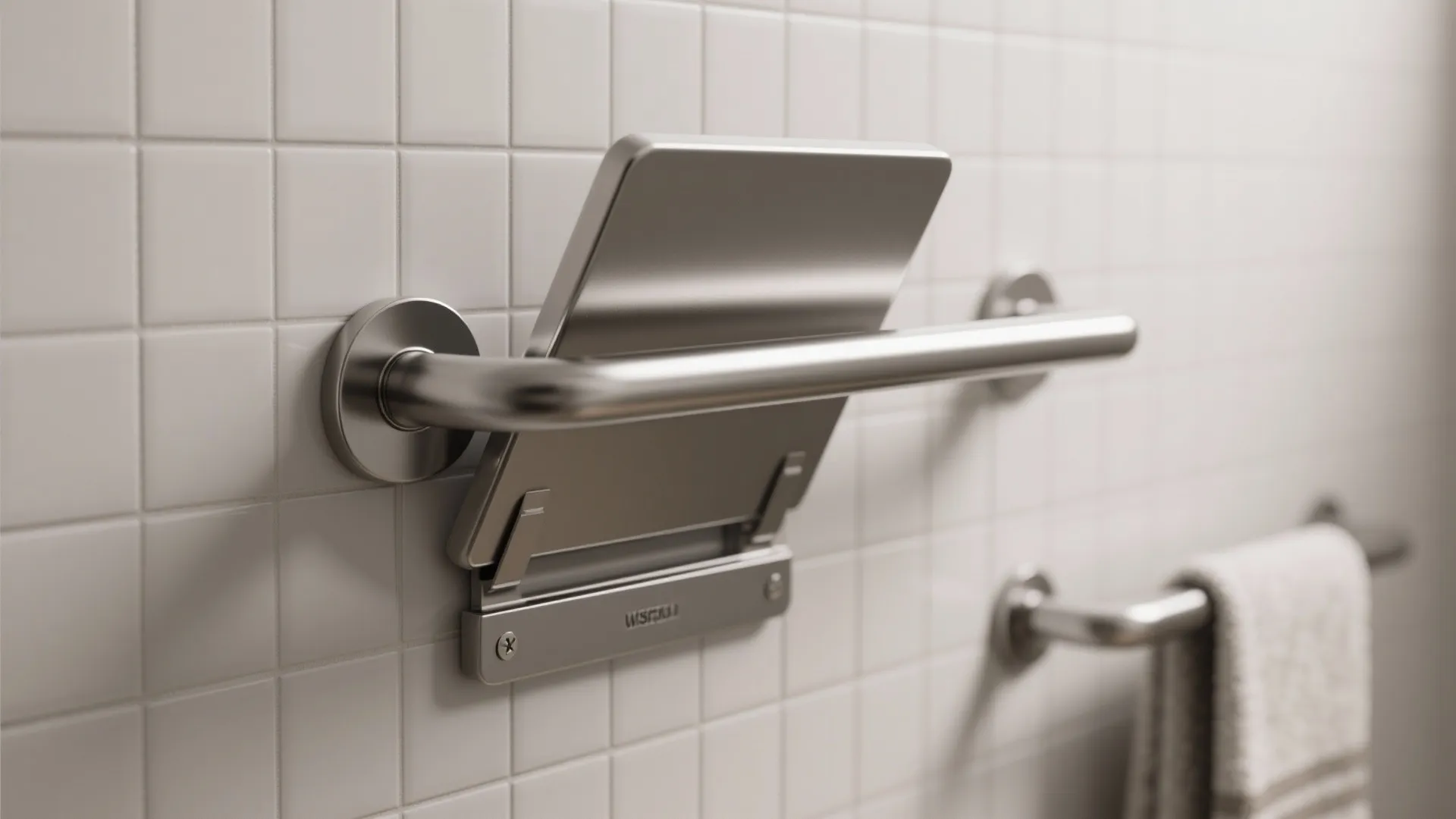

4. Convertible Grab Bar Systems as Design Elements

Instead of bulky, institutional grab bars, use convertible or flip-up grab rails that fold into the wall when not in use. I love recommending stainless steel or powder-coated finishes that match your hardware so they feel intentional. They save space and look less clinical, though you must ensure proper reinforced backing during installation for safety.

save pin

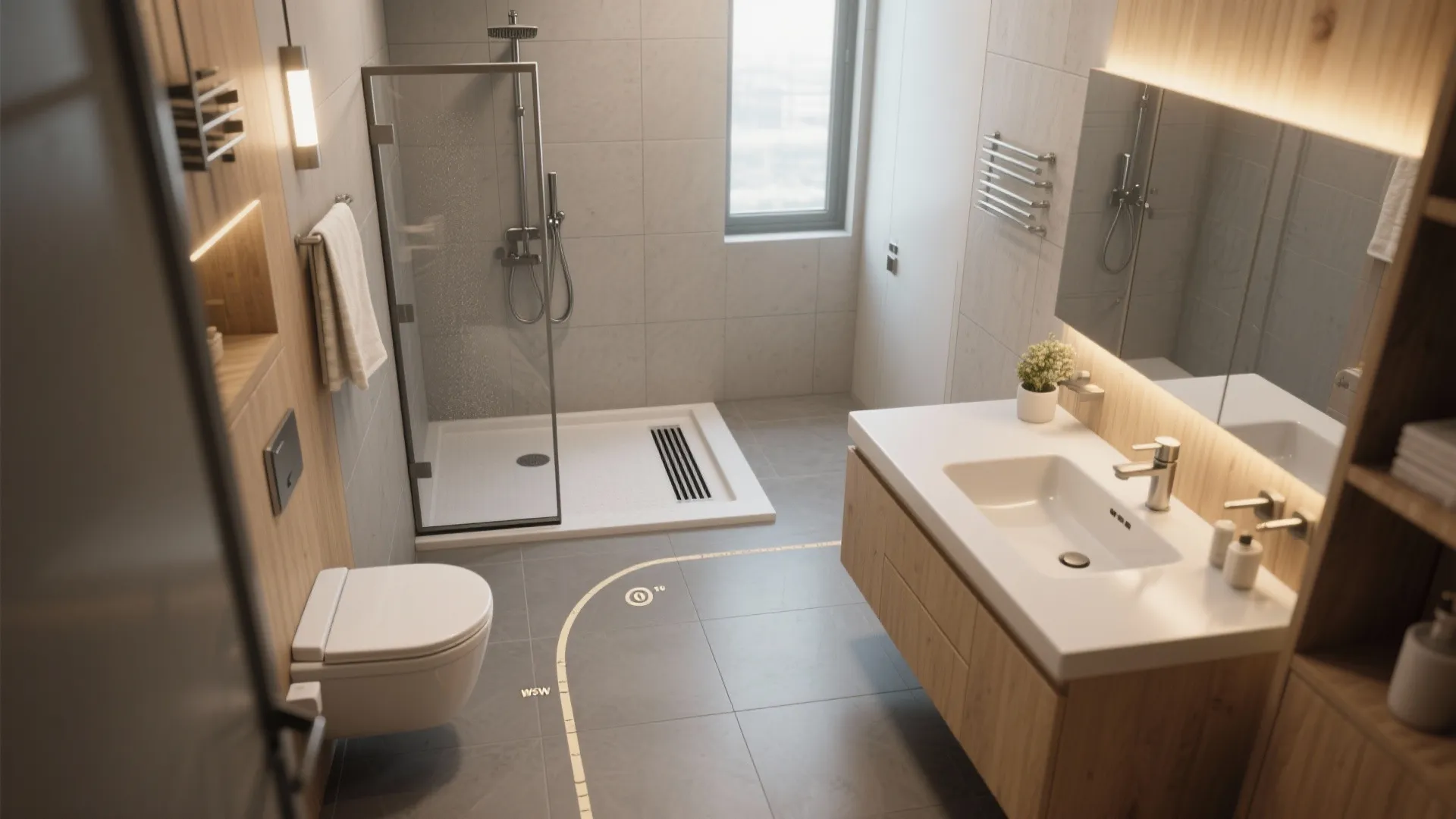

5. Compact Accessible Layout with Combined Circulation Zone

This layout plans a shared circulation zone where the 60-inch turning diameter overlaps with the path between fixtures—ideal for micro-apartments. I executed this once by nudging the sink slightly off-center and using a curbless shower with a linear drain; the result felt open and efficient. The trade-off is precision: measurements must be exact to meet ADA clearances while staying cozy.

save pin

Tips 1:

Practical tips: choose non-slip tiles, use lever handles, and consider pressure-balanced valves for safety. Budget-friendly upgrades like fold-down seats and open-storage vanities can deliver accessibility without a full remodel. If you want to visualize layouts quickly, tools like 3D floor planners help test clearances before committing to plumbing moves — they saved me hours of revisions on one tight job.

save pin

FAQ

Q: What is the minimum size for an ADA bathroom?

A: For a fully accessible single-user restroom, ADA guidelines generally require a 60-inch (1525 mm) diameter clear floor space for a wheelchair turn, though specific requirements can vary by jurisdiction.

Q: Can I make a small bathroom ADA-compliant without moving plumbing?

A: Yes, many solutions—like wall-hung toilets, folding seats, and sliding doors—optimize existing plumbing. However, some accessibility improvements may still need modest plumbing adjustments.

Q: Are curbless showers mandatory for ADA compliance?

A: Curbless (roll-in) showers are required for full roll-in accessibility, but a transfer shower with a suitable seat can be acceptable depending on user needs.

Q: How do I hide grab bars so the bathroom doesn’t feel clinical?

A: Use flip-up grab bars, match finishes to hardware, or integrate bars into shelving and towel racks to blend them into the design.

Q: What flooring is best for ADA bathrooms?

A: Slip-resistant tiles with a matte finish and small grout joints are ideal; consider heated floors for comfort and fast drying to minimize slipping risk. For technical guidance, consult the ADA Standards for Accessible Design (ada.gov).

Q: Do I need a professional to install ADA features?

A: For safety and code compliance, hire licensed plumbers and contractors, especially for in-wall carriers, reinforced backing for grab bars, and waterproofing.

Q: How do I plan lighting in a small ADA bathroom?

A: Use layered lighting—ambient, task at the mirror, and night lighting at floor level. Avoid glare and provide controls reachable from a seated position.

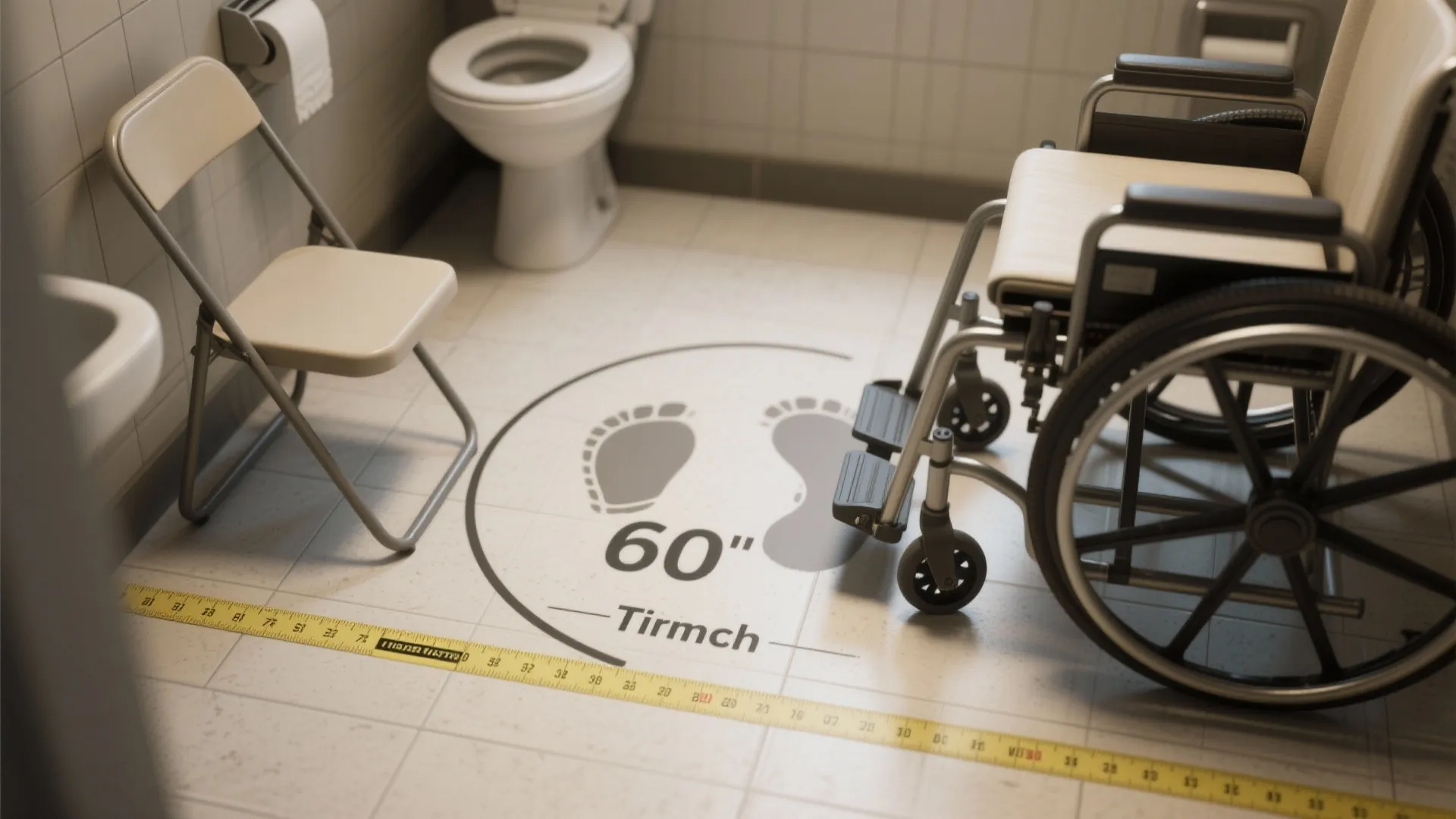

Q: Are there quick ways to test my design before remodeling?

A: Yes, mock up the turning radius with tape on the floor and simulate clearances with a folding chair or by using a 3D floor planner to confirm dimensions.
