8 by 10 bathroom layout: Maximizing Space and Style in Your 8 by 10 Bathroom

An 8x10 bathroom offers enough canvas to balance everyday functionality with a calm, spa-like feel. I treat this footprint as a choreography of movement—door swing, clearances, and storage—so the space feels intuitive and safe. In my recent projects, the most successful layouts prioritize a clear circulation path from entry to vanity to shower, with the toilet tucked for privacy and ventilation. WELL v2 encourages accessible clearances and glare control for health and comfort, and the Illuminating Engineering Society (IES) recommends task lighting around 500 lux at the vanity to improve grooming accuracy—both guidelines translate beautifully into planning decisions that make the room feel larger and easier to use.

Ergonomics matter more than aesthetics alone. Herman Miller’s research links well-organized environments with reduced cognitive load; in bathrooms, that means placing daily-use items within easy reach and maintaining safe step-free transitions, especially around wet zones. I build my lighting scheme around IES layers: ambient lighting at roughly 150–300 lux for general visibility, 500 lux at the mirror for clarity, and 2700–3000K warm color temperature to flatter skin tones while minimizing glare. For color psychology, Verywell Mind notes that soft neutrals and muted blues can lower stress—use them on walls or tile to calm morning rushes and evening routines.

Core Layout Strategy for 8x10

I start with a simple rule: define a dominant wet zone and keep circulation clean. In an 8x10, a long-wall sequence—vanity, toilet, shower—often yields the most efficient plumbing and a visually balanced rhythm. If the door opens inward, aim it toward the vanity rather than the toilet for a better first impression and privacy. A 36–48-inch clear path from door to vanity keeps traffic friction-free. If you’re exploring variations, a layout simulation tool can help you quickly test options using a room layout tool: room layout tool.

Option A: Long-Wall Linear Plan

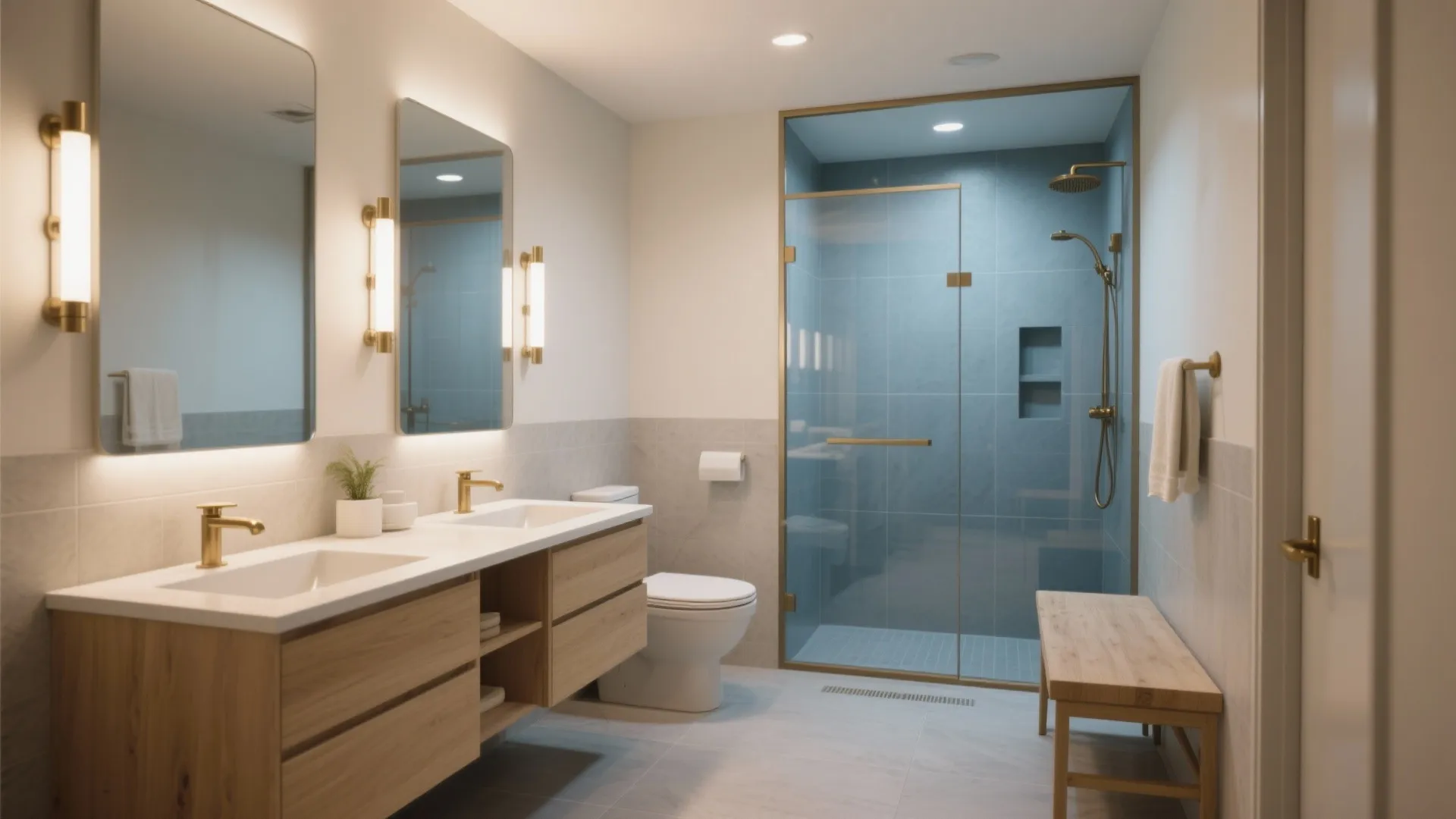

Place a 60-inch double vanity along the long wall, followed by a concealed toilet nook, and end with a 60x36-inch shower. This keeps plumbing consolidated and creates a calm sight line. Use a frosted glass panel or a half-height wall to shield the toilet from the entry. I prefer a sliding shower door to avoid door conflicts and improve accessibility. If a tub is non-negotiable, swap the shower for a 60-inch alcove tub with a glass screen to control splash.

Option B: Split-Zone with Alcove

Create a shallow alcove for the toilet opposite a compact single vanity (36–48 inches), then dedicate the end of the room to a larger shower (up to 60x40 inches) with a bench. The bench doubles as a safe transfer zone and storage surface for bottles, keeping the floor clear. A wall-hung toilet and floating vanity lighten the visual weight for a more open feel. Maintain at least 21 inches clearance in front of the toilet and 30–36 inches in front of the vanity for comfortable movement.

Option C: Wet Room Approach

For a minimal, spa-like experience, combine shower and tub within a single wet zone behind a full-height glass partition. Floor the wet area with slip-resistant porcelain (DCOF ≥ 0.42) and a slightly higher drain rate. This approach simplifies cleaning and gives a luxurious sense of openness. Keep towels and daily items in a dry buffer zone to prevent clutter and moisture damage.

Lighting and Mirror Strategy

Layer light for function and mood. I fit vertical sconces at eye level (typically 60–66 inches AFF) flanking the mirror to reduce shadows. Add dimmable ambient lighting and a low-glare downlight over the shower, rated for wet locations. At the vanity, target ~500 lux per IES for grooming, with 90+ CRI bulbs to render true skin tones. For evenings, warm 2700K lighting lowers stimulation and fits the circadian wind-down. Glare control matters: avoid bare LEDs directly facing the mirror, and consider etched glass diffusers for soft distribution.

Materials and Maintenance

In small rooms, material choices carry extra weight. Large-format, matte porcelain tiles reduce grout lines and visual noise. I pair them with a lighter wall tone and slightly darker floor for grounded balance. Choose slip-resistant finishes in wet zones and use epoxy grout to resist stains. Sustainability-wise, I lean toward low-VOC paints and FSC-certified wood for vanities; well-sealed composite countertops give you durability without the heavy maintenance of natural stone. Ventilation through a properly sized exhaust fan (check manufacturer CFM relative to room volume) is non-negotiable.

Storage Without Bulk

Built-ins beat freestanding storage for an 8x10. A recessed medicine cabinet keeps the counter clear; a shallow niche (12–14 inches wide) beside the vanity holds daily items. In the shower, a vertical niche with a lower ledge for heavier bottles is more ergonomic than a single large niche. Use the space above the toilet for a closed cabinet to hide paper and cleaning supplies. Keep sight lines clean by aligning cabinet doors and mirror edges; visual order translates into a calmer routine.

Color and Texture for Calm

Muted palettes—warm whites, soft greiges, pale blues—support relaxation while maintaining brightness. Verywell Mind’s color psychology notes blue’s association with calm and reliability; I balance it with warm metals (brushed brass or warm nickel) to prevent the space from feeling cold. Texture brings warmth: ribbed tile in the shower, linen-look wallcovering (vinyl or paintable, moisture-safe) on the dry wall, and a wood-look porcelain floor for depth without worry.

Human Factors and Safety

Slip resistance, clearances, and intuitive placement reduce risk. I install a grab bar near the shower entry and one integrated into the bench back when possible. Keep thresholds flush; if unavoidable, mark transitions with contrasting tile to improve visual cues. Position the toilet away from the door path to minimize accidental impacts. Night lighting at floor level or toe-kick LEDs prevents harsh wake-ups and supports safe navigation.

Acoustic Comfort

Small rooms amplify sound. A quieter fan (rated below 1.5 sones) and soft-close hardware reduce noise spikes. Use rubber underlayment beneath tile where feasible to cut impact sound, and specify solid-core doors to improve privacy. Soft towels and a small rug in the dry zone help absorb echo.

Future-Proofing

I design for adaptability: blocking in shower walls for future grab bars, universal-height vanities (34–36 inches), and lever handles. If you expect changing users, consider a hand shower on a sliding bar and a thermostatic valve for consistent temperature control. LED drivers with warm-dim capability transition seamlessly from bright tasks to evening wind-down.

Quick Dimension Guide

- Vanity: 36–60 inches wide; 21–24 inches deep; 34–36 inches high

- Toilet: 15–18 inches from center to side wall; 21 inches minimum front clearance

- Shower: 36x48 inches minimum for comfort; benches at 17–19 inches seat height

- Door swings: verify no conflicts with toilet or vanity; sliding options remove friction

- Clear path: aim for 36 inches where possible; minimum 30 inches in tight spots

References and Standards

For wellness integration and lighting benchmarks, see WELL v2 guidance at WELL v2 and task lighting recommendations from IES standards at IES Standards. Both inform practical choices for light levels, glare control, and accessibility that improve daily use.

FAQ

1) What is the best placement for the toilet in an 8x10 bathroom?

Tuck the toilet into a side alcove or behind a partial wall to preserve privacy and keep the entry sight line clean. Maintain 15–18 inches from center to side wall and at least 21 inches front clearance.

2) How much lighting do I need at the vanity?

Target around 500 lux at the face per IES recommendations. Use vertical sconces at eye level and high-CRI (90+) lamps for accurate color rendering.

3) Can I fit both a tub and a shower?

Yes, in an 8x10 you can accommodate a 60-inch alcove tub and a compact shower or combine them in a wet-room zone with a glass partition.

4) What layout reduces morning congestion?

A long-wall linear layout with a 60-inch double vanity and sliding shower door streamlines flow and avoids door conflicts.

5) Which materials are best for low maintenance?

Matte porcelain tile, epoxy grout, and composite countertops resist stains and moisture. Choose low-VOC paints and sealed cabinetry for longevity.

6) How do I control glare at the mirror?

Use diffused sconces flanking the mirror, avoid bare LEDs facing the glass, and keep color temperature around 2700–3000K for softer visuals.

7) What storage works without crowding the room?

Recessed medicine cabinets, shower niches, and a slim cabinet above the toilet keep surfaces clear. Floating vanities add storage while preserving floor openness.

8) How do I improve acoustics?

Specify a quiet fan (≤1.5 sones), solid-core door, rubber underlayment under tile, and soft-close hardware to dampen noise.

9) What are safe shower dimensions?

36x48 inches is a comfortable minimum; add a bench at 17–19 inches seat height and a hand shower on a sliding bar for flexibility.

10) Is warm or cool lighting better in bathrooms?

Use warm 2700–3000K for evening relaxation and true skin tones, with adequate brightness at the vanity for tasks. Dimming lets you shift mood quickly.

11) How can color affect the space?

Soft neutrals and muted blues promote calm; Verywell Mind’s color psychology associates blue with reduced stress, ideal for daily routines.

12) Do I need a layout tool before construction?

Yes, testing door swings, clearances, and fixture sizes is invaluable. Try an interior layout planner to simulate options using a room layout tool: room layout tool.
