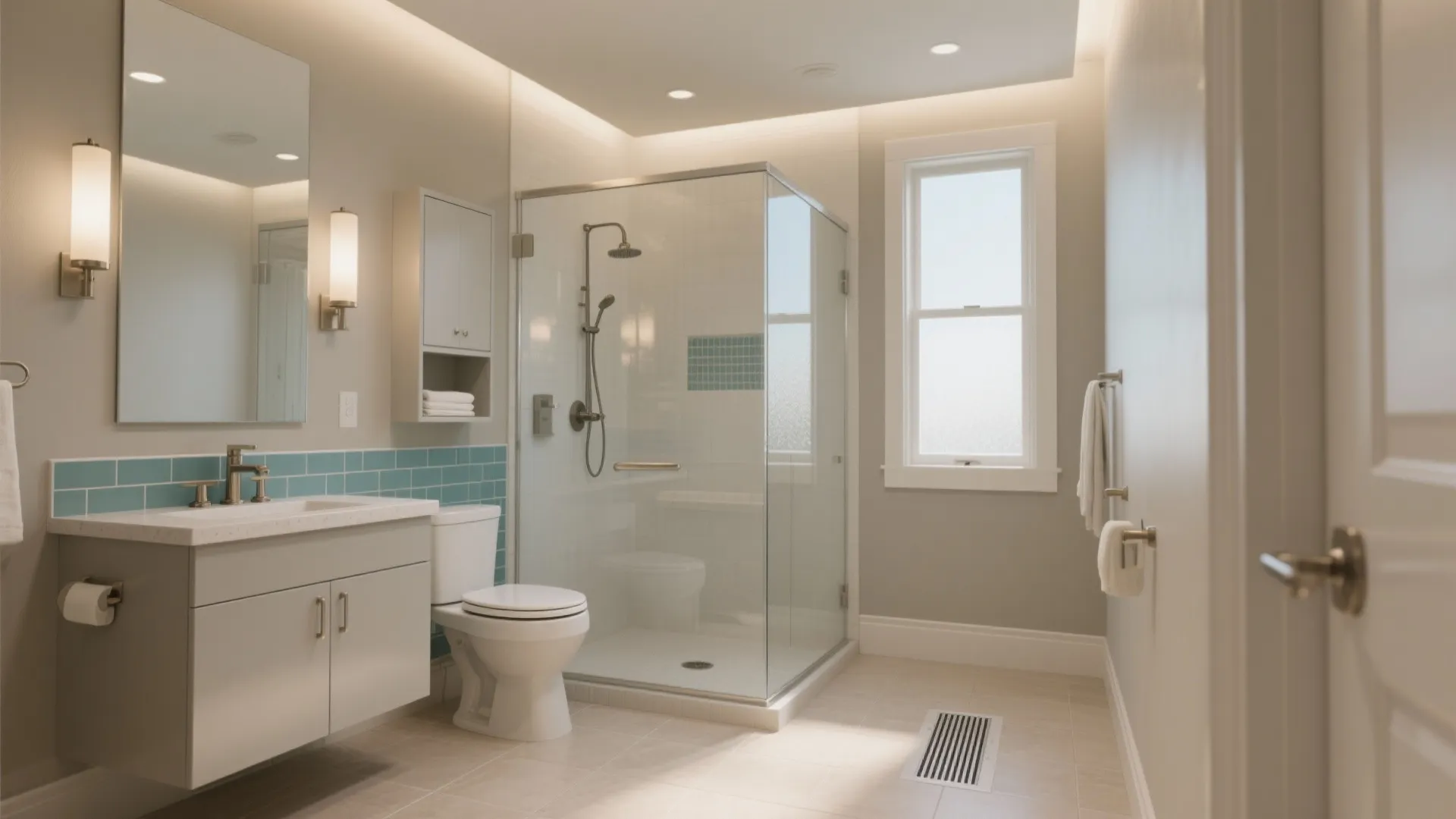

8 x 9 bathroom layout: Creating the Perfect 8 x 9 Bathroom Layout for Comfort and Style

An 8x9 bathroom offers a generous canvas for a primary bath or guest suite when planned with discipline. I approach this footprint by balancing circulation, fixture clearance, lighting comfort, and storage. In similar projects, I’ve found that the best-performing layouts maintain at least 30–36 inches of clear walkway while keeping wet and dry zones distinct.

There’s good evidence that layout and lighting directly affect user comfort and task performance. The WELL Building Standard (v2) highlights glare control and balanced illuminance as essential for visual comfort, while IES recommends around 50 footcandles for grooming tasks near the mirror to support accurate rendering of skin tones. Steelcase research has also shown that environments with well-managed acoustics measurably reduce stress and improve overall experience during daily rituals, a principle that translates well to bathroom design where hard surfaces amplify sound. To keep planning friction low, I often map adjacency and traffic lines before locking fixture locations.

Ventilation and moisture management are non-negotiable. WELL v2 emphasizes filtration and fresh air as key to well-being, while NKBA guidelines suggest a minimum 24-inch clear space in front of toilets and 30 inches for showers where doors swing out. These clearances preserve comfort and safety without crowding. When refining the footprint, I simulate multiple options to test door swing conflicts and towel reach, using a room layout tool for quick spatial validation.

Best 8x9 Bathroom Layout Concepts

I typically consider three configurations in an 8x9: a single-wall wet zone, a split-zone with shower and toilet opposite the vanity, and a corner-shower plan that maximizes circulation.

Concept A: Single-Wall Wet Zone

Place the shower and toilet along one long wall, with the vanity opposite. This creates a clear aisle of 36 inches, reduces plumbing complexity, and keeps sight lines clean from the door. A 60x36-inch shower with a frameless glass panel preserves openness; the toilet sits 15 inches minimum from the centerline to any side wall per NKBA. Keep the vanity depth at 21 inches for comfortable clearance.

Concept B: Split-Zone Balance

Set the vanity on entry wall centered under the mirror, the shower at the far end, and the toilet opposite the vanity. This plan offers intuitive workflow: enter, wash, store, then move to shower. A pocket door prevents swing conflicts. Use a 48–54-inch shower for tight conditions; add a shallow linen niche (12 inches deep) near the toilet to consolidate storage within reach.

Concept C: Corner Shower, Clear Circulation

A neo-angle or curved corner shower frees up the center of the room and mitigates bottlenecks. I prefer a 42–48-inch corner unit with low-profile curb for accessibility. Position the toilet on the same wall but at least 18 inches off adjacent elements. The vanity runs opposite with 60 inches of counter if the project calls for a double sink; otherwise, a 36–42-inch single sink leaves more breathing room.

Key Dimensions and Clearances

• Door swing: favor 28–30-inch doors; consider pocket or barn-style to avoid conflicts.

• Toilet: 30 inches clear width (15 inches from centerline each side), 24 inches clear in front; 30 inches preferred.

• Shower: minimum 30x30 inches; comfort at 36x48 inches; add 30 inches clear in front of opening.

• Vanity: 21–24-inch depth, 18-inch min. clear side to adjacent wall; 30 inches clear front working zone.

• Circulation: target 36-inch pathway; avoid pinch points below 30 inches.

• Towel reach: 20–28 inches from shower exit; avoid over-door placements that require stepping back into swing.

Lighting and Visual Comfort

Bathroom lighting should layer ambient, task, and accent. For the mirror, vertical sconces at 65–70 inches AFF on each side provide even facial illumination, aligning with IES guidance around 50 footcandles for grooming. Use 2700–3000K color temperature for warmth, 90+ CRI for accurate skin tone, and dimmable drivers to reduce glare. Integrate indirect cove lighting above the shower wall to soften contrast and minimize veiling reflections, consistent with WELL v2 glare control concepts. Avoid downlights directly over the mirror; they shadow the face.

Ergonomics and Human Factors

Comfort stems from reach, posture, and flow. Keep the most-used items—hand soap, dental care, face towels—within a 20–24-inch reach envelope around the sink. Mount the vanity top at 34–36 inches high; 34 inches suits shorter users, 36 inches suits taller. Favor lever handles over knobs for wet hands. In showers, place controls within reach of the entry so water can start without stepping under the spray. Add a 12x12-inch corner shelf at 42–48 inches high; it beats metal caddies that obstruct elbows.

Acoustics and Material Strategy

Tile-heavy rooms can sound harsh. I mitigate reverberation with soft accents: a fabric shower curtain over glass in family baths, closed-cell bath mats, and acoustic backing on drywall if budget allows. Steelcase research into environmental comfort underscores how sound control reduces stress—thin layers make a noticeable difference. For finishes, prioritize non-slip porcelain tile (DCOF ≥ 0.42 when wet), sealed natural stone only if maintenance is acceptable, and moisture-resistant paint (eggshell or satin) with mildew-resistant primer. Warm neutrals expand the perceived width; a lighter floor with slightly darker walls adds grounded stability.

Color Psychology in Compact Baths

Cool hues (soft blues, blue-greens) contribute to a calming routine, while warm whites avoid clinical sterility. Verywell Mind’s color psychology notes that blues are often associated with calmness; paired with high-CRI lighting, they maintain healthy skin tone perception. I use muted palettes with a single accent tile band to avoid visual clutter.

Storage Without Bulk

Maximize vertical surfaces: recessed medicine cabinets (4-inch recess if wall allows), niches over the toilet for closed storage, and under-vanity drawers over doors for better organization. A 12-inch-deep linen tower beside the vanity can fit in most 8x9 plans without choking circulation—keep it flush with the counter to avoid snagging.

Plumbing and Ventilation

Consolidate supply and drain lines along one wall to reduce cost; a shared wet wall for shower and toilet is efficient. Use a quiet, rated exhaust fan sized to the room; place the intake near the shower with a timer switch. Good ventilation aligns with WELL v2 guidance on indoor air quality and helps materials last.

Safety and Accessibility

Low-profile shower curbs (1.5–2 inches) enhance safety. Add two 24-inch grab bars—one diagonal in the shower and one horizontal near the toilet—anchored into blocking. Choose textured tile in the shower floor and matte finishes to reduce slip and glare.

Example Layout Walkthrough

• Door on the 9-foot wall, offset left; pocket door.

• Vanity 48 inches centered opposite the door; 21-inch depth.

• Toilet to the right on the long wall; 30 inches clear width, 30 inches clear front.

• Shower at the far left corner, 48x36 inches with clear glass panel; controls near the entry.

• Linen niche above toilet, 12 inches deep; recessed medicine cabinet over sink.

• Towel bar placed 24 inches from shower exit; hook behind the door.

Layout Iteration and Visualization

Before committing, I model clearances and run quick simulations to check door swing interference, towel reach, and vanity posture. A layout simulation tool helps validate these moves and avoid on-site surprises.

Tips 1: Finishes That Make Space Feel Larger

Use larger-format tiles (24x24 or 12x24) with tight grout joints to reduce visual busyness. Run floor tile into the shower for continuity; maintain slope with a linear drain along the wall to minimize cuts.

Tips 2: Light Layering for Mornings vs. Evenings

Program two scenes: bright task at wake-up (higher output, 3000K) and calm unwind (lower output, 2700K). Keep night lighting below eye level with a toe-kick LED to preserve circadian rhythm.

Tips 3: Small Upgrades That Matter

Heated floors improve comfort and help dry moisture. A soft-close toilet seat and drawers reduce night-time noise. Put outlets inside the medicine cabinet for hair tools; it declutters counters.

FAQ

Q1: Can an 8x9 bathroom fit a double vanity?

A: Yes, a 60-inch double vanity can fit if circulation remains at 30–36 inches. Consider 21-inch depth to preserve walkway and use shallow towers for storage.

Q2: What’s the ideal shower size for this footprint?

A: Comfort begins at 36x48 inches; smaller 32x48 or 36x36 can work. Keep at least 30 inches clear in front of the opening.

Q3: How bright should mirror lighting be?

A: Target around 50 footcandles at face level based on IES guidance, with 90+ CRI and 2700–3000K color temperature for natural skin tones.

Q4: How do I reduce glare in a small bathroom?

A: Use diffused sconces at face height, indirect ceiling or cove lighting, matte finishes, and dimmers. Avoid downlights aimed directly at mirrors.

Q5: What clearances are required around the toilet?

A: Plan for 30 inches clear width (15 inches from centerline to each side) and 24–30 inches clear in front. These align with common NKBA recommendations.

Q6: Is a corner shower better for an 8x9 layout?

A: Often yes. A 42–48-inch corner unit opens the center of the room, improving circulation and reducing door conflicts.

Q7: Which materials are safest for wet areas?

A: Porcelain tile with DCOF ≥ 0.42 when wet is a strong choice. Use epoxy grout for stain resistance and a linear drain to manage slope cleanly.

Q8: How should ventilation be handled?

A: Install a quiet, correctly sized exhaust fan near the shower on a timer. Good ventilation aligns with WELL v2 guidance and extends finish lifespan.

Q9: Can I include a freestanding tub?

A: It’s possible with tight planning, but a shower-tub combo often fits better. If adding a freestanding tub, keep 24 inches clear around it and ensure the rest of the layout is uncompromised.

Q10: What’s the best color scheme for a small bathroom?

A: Soft neutrals with cool accents (light blues/greens) feel calm and spacious. Pair with high-CRI lighting to maintain natural skin tone perception.
