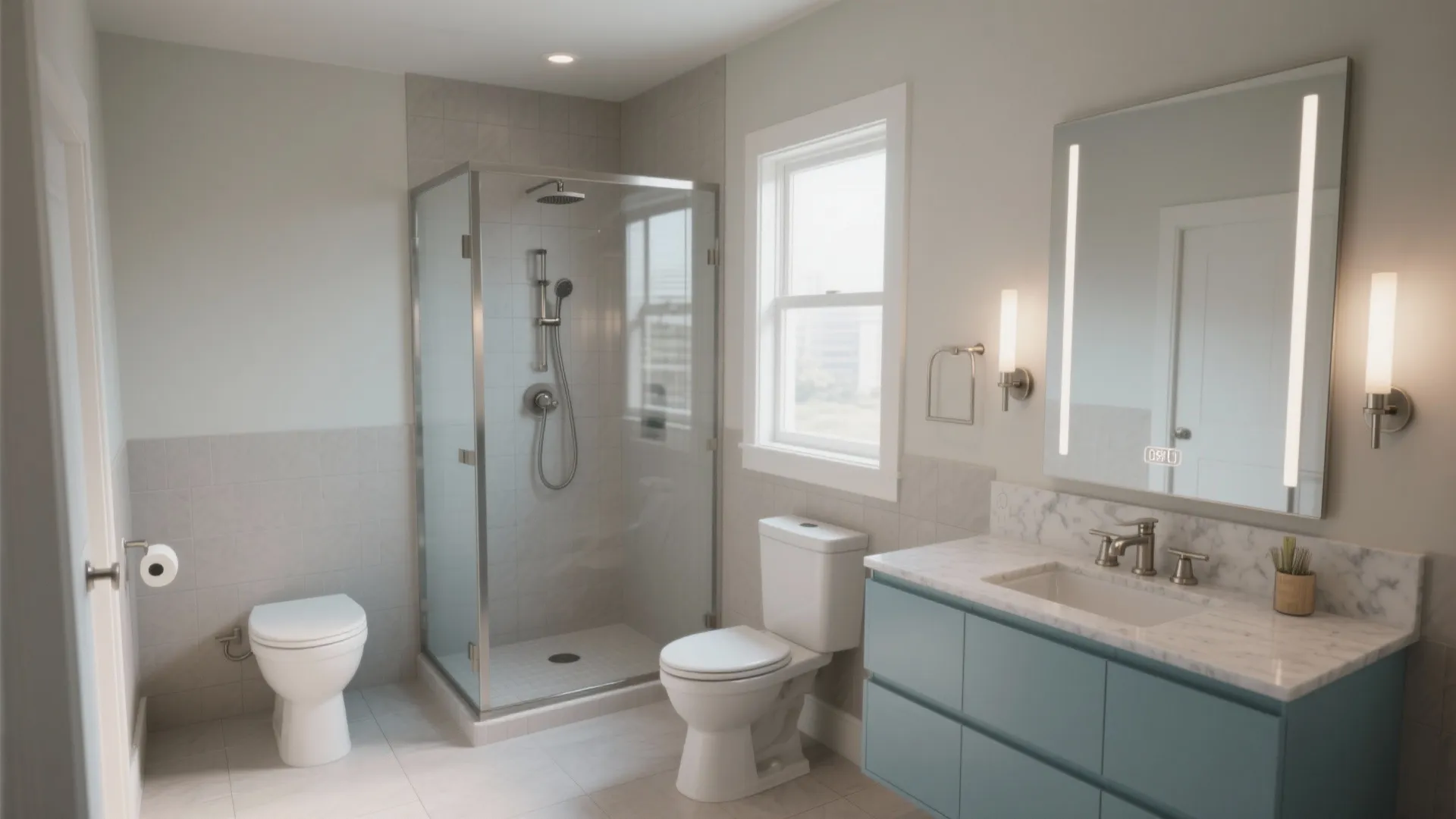

8x9 Bathroom Floor Plans: Explore Creative Designs for Compact Bathrooms

An 8x9 bathroom offers a sweet spot of flexibility—roughly 72 square feet—where a full bath with a comfortable shower or a compact tub is achievable without feeling cramped. In my projects, this footprint has delivered highly functional family bathrooms and serene primary ensuites, provided we respect clearances and sightlines. Measurable comfort matters: based on WELL v2 guidance, glare control and appropriate color temperatures in task areas directly influence perceived comfort and stress levels; pairing 3000–3500K lighting near the vanity with controlled reflectance keeps eyes relaxed. Steelcase workplace research also shows environments with considered lighting and spatial ergonomics report higher user satisfaction, reinforcing that careful illumination and ergonomics extend beyond offices into daily home rituals.

Ergonomically, the National Kitchen & Bath Association cites a minimum 30-inch clearance in front of fixtures like toilets and sinks for safe approach and use, while shower interiors benefit from a minimum 30x30 inches for maneuverability (36x36 inches feels much better in practice). For lighting quality, the Illuminating Engineering Society recommends 500–1000 lux for detailed grooming at the mirror; I target the lower end of that range with layered, dimmable sources to avoid harshness. For color psychology, Verywell Mind notes that cooler hues can feel calming, and softer neutrals reduce visual noise—use blues or gentle greiges on large planes, and reserve saturated color for accents to keep the room visually balanced.

Core Layout Principles for 8x9 Bathrooms

Within 8x9, start by locating the door and windows, then place the toilet to allow at least 30 inches clear in front and 15 inches from centerline to each side wall (ideally 18 inches for more elbow room). Align the vanity with natural light when possible, but avoid direct backlighting at the mirror to prevent silhouettes. If you plan multiple arrangements, a room layout tool helps simulate traffic lines, door swings, and fixture spacing; try the interior layout planner to visualize alternatives before you commit to plumbing rough-ins.

Layout Option A: Shower + Single Vanity + Standard Toilet

This is my most common 8x9 plan. Place a 36x48 inch shower along the 9-foot wall with a clear glass enclosure and a hinged door that opens away from the toilet. A 30–36 inch vanity sits opposite, centered on the wall for symmetry. Keep at least 36 inches clear aisle between vanity edge and opposite fixtures to maintain flow. If a window is present, position the shower away from it to reduce water exposure; if unavoidable, select corrosion-resistant hardware and a high-quality seal around the jamb.

Layout Option B: Alcove Tub + Compact Vanity

For families with small children, an alcove tub (60x30 inches) along the 8-foot wall can work well. Shift the vanity to 30 inches with a shallow depth (18–20 inches) to conserve space for circulation. The toilet centers on the remaining wall, respecting side clearances. Use a curved shower rod for added elbow room and keep the curtain light-colored to reflect more light at the tub surround, improving perceived brightness without increasing glare.

Layout Option C: Double Vanity + Shower (Tight but Possible)

In an 8x9 with two users, a 60-inch double vanity can fit if paired with a 36x36 inch corner shower and careful doorway planning. This option demands rigorous clearances: 36 inches minimum aisle, 24 inches door swing offset from the vanity, and at least 21 inches in front of the toilet (though I still aim for 30 inches). Use recessed medicine cabinets to reclaim counter depth and maintain the rhythm of verticals across the mirror wall.

Layout Option D: ADA-Informed Comfort

While full ADA compliance may exceed 8x9 constraints, borrow principles: a rolling shower with no threshold, a wall-hung toilet for easier transfer, and lever handles. Target 36 inches clear approach to the vanity and consider a knee-space segment at 32 inches high. Smooth transitions and non-slip porcelain tiles (DCOF ≥ 0.42 wet) dramatically improve safety without compromising style.

Lighting: Lux Levels, Color Temperature, and Glare Control

At the vanity, layer lighting: vertical sconces at 65–70 inches high flanking the mirror provide even facial illumination. Aim for 500–750 lux on face height, CRI ≥ 90 to render skin tones accurately, and 3000–3500K color temperature. In the shower, install a wet-rated downlight at 200–300 lux to avoid shadows. Dimming across all zones supports circadian comfort; WELL v2 emphasizes controllability as a factor in occupant satisfaction. If the ceiling is low, keep fixtures shallow and use indirect cove or perimeter lighting to soften contrasts.

Materials and Maintenance

For 8x9 footprints, durability must meet easy upkeep. I favor large-format porcelain tiles on floors and shower walls to minimize grout lines and visually expand the room. Pair a quartz vanity top with an under-mount sink to simplify cleanup. If you want warmth, consider engineered wood-look porcelain with a matte finish to reduce glare. Bright whites can feel clinical; break them with soft taupes or powder blues per color psychology research to maintain calm without dullness.

Acoustic Comfort

Hard surfaces amplify sound. Adding soft elements—textured bath mats, fabric shower curtains, and acoustic-backed drywall—helps dampen noise. A quiet exhaust fan (≤ 1.0 sone) preserves the spa-like atmosphere. Keep fan airflow near 80–110 CFM depending on shower size and humidity loads.

Storage Strategy

Maximize vertical space: recessed niches in showers, medicine cabinets flush with studs, and a tall, shallow linen cabinet (12–15 inches deep) with ventilated shelves. I use mirrored doors to bounce light and expand perceived width. Store daily items at 36–48 inches high, seasonal items above 60 inches.

Plumbing and Ventilation Notes

In a compact bath, rough-in accuracy is everything. Center the drain lines to minimize fixture offsets, and use offset flanges only if absolutely necessary. A dedicated GFCI circuit for vanity outlets, plus a separate circuit for heated floors if specified, prevents nuisance trips. Ventilate directly outdoors, avoid long duct runs, and insulate ducts to prevent condensation.

Spatial Ratios and Visual Balance

Maintain balanced masses: pair a visually heavy vanity with a lighter shower enclosure, or vice versa. Keep the largest continuous surface—the floor—calm with consistent material. A 60/30/10 palette (neutrals/accent/metallics) works well; repeat metallic finishes across hardware for coherence. Use a single strong vertical (mirror or niche) to anchor the composition and align edges to door and window frames for rhythm.

Planning with Digital Tools

I build 1:1 layout mockups virtually to test door swings, clearances, and sightlines. A layout simulation tool reduces errors before plumbing rough-in; this room design visualization tool can help assess whether your chosen 8x9 plan maintains the recommended 30-inch fixture clearances and optimal vanity-to-toilet spacing.

Reference Insights

For deeper guidance on lighting and wellness, WELL v2 offers structured criteria around light, comfort, and materials; its emphasis on controllability and glare aligns with bathroom tasks. The Illuminating Engineering Society provides illuminance recommendations for grooming tasks, while Steelcase research continues to validate the link between cognition and spatial ergonomics. These references keep design decisions grounded in measurable comfort.

Tips 1: Quick Dimension Checklist

- 30 inches minimum clear in front of toilet and vanity (target 36 inches).

- 15 inches from toilet centerline to each side; 18 inches preferred.

- Shower: minimum 30x30 inches; 36x36 inches recommended.

- Vanity: 30–60 inches wide depending on users; keep 21–24 inches deep.

- Sconces at 65–70 inches high; 3000–3500K, CRI ≥ 90; 500–750 lux at mirror.

- Exhaust fan ≤ 1.0 sone; 80–110 CFM depending on shower size.

FAQ

Q1: Can an 8x9 bathroom fit a double vanity?

A1: Yes, a 60-inch double vanity can fit if paired with a compact 36x36 inch shower and careful door swing management. Keep a 36-inch clear aisle to avoid pinch points.

Q2: Is a soaking tub feasible in 8x9?

A2: A standard 60x30 inch alcove tub works well. Use a 30-inch vanity and maintain 30 inches clear in front of fixtures to preserve circulation.

Q3: What lighting levels should I target?

A3: Aim for 500–750 lux at the mirror with 3000–3500K and CRI ≥ 90 for accurate skin tones, and 200–300 lux in the shower with a wet-rated downlight.

Q4: How do I prevent glare at the vanity?

A4: Use vertical sconces at eye level on both sides of the mirror, matte finishes on nearby surfaces, and dimmers. Avoid a single overhead light directly above the mirror.

Q5: Are wall-hung fixtures beneficial in small baths?

A5: Wall-hung toilets and vanities free floor space and improve visual lightness. They make cleaning easier and can gain 2–3 inches of perceived width in the aisle.

Q6: What tile sizes work best?

A6: Large-format porcelain (24x24, 12x24) reduces grout lines and expands the visual field. Choose matte or low-sheen finishes to control glare and slips.

Q7: How should I plan storage?

A7: Use recessed medicine cabinets, shower niches, and a tall shallow linen cabinet. Keep daily items between 36–48 inches high for easy reach.

Q8: What ventilation spec should I follow?

A8: A quiet fan (≤ 1.0 sone) at 80–110 CFM depending on shower size, ducted straight outdoors, with insulated ducting to prevent condensation.

Q9: Can I integrate accessibility features without full ADA?

A9: Yes—no-threshold showers, lever handles, and 36 inches approach clearances improve comfort and safety even if full compliance isn’t possible.

Q10: How do color choices affect mood?

A10: Softer neutrals and cool hues promote calm, while saturated accents add energy. Keep large planes light to reduce visual noise, per color psychology insights.

Q11: Where should I place the door?

A11: Position the door to avoid direct sightlines to the toilet and to maintain a clear path to the vanity. Offset swings so they don’t conflict with the shower enclosure.

Q12: What about heated floors?

A12: Heated floors add comfort in compact bathrooms. Use a dedicated circuit and confirm clearances under fixtures before installing mats.
