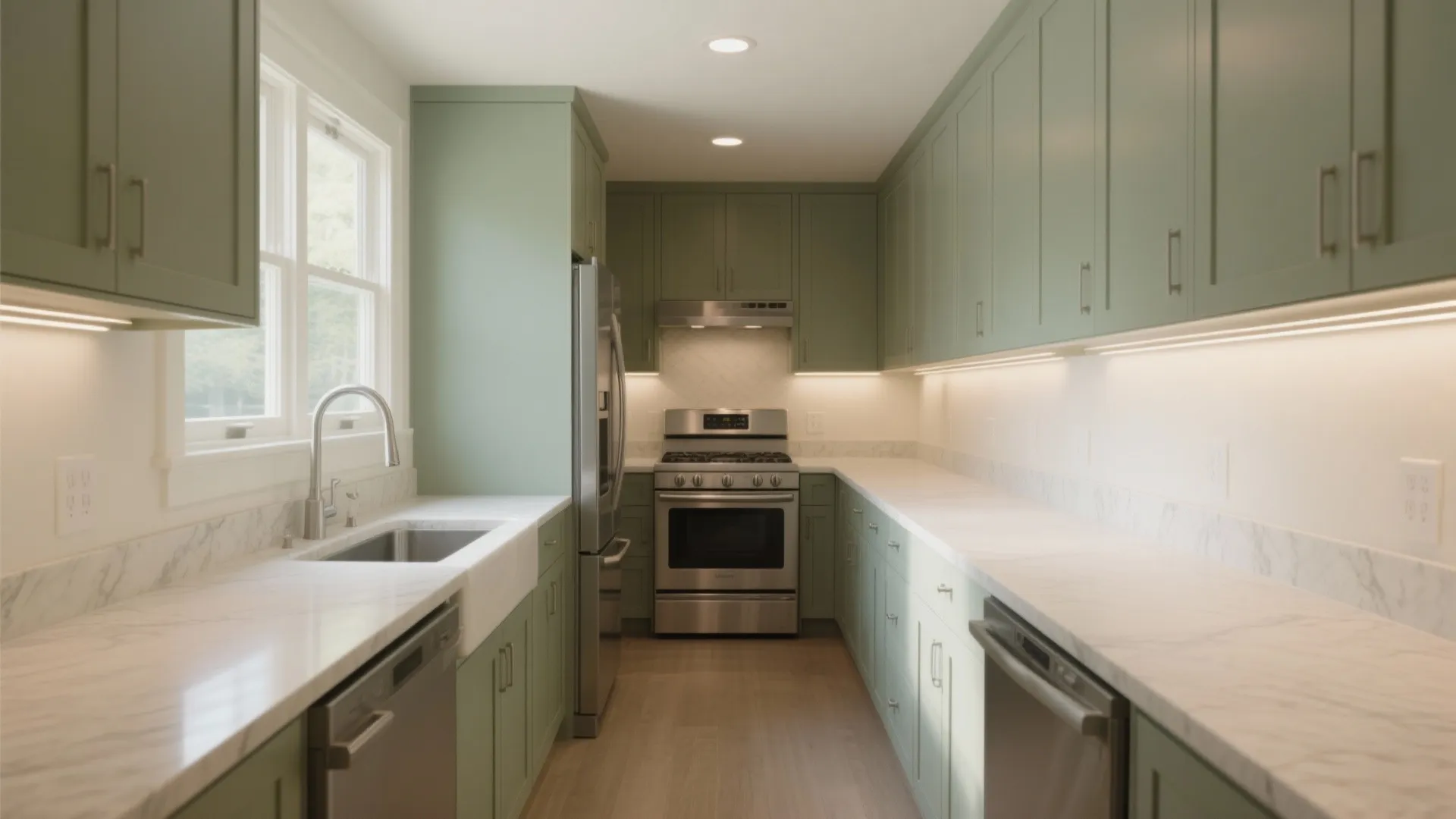

9x12 galley kitchen layout: Maximizing Space and Style in Your Galley Kitchen

I’ve planned more galley kitchens than any other residential typology, and a 9x12 footprint is one of the most efficient when carefully tuned. The key is orchestrating circulation, prep ergonomics, and daylight so the space feels agile rather than narrow.

In small kitchens, workflow efficiency matters more than square footage. Steelcase research notes that well-organized task zoning can reduce unnecessary movement by up to 27%, which translates directly to easier cooking in tight plans. Lighting standards also play a major role: cornerstone recommendations from IES suggest 300–500 lux for general kitchen ambient light and 500–1000 lux over task areas, ensuring safe chopping and clear reading of labels and displays. I design around those numbers because they’re proven to support visibility and reduce eye strain.

Health-forward kitchens benefit from a human-centric baseline. WELL v2 performance guidelines encourage glare control, balanced color temperature, and air quality measures that lower VOC exposure—simple choices like low-emission cabinetry and adaptive task lighting impact comfort daily. For color, Verywell Mind’s synthesis of color psychology highlights how desaturated greens and light neutrals can reduce stress and make narrow rooms feel calmer, a subtle but noticeable effect in a galley.

Core Layout Principles for a 9x12 Galley

The classic galley uses two parallel runs. In 9x12, I aim for clearances of 42–48 inches between counters—enough for two users to pass, a dishwasher door to open, and safe pivoting around hot zones. Keep the work triangle compact: sink and cooktop ideally on opposite runs, with the refrigerator at one end (not the center) to minimize interruptions. When testing variations, a layout simulation tool can help you model circulation and appliance swing paths: room layout tool.

Appliance Placement That Feels Effortless

Put the sink near daylight if possible; sightlines matter in tight kitchens. The dishwasher belongs adjacent to the sink on the same run. I prefer a 30-inch range centered within a 36–48-inch prep zone, with 15 inches minimum landing space on both sides. Position the refrigerator near the kitchen entry so grab-and-go traffic doesn’t cut through the main prep corridor. If the fridge is deep, consider a counter-depth model to preserve clearance—those extra inches save bruised hips.

Storage Tactics to Increase Usable Space

Use full-height cabinetry to the ceiling for dry goods and seldom-used items, then add a shallow, high-frequency zone: 12-inch-deep upper cabinets keep the corridor feeling open. Integrate rollouts for base cabinets; they protect your back and multiply visibility. A 9x12 plan usually allows one tall unit (pantry or oven stack) at an end—avoid placing tall blocks mid-run or you’ll constrict sightlines and light. If you need more, slender pull-out pantries (9–12 inches wide) near the fridge door are space-efficient.

Countertop and Prep Rhythm

Prioritize a single, uninterrupted prep surface between sink and range. Aim for 36–48 inches of continuous counter here. If you cook frequently, add a secondary landing near the refrigerator for unpacking groceries. Keep small appliances grouped on one short stretch with a concealed outlet strip; visual calm reduces perceived clutter in narrow rooms.

Lighting and Color That Support Focus

Layer ambient (300–500 lux) with focused under-cabinet task lighting (target 500–1000 lux at the work plane). Neutral 3000–3500K LEDs balance warmth and clarity without introducing the cold cast common to 4000K in residential settings. Dimmers are invaluable: they let you shift from bright prep to softer evening tones. Color psychology suggests soft desaturated hues—sage, warm gray, dusty blue—can make the corridor feel broader and calmer without sacrificing contrast for safety markings near edges and handles.

Ergonomics and Human Factors

Maintain 42–48 inches between counters; 36 inches is a last resort and will feel tight. Set counter height around 36 inches; if you’re tall, a 37-inch prep zone can reduce back strain. Place heavy-use drawers at waist height. Keep the microwave either undercounter with a landing shelf or in a tall cabinet at 48–54 inches off the floor for safer transfer. Handles with soft edges and sufficient grip reduce hand fatigue and accidental snags.

Acoustics, Materials, and Cleanability

Hard surfaces can amplify clatter. Introduce acoustic softening through window treatments, a small washable runner, or textured wall panels near the breakfast end. Choose durable, low-VOC finishes. Matte or satin cabinet sheens reduce glare; honed stone counters hide fingerprints. For sustainability, prioritize FSC-certified wood and high-recycled-content surfaces. Ventilation is non-negotiable—select a hood with adequate capture for your range width and vent to the exterior when possible.

Traffic, Behavior Patterns, and Safety

Place the refrigerator at the edge to keep snack traffic away from hot zones. Avoid placing the range opposite the sink; sidestep and pivot space is safer when heat and water aren’t directly across. Keep the trash/recycling near the prep area but not at the corridor’s pinch point. If kids are in the picture, add a shallow snack drawer at the entry end so they don’t step into the cook’s lane.

Two Working Configurations

Cooking-centric layout: Range centered on one run with 18-inch landings, sink opposite with 36–48 inches of prep. Refrigerator at the near end, pantry at the far end to anchor sightlines.

Entertaining-friendly layout: Pull the sink closer to the room opening, add a short 12-inch serving ledge or passthrough, and keep the range deeper in the kitchen to separate guests from heat and splatter.

Visualization and Iteration

I sketch at least three variants before locking a plan: appliance-at-ends, sink-at-window, and pantry-stack versions. Use an interior layout planner to simulate door swings and flow before committing: interior layout planner. Minor shifts—like swapping a hinged fridge door for French doors—can transform the corridor’s usability.

FAQ

What is the ideal aisle width for a 9x12 galley kitchen?

Target 42–48 inches between counter edges. It allows two people to pass, opens appliance doors safely, and maintains ergonomic reach.

How much task lighting do I need?

Follow IES guidance: 500–1000 lux at the work plane for tasks, supported by 300–500 lux ambient. Under-cabinet LEDs with high CRI improve color accuracy for food prep.

Where should the refrigerator go?

Place it at an end near the entry to reduce cross-traffic through the main prep zone. Counter-depth units help preserve aisle clearance.

What’s the best sink and range relationship?

Opposing runs work well. Keep a continuous 36–48-inch prep stretch between them to streamline chopping and transfer.

How do I maximize storage without crowding?

Use ceiling-height uppers, shallow 12-inch cabinets, and base rollouts. Reserve one tall cabinet for an end of the run to protect sightlines.

Is a galley kitchen good for two cooks?

Yes, if the aisle is 48 inches and tasks are zoned—one on the range side, one at the sink side—minimizing crossover.

What color temperatures feel best in small kitchens?

3000–3500K offers balanced warmth and clarity. Pair with dimmers to adapt evening mood and reduce glare.

Can I add seating in a 9x12 galley?

A slim ledge or passthrough at one end can host two stools without encroaching on the aisle. Keep seat depth around 12 inches.

How do I handle ventilation in a tight space?

Use a hood matched to range width with strong capture efficiency, vented outside. Good ventilation reduces heat buildup and odors.

What materials keep maintenance simple?

Honed quartz or granite counters, matte cabinet finishes, and durable flooring like LVP or porcelain tile make cleaning easier and reduce glare.

Where should trash and recycling go?

Under the sink or in a base cabinet near the prep zone, not at the corridor’s pinch point. A double-bin pullout keeps it tidy.

How do I prevent the space from feeling tunnel-like?

Use lighter, low-saturation colors, continuous under-cabinet lighting, and avoid tall blocks mid-run. Reflective backsplashes can amplify light without glare.
