A3144 Hall Effect Sensor: Fast-Track Guide to Usage & Design: 1 Minute to Understand the A3144 Hall Effect Sensor for DIY & Home Projects

I’ve used the A3144 in quick prototypes and production fixtures where compact, reliable magnetic sensing mattered more than polishing a PCB for weeks. It’s a unipolar Hall-effect switch with an open-collector output, built to detect a single magnetic polarity once the field exceeds its operate threshold. The beauty is in its simplicity: stable switching, small footprint, and a clear digital output—just mind your pull-up, magnet geometry, and noise.

Before wiring anything, it helps to set realistic expectations for speed and stability. Modern Hall switches typically toggle in the tens of microseconds, which is fast enough for most rotational encoders under 10–20 kHz. In workplace prototyping, I’ve seen quick, clean transitions when the magnet-to-sensor gap is controlled and the supply is well-decoupled. Ergonomically, keeping components reachable and well-labeled reduces assembly errors; Steelcase research notes that improved workflow layout can lift task efficiency by measurable margins, and clarity in build steps directly reduces rework. For color-coded harnessing and visual contrast on the bench, color psychology supports faster recognition and fewer mistakes (Verywell Mind reports that color can influence attention and response, especially under time pressure), which echoes my own habit of consistent cable color schemes.

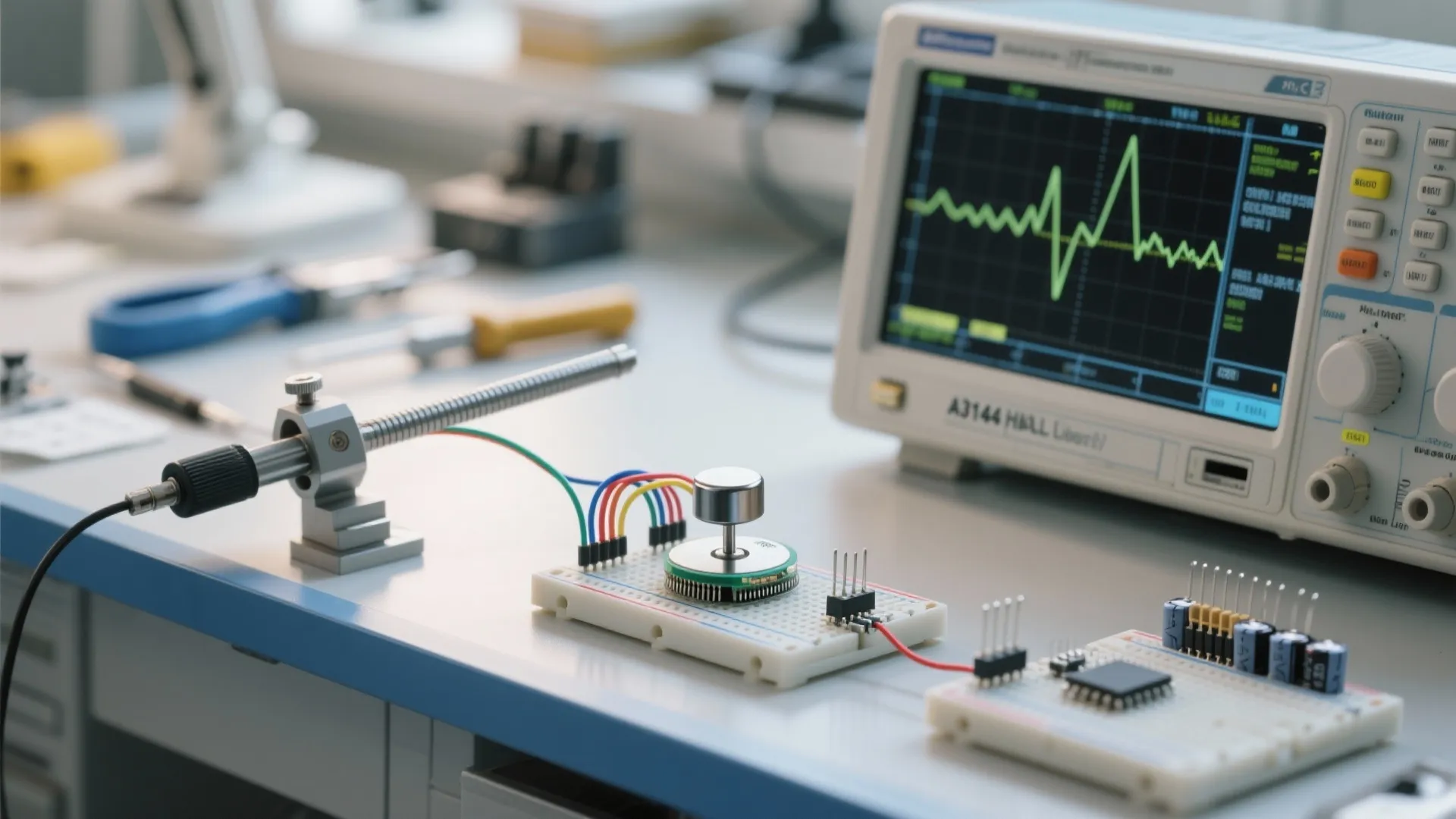

From a spatial planning standpoint, I lay out breadboards and test jigs so the sensor, magnet, and measurement tools sit in a single visual corridor—a simple rule that cuts setup time. In lab bays, acoustic comfort matters too; fans and stepper whine can mask subtle mechanical rubbing that causes jitter. Organizing the workstation with visual balance and short hand-reach distances (human factors 101) reduces fatigue and helps keep sensor alignment crisp over long test cycles.

How the A3144 Works

The A3144 is a digital Hall-effect switch: when a sufficient South pole magnetic field faces the branded side of the package, the device pulls its output low via an internal NPN transistor (open-collector). Remove or reduce the field and the output releases, going high through your external pull-up. Most units include operate and release thresholds plus built-in hysteresis to prevent chatter near the trip point. That hysteresis is your friend—use it alongside clean supply rails and mechanical stability to avoid false triggers.

Pinout and Basic Wiring

Typical pin order (flat side facing you, leads down) is: Vcc, GND, OUT. Verify the specific datasheet for your batch. Wire Vcc to 4.5–5 V (some variants tolerate 3.3 V; check the datasheet), GND to ground, and OUT to your microcontroller input with a pull-up resistor. I start with a 10 kΩ pull-up to 5 V for general logic-level use; for faster edges or longer cables, drop to 4.7 kΩ or even 2.2 kΩ. Add a 0.1 µF ceramic decoupling capacitor near Vcc–GND and keep leads short.

Magnet Selection and Geometry

A3144s are most predictable with small cylindrical or disc magnets. Face the South pole toward the sensor’s branded side. The operate distance depends on magnet strength (material and size), orientation, and any steel nearby that channels or distorts the field. As a practical rule, start with a 6–10 mm Neodymium disc (N35–N52) placed 1–4 mm from the sensor. Sweep the gap while logging output to find stable margins. Keep ferromagnetic hardware away from the sensing zone unless intentionally used as a flux path.

Debounce and Signal Conditioning

Even with hysteresis, mechanical motion can cause micro-chatter. Debounce in firmware: use a 0.3–3 ms validation window for slow mechanical triggers (levers, door reeds) and shorter windows (50–200 µs) for fast rotary magnets. If the cable run is long, add a small RC at the output—example: 1 kΩ in series with 1–4.7 nF to tame ringing—then ensure your MCU input threshold remains compatible. For EMC-prone environments, place a TVS diode on Vcc and consider shielded cable to the controller.

Power, Pull-Up, and Threshold

The open-collector output only sinks current; size your pull-up so sink current stays within the device limits (often a few milliamps—check the datasheet). If the input must drive 3.3 V logic, pull up to 3.3 V. For 24 V industrial lines, avoid pulling the sensor directly to 24 V; instead, use a transistor or optocoupler interface. If your unit shows sensitivity drift with temperature, allocate margin by choosing a stronger magnet or reducing the gap.

Layout and Mounting Practices

On PCBs, align the sensor package so the branded face sees the magnet. Route OUT away from high dI/dt lines (motor phases, buck converters). Keep the decoupling cap within 5–10 mm of the Vcc pin. For mechanical assemblies, use a slotted mount to allow fine longitudinal adjustment during commissioning. If you are prototyping device placements or enclosure spacing, a quick interior layout planner helps visualize clearances and alignment; a room layout tool can simulate component positioning within benchtop fixtures.

room layout tool

Noise, Temperature, and Reliability

Hall switches are generally immune to light and dust, which makes them suitable for harsh environments. Heat, however, can shift thresholds slightly. Keep them away from hot motor casings and provide ventilation. Acoustic noise doesn’t affect the sensor but often correlates with vibration, which can alter the magnet gap. Over long cycles, check for mechanical creep in mounts; threadlock and dowel pins help. For wiring harnesses, strain relief and clear routing prevent intermittent contacts that mimic jitter.

Microcontroller Integration

Configure the input pin with an internal or external pull-up if not provided on the board. Use interrupts for rotational sensing to capture edges precisely. Time-stamp rising and falling transitions to measure speed and direction (with dual sensors and offset magnets). If your application logs events around human tasks—door opens, machine cycles—keep code non-blocking so UI feedback remains responsive.

Testing and Calibration Routine

1) Power and verify idle output is high. 2) Present the magnet slowly, observe the transition low; pull back until release. 3) Record operate/release distances and repeat across temperatures (ambient, warm, cool). 4) Shake-test the assembly lightly to detect loose mounts. 5) If needed, tune the pull-up and debounce. For production lines, create a quick fixture with a micrometer slider for repeatable gap measurement and log results as part of QA.

Human Factors, Color, and Visual Balance

Clear labeling on the bench reduces errors. Use contrasting wire colors for Vcc, GND, and OUT to cut mis-wires. Color can shape attention and recall; consistent schemes help technicians switch tasks faster. Keep the work surface matte to minimize glare and eyestrain. Task lighting around 4000–5000 K with controlled glare is comfortable for detail inspection. Lay tools in a predictable rhythm left-to-right to support workflow; small ergonomic wins add up when you’re running dozens of builds.

Common Mistakes I See

- Reversing the sensor orientation relative to the magnet polarity.

- Long unshielded cables next to motor leads causing sporadic triggers.

- No decoupling cap near the sensor.

- Pull-up too weak (100 kΩ), leading to slow edges and missed interrupts.

- Mounting without adjustability, forcing magnet placement compromises.

Design Notes and Practical Tips

- Pre-test magnet strength; not all neodymium stamps are equal.

- Use a feeler gauge to standardize sensor-magnet gaps during commissioning.

- If line noise is unavoidable, buffer the output with a Schmitt-trigger input.

- For rotating systems, secure magnets with epoxy rated for the operating temperature.

- Document operate/release distances and keep a traceable lot record for magnets and sensors.

References and Further Reading

For workspace design and performance insights that inform lab setup and human factors, Gensler’s research library offers data on how physical layout influences behavior and productivity. For color psychology background supporting visual coding choices, Verywell Mind summarizes evidence on color’s effect on attention and mood.

Gensler Research

Color Psychology

FAQ

Q1: What pull-up resistor value should I use on the A3144 output?

A: Start at 10 kΩ for general 5 V logic. Use 4.7 kΩ or 2.2 kΩ if you need faster edges or have longer wiring. Keep sink current within the device’s output limits.

Q2: Can the A3144 run at 3.3 V?

A: Some batches work at 3.3 V, but verify the datasheet for your specific part. If uncertain, choose a variant specified for 3.3 V or level-shift the output.

Q3: How close should the magnet be?

A: Begin tests at a 1–4 mm gap with a small neodymium disc magnet. Tune for your assembly and temperature range, then document operate/release distances.

Q4: How do I debounce signals?

A: Use firmware validation windows: 0.3–3 ms for slow mechanisms, 50–200 µs for fast rotary sensing. Optionally add a small RC to tame ringing on long cables.

Q5: Which magnet polarity triggers the A3144?

A: The device is unipolar; the South pole facing the branded side typically triggers. Check the datasheet for polarity specifics and confirm in testing.

Q6: Is it OK to pull up the output to 24 V?

A: No. Use a transistor or optocoupler to interface with 24 V systems. Keep the sensor’s output pulled to a safe logic level (3.3–5 V).

Q7: How fast can it switch?

A: Switching times are usually in the tens of microseconds for Hall switches, suitable for typical rotational encoders up to the low tens of kHz. Validate with your magnet and gap.

Q8: What if nearby steel changes the readings?

A: Ferromagnetic materials can shape magnetic flux, altering thresholds. Either remove them from the sensing path or design them as intentional flux guides and re-test.

Q9: Do temperature changes affect performance?

A: Yes, thresholds can drift with temperature. Provide margin with stronger magnets or tighter gaps, and test across your operating range.

Q10: How should I mount the sensor mechanically?

A: Use slotted mounts for fine adjustment, lock fasteners with threadlocker, and maintain a rigid magnet-to-sensor relationship. Avoid cantilevered flex that can creep.

Q11: Can I use interrupts on the MCU?

A: Definitely. Configure edge-triggered interrupts, time-stamp transitions, and apply light debounce in software for clean counts and speed measurement.

Q12: Any best practices for wiring?

A: Short leads, decouple at the sensor with 0.1 µF, route away from motor phases, and consider shielded cable in noisy environments. Keep a consistent color code for clarity.
