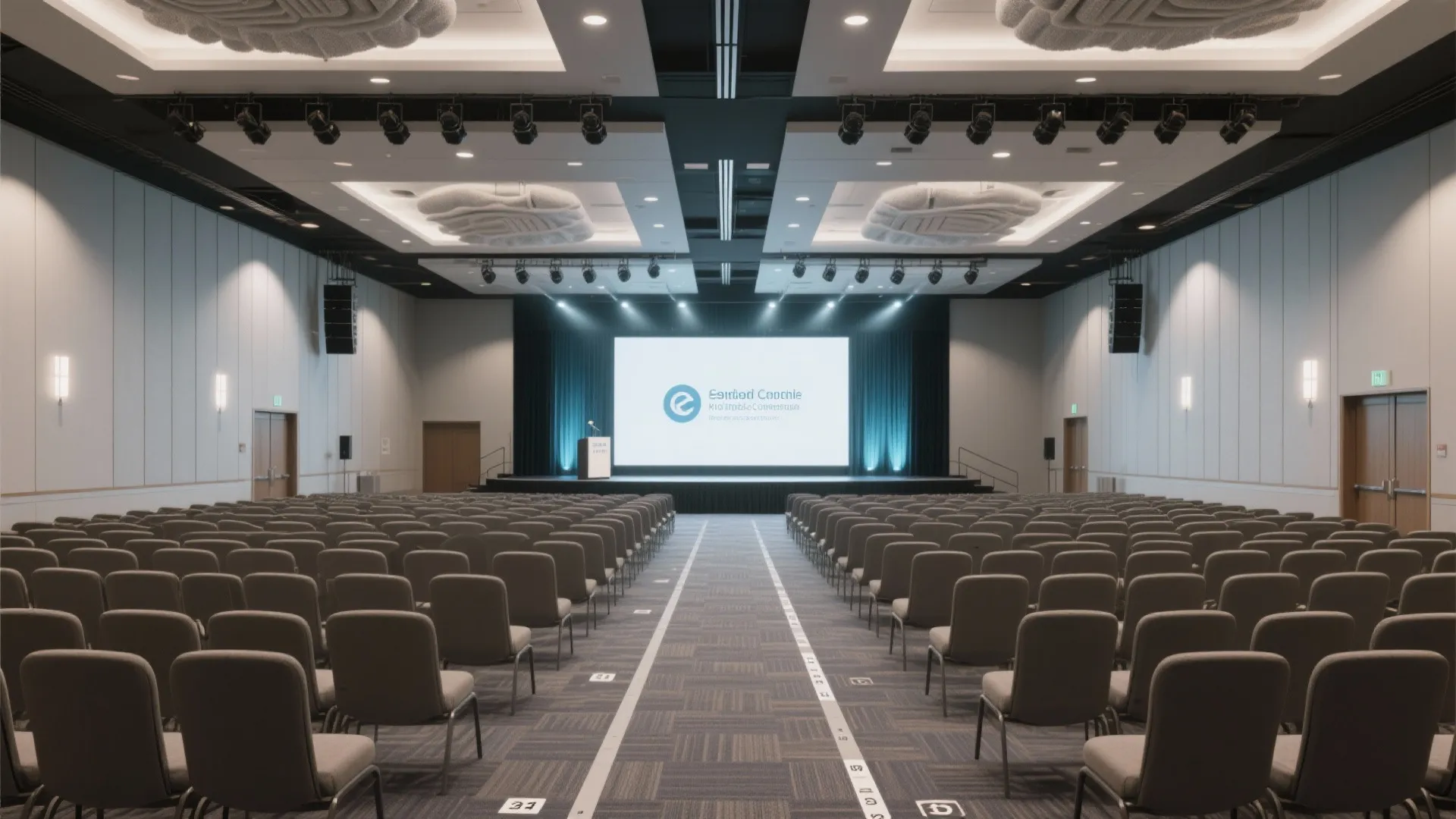

AC Convention Hall Design Ideas for Efficient Space: 1 Minute to Smarter, Cooler AC Convention Hall Solutions

Designing an AC convention hall is a balancing act: you’re chasing capacity without sacrificing comfort, circulation, or acoustic clarity. Across large event venues I’ve planned, three metrics drive results—air distribution effectiveness, seat-to-circulation ratios, and speech intelligibility. According to the WELL v2 Air concept, maintaining CO₂ levels below 800–1000 ppm and ensuring adequate ventilation rates significantly impacts cognitive performance and attendee satisfaction. Meanwhile, the Illuminating Engineering Society (IES) recommends 300–500 lux for multipurpose assembly areas with adjustable glare control, enabling clear note-taking without washing out stage visuals. These two datasets anchor many of the choices below.

On the human side, behavior and comfort correlate with layout clarity and seating ergonomics. Steelcase research links posture variety and access to movement with improved attention spans in long-duration sessions; a simple 36–48 inch aisle strategy can increase perceived autonomy and reduce fatigue during transitions. For stage-focused zones, a 30–35 degree vertical viewing angle range tends to support better sightlines without neck strain, validated by common auditorium ergonomics benchmarks. When I’m mapping capacities, I target clearances that maintain a minimum of 0.5–0.6 m per seat (including armroom) in theater arrangements and 1.5–1.8 m per attendee for workshop tables to preserve comfort, egress, and service pathways.

Define the Spatial Intention First

I start by naming the primary modes—keynote, breakout, expo, banquet, hybrid. Each mode implies different ratios: audience-to-circulation, stage-to-seating, and support-to-front-of-house. For keynote-driven programming, plan 65–70% of the footprint for seating, 20–25% for circulation (aisles, entries), and 10–15% for stage and tech back-of-house. Breakout-heavy agendas demand more partition-ready zones and wider corridors to distribute traffic. Before committing to furniture, run a quick layout simulation using a room layout tool to test seating counts and egress routes while stress-testing sightlines and air supply routes: room layout tool.

HVAC Distribution That Matches Occupancy Patterns

Efficient space isn’t only about dense seating—it’s about stable comfort even during peak loads. I prefer displacement ventilation or low-velocity diffusers near the floor in large halls; this reduces draft sensation and improves stratification, especially when stage lighting adds heat. Aim for 20–24°C setpoints with 40–60% RH for thermal comfort, and place return grilles away from stage zones to avoid noise spill. Where ceiling heights exceed 8–10 m, destratification fans can stabilize temperature gradients. Integrate demand-controlled ventilation tied to CO₂ sensors to keep concentrations in the WELL-referenced target range without oversupplying air during low-occupancy periods.

Seating Layouts That Respect Human Factors

For keynote seating, I work with 900–1000 mm row spacing and 500–560 mm seat widths, ensuring at least 1100–1200 mm primary aisles for two-way flow. Every 8–10 seats, break the row with a cross-aisle to improve egress and reduce disturbance during late entry. For workshop formats, 1500–1800 mm between table centers supports comfortable passage and cable management. Banquet rounds (1524 mm/60 in) typically fit 8–10, but I cap at 8 in tightly programmed rooms to preserve spatial rhythm and server access. Keep the first row 2–2.5 times the stage height from the proscenium to safeguard sightlines and acoustic clarity.

Stage, AV, and Sightline Strategy

Set stage height based on the farthest viewer’s eye line: for a large hall with 25–30 m throw, a 600–900 mm stage height usually clears heads without forcing uncomfortable viewing angles. I avoid screens wider than 1/6–1/7 of the viewing distance per screen, and I hold the bottom of the image 1.2–1.5 m above finished floor. If cameras are involved, reserve a 2–3 m deep tech platform centered 2/3 back from the stage. Keep projectors or LED walls isolated from return air paths to minimize dust and heat recirculation. Cable pathways should be preplanned in floor boxes at 4–6 m grids.

Light for Versatility: Illuminance, Color Temperature, and Glare

Layered lighting handles diverse programming. Target 300–500 lux house lighting (IES guideline range) on horizontal workplanes for note-taking, then dim to 30–50 lux during presentations to maintain audience focus without risking trips. Stage accents should sit around 750–1000 lux with 3000–3500K for warm skin tones; back-of-house and prep areas can run cooler (3500–4000K) for visibility. Keep UGR low by shielding downlights and selecting beam spreads that limit direct glare. Provide separate circuits for aisles and steps with low-level markers, and integrate DMX or DALI control for smooth transitions. I also incorporate high-CRI fixtures (90+) for product showcases.

Acoustic Comfort: Clarity Without Echo

Speech intelligibility collapses in high-volume, hard-surface halls. Aim for RT60 of 1.0–1.5 seconds for speech-centric events; deploy a mix of acoustic ceiling clouds, wall panels in the 500–2000 Hz range, and absorptive seating finishes. Distributed line arrays reduce SPL variation front-to-back; delay speakers time-aligned to the mains to avoid comb filtering. Keep mechanical equipment noise below NC 30–35 for comfort. If partitions enable breakouts, add seals and mass-loaded vinyl in operable walls, and design buffer zones (storage, tech) where flanking paths might occur.

Circulation, Wayfinding, and Behavioral Flow

Efficient space depends on frictionless movement. I plan primary corridors at 1:50 of occupant load (and never under 1800–2400 mm for two-way traffic), with separate service spines for catering and AV to keep trolleys away from guest paths. Entrances should distribute crowds to multiple aisles rather than funneling them into a single central path. Use color psychology subtly—cooler hues (blue/green) in transitional zones can reduce perceived crowding, while warmer accents near F&B points encourage dwell. Visual hierarchy matters: clear entry portals, numbered aisle markers, and high-contrast signage at 2.0–2.2 m AFF improve navigation.

Furniture and Material Choices for Durability and Speed

Select stackable, lightweight seating with ganging capability and quiet glides; tables with flip-tops and casters turn a hall over in minutes. Choose low-VOC materials and finishes to meet wellness targets and reduce odor accumulation in conditioned spaces. For floors, dense carpet tiles or hybrid acoustic underlay beneath vinyl can temper footfall noise without sacrificing cleanability. Edge guards on stage platforms and protected corners at doorways extend life in high-traffic cycles.

Power, Data, and Hybrid Readiness

Plan for omnipresent power: in-floor boxes at 4–6 m grids, perimeter strips, and dedicated camera power. Wired Ethernet drops beat Wi‑Fi for critical streams; allocate a distinct AV VLAN and backup route. Reserve a back-of-house control room with direct sightline to stage and sound isolation. For hybrid events, allow dedicated presenter rehearsal space with identical AV chain to the main stage to minimize day-of surprises.

Energy and Operations: Smart Efficiency

Energy efficiency dovetails with comfort. Use occupancy sensors to throttle ventilation and lighting in non-peak periods. Zonal control allows pre-cooling only where people gather. Incorporate high-MERV filtration balanced with fan energy, and schedule coil maintenance to prevent airflow penalties. Touchpoints like automatic door closers help maintain envelope integrity and reduce AC load.

Layout Testing and Visualization

Before committing to procurement, I simulate two or three layouts—keynote, banquet, expo—to verify capacities, egress, and sightlines. A good interior layout planner can model seating density, aisle widths, stage views, and even lighting impacts quickly: interior layout planner.

Case-Based Proportions You Can Start With

- Theater keynote: 65–70% seating, 20–25% circulation, 10–15% stage/BOH; 900–1000 mm row spacing; 1100–1200 mm main aisles; 2–2.5× stage height to first row.

- Workshop: 1.5–1.8 m table centers; 1200–1500 mm aisles; acoustically absorptive pin-up zones.

- Expo: 3–3.5 m aisles minimum; 6–9 m grid for booth power; higher illuminance (500–750 lux) and cooler CCT for color accuracy.

- Banquet: 60 in rounds at 8 per table; 1.8–2.1 m service lanes; lower ambient (200–300 lux) with warm accent lighting.

FAQ

Q1: What illuminance levels work best for a multipurpose convention hall?

A1: Keep general ambient around 300–500 lux for meetings (IES guidance), then dim to 30–50 lux for presentations. Stage lighting should sit near 750–1000 lux with warm CCT for natural skin tones.

Q2: How do I maintain air quality when the room fills quickly?

A2: Use demand-controlled ventilation linked to CO₂ sensors to keep levels in the WELL v2-referenced 800–1000 ppm range, add adequate outside air, and distribute via low-velocity diffusers or displacement systems to avoid drafts.

Q3: What aisle widths are comfortable for fast turnovers?

A3: Main aisles at 1100–1200 mm handle two-way flow efficiently; cross-aisles every 8–10 seats improve egress. For expo settings, widen to 3–3.5 m to accommodate carts and crowd surges.

Q4: How do I control reverberation for speech clarity?

A4: Target RT60 around 1.0–1.5 seconds using acoustic clouds, wall panels tuned to speech frequencies, and absorptive seating. Distributed speaker systems with time-aligned delays keep sound consistent.

Q5: What seating dimensions should I plan for comfort?

A5: Seat widths of 500–560 mm and row spacing of 900–1000 mm work for theater layouts. For tables, allow 1500–1800 mm between centers to retain clear circulation and cable management.

Q6: How can color psychology support wayfinding and behavior?

A6: Cooler hues (blue, green) in corridors can reduce perceived crowding; warm accents near food and networking zones encourage dwell. High-contrast signage at 2.0–2.2 m AFF enhances visibility.

Q7: What’s the best way to future-proof for hybrid events?

A7: Provide in-floor power/data grids, a dedicated AV VLAN, camera platforms with clear sightlines, and a rehearsal room mirroring the main stage’s AV chain. Favor wired backbones for critical streams.

Q8: How do I set stage height and screen placement?

A8: For long throws (up to 25–30 m), 600–900 mm stage height clears sightlines. Keep the image bottom edge 1.2–1.5 m above the floor and limit screen width to about 1/6–1/7 of viewing distance.

Q9: What materials support both acoustics and durability?

A9: Consider dense carpet tiles or acoustic underlays under resilient floors, fabric-wrapped wall panels, and low-VOC finishes. Use stackable chairs with quiet glides and tables with protected edges for long service life.

Q10: How do I balance energy efficiency with comfort?

A10: Zonal controls, occupancy sensing, and CO₂-based ventilation reduce waste. Maintain 20–24°C and 40–60% RH, use high-MERV filtration matched to fan power, and ensure tight doors to protect the conditioned envelope.
