AC Point in Room Placement: Ultimate Guide for Comfort & Efficiency: 1 Minute to Master AC Point Positioning & Save Energy

I’ve planned and commissioned hundreds of HVAC layouts in homes, offices, and hospitality projects, and the difference between a well-placed AC point and a poorly positioned one is dramatic: quieter rooms, fewer drafts, and lower energy bills. Smart placement isn’t just about where the unit fits—it’s about airflow paths, occupant ergonomics, heat-load balance, and how the space is actually used throughout the day.

Quantifiable benefits back this up. WELL Building Standard (WELL v2) emphasizes thermal comfort and adaptive controls to support occupant satisfaction, and its Thermal Comfort concept references maintaining temperatures and air speeds that minimize draft discomfort; studies consistently show that perceived comfort improves when air speeds stay below roughly 0.15–0.2 m/s in sedentary zones (source: v2.wellcertified.com). Steelcase research found that workers who report comfortable environments are up to 40% more engaged, tying HVAC performance to productivity outcomes (steelcase.com/research). When AC points reduce hotspots and drafts, engagement and task accuracy climb.

Core Principles for AC Point Placement

• Avoid direct discharge onto occupants: In seating, desks, or beds, maintain at least 1.5–2 m horizontal offset or angle the louver to bypass faces and torsos. Drafts above ~0.2 m/s are commonly cited as discomfort thresholds in sedentary spaces (WELL v2 guidance).

• Use return-air logic: Place supply (AC outlet) so conditioned air sweeps the room and naturally moves toward the return. This ensures a full air change rather than a short-circuit loop.

• Respect heat-load vectors: Locate AC points to counter solar gain (glazing), equipment clusters, and kitchen adjacency. South/west exposures typically require stronger throw or additional outlets.

• Honor room function: Bedrooms need gentle, indirect flow; living rooms can tolerate broader throw; home offices benefit from consistent temperature with low noise and no screen glare from vents.

• Keep maintenance clearances: Ensure filter access and service space. Poor access usually means delayed cleaning, reduced airflow, and higher energy use.

Room-by-Room Placement Guidance

Bedrooms: Mount wall splits high, centered opposite the bed or offset to wash the room rather than the sleeper. Angle louvers upward to promote ceiling bounce and diffuse flow. Target throw that reaches the far wall without striking the bed. For ceilings under 2.7 m, avoid placing the unit directly over the headboard to prevent cold downdrafts at night.

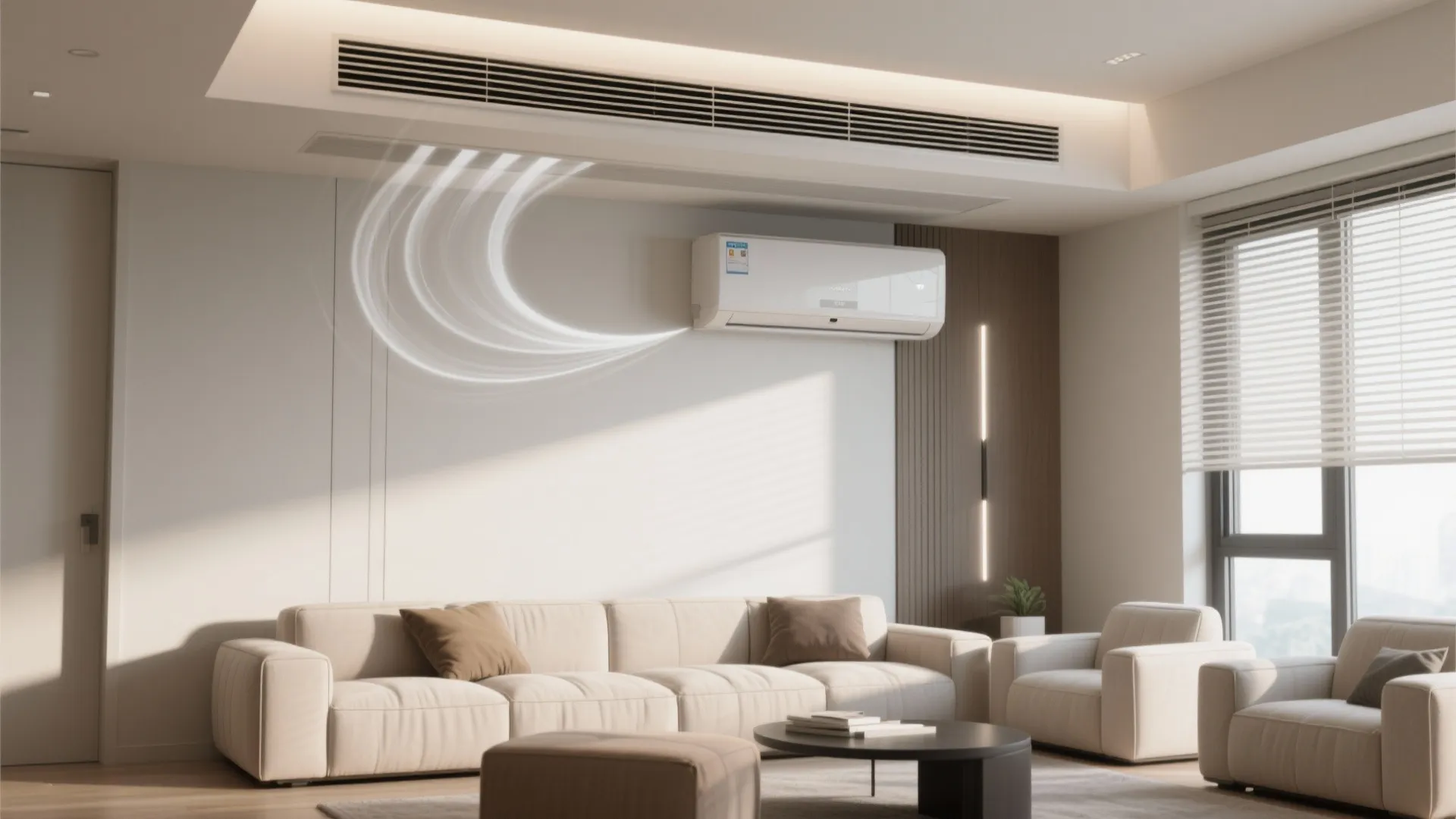

Living Rooms: Identify seating clusters and media walls. Place AC points to sweep across the room and pull warmth from glazing. For deep plans, consider two smaller outlets rather than one large, reducing noise and improving distribution. Use corner placements only if throw can reach mid-room without creating a vortex of cool air near occupants.

Home Offices: Prioritize acoustic comfort and stable temperatures. Keep the outlet angled away from monitors to prevent condensation or dust drafts that stir glare. If you’re testing furniture arrangements, a room layout tool can help visualize supply and return paths and seating positions: room layout tool.

Kitchens & Dining: Avoid direct discharge onto cooktops or prep counters. Place outlets to manage radiant heat from ovens and west-facing windows. Dining areas benefit from side-wash flow that doesn’t chill diners; aim for indirect ceiling bounce and moderate air speed.

Airflow, Throw, and Diffusion

Think in layers: primary throw (from outlet to far wall), secondary circulation (ceiling bounce and side walls), and final diffusion (low-speed mixing at occupant level). A correctly sized unit should deliver air that reaches the thermal load areas but decelerates before hitting people. Louvers should start at 10–20° upward tilt to exploit ceiling bounce in small rooms; increase angle in larger rooms to avoid drafts. For long rooms, select units with variable vane control and multi-directional sweep.

Avoiding Drafts and Cold Spots

Draft discomfort rises with higher air speed, lower temperature, and exposure on neck, hands, and ankles. Practical mitigations:

• Use indirect paths: Aim at walls or ceilings, not people.

• Balance outlets: Two modest outlets can beat one powerful jet.

• Tune fan curves: Night mode in bedrooms lowers speed and noise.

• Calibrate setpoints: A 1–2°C higher setpoint plus better diffusion often feels more comfortable than a lower setpoint with drafts.

Ceiling Heights, Envelope, and Furniture

Ceilings below 2.6–2.7 m demand gentler throw to avoid immediate downdrafts; tall ceilings need either higher output or stratification management (fans or zoning). Always map large furniture—sofas, wardrobes, tall bookcases—since they block paths and can cause recirculation pockets. If the layout is in flux during renovation, an interior layout planner is invaluable to pre-visualize vectors and seating edges: interior layout planner.

Return Air Placement

Supply without a thoughtful return creates uneven temperatures. Place returns on the opposite side of principal heat loads, ideally at a point that sees the room’s mixed air rather than immediate supply. In bedrooms, a low return near the door can help draw air across the room; in living spaces, mid-height returns on walls away from glazing often perform well.

Noise, Vibration, and Sleep Quality

Noise is a comfort killer. Keep AC points off lightweight partitions that amplify vibration. Use isolation mounts and ensure straight duct runs to reduce whoosh and hum. Bedrooms benefit from units with quiet fan curves and night modes; placing the outlet so airflow skips the head-of-bed zone improves sleep continuity.

Controls and Smart Zoning

Occupant control affects satisfaction more than sheer cooling power. WELL v2 highlights adaptive thermal control as a contributor to comfort; provide localized controls where possible. Zoning separates areas with different loads (glazing vs. interior), and scheduled setback reduces energy use without sacrificing comfort. In open-plan living, split the space into at least two controllable zones if solar gain varies across the day.

Color, Light, and Perception

Color temperature and paint reflectance change how cool a space feels. Cooler hues can psychologically lower perceived temperature, while warm lighting can make slightly cooler air feel more comfortable. Balanced light levels prevent glare that makes airflow more noticeable. Aim for diffused ambient lighting and avoid positioning outlets where air movement can flicker pendant fixtures.

Sizing, Efficiency, and Sustainability

Proper sizing is essential: oversizing increases short cycling and drafts; undersizing fails under peak loads. In renovations, prioritize envelope upgrades—shading, sealing, and insulation—before increasing AC capacity. Sustainable choices include high-SEER units, inverter technology, and routine filter maintenance to preserve airflow and reduce energy spikes.

Execution Checklist

• Confirm furniture plan and occupant positions.

• Identify heat loads (glazing, appliances, electronics).

• Choose outlet type (wall split, ceiling cassette, ducted) based on room size and ceiling height.

• Set louver angles for indirect flow; avoid direct discharge onto seating or beds.

• Plan returns to complete the airflow path.

• Validate noise and vibration control.

• Provide accessible maintenance clearances.

• Calibrate controls and zoning for daily rhythms.

FAQ

How far from the bed should an AC outlet be placed?

Keep at least 1.5–2 m horizontal offset from the sleeper and aim for ceiling bounce rather than direct discharge. This reduces draft discomfort and nighttime wake-ups.

What air speed feels comfortable in sedentary rooms?

Comfort often improves when air speed stays below ~0.15–0.2 m/s at occupant level, minimizing draft sensation; this aligns with guidance noted in WELL v2 on thermal comfort.

Is one large outlet better than two smaller ones?

In elongated living rooms, two smaller outlets often yield better distribution, lower noise, and fewer drafts compared to a single high-velocity jet.

Where should the return air be located?

Opposite the main heat loads and away from immediate supply discharge, ideally positioned to capture mixed room air. Bedrooms often benefit from low returns near doors.

How do ceiling heights affect AC placement?

Lower ceilings need gentle throw and upward louver angles to avoid downdrafts. Tall ceilings may require greater output, stratification management, or multiple outlets for even mixing.

Can AC placement influence productivity in home offices?

Yes. Stable temperatures without drafts and low noise correlate with better concentration. Steelcase research links comfortable environments with higher engagement, underscoring HVAC’s role.

What is the best orientation relative to windows?

Place outlets to counter solar gain, washing across the room and pulling heat from glazing. West and south exposures often need stronger throw or additional points.

How do I plan AC points during a remodel?

Lock the furniture plan first, identify heat loads, then position supply and return for full-room sweep. Use a room design visualization tool to simulate airflow paths and seating.

How does color and lighting affect perceived thermal comfort?

Cooler color palettes and balanced ambient lighting can make spaces feel thermally neutral at slightly higher setpoints, reducing the need for aggressive cooling.

Are inverter units worth it?

Yes. Inverter technology modulates output to match load, reducing energy use and minimizing drafts associated with on/off cycling.

What maintenance considerations impact comfort?

Filter cleanliness, clear access for servicing, and correct louver calibration maintain airflow rates and prevent noise spikes or uneven cooling.

How can I reduce AC noise in bedrooms?

Choose quiet fan curves, use isolation mounts, avoid mounting on thin partitions, and aim flow away from the head-of-bed.
