AERB Guidelines for X-Ray Room: Essential Safety & Design Tips: 1 Minute to Understand Key AERB X-Ray Room Compliance Steps

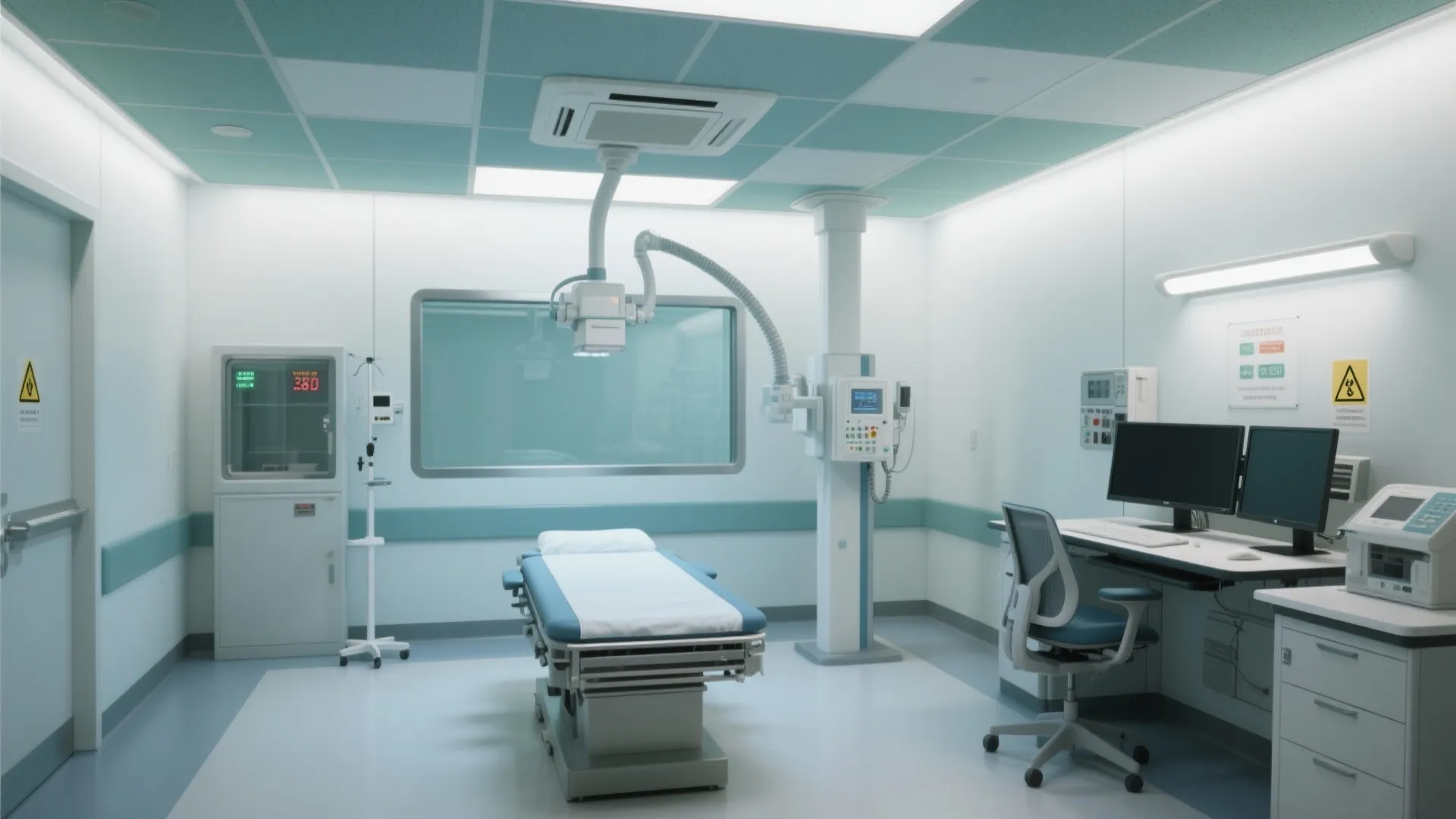

I’ve designed and retrofitted imaging suites for over a decade, and the X-ray room remains one of the most unforgiving spaces in healthcare design. AERB guidance sets the compliance baseline, but a safe, efficient, and calming room also depends on precise layout, shielding integrity, lighting control, acoustics, and human-factor details that reduce error and stress. The goal is straightforward: protect staff and patients, maintain diagnostic quality, and enable smooth clinical workflows without compromising regulatory requirements.

Occupational dose protection frames every decision. The WELL v2 Light concept recommends managing glare and vertical illuminance for visual comfort, which dovetails with radiography tasks where low ambient light is essential during exposures and image review. Steelcase research links cognitive performance to environmental comfort, indicating that well-tuned lighting and acoustics can reduce errors and decision fatigue in clinical settings. For layout precision and collision checks between equipment, a room layout tool can help simulate clearances and line-of-sight shielding.

Illumination targets should be carefully layered. IES standards for healthcare task lighting emphasize adequate luminance, glare control, and color rendering for clinical accuracy; in X-ray rooms, I keep ambient lighting dimmable to below typical office levels and prioritize indirect sources to avoid veiling glare on displays. When staff will review images within the room, color temperature in the 3500–4100K range balances alertness and eye comfort, while task lights near control consoles are shielded and separately switched to protect image integrity.

Room Zoning and Workflow

A robust X-ray room separates patient movement, equipment swing, and operator protection into clean zones. I plan three cores: patient positioning zone (table or bucky wall stand with clear circulation), equipment travel/swing envelope, and the protected operator console behind the lead-glass viewing window. Maintain a direct line of sight from the console to the patient, and ensure two egress routes remain unobstructed. When refining adjacency and clearances, an interior layout planner supports quick iteration and safety reviews: room layout tool.

Lead Shielding and Barriers

Shielding is the backbone of compliance. Walls, doors, and the viewing window must be sized and placed according to workload, kVp, technique factors, and occupancy of adjacent rooms. I coordinate early with medical physicists to produce shielding calculations that include primary barriers (direct beam) and secondary barriers (scatter and leakage). Use continuous lead-lined gypsum assemblies with lapped joints; avoid penetrations in primary barriers, and detail any conduits or boxes with lead-lined sleeves. The control booth should have lead glass with sufficient lead equivalence and an interlocked door when appropriate.

Control Booth Design

The operator’s station should be acoustically buffered, ergonomically tuned, and shielded. I specify sit-stand consoles, monitor arms with 3D adjustability, and anti-fatigue flooring. For dose safety, the exposure switch is placed inside the booth with visual contact to the patient. Integrate red/amber exposure indicators outside the room and repeaters inside the booth. Cable management routes below the counter keep surfaces clear for paperwork and sterile supplies.

Patient Experience and Behavioral Comfort

An imaging room is stressful for many patients. Color psychology suggests cool neutrals with gentle accents can reduce anxiety; research summarized by Verywell Mind indicates blues and soft greens often assist relaxation, which is particularly helpful before and after exposure. Signage should be straightforward and non-technical; staff circulation patterns avoid crossing patient paths during repositioning to reduce perceived chaos. Add a modest acoustic ceiling (NRC ≥0.70) to soften conversation and equipment noise without compromising infection control finishes.

Lighting Strategy for Accuracy and Safety

Layer lighting: low-glare ambient, dimmable task at the console, and minimal luminance gradients around the imaging field. Night mode presets keep illuminance stable during exposures. Shield luminaires from the direct beam path and away from ceiling reflections that might distract the radiographer. AERB-aligned rooms benefit from task lights with high CRI (≥90) for patient skin tone checks and equipment markings, while ambient fixtures remain flicker-free to protect staff comfort during long shifts.

Ergonomics and Human Factors

Operator reach distances should keep the keyboard, exposure switch, and emergency stop within the same ergonomic zone to minimize overreach. Equipment height adjustability is essential; bucky wall stands and tables should accommodate bariatric patients and wheelchair transfers with clear floor area and sturdy handholds. Horizontal circulation around the table must support a two-person assist without contact with the tube stand. Document holders and small storage near the console reduce cognitive load by keeping protocols visible.

Acoustic and Privacy Considerations

Acoustics affect comprehension of instructions during positioning. Use sealed doors with perimeter gaskets and consider soft, cleanable wall panels in non-primary barrier locations. Mask mechanical noise by isolating HVAC equipment and avoiding duct penetrations through primary barriers; if unavoidable, line ducts and include backer plates with lead continuity. For privacy, add visual screens outside for changing areas or place a dedicated changing room adjacent, maintaining eye-contact pathways for safety checks.

Materials, Cleanability, and Sustainability

Choose finishes that tolerate frequent cleaning: seamless sheet flooring with integral cove base, moisture-resistant substrates, and lead-compatible wall systems. Low-VOC materials and formaldehyde-free casework improve indoor air quality. Where feasible, select recycled-content gypsum and responsibly sourced wood for non-shielded millwork. Ensure door hardware is non-ferrous if it interacts with imaging accessories and specify flush pulls to prevent snagging wires.

Doorways, Access, and Safety Systems

Doors should open outward from the exposure area and be self-closing when connected to controlled zones. Interlocks can prevent exposures when a door is open. Provide illuminated status indicators, emergency stop buttons near both the console and patient zone, and a hands-free communication device for cases where voice projection is limited.

Commissioning, Testing, and Documentation

Before occupancy, verify shielding continuity with survey meters, validate door and interlock functions, and calibrate lighting presets for imaging and cleaning modes. Keep an as-built set that records all penetrations through barriers and the lead continuity details. Staff training covers patient communication, body mechanics for transfers, and standard operating procedures for exposure safety.

Key Data-Backed Design Notes

- WELL v2 emphasizes visual comfort, circadian support, and glare control; applying dimmable, low-glare ambient lighting and task lighting separations supports operator accuracy during image acquisition.

- Steelcase research associates better environmental comfort with cognitive performance and reduced error rates, strengthening the case for tuned lighting and acoustics in imaging rooms.

- IES healthcare lighting standards prioritize balanced illuminance, glare control, and suitable color rendering, which are fundamental to diagnostic accuracy and operator safety.

Practical Layout Checklist

- Confirm line-of-sight from control booth to patient.

- Verify primary and secondary barriers via physicist calculations; detail penetrations with lead continuity.

- Maintain clear circulation around table and wall stand for transfers and assists.

- Separate task and ambient lighting with dimmable controls; avoid reflections into the imaging field.

- Provide acoustic absorption without compromising cleanability.

- Integrate emergency stops, door interlocks, and exposure indicators.

- Commission with radiation surveys, interlock tests, and lighting calibration.

FAQ

What zones should an AERB-compliant X-ray room include?

A patient positioning zone, the equipment swing envelope, and a protected operator control booth with lead-glass viewing. Clear circulation and direct sightlines are essential.

How should lighting be set for radiography tasks?

Use dimmable, low-glare ambient lighting with separately switched task lights at the console. Keep color temperature around 3500–4100K for eye comfort and accuracy, and avoid luminance hotspots near displays.

What is the difference between primary and secondary barriers?

Primary barriers block the direct X-ray beam; secondary barriers address scatter and leakage radiation. Both are sized from workload and occupancy calculations coordinated with a medical physicist.

How do I handle penetrations in lead-lined walls?

Minimize them. If necessary, use lead-lined sleeves and backer plates, lap joints, and verify continuity during commissioning radiation surveys.

What ergonomic features matter in the control booth?

Sit-stand consoles, adjustable monitor arms, reachable exposure controls, clear cable management, and anti-fatigue flooring reduce strain and error during long imaging sessions.

How can acoustics improve patient instruction?

Sealed doors, absorptive ceilings or panels (cleanable), and controlled mechanical noise improve speech intelligibility, helping patients follow positioning directions accurately.

Which materials work best for cleanability and compliance?

Seamless resilient flooring with integral cove, moisture-resistant substrates, lead-compatible wall assemblies, and low-VOC finishes support hygiene and indoor air quality.

Should doors be interlocked with the X-ray system?

Interlocks are recommended to prevent exposures when a door is open. Pair with illuminated status indicators and emergency stop controls inside both patient and operator zones.

How do I ensure the viewing window is adequate?

Specify lead glass with appropriate lead equivalence based on shielding calculations and place it to maintain uninterrupted sightlines to the patient.

What commissioning steps are critical?

Radiation surveys to confirm shielding, functional tests for door interlocks and emergency stops, and lighting calibration for imaging versus cleaning modes. Keep detailed as-builts.

Reference Links

For visual comfort and environmental performance guidance, see WELL v2 Light concept recommendations at wellcertified.com. For healthcare lighting practices, consult IES standards at ies.org/standards.
