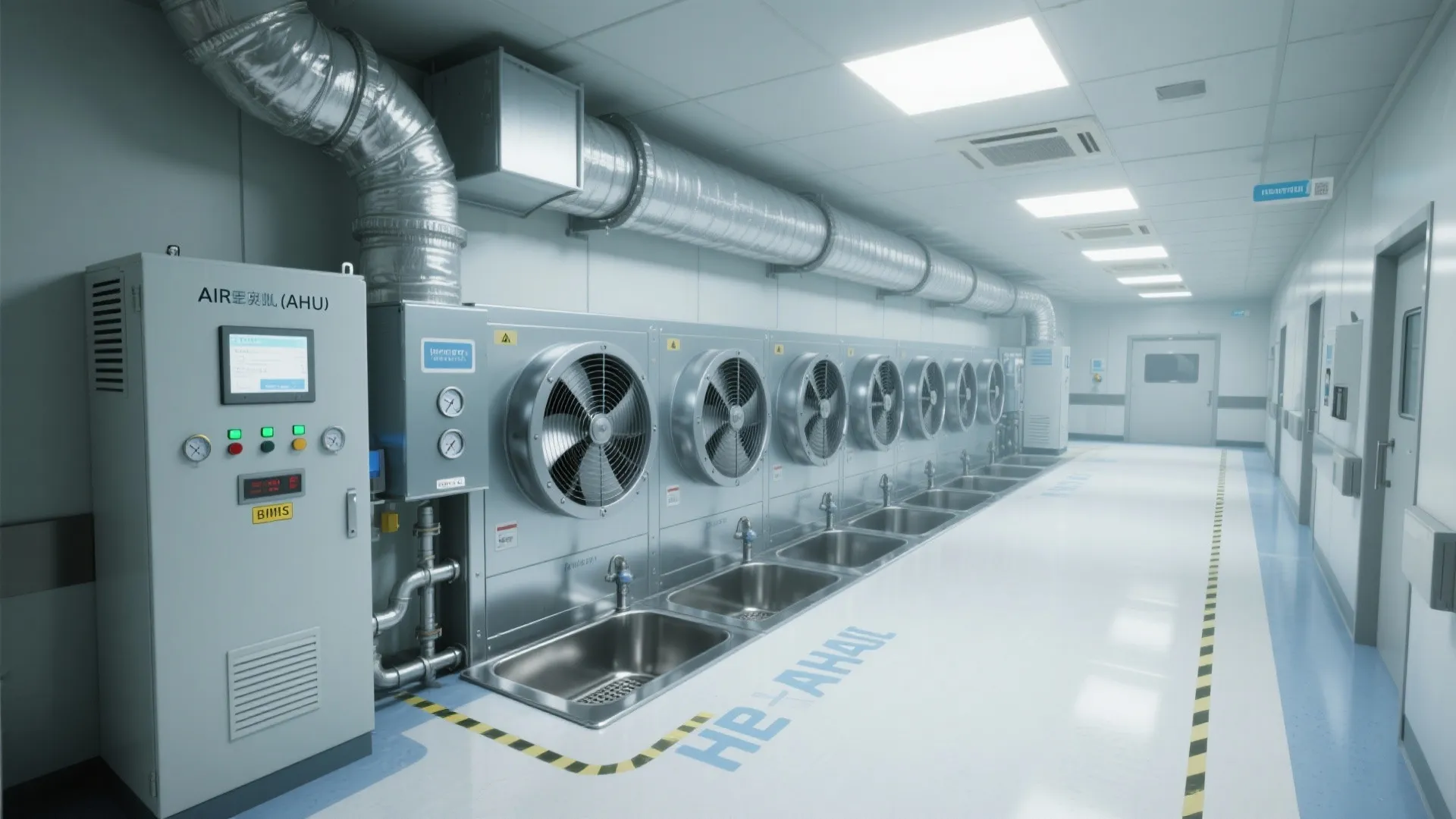

AHU Room in Hospital: Essential Guide for Healthcare Facilities: Fast-Track Guide to Hospital AHU Room Design and Optimization

Air Handling Unit (AHU) rooms sit at the heart of hospital building systems, safeguarding indoor air quality, temperature, and humidity across critical zones—from operating theaters to isolation suites. In my healthcare projects, the AHU room’s planning and detailing often determine whether clinical spaces can consistently meet infection control targets and patient comfort benchmarks. Data-backed design is non-negotiable: the WELL v2 Air concept specifies particulate matter thresholds (PM2.5 ≤ 15 μg/m³, PM10 ≤ 50 μg/m³) and formaldehyde ≤ 27 ppb, a useful baseline for filtration and monitoring strategies. Steelcase research on cognitive performance links thermal comfort and ventilation to focus and recovery in high-stress environments, reinforcing the need to treat AHU performance as a clinical asset rather than a back-of-house utility.

Ventilation rates matter. Operating rooms typically require 20 or more air changes per hour (ACH) and directional flow to maintain sterility, while patient rooms commonly range around 6–12 ACH depending on local codes and clinical function. Infection-resilient design benefits from verified airflow and filtration. IES standards emphasize glare-free lighting in technical rooms to reduce human error during maintenance and calibration, while Herman Miller’s workplace studies show that safe access and ergonomic reach reduce injury risk for staff—principles I apply directly to AHU equipment layout and service clearances. To dive deeper into spatial performance and human factors, I often reference Steelcase’s research portfolio on environmental quality.

Core Functions of a Hospital AHU Room

An AHU conditions, filters, and distributes air; the room itself provides the controlled environment for reliable operation and maintainability. Key functions include: high-efficiency filtration (often MERV 13–16 or HEPA in critical zones), humidity control suitable for surgical and isolation areas, temperature regulation aligned with clinical setpoints, pressure management for positive/negative rooms, and continuous monitoring for alarms and trending. Separate AHUs for surgery, isolation, imaging, and general care improve resilience and allow tailored control sequences.

Filtration, Sterility, and Infection Control

Filtration strategy drives clinical outcomes. For operating theaters and airborne infection isolation rooms, HEPA final filters (≥99.97% at 0.3 μm) are standard practice downstream of high-MERV prefilters. Differential pressure taps across each filter bank enable timely replacement before performance drops. I specify gasketed, leak-tested housings and avoid bypass paths at doors and seams. Ultraviolet germicidal irradiation (UVGI) in coils or duct sections can reduce microbial load, but it must be paired with appropriate materials and safety interlocks. Positive pressurization in sterile spaces and negative pressurization in isolation rooms safeguard adjacent areas, with continuously visible pressure gauges at doors.

Airflow, Zoning, and Layout Strategy

Efficient zoning minimizes cross-contamination and optimizes energy. Separate supply and return risers for high-risk floors, short duct runs for OR suites, and dedicated isolation exhaust reduce risk. I maintain clear equipment service aisles (typically ≥900 mm, often 1200–1500 mm for large frames), crane or cart paths for coil and fan replacement, and front-access filter walls. For planning studies and adjacency checks, a room layout tool helps simulate equipment footprints, access zones, and duct routing scenarios.

room layout tool

Thermal and Humidity Control

Hospitals need tight ranges. Typical surgical suites operate near 20–24°C with humidity managed between roughly 20–60% RH depending on regional guidance and specialty procedures. Desiccant wheels or enhanced dehumidification may be necessary for imaging or sterile processing where moisture compromises equipment or sterility. Reheat coils at zones prevent overcooling; supply air temperature reset reduces energy while maintaining stability.

Acoustic Comfort and Vibration Management

Noise impacts recovery and staff performance. I isolate AHU rooms away from NICU, oncology infusion, and patient sleep areas when possible. Vibration isolators under fans and pumps, flexible connectors on ducts, and resilient mounts prevent transmission. Acoustic lining in supply plenums and silencers on return fans reduce tonal noise. Maintenance spaces should cap steady-state noise levels to allow communication and reduce fatigue; I avoid hard, reflective finishes that amplify sound.

Lighting, Visibility, and Safe Maintenance

Service clarity reduces errors. Uniform, low-glare lighting per IES recommendations supports filter changes, coil inspection, and sensor calibration. Color temperature around 4000K–5000K balances acuity and visual comfort in technical rooms. I add task lights near gauges, differential pressure stations, and control panels. Clear sightlines to drain pans, humidifiers, and access doors help teams identify leaks or fouling early. Floor markings define safe paths and lockout-tagout zones.

Controls, Monitoring, and Redundancy

Reliable controls are crucial. Hospital Building Management Systems (BMS) should trend supply temperature, humidity, static pressure, fan speed, filter differential pressure, and alarm states. Critical AHUs benefit from N+1 fan arrays, dual power feeds, and emergency bypass modes. Pressure relationships must be continuously verified, not just setpoints; I often require local readouts near room entries. Integration with infection control protocols allows rapid mode changes during surge conditions.

Material Selection and Drainage

Corrosion-resistant casings, antimicrobial coil coatings, stainless drain pans with proper fall, and UV-resistant plastics around UVGI zones extend life and reduce contamination. Sloped floors to trench drains, backflow-protected condensate lines, and accessible trap priming simplify maintenance. Avoid porous finishes; use cleanable, sealed surfaces that withstand disinfectants.

Spatial Ratios, Access, and Human Factors

Human-centered layout prevents downtime. Maintain ergonomic reach distances (typically 500–700 mm for controls), keep heavy components on accessible levels, and plan coil pull paths equal to coil lengths. Provide staging areas for filter pallets and a wash-down sink. Clear headroom (often ≥2400 mm) avoids conflicts with overhead ducting. Safety rails, anti-slip flooring, and high-contrast labels reduce accidents.

Energy Performance and Sustainability

Hospitals run 24/7; energy discipline pays dividends. Variable speed fan arrays, airside economizers where climate permits, heat recovery coils, and demand-controlled ventilation in non-critical areas reduce load. Enhanced commissioning and seasonal tuning sustain savings without compromising clinical requirements. Select low-leak dampers and well-sealed ductwork to prevent energy waste and contamination.

Risk Management and Compliance

AHU rooms intersect with infection control, electrical safety, fire protection, and accessibility. Clear egress paths, fire-rated separations where required, and smoke control integration are part of the package. Coordinate with clinical stakeholders for room pressurization strategies during emergency modes. Routine audits, filter testing, and coil hygiene checks should be scheduled and trended.

Project Delivery and Commissioning

From design to day-two operations, commissioning determines whether AHUs perform as intended. I insist on pre-functional checks, leakage testing, air balance verification, and control sequence validation for each clinical zone served. Training facility teams on maintenance protocols, sensor calibration, and alarm response closes the loop.

Frequently Overlooked Details

Common misses include inadequate access for filter carts, missing differential pressure taps across every filter stage, lack of coil pull clearance, and insufficient lighting for nighttime maintenance. I also see poorly sloped drain pans and condensate lines that invite microbial growth. Small fixes yield big gains in reliability and hygiene.

FAQ

What are typical air change rates for hospital ORs and patient rooms?

Operating rooms commonly target around 20 ACH with directional, often laminar, flow. Patient rooms typically range 6–12 ACH depending on local codes and clinical needs.

Which filters should an AHU use for critical hospital areas?

Use staged filtration: prefilters (e.g., MERV 8–11), secondary high-MERV (13–16), and HEPA final filters for ORs and isolation rooms. Ensure leak-tested housings and pressure taps at each stage.

How do I manage positive and negative pressure in clinical zones?

Set supply and exhaust to maintain offset pressures. Keep sterile spaces positive to adjacent areas and isolation rooms negative, with continuous pressure monitoring near entries.

What humidity range suits surgical suites?

Hospitals often maintain roughly 20–60% RH based on procedures and regional standards. Dehumidification and reheat strategies keep ranges stable without overcooling.

How should the AHU room be laid out for safe maintenance?

Provide 900–1500 mm service aisles, coil pull paths, front-access filter walls, adequate headroom, and clear access to drains and sensors. Low-glare lighting and floor markings improve safety.

Which controls and alarms are essential for hospital AHUs?

Trend supply temperature, humidity, static pressure, fan speed, and filter differentials. Include alarms for pressure loss, humidity drift, coil fouling, and door interlocks.

How can hospitals reduce AHU energy use without sacrificing safety?

Adopt variable speed fans, heat recovery, tight duct leakage control, and airside economizers where climate permits. Commissioning and seasonal tuning preserve performance.

What acoustic measures help near sensitive departments?

Use vibration isolators, flexible connectors, acoustic lining, and silencers. Place AHU rooms away from NICU and sleep areas when possible.

Are UVGI systems useful inside AHUs?

UVGI can reduce microbial growth on coils and in ducts but must be designed with material compatibility and safety interlocks. It complements, not replaces, filtration.

How do research-backed standards influence AHU design?

WELL v2 sets measurable air quality thresholds, and IES emphasizes visibility and low-glare lighting—both inform filter selection, monitoring, and maintenance safety.
