Air Conditioning Plant Room: Essential Guide for Smart Space Design: Fast-Track Guide to Designing an Efficient Air Conditioning Plant Room

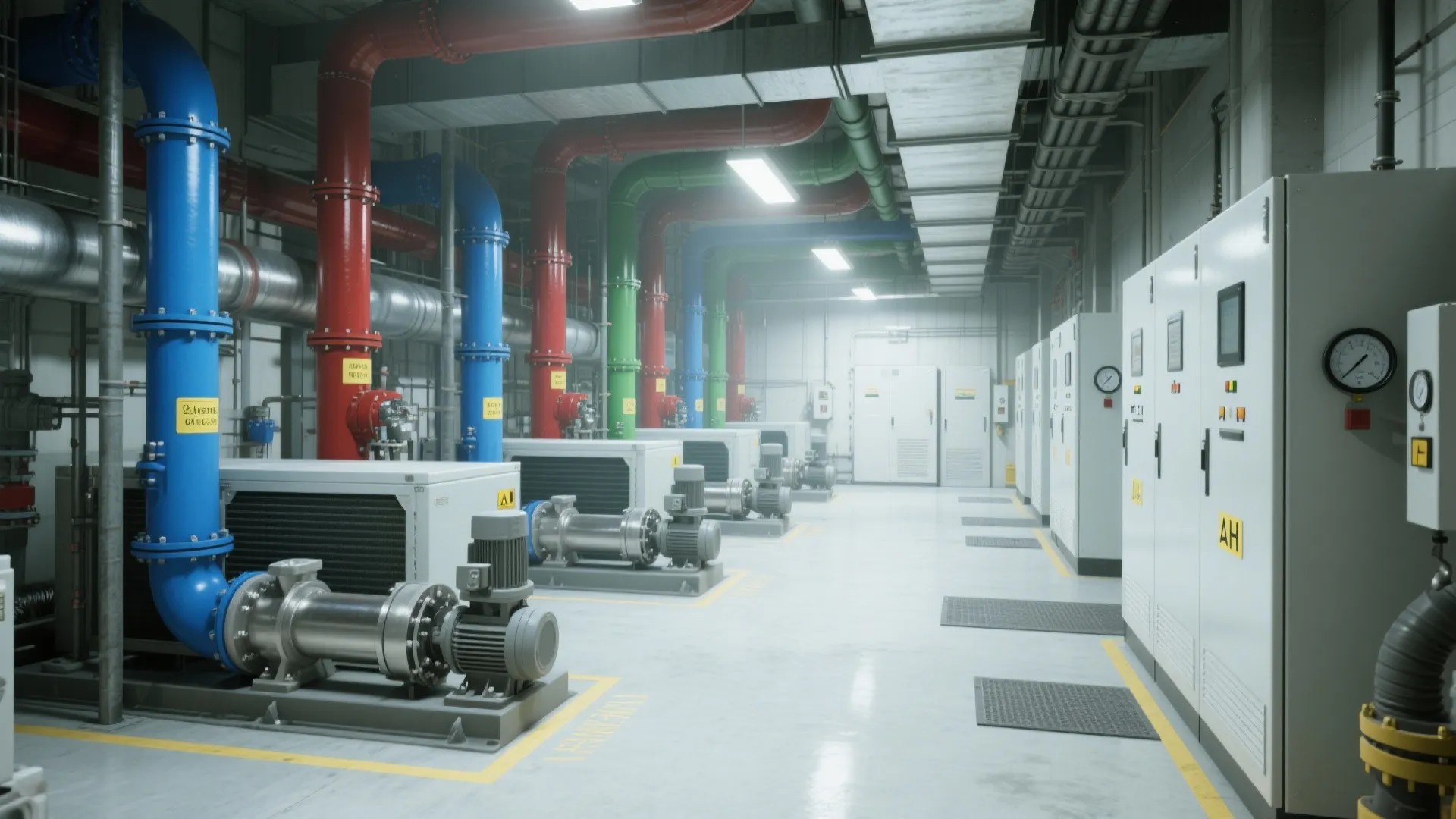

I approach every air conditioning (AC) plant room as the building’s cardiopulmonary system—if it’s poorly planned, the whole asset underperforms. Smart space design here is less about aesthetics and more about clear service strategy: airflow, maintainability, resilience, and safety. In office buildings, mechanical systems commonly account for 30–40% of total energy use; Gensler’s workplace research also links thermal satisfaction to higher perceived productivity, with comfortable environments correlating to better focus and well-being. The WELL Building Standard v2 recommends indoor operative temperatures generally in the 20–24 °C range for cooling seasons and emphasizes controllability and low noise, underlining how a tuned plant room ripples through occupant comfort.

From an operational lens, HVAC downtime is one of the top facility risk drivers. IFMA has reported that unplanned maintenance can cost multiples of preventive schedules due to emergency labor, parts, and knock-on tenant impacts. In parallel, acoustic comfort matters: WELL v2 targets background noise control in work areas, and plant rooms should limit structure-borne and airborne transfer with isolation pads, flexible connections, and mass-loaded partitions. For lighting, reference IES recommendations for equipment rooms: task areas near control panels should meet appropriate illuminance and mitigate glare so labeling and gauges are legible during inspections.

Define the Scope and Loads

I start by clarifying building use, diversity factors, design dry-bulb/wet-bulb conditions, and future load growth. This frames chiller/heat pump tonnage, pumping head, air-side support, and electrical infrastructure. Where layout decisions are being evaluated or compared, a room layout tool can help quickly test clearances and service routes; a simple interior layout planner improves early clash detection and ensures code-required access around equipment.

Core Spatial Ratios and Clearances

Functional geometry prevents hazards and reduces life-cycle cost. As a rule of thumb I aim for:

1. Minimum 900–1200 mm clear on service sides of pumps, chillers, AHUs, and panelboards; 1500 mm where tube pulling or coil extraction is required.
2. Straight coil-pull zones equal to full coil length plus handling space.
3. Door widths sized for the largest replaceable component (typically compressor or motor), with direct or modular access to the exterior via removable panels.
4. Overhead clear for lifting beams/monorails; set rated anchor points for chain blocks where crane access is impossible.

These provisions save hours per maintenance event and lower risk during major overhauls.

Workflow-Driven Layout

I map the technician’s route: entry → lockout/tagout → control panel → isolation valves → strainers → equipment service side → consumables storage. Group isolation valves and gauges at ergonomic heights (1000–1400 mm). Keep strainer baskets reachable without ladder work where possible. Ensure 100% makeup and relief pathways for glycol or refrigerant service. If you’re iterating alternative arrangements, use an interior layout planner to visualize circulation, equipment separations, and emergency egress with a room design visualization tool such as this room layout tool: room layout tool.

Equipment Zoning and Redundancy Strategy

Segment the room into functional bays: chillers/heat pumps, primary/secondary pumps, plate heat exchangers, buffer tanks, water treatment, electrical panels, and BMS. For mission-critical assets, N+1 redundancy on chillers and pumps is standard. Separate electrical from wet processes with physical partitions and drip trays. Provide clear demarcation lines on the floor for safety zones around MCCs and VFDs.

Pipework, Valving, and Serviceability

Service valves upstream/downstream of all major components, with double isolation for mission-critical lines. Install pressure/temperature test ports at each differential measurement point. Orient Y-strainers for easy basket removal. Use spring hangers or inertia bases to control vibration transmission. For steel piping, keep expansion loops or flexible connectors near equipment nozzles; number and tag every valve, and align labeling with digital twin records.

Acoustic and Vibration Control

Airborne noise: increase partition mass (double-stud or CMU), seal penetrations, and specify solid-core acoustic doors with gasket kits. Structure-borne: inertia bases under rotating equipment, resilient mounts, flexible connectors on suction/discharge, and isolated pipe guides. Plan the room away from noise-sensitive spaces (boardrooms, wellness rooms). WELL v2 highlights how noise undermines cognitive performance; a quiet plant room supports better conditions in adjacent zones.

Thermal, Ventilation, and Exhaust

Plant rooms need dedicated ventilation to remove equipment heat and any fugitive refrigerant. Provide cross-ventilation or mechanical extract sized for worst-case heat rejection and code-required dilution. Place temperature sensors away from heat plumes. Maintain ambient conditions within equipment rating (often 5–40 °C). For refrigerant machinery rooms, follow applicable safety standards for leak detection, alarms, and purge/exhaust routing.

Lighting, Color, and Visual Ergonomics

Design lighting to IES-recommended illuminance, favoring neutral-white (4000–4500 K) for accurate reading of instruments without color cast. Avoid glare on gauge lenses; add task lights at panels. High-contrast labeling and color zoning (e.g., blue for chilled water, red for heating, green for domestic) aid wayfinding and error reduction. From color psychology research, cool hues support perceived clarity and focus under task conditions.

Drainage, Spillage, and Housekeeping

Set floor falls toward trench drains; include sediment traps near strainers and chemical dosing areas. Secondary containment under chemical tanks. Condensate lines with air gaps to prevent cross-contamination. Provide hose bibs and wall guards; keep clear 1000 mm corridors free of trip hazards. Good housekeeping reduces incident rates during peak maintenance periods.

Controls, BMS, and Commissioning Readiness

Mount BMS panels at ergonomic height with 1200 mm clear in front. Provide network redundancy and label every sensor/actuator point. Allow space for temporary commissioning gear (flow meters, power analyzers) and route pressure tappings to user-friendly manifolds. Document shut-down/start-up sequences at the panel and in the digital O&M set.

Fire, Life Safety, and Compliance

Maintain clear egress, illuminated exit signage, and manual call points at exits. Use noncombustible finishes; seal penetrations with firestop systems. Coordinate fire sprinklers with overhead service rails. Where refrigerants are present, incorporate leak detection linked to alarms, ventilation boost, and equipment shutdown per code. Post hazard signage and SDS sheets at entry.

Energy, Water, and Resilience

Specify high-efficiency chillers or heat pumps, VFDs on pumps and fans, and differential-pressure control strategies. Provide bypasses for partial load operation. Install BTU meters and submeters for analytics. Water-side economizers and heat recovery where climate and loads justify. For resilience, plan generator-backed critical pumps and controls; separate redundant circuits physically to avoid common-mode failures.

Materials, Durability, and Sustainability

Choose slip-resistant resin or sealed concrete floors, epoxy-coated steel supports, and corrosion-resistant fixings in coastal or humid environments. Prioritize low-VOC sealants and paints to align with wellness standards. Use modular cable trays and prefabricated pipe spools where feasible to shorten install time and improve quality. Ensure all insulation is closed-cell in wet zones with vapor barriers intact.

Access, Logistics, and Buildability

Plan delivery routes from loading bay to plant room: check lift capacities, corridor turns, and thresholds. Design knock-out panels or removable louvers for future replacements. Verify crane reach or designate internal lifting beams. During construction, maintain a clean path for commissioning crews.

Documentation and Digital Twin

Keep as-built models updated with valve numbers, sensor IDs, and motor tags. QR-code every major component to link O&M manuals and maintenance logs. This reduces search time during fault diagnosis and supports predictive maintenance.

Quick Layout Checklist

1. Clear service zones and coil pull paths
2. Logical technician workflow and safe LOTO areas
3. N+1 for critical equipment; physical separation of wet and live zones
4. Dedicated ventilation, leak detection where required
5. Acoustic isolation and vibration control
6. IES-appropriate lighting and task visibility
7. Drainage strategy and spill containment
8. Commissioning access and BMS ergonomics
9. Resilience: backup power, dual risers, and metering

References and Further Reading

For occupant comfort and performance frameworks, see WELL v2 thermal and acoustic features at wellcertified.com. For design research on workplace performance and environmental quality, consult Gensler Research Institute’s findings at gensler.com/research.

FAQ

How big should an AC plant room be?

Size depends on equipment and service clearances. After placing chillers/AHUs and pumps, maintain 900–1500 mm service aisles, coil pull zones, and space for lifting gear. Add expansion space for future equipment if the building’s load is expected to grow.

What are the most important safety features?

Clear egress paths, lockable disconnects, non-slip flooring, emergency lighting, firestopping at penetrations, and—where applicable—refrigerant leak detection tied to alarms and ventilation boost.

How do I minimize noise to adjacent offices?

Use high-mass partitions, seal all penetrations, isolate equipment on inertia bases, and add flexible connectors to piping and ductwork. Keep plant rooms away from noise-sensitive spaces and decouple structure-borne paths.

What lighting levels work best?

Follow IES guidance for equipment rooms; provide uniform ambient lighting with neutral-white 4000–4500 K and task lighting at panels and gauges to reduce glare and misreading risk.

Do I need redundancy?

For critical operations, yes. N+1 on chillers and pumps reduces downtime risk and simplifies maintenance. Separate redundant electrical feeds and physically segregate risers to avoid single points of failure.

How should drainage be planned?

Provide sloped floors to trench drains, secondary containment under chemical dosing, and air-gapped condensate discharge. Position cleanouts and sediment traps near strainers.

What controls and metering are worth adding?

Differential pressure sensors for pumps, BTU meters across key loops, power submeters per major asset, and BMS trend logs. These enable optimization and rapid fault isolation.

Which materials hold up best?

Resin or sealed concrete floors, epoxy-coated or stainless supports, closed-cell insulation with intact vapor barriers, and corrosion-resistant fixings—especially in humid or coastal climates.

How do I future-proof the space?

Include removable panels, hoisting provisions, spare electrical capacity, and space for additional equipment. Document pathways for coil pulls and compressor swaps.

What about color and labeling?

Apply consistent color coding for systems and high-contrast labels for valves and panels. This reduces error rates and shortens maintenance time, supporting safer operations.
