Air Handling Unit Room Size: Expert Guide for Efficient Spaces: Fast-Track Guide to Calculating Air Handling Unit Room Size in 1 Minute

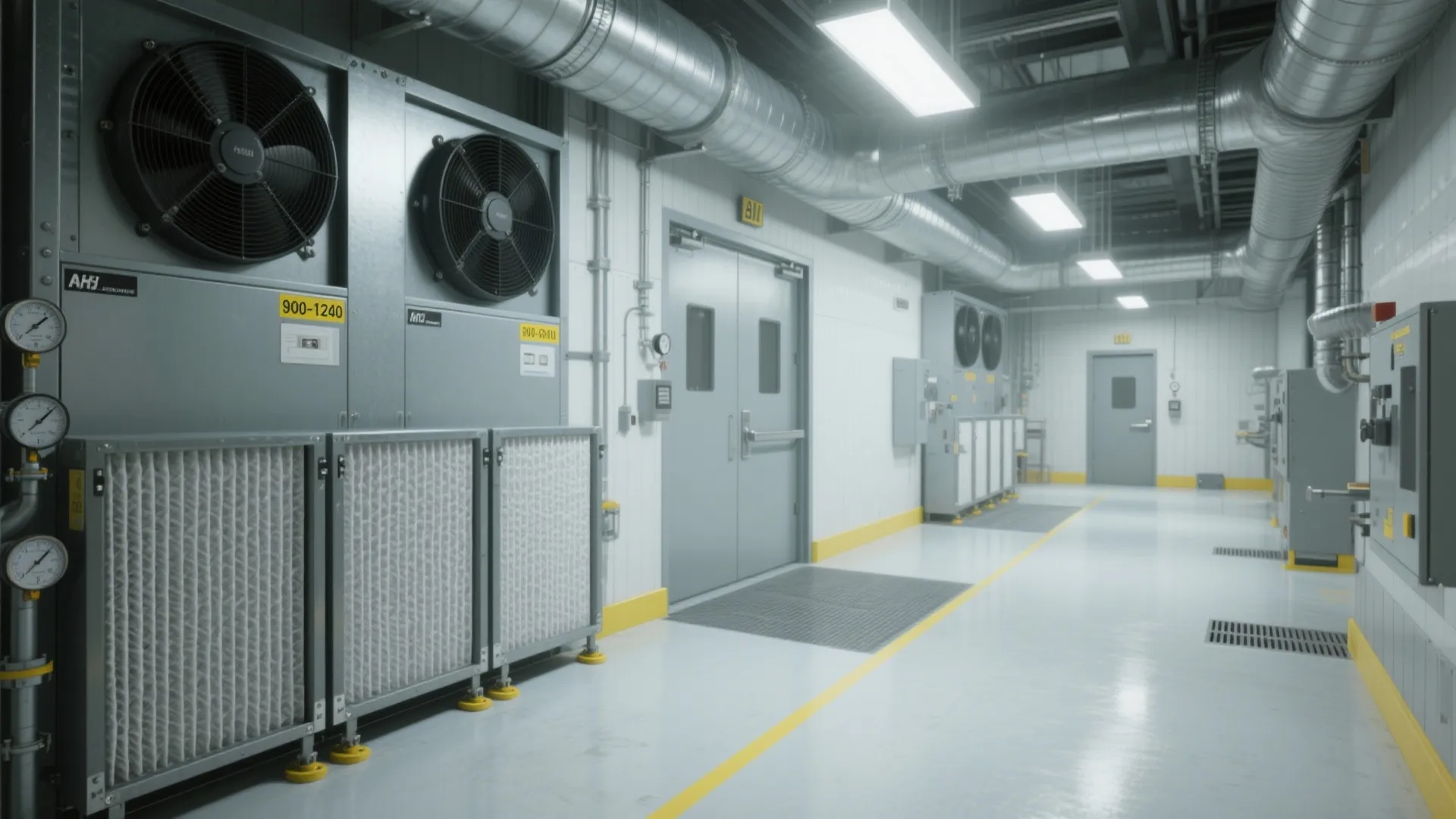

I’ve designed and commissioned more AHU rooms than I can count, and the best ones share a few constants: clear service access, thoughtful airflow paths, and space allowances that respect both code and maintenance reality. When room sizing is tight, energy and uptime suffer. A well-planned AHU room protects airflow quality, makes maintenance quick, and keeps noise and vibration in check.

Space isn’t a luxury—it’s a performance variable. WELL v2 recommends maintaining particulate and VOC control via proper filtration and ventilation strategies, which depend on consistent access for filter swaps and coil cleaning; that access can vanish in undersized rooms (WELL v2 Air concept). Gensler’s workplace research notes that comfort and environmental control are top drivers of user satisfaction; poor thermal and acoustic management from cramped mechanical rooms undermines that (Gensler Research Institute). These findings echo what I see on projects: generous, well-organized AHU rooms stabilize temperature and noise while reducing service downtime.

Key Sizing Principles for AHU Rooms

I start with three baselines: equipment footprint, service clearances, and circulation paths. For typical commercial AHUs, I budget at least 900–1200 mm clear in front of filter banks and coil access panels, 750–900 mm on sides with valves and sensors, and 1200–1500 mm at fan/motor ends where belt, VFD, or bearing work happens. If an AHU includes heat recovery wheels, add 900–1200 mm for removal and cleaning maneuvering. Verify with the manufacturer submittals—then add 10–15% safety margin for future retrofits.

Layout: Keeping Air and People Moving

Good layouts separate the service side from egress paths, avoid dead ends around duct risers, and reserve full-height zones for coil pull and filter change. I prefer straight-through arrangements: return plenum → filtration → coils → fan section → supply plenum. If your room has structural columns, plan offsets so access doors swing fully. Where planning multiple AHUs, mirror units so shared maintenance zones sit between them. When testing alternative arrangements, a room layout tool helps visualize clearances, door swings, and duct transitions before anything is built.

Ventilation Airflow and Filtration Strategy

Filtration level drives service needs. Many offices use MERV 13 filters; they demand consistent access for swaps and gasket checks. Higher-efficiency filters increase static pressure; leave space for test ports and differential pressure gauges near filter racks. Place access upstream and downstream to brush or wash coils without fighting tight corners. According to WELL v2 Air concept, maintaining proper ventilation rates and filtration integrity supports particulate reduction and occupant health; in practice, that means room sizing that lets techs perform full filter changes and coil cleaning without compressing ductwork or risking damage.

Noise, Vibration, and Acoustic Comfort

AHU rooms should not leak their soundtrack into occupied areas. I isolate rooms from workspaces with resilient mounts, floating slabs where required, and heavy doors with perimeter seals. Steelcase research links acoustic comfort to productivity; controlling mechanical noise is part of that equation (Steelcase Research). Add 600–900 mm space for flexible connectors, vibration isolators, and sound attenuators at discharge and return. Keep bends smooth; sharp transitions amplify turbulence and noise.

Lighting and Human Factors in Mechanical Rooms

Serviceability rises with better light. I specify 300–500 lux uniform task lighting across access faces, 4000–5000K neutral white for visual clarity, and controlled glare so gauges and screens remain legible. Provide ladder-free access to frequently touched components. Thermal safe zones around hot coils or steam traps need clear markings and at least 450–600 mm buffer space so techs don’t work in burn-risk proximity.

Doors, Egress, and Safety Clearances

Wide doors (900–1200 mm) with straight shot paths allow coil removal and fan wheel replacement. Keep minimum 900 mm egress width clear to exit, with illuminated path markers. Install lockable panels, but avoid padlocks on primary access faces—quick-release hardware reduces service time. Where chemical cleaning is used, dedicate a small storage recess with ventilation and spill containment.

Ductwork and Plenum Proportions

Plan plenums so velocity doesn’t spike. I target supply plenum velocities under 3–4 m/s to minimize noise; return under 2.5–3 m/s. Gentle diffusing sections need space—often 1.5–2.0 duct diameters of straight run downstream of the fan or attenuator. Sufficient room height keeps transitions smooth and avoids crushed geometry above the unit.

Drainage, Condensate, and Moisture Control

Condensate traps must be accessible for cleaning. Provide 300–450 mm clear below pans or trap assemblies, and keep the floor pitched to a drain. Humidity control is easier with room-level ventilation and dehumidification strategy; both require space for sensors and sampling lines. Integrate a washable splash zone around drain paths to preserve hygiene.

Electrical, Controls, and Access for Commissioning

Panels, VFDs, and control cabinets should face open aisles with at least 900 mm of clearance. Mount test ports and airflow taps at reachable height. Commissioning teams need elbow room for temporary instrumentation; I budget a clear 1200 mm strip along the test side and a wall-mounted rail for laptops and meters. Labeling at eye level reduces troubleshooting time.

Sizing Rules of Thumb

For compact commercial systems, plan room area that’s roughly 1.2–1.6× the AHU footprint to accommodate clearances, duct transitions, and service aisles. For large built-up systems, 1.8–2.5× is more realistic, especially with heat recovery, humidification, or dual-fan arrangements. Ceiling height should be enough for the tallest component plus 600–900 mm for safe removal and overhead duct transitions.

Material Selection and Durability

Mechanical rooms see impacts and spills. I lean on non-slip epoxy floors with integral cove, moisture-resistant wall panels, and corrosion-resistant hardware. Specify removable protective corner guards at tight radii. Sustainable choices include low-VOC coatings and recycled-content panels that hold up to cleaning cycles.

Future-Proofing: Space for Upgrades

Leave a clear route for equipment replacement—ideally a straight shot from loading dock. Keep 15–20% spare wall space for added controls, and plan for potential filtration upgrades by reserving plenum volume and access. If demand controlled ventilation or energy recovery is on the roadmap, allocate floor area now; it’s cheaper than remodeling later. Use an interior layout planner to simulate equipment swaps and confirm turning radii.

Common Mistakes I Avoid

- Doors too narrow for coil removal

- No straight duct run after the fan, causing turbulence and noise

- Filter banks without stand-off room for tool use

- Inadequate lighting and poor gauge visibility

- Overstuffed rooms that block egress or trap heat around controls

Case Notes from the Field

On a recent office retrofit, we expanded an AHU room by 20% to capture proper coil pull space and added 1200 mm clear around the fan end. Filter change time dropped by half, and the tenant reported fewer hot/cold complaints after the airflow transitions were smoothed. Vibration complaints vanished once flexible connectors were properly spaced and aligned.

FAQ

Q1. What minimum clearance should I keep around an AHU?

A1. Aim for 900–1200 mm in front of access panels, 750–900 mm along service sides, and 1200–1500 mm at fan/motor ends. Confirm with the manufacturer and add a safety margin.

Q2. How does room size affect energy performance?

A2. Tight rooms force sharp duct transitions and higher static pressure, raising fan energy. Generous space enables smoother airflow and easier maintenance, keeping filters and coils at peak efficiency.

Q3. What lighting levels work best in an AHU room?

A3. Provide 300–500 lux uniform light at 4000–5000K. Keep glare low so gauges, labels, and touchscreens remain readable.

Q4. How can I reduce noise and vibration?

A4. Use flexible connectors, vibration isolators, smooth duct transitions, and sealed, heavy doors. Allocate 600–900 mm space for attenuators and isolation components.

Q5. Which filtration level should I plan for?

A5. Many offices target MERV 13. If considering higher-efficiency filters, allow room for larger housings, DP gauges, and safe access for changes.

Q6. What egress and safety provisions matter most?

A6. Maintain at least 900 mm clear exit paths, wide doors (900–1200 mm), clear floor markings around hot components, and accessible shut-offs at eye level.

Q7. How much area should I budget for a large built-up AHU?

A7. Typically 1.8–2.5× the equipment footprint, accounting for service aisles, duct transitions, and upgrades like energy recovery or humidification.

Q8. How do controls and commissioning needs influence layout?

A8. Keep 900 mm clearance in front of electrical panels and control cabinets, eye-level labeling, and a dedicated test strip (about 1200 mm) for temporary instruments.

Q9. Should I include floor drains and moisture control?

A9. Yes. Pitch floors to a drain, keep 300–450 mm clear around traps, and specify washable finishes to manage condensate and cleaning.

Q10. What future-proofing steps save money later?

A10. Reserve 15–20% spare wall space for added controls, plan straight replacement routes, and size plenums for potential filtration or energy recovery upgrades.
