Air Handling Unit Room Size: How Big Should Your AHU Space Be?: Fast-Track Guide to Calculating the Perfect AHU Room Size for Any Project

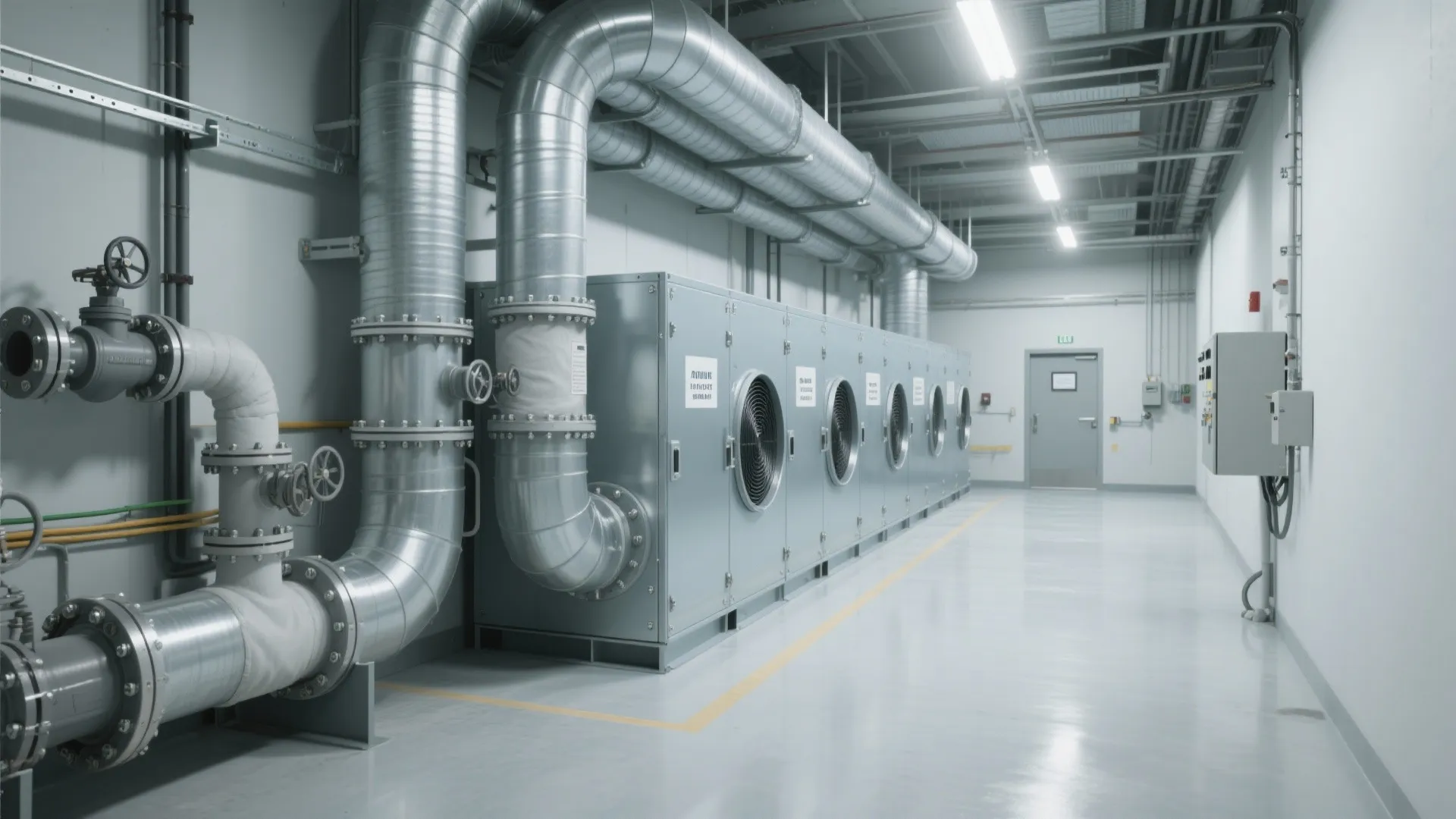

Getting the air handling unit (AHU) room size right is a design decision that affects performance, maintainability, and lifecycle cost. I plan AHU spaces with equal weight on mechanical footprint, service clearances, duct and pipe routing, acoustic isolation, and safe egress.

Space planning for mechanical rooms benefits from data-backed targets. The WELL v2 Thermal Comfort concept sets operative temperature and humidity parameters that push AHU coil selection and therefore footprint; meeting these ranges consistently requires adequate service access for sensors, filters, and valves to stay calibrated and replaced on schedule (v2.wellcertified.com). Steelcase’s workplace findings report that acoustic distractions are a leading blocker of focused work, with noise cited by 49% of workers; housing AHUs in correctly sized, isolated rooms with proper vibration control directly reduces transmission to adjacent spaces (steelcase.com/research).

Lighting and maintenance considerations are also measurable. IES recommendations for mechanical rooms commonly target 200–300 lux at working surfaces, ensuring technicians can service filters, belts, and valves without errors (ies.org/standards). This illuminance level informs ceiling height, fixture placement, and clear zones in front of panels and filter banks.

Core Sizing Logic for AHU Rooms

I start with the physical AHU envelope plus hard service clearances, then layer routing and circulation. A practical rule of thumb: the room area should be the AHU footprint multiplied by 2.0–2.5 to accommodate front/back/side access, piping manifolds, and duct transitions. For example, a packaged AHU measuring 3.5 m × 2.0 m (7 m²) typically needs 14–18 m² of room area when you include 1.0–1.2 m clear working zones on the access sides, plus corner turning radii for large filter carts.

Clearance Standards I Rely On

- Service side: 1.0–1.2 m clear to open access panels, remove coil sections, and change filters.

- Non-service side: 0.6–0.9 m for inspection and housekeeping.

- End-of-unit pull space: 1.2–1.5 m if coils or fans may be removed longitudinally.

- Overhead: maintain free path for duct transitions; typically 600–900 mm beyond the highest connection for turning vanes and access to fire dampers.

These clearances prevent unsafe maintenance postures and reduce downtime. They also support ergonomics: adequate reach envelopes and neutral joint angles lower injury risk (ergonomics.org).

Ceiling Height and Vertical Planning

Ceiling height is a quiet driver of constructability. For most mid-size AHUs with top duct connections and overhead chilled water lines, I plan 3.2–4.0 m clear height. That accommodates duct turn radius, acoustic lining thickness, hangers, cable tray, and lighting. If energy recovery wheels or humidifiers sit high, add another 300–500 mm to keep inspection hatches accessible.

Duct and Pipe Routing: Avoid the Pinch Points

The best AHU room layouts prioritize smooth air paths and service loops. Keep supply and return trunks aligned to the coil faces to reduce sudden offsets that add static pressure. Allow pipe valving stations to sit within the service side, not behind the unit. When exploring alternatives, a layout simulation tool helps visualize conflicts between duct arcs, valve reach, and egress paths:

room layout tool

Access, Egress, and Safety

I treat mechanical rooms like workshops. Provide two independent egress routes for larger plant rooms. Door widths of 900–1200 mm allow coil and fan assemblies to pass without disassembly. Keep a 1.2 m clear route from the primary door to AHU service sides. Place emergency stops and lockout/tagout stations on the approach side, not behind piping clusters.

Noise and Vibration Control

AHUs are vibration sources. I separate the room from occupied areas with staggered stud partitions or dense masonry, plus resilient mounts. Locating the unit away from corners reduces low-frequency buildup. Acoustic lining in supply/return plenums and flexible connectors at fan discharges minimize transmission. Given the 49% workplace noise complaint statistic cited by Steelcase research, I budget space for silencers: typically 900–1500 mm added duct length per silencer section, impacting overall room depth.

Moisture, Drainage, and Hygienic Maintenance

Condensate management shapes floor planning. Sloped floors to trench drains keep standing water away from service aisles. I allocate 600 mm clear around drain pans and trap locations for inspection. If humidification is present, add splash protection and corrosion-resistant finishes in reach zones. Material choices matter: non-slip epoxy floors and washable wall finishes maintain hygiene and reduce mold risk.

Electrical, Controls, and Lighting

Set panelboards outside the splash zone and at least 1.0 m clear front working space. Controls cabinets belong on the service side, clustered with sensor manifolds for rapid diagnosis. Lighting to IES-recommended mechanical room levels (200–300 lux) supports accurate gauge reading and filter inspection. For comfort and visibility, aim for 3500–4000 K correlated color temperature—neutral enough to render wiring colors correctly without glare. Add task lights above filter banks and coil pull zones.

Single vs. Modular AHUs

Modular, sectional AHUs can fit through standard doors and assemble onsite, which reduces the minimum door and corridor constraints. However, they still need aisle space for future coil replacements and fan retrofits. I size the room with the largest anticipated module pull length, not just the current unit footprint.

Energy and Sustainability Considerations

Right-sized rooms lower fan energy by enabling smoother duct transitions and adequate silencer lengths, keeping static pressure in check. They also support filter upgrade paths—from MERV 8 prefilters to MERV 13+ in line with health and wellness standards—without crowding service aisles. Material selection in the room (low-VOC coatings, sealed floors) contributes to better IAQ during maintenance.

Typical Room Size Ranges by Building Type

- Small offices (up to ~2,000 m² served): 12–25 m² per AHU room; 3.2–3.6 m height.

- Mid-rise commercial floors (~2,000–6,000 m²): 20–40 m²; 3.6–4.0 m height with space for silencers.

- Healthcare suites with higher filtration/humidification: 30–60 m²; 3.6–4.2 m height for steam humidifiers and ERVs.

- Schools: 18–35 m²; prioritize low-frequency noise isolation and easy filter access.

These ranges assume a single AHU per zone with side service access; multiple units or energy recovery add depth and aisle length.

Human Factors: Maintenance Ergonomics

Technicians should change filters and belts at elbow-to-shoulder height. Plan rack heights and service platforms accordingly. Keep typical reach distances within 450–600 mm to reduce awkward extension. Provide knee-space or pull space so heavy components can be staged safely without blocking egress.

Commissioning and Future Proofing

Commissioning needs elbow room for flow hoods, pressure taps, and ladder placement. I leave blank wall sections for future controllers and variable frequency drives, and allocate 10–15% extra floor area if the program anticipates filtration upgrades or humidification add-ons. Reserve overhead capacity in hangers and anchors for future silencers or coil banks.

When Space Is Tight

If the building constrains depth, rotate the AHU to align service sides with the longest wall. Prefer vertical sand filters and compact coil pulls over deep racks. Use low-profile silencers and rectangular transitions to reduce the turning radius. Validate reach envelopes with an interior layout planner before finalizing:

interior layout planner

FAQ

How do I calculate the minimum AHU room size?

Start with the AHU footprint and multiply by 2.0–2.5, then verify clearances: 1.0–1.2 m service aisle, 0.6–0.9 m inspection side, 1.2–1.5 m coil pull space, and overhead for duct turns. Adjust for silencers, valves, and future upgrades.

What ceiling height should I plan?

Most AHU rooms work with 3.2–4.0 m clear height. If you have energy recovery wheels, steam humidifiers, or large top connections, add 300–500 mm.

How much lighting do mechanical rooms need?

Plan for approximately 200–300 lux per IES guidance for mechanical areas. Use neutral 3500–4000 K color temperature and add task lights at filter banks.

How do AHU rooms affect workplace noise?

Properly sized rooms let you include silencers and vibration isolation, cutting transmission to offices. Steelcase research notes nearly half of workers cite noise as a barrier to focus, so isolation and smooth ducting matter.

What clearances are required for maintenance?

Maintain 1.0–1.2 m on service sides, 0.6–0.9 m elsewhere, and 1.2–1.5 m at ends for coil or fan removal. Keep 1.0 m clear in front of electrical panels.

Is modular AHU better for tight buildings?

Modular sections ease delivery through standard doors and elevators, but you still need service aisles and pull space. Size the room to the largest future module.

How should I route ducts to reduce static pressure?

Align trunks directly with coil faces, minimize abrupt offsets, and allow space for turning vanes and silencers. Extra room depth pays off in reduced fan energy.

Where should controls and sensors go?

Cluster controls on the service side, away from splash zones, with 1.0 m clear working space. Maintain visible, well-lit access to differential pressure taps and temperature/humidity sensors to meet WELL-related comfort targets.

What materials work best for AHU rooms?

Use non-slip epoxy floors, washable wall finishes, corrosion-resistant pipe supports, and sealed penetrations to maintain hygiene and simplify cleaning.

Do I need two doors?

Large plant rooms benefit from two egress routes for safety and logistics. Single-unit rooms may use one wide door (900–1200 mm) if local codes allow.
