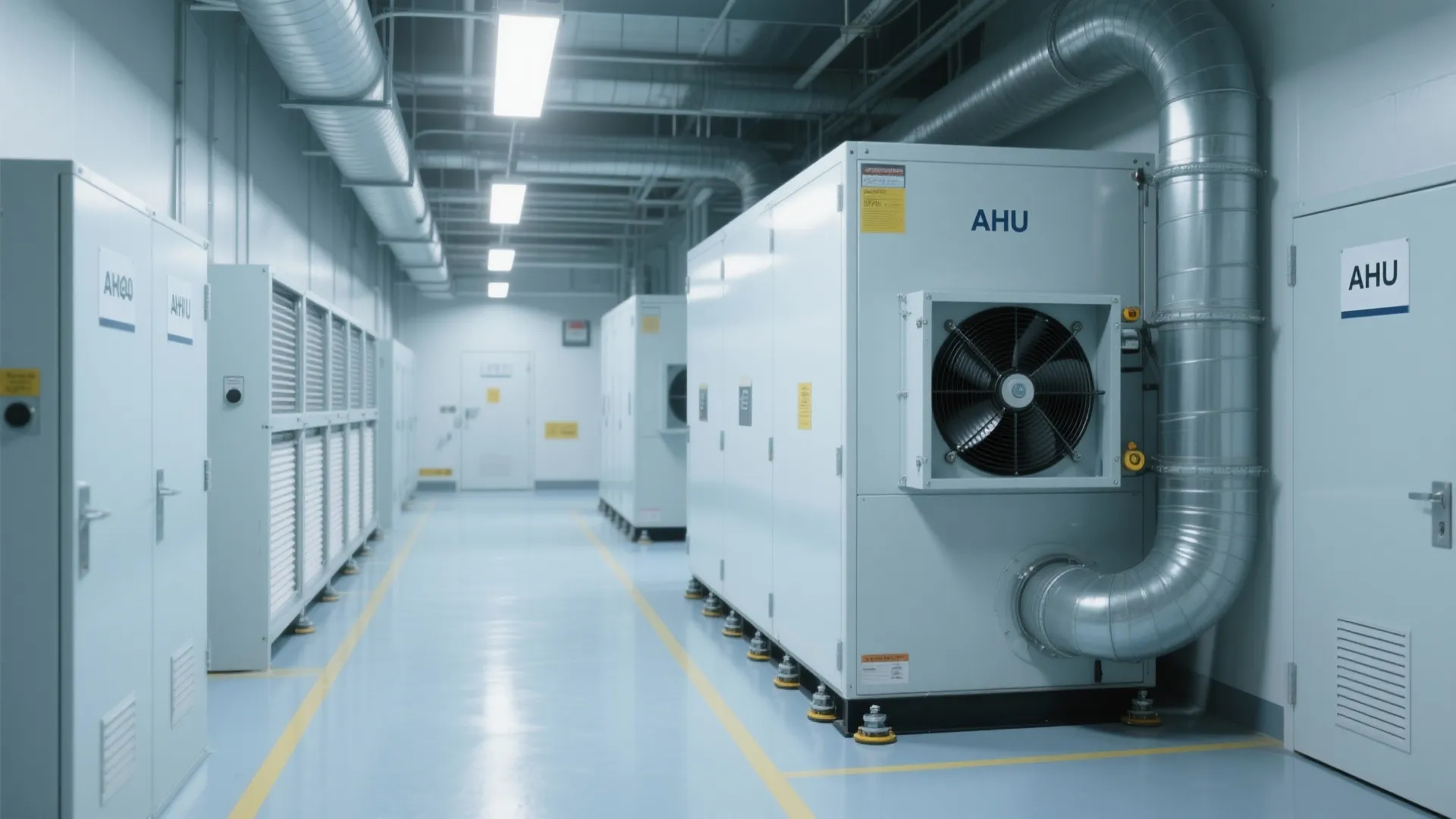

Air Handling Unit Room Size: Key Factors for Efficient Design: Fast-Track Guide to Calculating the Ideal Air Handling Unit Room Size

I’ve sized and built countless AHU rooms across hospitals, campuses, and mid-rise offices, and the pattern is consistent: rooms that respect service clearances, airflow pathing, and acoustic separation keep systems efficient and maintainable for decades. The Gensler U.S. Workplace Survey notes that environmental quality—thermal comfort, acoustics, and air—strongly correlates with employee performance, with respondents ranking air quality among top drivers of workplace effectiveness (gensler.com/research). From a standards perspective, WELL v2 recommends maintaining PM2.5 below 15 µg/m³ and CO₂ ideally under 800–1000 ppm during occupied hours, which puts pressure on AHU sizing, filtration area, and outside air strategy (wellcertified.com).

Core Principles That Define AHU Room Size

AHU room size is not only a function of unit dimensions; it’s an orchestration of serviceability, delivery routes, acoustic strategy, and safety. In practice, I target a minimum of 900–1200 mm (36–48 in) clear service corridors around coil pulls, filter banks, fan sections, and control panels. For larger custom units, coil pull length plus 300 mm (12 in) buffer is non-negotiable. Steelcase research indicates that acoustic comfort significantly impacts focus and productivity, suggesting careful separation of mechanical rooms from focus zones and the use of resilient mounts for fans and pumps (steelcase.com/research). To meet typical IES recommendations for mechanical task zones, I’ll set service lighting around 300–500 lux, with neutral-white 4000 K lamps to aid inspection without glare (ies.org/standards).

Layout Logic and Circulation

A well-planned AHU room prevents cross-traffic blocking maintenance operations. I stage a straight-line path for filter replacement, coil withdrawal, and fan access—ideally without turning tight corners. For multi-unit banks, align access doors to a shared service aisle. Where the project team needs spatial testing before committing walls, I’ll quickly validate aisle widths and turning radii using an interior layout planner such as this room layout tool: room layout tool. Keep electrical panels at code-required working clearances, and avoid putting piping headers in front of life-safety shutoffs.

Airflow, Ductwork, and Plenum Strategy

Room dimensions must accommodate duct transitions that minimize pressure loss. Aim for smooth, gradual fittings—7–15° divergence on supply plenum expansions is a good working range. Provide enough height to avoid sharp elbows off the fan discharge. If acoustic targets are tight, include lined plenums or silencers and keep at least one meter between fan discharge and the first major fitting to reduce turbulence-induced noise.

Service Clearances and Replaceable Components

Coils, filters, fans, motors, and heat-recovery wheels each dictate different clear zones. For filter banks, plan 900 mm front clearance; for heat-recovery wheels, allow full wheel diameter plus 600–900 mm for extraction. VFDs and control panels need code working depth (commonly ~1 m / 3 ft) in front. Always include a direct path from the unit to an exterior or internal route for removing largest components—if you can’t turn the wheel through the door, the room is undersized.

Structural and Access Considerations

Coordinate slab loading and vibration isolation early. AHUs, especially with humidification or heat-recovery, add mass; spring isolators and inertia bases change dynamic loads. Overhead, maintain unobstructed lifting points for chain hoists when coils or fans need replacement. Doors should open fully without fouling handrails or piping, with minimum clear widths matching the largest replaceable component plus 50–75 mm tolerance.

Acoustic Separation

Mechanical rooms can radiate low-frequency noise and structure-borne vibration. Use staggered-stud or masonry walls with sealed penetrations; decouple piping with elastomeric hangers. Keep AHU rooms away from focus areas, meeting rooms, and recording spaces. Where adjacency is unavoidable, specify high-STC partitions and floating floors as needed. Steelcase’s findings on acoustic comfort reinforce prioritizing sound control to protect cognitive tasks (steelcase.com/research).

Thermal, Drainage, and Hygiene

Provide condensate drainage with accessible traps and fall to floor drains—never route drains across service aisles. Insulate chilled-water valves and strainers to prevent sweating. Keep the room dry, cleanable, and free of dust traps; specify durable finishes that tolerate cleaning chemicals. Well-placed hose bibs and adequate lighting levels support regular coil cleaning and inspection.

Electrical, Controls, and Redundancy

Size the room to house VFDs, motor starters, and control panels in a dedicated, accessible zone. Separate high-voltage and controls for safety and noise immunity. If the facility requires N+1 fans or dual power feeds, space planning must anticipate redundancy hardware and cable routes without compromising service aisles.

Outdoor Air, Filtration, and IAQ Targets

Filtration banks (MERV 13 or higher in many modern buildings) expand unit length and access needs. To achieve WELL-oriented IAQ targets for PM2.5 and CO₂, ensure adequate outside air and sensor placement at return plenum and representative zones (wellcertified.com). If energy recovery is used, reserve space for bypass dampers and access to wheel or plate exchanger sections.

Emergency Egress and Safety

Even small AHU rooms must respect egress codes. Keep aisles clear, post weight limits for lifting, and provide emergency lighting and signage. Sightlines to shutoff valves, fire dampers, and kill switches should be unobstructed.

Typical Dimensional Benchmarks

For packaged AHUs serving 10,000–25,000 cfm, a practical room might run 5–7 m long by 3.5–5 m wide with 3.2–3.6 m clear height, but these are starting points only. Custom units, large heat-recovery wheels, humidifiers, and high-efficiency filter banks will extend length and height requirements. Always confirm manufacturer-recommended service zones and add local code clearances.

Coordination with Other Trades

Early 3D coordination pays off. Keep fire protection mains out of coil pull lines, avoid running cable trays over service doors, and dedicate overhead zones for duct transitions. Label penetrations and sleeves to prevent ad hoc reroutes that shrink clearances.

Material Selection and Durability

I typically specify non-slip epoxy floors, washable wall surfaces, and corrosion-resistant accessories. Galvanized or stainless drip pans with proper fall protect the slab. Use low-VOC coatings to keep IAQ high during maintenance activities.

Commissioning Access

Commissioning agents need space to measure static pressure, fan speeds, damper operation, and coil performance. Provide test ports at key duct locations and safe ladder access to any elevated components. The room should allow temporary setups—manometers, laptops, and calibration tools—without blocking doors.

Signs Your AHU Room Is Undersized

Frequent filter changes with damaged media, coil pull impossible without disassembling doors, elbows immediately off fan discharge, and valves buried behind piping headers are red flags. If technicians avoid scheduled maintenance because access is painful, the room is costing energy and uptime.

Design Checklist You Can Apply

- Confirm manufacturer service envelopes for all replaceable components.

- Reserve straight air paths for supply/return transitions.

- Maintain minimum 900–1200 mm clear service aisles.

- Validate egress and electrical working clearances.

- Provide 300–500 lux, 4000 K task lighting; limit glare.

- Plan drainage, hose bibs, and cleanable finishes.

- Separate noisy mechanical rooms from quiet work zones.

- Model turning radii and clearances with a layout simulation tool as needed.

- Coordinate trades early to protect service zones.

FAQ

Q1: What is the most critical clearance in an AHU room?

A1: Coil pull length plus a buffer (often ~300 mm) is the defining clearance. If you can’t extract the largest coil straight out, the room isn’t serviceable.

Q2: How much lighting should an AHU room have?

A2: Target 300–500 lux with neutral 4000 K lamps to aid inspection and minimize glare; this aligns with typical mechanical task lighting guidelines referenced by IES.

Q3: How does acoustic comfort relate to AHU placement?

A3: Proximity to focus areas increases distraction risk. Research from Steelcase links sound control to better focus, so locate AHU rooms away from quiet work zones and use isolators and lined plenums when adjacency is tight.

Q4: Do WELL targets change room size?

A4: Indirectly. Meeting PM2.5 and CO₂ targets often requires higher filtration, energy recovery, and more outside air, which expand unit sections and the service envelopes the room must accommodate.

Q5: What height should I plan for above the AHU?

A5: Aim for 3.2–3.6 m clear height for mid-size units to allow duct transitions, lifting points, and maintenance; larger systems or silencers may need more.

Q6: Is it okay to run pipes in front of access doors?

A6: Avoid it. Keep service doors and panels unobstructed; route headers to the side or overhead with adequate hangers and drip trays where needed.

Q7: How do I handle large component replacement?

A7: Provide a direct route to an exterior or internal corridor sized to the largest component width/height, including door swing and handrail offsets. Overhead lifting points are invaluable.

Q8: What filtration level should I expect?

A8: Many modern commercial buildings use MERV 13 or higher, which lengthens the filtration section and requires comfortable access for regular changes.

Q9: Are VFDs safe inside the AHU room?

A9: Yes, provided code working clearances are maintained, heat is managed, and high-voltage is separated from controls. Keep VFDs away from high-moisture zones.

Q10: How do I prevent condensation issues?

A10: Insulate chilled-water components, provide properly trapped and sloped condensate drains, and maintain airflow around cold surfaces to reduce sweating.

Q11: What’s the best way to validate my layout early?

A11: Use quick spatial mock-ups and a reliable interior layout planner to test aisle widths, turning radii, and component removal paths; this helps catch conflicts before construction. A practical option is this interior layout planner: interior layout planner.

Q12: How does energy recovery affect sizing?

A12: Wheels or plate exchangers increase unit length and require bypass access and maintenance clearance, so the room must grow accordingly.
