At Room Temperature, Mercury is in Liquid State: 1 Minute to Understand Mercury’s Unique Properties Quickly

Mercury remains liquid at standard room temperature (about 20–22°C / 68–72°F), with a melting point near −38.83°C and a boiling point around 356.7°C. That broad liquid range explains its historical use in thermometers and barometers, and it also informs how we handle it in interiors: a dense, highly reflective liquid metal with significant toxicity risk if spilled, aerosolized, or heated. From a planning perspective, the key is controlling temperature, access, ventilation, and containment.

Workplace data reinforces the need for rigorous environmental control. The WELL Building Standard v2 emphasizes contaminant control, ventilation effectiveness, and materials safety to protect occupant health; its Air and Materials concepts encourage eliminating or isolating hazardous substances and maintaining robust filtration and ventilation. In parallel, Steelcase research links environmental quality with cognitive performance and well-being, underscoring how air quality and clarity of wayfinding reduce stress and error rates. Referencing WELL v2 guidance and Steelcase’s workplace insights helps justify stricter controls when a space houses or displays legacy mercury instruments. Learn more at WELL v2 (v2.wellcertified.com) and Steelcase Research (steelcase.com/research).

Understanding Mercury’s Behavior at Room Temperature

At 20–25°C, mercury is a stable liquid with high surface tension; it beads up and can split into smaller droplets that roll into cracks. Its density (approx. 13.5 g/cm³) makes small volumes deceptively heavy. While its vapor pressure at room temperature is relatively low compared to heated states, any uncontained spill can raise localized vapor levels—especially in poorly ventilated areas—posing inhalation risks. Design decisions should anticipate spill migration paths, locate impervious thresholds, and ensure rapid isolation capability for any zone where mercury might be present in equipment or display artifacts.

Spatial Planning: Zoning, Barriers, and Access

I position storage or display away from main circulation and daylight heat loads to avoid microclimate swings. A secondary containment perimeter—such as a shallow, seamless, chemically resistant tray or coved base—prevents droplet undercutting at walls. Traffic should be single-direction with clear sightlines to avoid bump hazards. If you are testing layouts, a layout simulation tool like a room layout tool can help visualize buffer zones, spill perimeters, and staff paths before finalizing millwork and casework.

Ventilation and Pressure Strategy

For rooms with any mercury risk (e.g., legacy thermometers in a teaching lab), I recommend dedicated exhaust near the potential source and a slight negative pressure relative to adjacent spaces to limit migration. Align airflow with task zones and avoid recirculating air over warm equipment that might increase vapor generation. Maintain serviceable filtration and design for easy inspection of ducted components. These steps align with occupant health targets highlighted in WELL v2’s Air concept, emphasizing source control and dilution.

Lighting: Glare, Reflections, and Visual Comfort

As a mirror-like liquid, mercury amplifies glare. I spec diffused luminaires with UGR < 19 for close viewing, keep vertical illuminance at 150–300 lux on casework, and cap 500 lux on adjacent working planes to retain visual comfort. Neutral white (3500–4000K) helps with material legibility without overheating display cases. Shielding angles of 30°+ reduce specular highlights on glass enclosures that make inspection difficult.

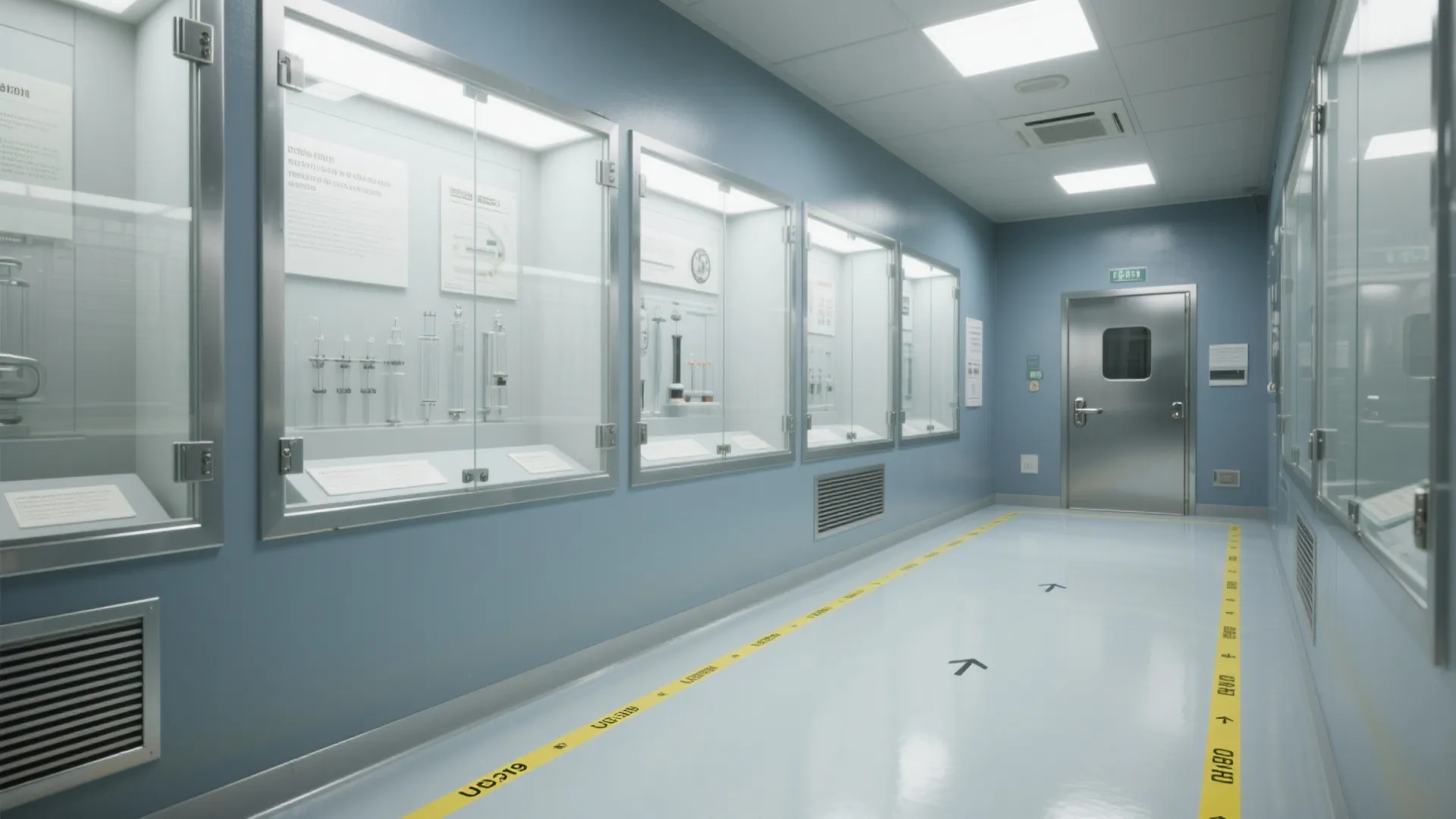

Enclosures and Casework

Sealed, lockable cases with gaskets, tempered safety glass, and chemical-resistant seals are nonnegotiable for display. I specify non-absorbent interior liners (epoxy resin or phenolic) with radiused corners to ease cleanup. For working labs, integrate under-bench spill trays and coved flooring that turns up the wall at least 100 mm, preventing droplets from slipping below casework. Hinges and handles should be stainless steel with smooth profiles; avoid porous wood edges at the interface.

Flooring, Walls, and Finishes

Floors: seamless epoxy or heat-welded homogeneous vinyl provide the best barrier and cleanup. Avoid deep textures, open joints, and soft transitions. Walls: epoxy paint or high-performance polyurethane finish with washable surfaces, coved base 100–150 mm. Joints: sealant compatible with metals and resistant to common decontamination agents. Color strategy: lighter neutral floors (LRV 40–60) increase droplet visibility without causing glare; a slightly darker wall (LRV 25–40) creates contrast so staff can visually scan the floor boundary quickly.

Ergonomics and Human Factors

Place instruments at 900–1100 mm AFF for standing observation or 700–750 mm for seated work. Keep a 1200 mm clear aisle for two-person operations and emergency egress. Clear, redundant labeling at eye level reduces scanning time—Steelcase research highlights how environmental legibility supports cognitive ease and efficiency. Visual cues, such as yellow boundary bands at the containment perimeter, prompt consistent behavior during routine tasks and incident response.

Acoustics and Behavioral Patterns

Controlled acoustics reduce error probability in procedures. Target NRC 0.70+ ceiling tiles and STC 45 partitions around the room so alerts and instructions remain intelligible. Keep background noise between 35–45 dBA to preserve focus during handling; this aligns with broader workplace findings linking acoustic comfort to task performance.

Thermal Stability and Heat Sources

Mercury’s liquid state is unaffected by typical room swings, but localized heating (sun patches, display lighting) can increase vapor release. I avoid quartz halogen near cases, use low-IR LED arrays, and keep case interiors near ambient with discreet passive vents tied to the room’s exhaust pattern. Avoid placing cases against west-facing glazing without shading; thermal gradients can pump air and spread potential contaminants.

Emergency Response Integration

Integrate storage for spill kits at the threshold—amalgamation powder, disposable droplet scoops, and sealable waste containers—with clear signage. Floors should have directional cues guiding people toward exits, not across the containment zone. Provide a dedicated waste staging cabinet and an observation window so supervisors can confirm room status without entering.

Material Selection and Sustainability

Favor low-VOC coatings and substrates that withstand repeated cleaning with oxidizers. Where possible, replace mercury-bearing instruments with digital equivalents to remove risk at the source, in line with WELL v2’s Materials concept that encourages healthier specifications. For heritage display, choose reversible mounting methods and document all materials in a maintenance manual for future custodians.

Color Psychology and Wayfinding

Use calm, desaturated hues (blue-gray or sage) in the 30–40 LRV band for walls to maintain focus. Verywell Mind’s color psychology summaries link cool hues with lower arousal states, which can help staff remain composed during detailed tasks. High-chroma colors should be reserved for safety coding—yellow boundary lines, red emergency hardware—to create unequivocal visual hierarchy.

Layout Visualization and Iteration

Before construction, I iterate several zoning schemes and test sightlines, spill catchment, and egress clarity. A room design visualization tool such as an interior layout planner helps simulate traffic, containment extents, and equipment clearances so the team can align on safety-first geometry.

Maintenance Protocols

Specify a cleaning schedule with method statements for both routine dusting of cases and incident response. Keep an inspection log for gasket condition, latch torque, sealant integrity, and lighting heat output. Train staff on pathway management—no cart parking within the containment ring—and on swift isolation procedures if a device fails.

FAQ

Does mercury evaporate significantly at room temperature?

It has measurable vapor pressure even at room temperature, which is why enclosed cases, local exhaust, and negative pressure are recommended where mercury is present.

What is the safest flooring for areas that may contain mercury?

Seamless epoxy or heat-welded homogeneous vinyl with coved base. These resist penetration and simplify droplet retrieval.

How much light should I use around a mercury display?

Keep 150–300 lux on the case, minimize glare (UGR < 19), and use 3500–4000K LEDs with low infrared output to avoid unnecessary heating.

Which ventilation strategy reduces risk the most?

Local exhaust near the source and slight negative pressure to adjoining spaces, with easy-to-service filtration and clear airflow paths.

Can color choices improve safety and focus?

Yes. Neutral, low-chroma palettes reduce visual noise, while high-contrast safety colors (yellow, red) make boundaries and emergency hardware unmistakable.

How wide should aisles be?

Plan for at least 1200 mm clear to allow two-person operations and quick, unobstructed egress during an incident.

What casework details matter most?

Gasketed, lockable enclosures; tempered glass; chemical-resistant liners; radiused corners; and under-bench spill trays for labs.

Are there standards to reference for healthier design?

WELL v2 provides guidance on air and materials strategies aimed at occupant health, and workplace research from Steelcase connects environmental clarity with cognitive performance.

What’s the best way to plan the layout before building?

Use a layout simulation tool to test zoning, containment perimeters, paths of travel, and visibility, then iterate until risks and conflicts are minimized.

Should mercury instruments be replaced?

Where practical, replace with digital or alcohol-based devices to eliminate risk at the source, reserving sealed display for heritage pieces only.
