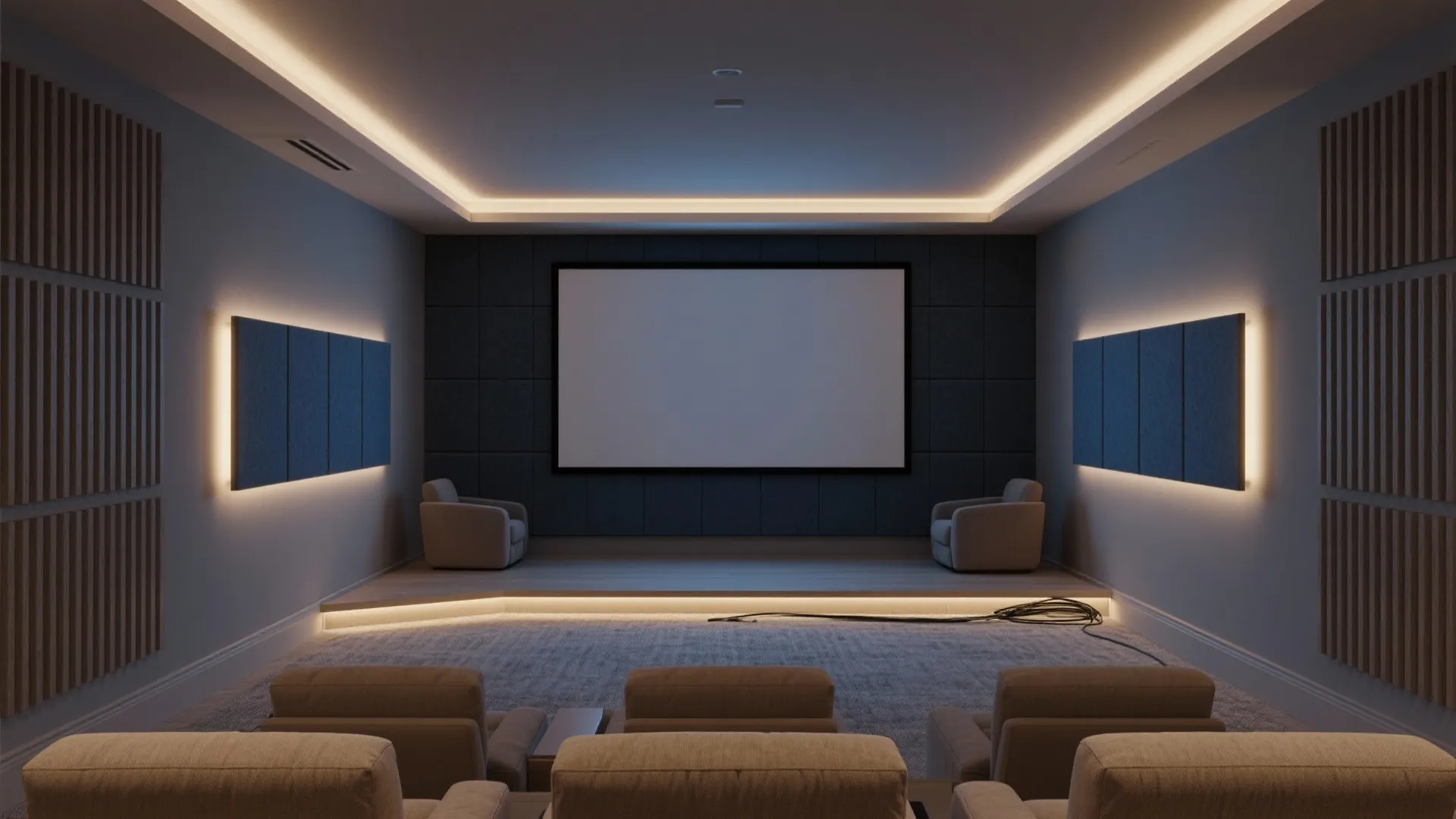

Audio Visual Room Design: Create Your Ultimate Home Experience: 1 Minute to Fast-Track Your Audio Visual Room Setup

I design AV rooms to feel immersive yet effortless—places where sound, light, and ergonomics align so you forget the equipment and sink into the experience. A winning space starts with discipline around acoustic control, luminance, viewing geometry, and workflow. The WELL Building Standard (WELL v2) emphasizes glare control, flicker-free lighting, and acoustic comfort as core to wellbeing, while Steelcase research notes that environments with better sound management reduce cognitive load and improve focus—insights I apply even in residential media rooms where relaxation depends on refined sensory balance.

Numbers matter. The Illuminating Engineering Society (IES) recommends task lighting generally between 300–500 lux; for AV, I stage a lower ambient band (50–150 lux) with dimmable layers and task accents that can rise toward 300 lux when needed. On color, Verywell Mind’s color psychology guide associates blues with calm and reduced heart rate, which works beautifully in media rooms where you want lowered arousal levels, while warm neutrals support a cozy, cinematic atmosphere without color casting onto the screen.

To frame layout decisions, I start with spatial ratios. For a dedicated AV room, a 1:1.6–1:2.2 seating distance to screen diagonal prevents eye strain and preserves image detail. Loudspeaker placement follows ITU-inspired geometry: front left/right forming a 60° angle to the main listening position, center aligned, surrounds at 90–110°, and height channels placed above at 30–45° elevation. This arrangement stabilizes the soundstage and reduces localization ambiguity.

Plan the Room Envelope

Room proportions influence modal behavior. I avoid near-cube dimensions and use ratios such as 1.00 (height) : 1.4–1.6 (width) : 2.2–2.6 (length) to distribute low-frequency modes more evenly. Walls benefit from a mix of broadband absorption (2–4 inches mineral wool behind fabric) and diffusion (QRD or slat diffusers) on rear and upper side surfaces to maintain liveliness while taming flutter echoes. Floors work best with dense carpet over underlayment to reduce high-frequency splash; ceilings gain from a combination of shallow absorbers and diffusers outside the primary reflection points. I verify first reflections from left/right mains and center using a mirror method or simulation, then place absorbers at those points.

Acoustic Strategy: Bass, Clarity, and Isolation

Low frequencies define impact. Two to four subwoofers placed symmetrically (front corners or mid-wall) smooth bass across seats via modal averaging. I calibrate with measurement software and room EQ, but I never substitute digital correction for physical placement. For isolation, staggered stud walls, double layers of 5/8" gypsum with damping compound, resilient channels, and solid-core doors with perimeter seals keep noise in—and out. HVAC supply/return should run low-velocity with lined ducts and remote equipment racks to eliminate hum and whine.

Lighting: Layered, Flicker-Free, and Glare-Controlled

Layering is key: ambient (cove or wall wash), task (reading lights near seating), and focal (art or shelving accents). I specify high-CRI LED fixtures, flicker-free drivers, and warm color temperatures (2700–3000K) for movie modes, tunable to 3500–4000K for cleaning or gaming. To avoid screen glare, I keep luminaires out of direct sightlines and favor indirect cove lighting behind baffles. Dimming curves should be smooth; I test for stepping artifacts that break immersion. WELL v2 points to glare control and flicker mitigation as essential; I design with shielding angles and matte finishes around the screen to keep veiling reflections down.

For deeper research on workplace acoustics and its cognitive impact—which translates well to home media rooms—see Steelcase research. For broader environmental comfort strategies, WELL v2 offers applicable guidance for acoustics and light quality. These references help anchor design decisions beyond personal preference.

Screen Size, Seating, and Viewing Geometry

I align the primary seat with the center of the screen and use modest rake in rows to maintain sightlines. Viewing distance typically lands between 1.6x and 2.2x the screen diagonal for 4K sources; for projectors, I check manufacturer throw ratios and ensure lens shift avoids keystone correction. The vertical viewing angle should stay under 15° from eye level to the top third of the screen to reduce neck strain. Seating ergonomics matter: proper lumbar support, breathable upholstery, and armrest geometry that doesn’t force shoulder elevation. If you plan multiple rows, add 6–8 inches of riser per row and isolate the platform to prevent resonance.

Speaker Layout and Calibration

L/R mains at ear height, toed-in toward the main seat; the center channel aligned with screen midpoint and decoupled from cabinetry to avoid boxiness. Surrounds land slightly above ear height, and height channels position per content specs. I time-align all channels, set crossovers typically between 60–100 Hz depending on speaker response, and ensure sub/sat integration with minimal phase rotation at the crossover. Calibration is iterative: measure, adjust, listen, repeat. I keep dynamic range intact rather than crushing with heavy compression.

Materials and Finishes

Choose finishes that manage reflection and resonance: matte paints around the screen wall, textured wallcoverings or acoustic fabric panels, and furniture with mixed densities to break up specular reflections. Avoid large glass surfaces; if unavoidable, use heavy curtains with track-and-stack systems for full coverage. Sustainability can pair well with performance: wool fabrics provide natural acoustic damping and durability; reclaimed wood slats over absorptive backing deliver diffusion and warmth. Be mindful of off-gassing—low-VOC paints and formaldehyde-free substrates keep air quality comfortable during long viewing sessions.

Layout Planning and Visualization

Before building, I block speaker and seat positions, riser dimensions, and screen size in a layout simulation tool to test sightlines and reflection points. Rapid iteration saves time and catches conflicts—HVAC grilles over seating, projector beam crossing a pendant, or doors swinging into bass traps. I often use a room layout tool for quick visualization of seating, aisles, and cabinetry to keep circulation clear and geometry accurate.

room layout tool

Power, Cable Management, and Thermal Control

Dedicated circuits, surge protection, and a structured cable path maintain reliability. I separate low-voltage signal cables from power runs, avoid tight loops near transformers, and label every termination. Equipment racks need rear clearance, active ventilation, and thermal zoning—hot components near exhaust, cool intakes unobstructed. Silent fans and thermostatic control prevent heat build-up without introducing noise.

Behavioral Patterns and UX

A great AV room anticipates behavior: dimming presets (movie, gaming, sports, cleaning), intuitive control panels near entries, and discrete storage for remotes, headsets, and controllers. Interaction Design Foundation emphasizes affordances and feedback—principles I replicate in physical controls: tactile buttons for dark-room operation and LED indicators dimmable below distraction thresholds. Path lighting at floor level keeps movement safe without spilling onto the screen.

Testing and Commissioning

I run pink noise sweeps, measure RT60 in octave bands, and aim for a balanced decay around 0.3–0.5 seconds depending on room size. I verify SPL at seats to ensure consistent coverage, check lighting scenes for uniformity and minimum glare, and stress-test the thermal load during long sessions. Only after this punch list do I finalize trim, fabric tension, and cable builds.

Maintenance and Upgrades

Plan for evolution: conduit routes for future HDMI standards, accessible cable trays, and modular acoustic panels. Keep a calibration log and seasonal check routine—filters, dimmer profiles, and firmware updates. When content trends shift (gaming with spatial audio, sports with HDR), the room should adapt without a tear-down.

FAQ

Q1: What’s the ideal ambient light level for movie watching?

A: I target 50–150 lux ambient with dimmable layers, keeping direct light off the screen. Task lighting can rise toward 300 lux for reading, consistent with IES task ranges while preserving contrast.

Q2: How do I pick the right screen size?

A: Use a seating distance of ~1.6–2.2 times the screen diagonal for 4K. If you sit 10 feet from the screen, a 75–100 inch diagonal usually feels immersive without eye strain.

Q3: Do I need multiple subwoofers?

A: If you want even bass across seats, yes—two or four subs placed symmetrically smooth modal peaks and nulls. Single subs can sound great at one seat but uneven elsewhere.

Q4: Which wall treatments matter most?

A: Broadband absorption at first reflection points on side walls and ceiling, diffusion at the rear wall to preserve spaciousness, and a matte finish on the screen wall to control glare.

Q5: What color palette suits an AV room?

A: Desaturated warm neutrals or deep blues/charcoals. Blue is associated with calm per color psychology references, while warm tones keep the room inviting. Avoid high-chroma colors that cast onto the screen.

Q6: How do I reduce equipment noise?

A: Remote the rack to an adjacent closet with lined ducts, use low-velocity HVAC, specify quiet fans, and seal doors properly. Solid-core doors and resilient channels help isolate.

Q7: Is projector or TV better?

A: For large images and a cinematic feel, projectors shine, especially in light-controlled rooms. TVs deliver higher peak brightness and simpler installation—choose based on content, room light, and seating distance.

Q8: What’s a good RT60 target?

A: Around 0.3–0.5 seconds in mid-frequencies for small to medium rooms, tailored by volume and finish. Too dead kills envelopment; too live muddies dialog.

Q9: How should speakers be angled?

A: Toe L/R toward the main seat forming about a 60° angle. Surrounds at 90–110° relative to the listener and slightly above ear height; heights at 30–45° elevation for coherent immersion.

Q10: Can smart lighting improve experience?

A: Yes—preset scenes with smooth dimming and warm-to-neutral tuning keep the eyes comfortable, reduce glare, and let you shift from cinema to gaming or cleaning without reprogramming each fixture.
