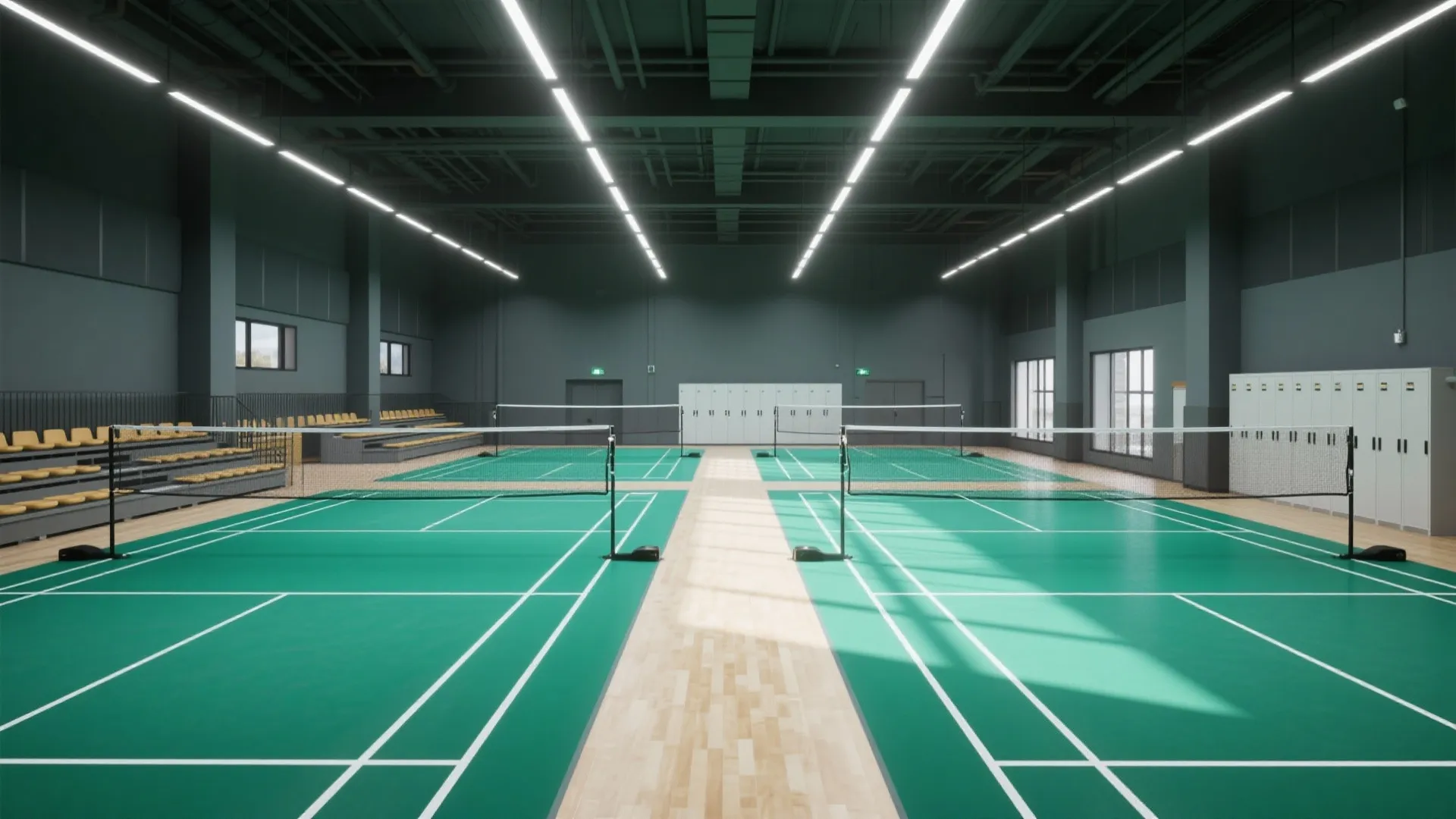

Badminton Hall Design: Space-Saving Tips & Pro Secrets: Fast-Track Guide to Building a Smart Badminton Hall

I’ve designed and retrofitted multiple badminton halls over the past decade—from tight urban shells to multi-court community hubs—and the same challenges come up every time: ceiling height, safe clearances, glare-free lighting, and circulation that doesn’t waste a square foot. When space is constrained, every dimension, finish, and fixture has to pull its weight.

Performance and safety must be anchored in evidence. WELL v2 recommends maintained illuminance targets for sports areas that typically land between 300–500 lux for general play, with higher task levels for fast-moving sports; many competitive venues push 750–1000 lux uniformly with low glare to support visual acuity (WELL v2; IES sports lighting guidelines). On productivity and behavior around active environments, Gensler’s Workplace Survey series reports that quality, well-lit spaces can improve perceived performance and wellbeing metrics—insight that translates directly to recreational facilities where visual comfort and circulation reduce fatigue and errors. You’ll see those principles woven through the strategies below. For further reading on health-centered lighting and performance, see the WELL Building Standard (wellcertified.com) and the Illuminating Engineering Society’s recommended practices (ies.org/standards).

Plan the Envelope First: Height, Clearances, and Court Count

I start by locking the envelope constraints because they dictate everything else. For standard badminton courts (13.4 m × 6.1 m / 44' × 20'), I plan a play area plus safety runoff: a minimum of 1.5–2.0 m (5–6.5') clear beyond end lines and about 1.2–1.5 m (4–5') on sidelines for recreational halls; tournament venues stretch further. The preferred clear ceiling height is 9–12 m (30–40') to avoid shuttle interference; in compact conversions I’ve delivered acceptable play at 8–9 m using dark ceilings and carefully aimed lighting to minimize visual distraction.

When footprint is tight, I optimize court count by alternating wider and narrower side runoffs while keeping end runoffs generous (jump and momentum favor the length). I also shift structural columns to aisles, not sidelines. If you’re laying out multiple courts or testing variants, a room layout tool can help visualize lines, safety zones, and circulation before you commit tape and paint: room layout tool.

Lighting That Helps Players See the Shuttle—Not the Fixtures

Badminton is uniquely sensitive to glare and contrast. The shuttlecock can reach 300+ km/h at elite levels, and even casual play suffers when luminaires sit in the line of sight. I target 500–750 lux uniformly for training/recreation, pushing to 750–1000 lux for competition, with uniformity (min/avg) around 0.7 or better. Color temperature in the 4000–5000 K range balances crisp contrast without looking cold; Color Rendering Index (CRI) ≥80 is adequate, ≥90 is excellent for televised or high-level play.

Key moves that save space and headaches: mount linear LED fixtures or indirect uplight between courts, not above centerlines; angle optics to avoid direct views on high clears; and paint ceilings and upper walls in deep matte tones to suppress veiling reflections. Keep Unified Glare Rating (UGR) low—on-court targets at or below ~19 are a good benchmark for visual comfort. Maintainability matters: LED drivers and optics should be accessible from catwalks or lift-friendly zones outside the active court footprints.

Flooring and Subfloor: The Joint Saver

Badminton demands fast footwork and controlled slide, so I specify sprung sports flooring with a resilient sublayer. Two proven stacks: (1) area-elastic wood systems with a sports lacquer, or (2) point-elastic vinyl/PVC with cushion backing (≥6–8 mm total, with shock absorption 25–35%). Line markings must be non-glare and color-contrasted but not visually noisy. Darker court fields (deep green/blue/charcoal) with high-contrast white or yellow lines help the shuttle stand out against backgrounds.

Acoustically, resilient floors reduce footfall harshness, but badminton halls still benefit from absorptive wall panels at the upper third to control flutter echo. I aim for an RT60 around 1.0–1.5 seconds in small halls; enough liveliness to hear the game without masking coach instructions.

Color and Background Strategy: See the Shuttle, Read the Lines

Color psychology and visual ergonomics go hand-in-hand here. I keep backgrounds in the shuttle’s travel zone low-chroma and matte to enhance visibility and reduce glare. Upper walls/ceilings: deep cool hues or charcoal. Lower walls and spectator zones: slightly lighter but still matte to help spatial orientation. According to established color perception research, cooler mid-high CCT lighting increases perceived brightness and acuity; combining 4000–5000 K lighting with low-gloss, cool backgrounds makes the shuttle pop without over-illuminating.

Space-Saving Circulation: Keep Players Moving, Not Colliding

In compact facilities, I consolidate circulation to one primary spine with short lateral entries to each court. I avoid doors swinging into runoffs; instead, use pocket or out-swing doors into corridors. For benches and bag storage, carve recesses into wall thickness or build continuous shallow lockers (300–350 mm deep) between structural bays. Spectator seating should live outside safety zones; raised bleachers along one long wall work well, provided the overhang doesn’t drop into the free height.

Where courts run side-by-side, narrow buffer zones (0.9–1.2 m) between sidelines can work if the lighting and post bases are recessed or floor-sleeved. If you’re testing variants, an interior layout planner is useful to simulate egress widths, ADA routes, and equipment placement while protecting runoffs: interior layout planner.

HVAC and Air Movement: Don’t Move the Shuttle

Badminton punishes drafty rooms. I design supply air high and slow, with large diffusers and low terminal velocities over the court area. Return air at upper zones prevents stratification without creating cross-breezes. Target 18–22°C for most programs, with relative humidity around 40–60% to protect floors and improve comfort. Place fans only in spectator or perimeter areas; avoid directional airflow across nets.

Net Systems, Posts, and Storage Efficiencies

Use floor sleeves for posts to keep bases out of walk zones; cap them flush when courts convert to other uses. Integrated wall storage for nets, posts, and training aids saves valuable perimeter real estate. I like overhead mesh storage above corridors (not courts) for bulk items like divider curtains or mats. If you need convertible courts, mobile divider curtains on ceiling tracks offer zoning without losing floor space to permanent walls.

Lighting Controls and Energy Strategy

Layered controls preserve quality while saving energy. Zone luminaires by court, add high-speed-safe occupancy sensing for spectator and circulation areas, and use scheduled dimming for training vs. competition scenarios. Maintain 100–200 lux in circulation when courts are idle; ramp up instantly for play. Specify drivers with high-frequency, flicker-free performance (IEEE/IES recommendations) to avoid strobing on fast shuttle motion and high-frame-rate recording.

Safety, Sightlines, and Coaching

Coaches need peripheral views across multiple courts. I typically provide a raised coaching deck or a continuous line of sight from a long wall with glass balustrades above 1.1 m. Safety padding at corners, column wraps with high-impact foam under durable PVC, and rounded millwork reduce injury risk. Emergency egress routes should avoid crossing active runoffs; use parallel paths along the circulation spine.

Material Durability and Sustainability

Select materials that take hits but stay quiet. Wall bases in recycled rubber, impact-resistant gypsum with high-abuse facing, and corner guards preserve finishes. Low-VOC adhesives and finishes support air quality goals—WELL v2 alignment helps here. For a sustainable profile, choose LED fixtures with serviceable components, FSC-certified wood in sprung floors, and durable coatings that reduce repaint cycles.

Small-Footprint Layout Recipes

Single-Court Urban Box

Target internal clear: ~18 m × 9 m with 8.5–9 m clear height. One lateral entry, recessed bench niches, ceiling-mounted linear LEDs between lanes, dark matte ceiling. Equipment wall with shallow lockers; HVAC supplies high and slow on two long sides.

Two-Court Side-by-Side

Internal clear: ~18–20 m length × 16–17 m width, 9–10 m clear height. Shared buffer zone 1.0–1.2 m; end runoffs 2.0 m. Spectator bleacher along one long wall only, with lighting aimed from the opposite bay. Divider curtain optional on a ceiling track for clinics.

Three-Court With Central Spine

Internal clear: ~20–22 m × 23–24 m, 10–12 m clear height. Courts flank a central spectator/coach spine 2.0–2.4 m wide; lighting in continuous rows over spines with cross-aimed optics to each court. Storage and service rooms stack at one short end to free sidewalls for circulation.

Commissioning and Maintenance

Before handover, I verify illuminance on a 3 × 3 m grid per court, check glare from multiple vantage points, and fine-tune aiming. Court lines are inspected under full output and competition settings to ensure contrast remains. Establish a quarterly clean for optics and a semiannual floor recoat/maintenance schedule; keep humidity logs to protect the subfloor.

Budget-Smart Upgrades for Existing Halls

If you’re retrofitting, the biggest space-performance wins usually come from: (1) replacing high-bay glare bombs with controlled optic LEDs, (2) repainting ceilings and upper walls to deep matte tones, (3) reorganizing storage into recessed or overhead zones, and (4) re-striping with optimized runoffs. In many older gyms, re-aiming and zoning lights alone transforms playability without touching structure.

FAQ

What is the minimum ceiling height for a badminton hall?

I aim for 9–12 m (30–40') clear height. In tight conversions, 8–9 m can work with carefully aimed, low-glare lighting and dark matte ceilings that visually lift the space.

How much space do I need around a single court?

Plan 1.5–2.0 m (5–6.5') beyond end lines and 1.2–1.5 m (4–5') beyond sidelines for recreational play. Increase these for tournaments and coaching zones.

What lighting levels are best for badminton?

Provide 500–750 lux uniformly for training/recreation; 750–1000 lux for competition. Keep UGR around 19 or below and use 4000–5000 K color temperature with CRI ≥80 (≥90 for broadcast).

How do I avoid glare and seeing the fixtures?

Mount luminaires between courts, not above centerlines; use optics aimed away from common sightlines; keep ceilings and upper walls matte and dark; and specify flicker-free, high-quality drivers.

What flooring works best?

Sprung wood systems or cushioned vinyl/PVC with 25–35% shock absorption protect joints and provide controlled traction. Avoid glossy finishes that reflect light into players’ eyes.

How can I fit more courts in a small shell?

Optimize runoff widths (prioritize ends), align columns to aisles, and consolidate circulation into a single spine. Use a layout simulation tool to test variants and confirm egress.

How should HVAC be designed to prevent shuttle drift?

Use high, low-velocity supply with large diffusers and returns placed high to prevent cross-breezes. Keep 18–22°C and 40–60% RH for comfort and floor protection.

What colors help shuttle visibility?

Deep, cool, matte backgrounds (upper walls/ceiling) with mid-tone lower walls. Dark court fields with high-contrast lines make the shuttle easy to track.

Do I need acoustic treatment?

Yes. Target an RT60 around 1.0–1.5 s in compact halls with upper-wall absorbers to reduce flutter echo while keeping enough liveliness for game feel and coach audibility.

What are quick retrofit wins?

Swap to controlled-optic LEDs, repaint upper fields to matte dark tones, rezone lighting by court, and reorganize storage into recessed or overhead areas. Re-striping runoffs often adds perceived space.

Can I combine spectator seating without eating into safety zones?

Yes—use raised bleachers along a single long wall outside runoff areas, and ensure no soffits or overhangs intrude into the clear height above court boundaries.

How do I plan for multipurpose use?

Install floor sleeves for posts with flush caps, ceiling-track divider curtains, and lighting zones that adapt from practice to event modes—all while preserving court safety clearances.
