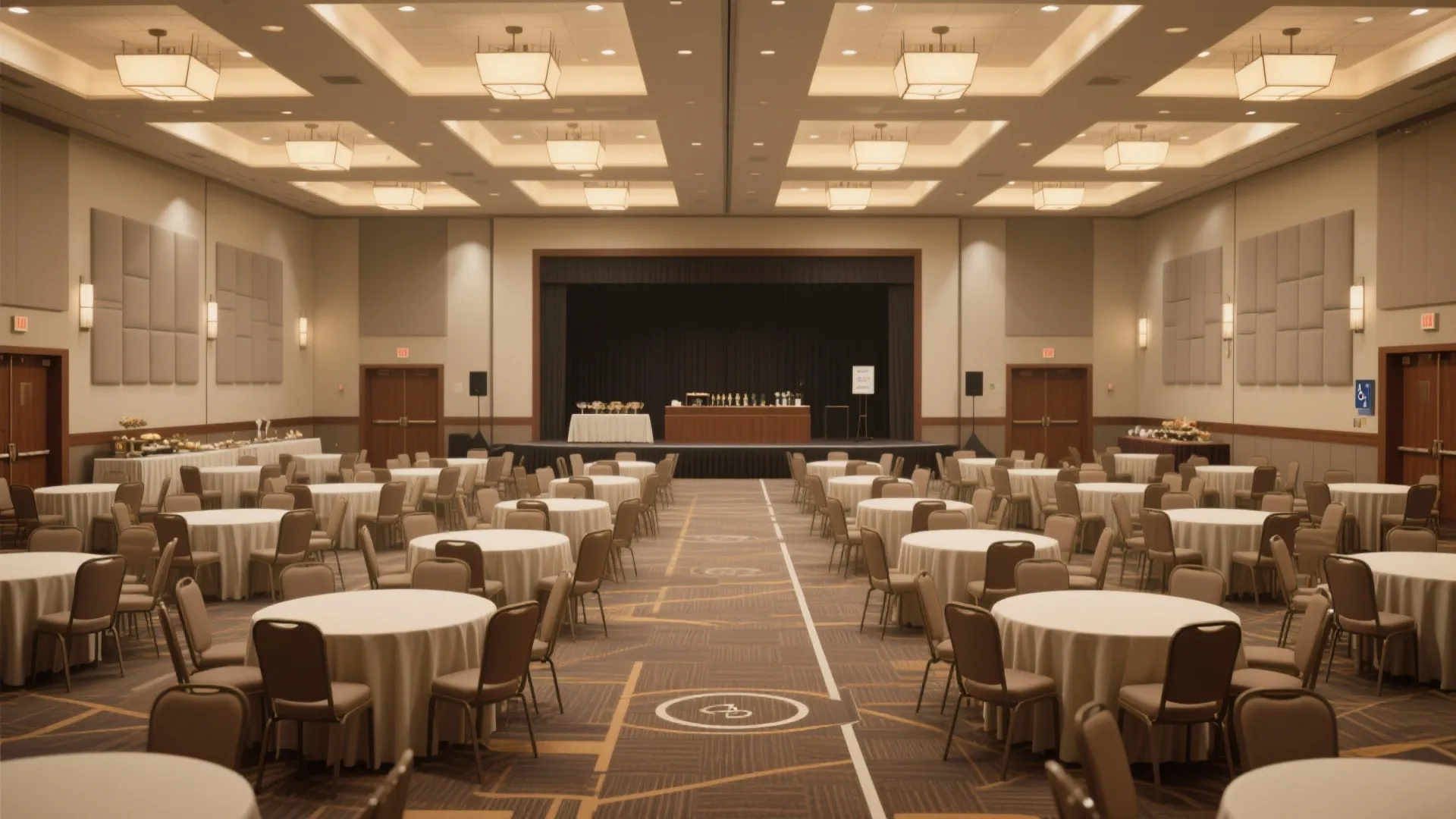

Banquet Hall CAD Block Design Guide: Fast-Track Guide to Finding and Using Banquet Hall CAD Blocks in Minutes

I’ve designed and documented banquet halls for more than a decade, and a solid CAD block library is the backbone of fast, reliable layouts. The goal is simple: accurate blocks that reflect seating, circulation, staging, and service operations—so your plans translate cleanly into buildable, operable spaces.

Data-led Benchmarks for Banquet Hall CAD Blocks

Capacity, comfort, and circulation start with measurable standards. For lighting, the Illuminating Engineering Society recommends around 200–300 lux for dining environments, with the ability to dim for program changes; this sets the baseline for your lighting fixture blocks and control zoning (source: IES standards). On ergonomics, Herman Miller’s research has long emphasized clear seated elbow room of ~24 inches and a minimum 12–18 inches between table edge and chair back for ingress/egress, informing table and chair block spacing. For workplace-like events, Steelcase findings frequently cite flexible configurations as productivity drivers, which translates to modular staging and AV block sets with cable routing zones included.

Color influences behavior as well. Verywell Mind’s overview of color psychology associates warm hues with sociability and cooler tones with calm focus; this helps you define block styles for zones—e.g., warmer palette blocks for reception and cooler palette cues for conferencing segments.

Core CAD Block Set: Sizes, Ratios, and Clearances

Build a baseline library that covers banquet essentials and aligns with verifiable dimensions:

1. Round banquet tables (60" and 72"): 60" seats 8–10; 72" seats 10–12. Maintain at least 60" chair-back to chair-back across aisles in high-capacity rooms to allow service circulation.
2. Rectangular tables (30" x 72" / 96"): Allow ~24" per seated guest. Keep 48" minimum aisle between chair backs for staff trays; increase to 60" for high-volume service or mixed ADA traffic.
3. Chair blocks: Typical seat width 18–20"; depth ~18"; leave 12–18" from table edge to chair back pulled out. Include a chair-out position in your block to test worst-case flow.
4. Buffet/food service credenzas: Depth 30–36" with 48–60" service clearance in front; reserve 36" behind for staff circulation.
5. Stage/platform modules: Common risers 4' x 8' sections; plan 24–36" backstage corridor and 60" approach for accessibility. Integrate AV racks and cable trenches in blocks.
6. Dance floor tiles: 3' x 3' modular tiles; size to 3–5 sq ft per dancer for comfortable density.
7. Bar stations: 30–36" counter depth; 60" frontal queue lane; include bottle storage and ice bin geometry to model workflow.
8. ADA seating and routes: Mark 36" minimum clear route and 60" turning circles in blocks; provide dispersed accessible seating positions.

When testing multiple seating densities, a room layout tool can accelerate iteration and visualization: room layout tool.

Spatial Ratios and Zoning Logic

Banquet halls serve layered programs: arrival, reception, dining, entertainment, and service. I aim for a spatial rhythm where primary aisles form a loop around the seating core, with secondary aisles at 48–60" spacing. Keep service paths orthogonal to entrance and kitchen/service doors to avoid crossing guest flows. Define zones in CAD with hatch styles—Reception, Dining, Stage/AV, Dance Floor, and Service Spine—so your block set snaps to intended behaviors.

For seat count planning, use seating density tiers: Comfortable (8 guests/60" round, 60" aisles), Standard (10 guests/60" round, 48–54" aisles), and High-density (12 guests/72" round, 48" aisles; only if service staff count and fire egress permit). Tie block variants to each tier with preset clearance rings.

Lighting Blocks: Layers, Color Temperature, and Control

Build lighting blocks that reflect multiple layers: ambient (general downlights or chandeliers), task (buffet, bar, podium accent), and drama (gobos, uplights, wall washing). For dining, keep general lighting at 2700–3000K to flatter skin tones and food; use 3500–4000K for task areas like carving stations or registration. According to IES dining guidelines, 200–300 lux ambient is typical, with accent layers adding 50–100% on focal surfaces. Model dimming groups in your blocks: Pre-function, Dining, Stage, Dance Floor. Include glare-control notes—shielding angles and fixture aiming—so sightlines are protected.

Acoustic Comfort: Block Elements and Materials

Banquet rooms with hard flooring and high ceilings amplify speech and clatter. Add acoustic panel blocks (wall or ceiling clouds) with NRC ratings and suggest coverage aiming for 20–30% of ceiling area in reverberant rooms, adjusted per consultant input. Carpet tiles around the seating core and drapery behind stages reduce flutter echo; model these as material-layer blocks to guide specifications. Keep loudspeakers aimed to audience zones with predictable coverage; insert audio array blocks with dispersion cones to avoid hot spots near bars and buffet lines.

Ergonomics and Service Workflows

Event staff efficiency relies on clear, repeatable paths. Create service cart blocks (30" x 48") and tray-passing nodes at table corners. Maintain 60" main aisles to allow two-way cart traffic without collision. Reference Herman Miller’s ergonomic guidance for reach zones to position bar equipment within 20–25" primary reach and 25–50" secondary reach to reduce fatigue over long events.

Stagecraft, AV, and Sightlines

Sightlines often fail when stage height and table spacing aren’t coordinated. For audiences seated at 30" table height, a 24–36" stage rise paired with a minimum 12–15' front setback keeps eye lines clear. Position projector blocks with throw-distance references, integrate cable troughs and floor boxes in your CAD layers, and model camera tripod footprints and clearance arcs. Avoid placing tall centerpieces that exceed 12–14" or have transparent stems to preserve cross-table visibility.

Fire Egress and Accessibility

Tag all exits with clear width and swing arcs. Keep aisles aligned to exits, avoid dead ends longer than local code permits, and model 60" turning circles near doorways for wheelchair maneuvering. Disperse ADA seating locations rather than clustering; maintain straight-line routes to restrooms and buffet without crossing dense chair fields.

Material Selection and Sustainability Notes

Material blocks should carry performance metadata: stain resistance for linens and carpets in spill zones, slip resistance for dance floors, and cleanability for bar tops. If you specify reusable decor elements, track storage footprints in CAD. Consider modular stage systems with replaceable surfaces and LED fixtures with high efficacy to reduce energy loads. Map waste streams for events (glass, compost, landfill) and include labeled collection station blocks near service spines.

CAD Layering and Naming Conventions

Don’t let your file become the event’s first bottleneck. I use a disciplined layer set: A-ROOM-SEAT (tables/chairs), A-ROOM-AISL (aisles), A-SERV-BUFF (buffet), A-SERV-BAR (bar), A-AV-STAG (stage/AV), A-LITE-GEN (ambient lighting), A-LITE-ACC (accent), A-ACOU-PNL (acoustic panels), A-ADA-ROUT (access routes), and A-EGR-EXIT (egress). Blocks carry clear prefixes—TB-60R, TB-72R, CH-STD, CH-ADA, STG-48x96, BAR-SVC, BF-SVC—so scheduling is painless.

Color Psychology in Wayfinding and Mood

Use color to guide guests subconsciously. Warm accent bands near reception encourage social interaction, while cooler tones at conference-style segments calm the room. Verywell Mind’s color psychology review connects reds and oranges with energy and blues with calm; apply these cues in signage and lighting gels to support the event’s intent without overwhelming the palette.

Testing Layouts with Iteration

Before producing final drawings, simulate flows for seating, service, and egress. Rapidly explore densities and aisle logic using an interior layout planner to visualize different seating tiers and buffer zones: interior layout planner. Validate AV sightlines with camera-to-stage cones and verify that buffet queues don’t block exits.

Checklist: Readiness of Your Banquet CAD Block Library

1. Table/chair blocks with multiple density tiers and pull-out positions
2. Service spine and aisle blocks at 48–60" widths
3. Buffet, bar, and back-of-house blocks with clearance rings
4. Stage, AV, cable trench, and projector throw-distance references
5. Lighting blocks with layered control groups and color temperature notes
6. Acoustic panel and material-layer blocks with performance metadata
7. ADA routes and dispersed seating markers
8. Egress doors with swing arcs and direct aisle alignment

Authority References

For deeper standards and research grounding, review: IES standards and Herman Miller research.

FAQ

How many guests can a 60" round table comfortably seat in a banquet hall?

Eight to ten is typical. For longer events or heavier service, cap at eight to provide better elbow room and easier circulation for staff.

What aisle width should I model between chair backs?

Use 48" as a minimum for standard service and 60" where carts or two-way traffic are expected. Increase near buffets and bars to prevent queuing overlap.

What ambient lighting levels should I target in the CAD plan?

Plan for 200–300 lux ambient for dining, with dimming flexibility. Add accent lighting to highlight stage, buffet, and bar zones.

Which color temperature works best for banquet dining?

2700–3000K for dining areas creates a warm, flattering environment; use 3500–4000K for task-focused stations like registration or carving.

How large should a dance floor be for a 200-guest event?

Size for the expected number of simultaneous dancers. At 3–5 sq ft per dancer, if 40–60 guests dance at once, plan 120–300 sq ft.

What is the standard stage module size to include in blocks?

4' x 8' riser sections are common. Model stairs, guardrails where required, and backstage corridors of 24–36" minimum.

How do I handle ADA seating in dense layouts?

Provide dispersed locations with 36" clear routes and 60" turning circles near entries. Avoid clustering all accessible seats in one corner.

How can I reduce echo in a hard-finished banquet room?

Model acoustic panels (wall or ceiling) aiming for significant coverage, and include carpet tiles around seating. Keep loudspeakers aimed at audience zones.

Should I include projector throw and cable paths in my CAD blocks?

Yes. Add blocks for projectors with throw-distance notes, cable troughs, floor boxes, and camera tripods to prevent last-minute AV conflicts.

What clearances do buffet lines and bars require?

Allow 48–60" in front of buffet counters for queuing and 36" behind the stations for staff movement. Keep queues away from exit paths.
