Banquet Hall CAD Block: Essential Guide for Designers: 1 Minute to Find the Perfect Banquet Hall CAD Block

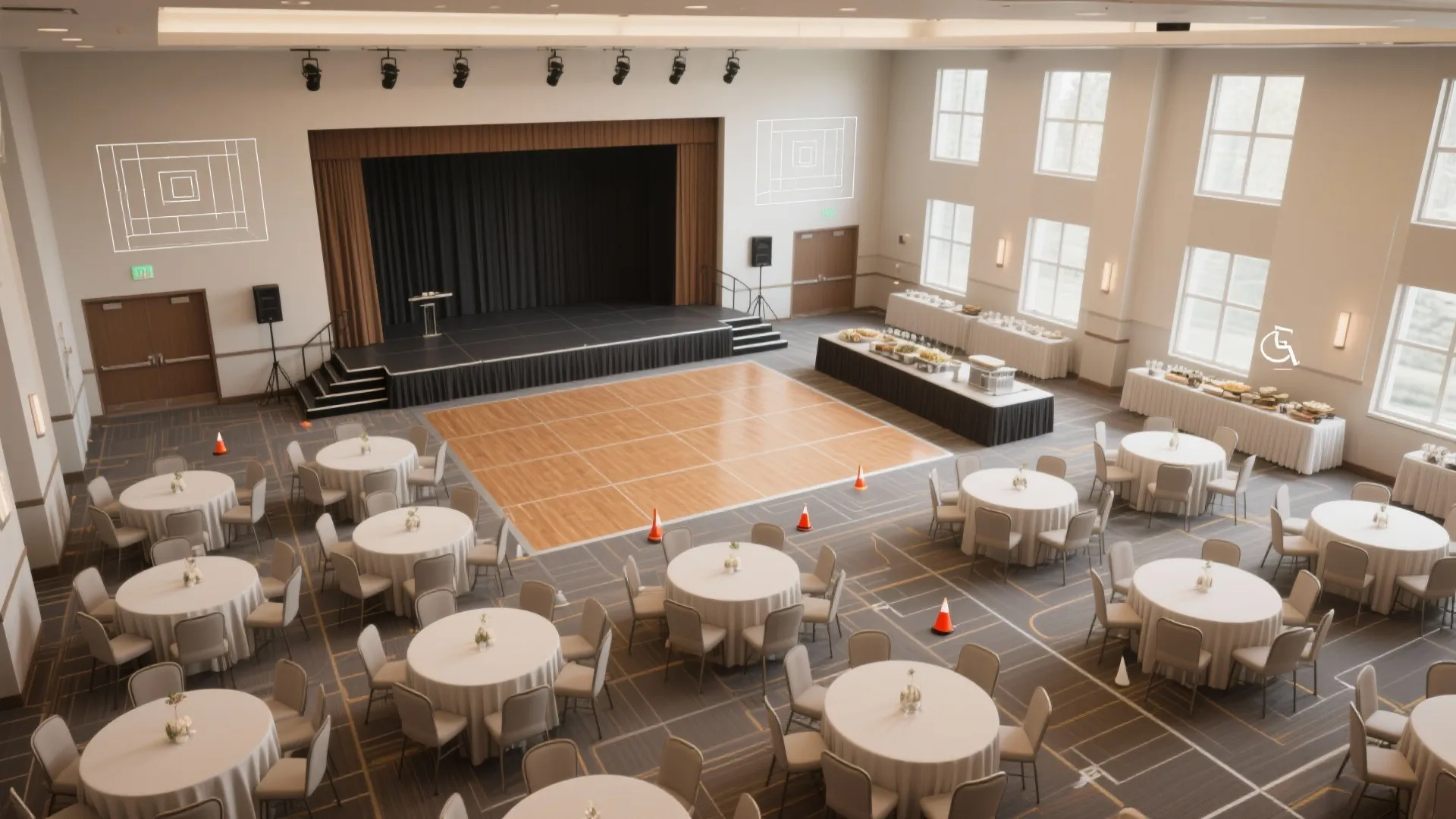

Designing a banquet hall that feels effortless on event day starts with precise CAD blocks. I rely on dimensionally accurate seat layouts, table clusters, service aisles, staging, and back-of-house zones to keep circulation clean and capacity compliant. A well-structured block library speeds up schematic planning and reduces coordination errors across AV, F&B, and facilities teams.

Capacity and comfort are inseparable. Steelcase’s workplace findings link spatial clarity and ergonomic fit with better experience and performance, while the WELL v2 guidance emphasizes accessible routes, acoustic control, and glare management as baseline comfort criteria. For lighting targets, the IES standards recommend illuminance ranges around 300–500 lux for multipurpose assembly spaces, with flexible dimming to support dining, presentations, and dance transitions. These benchmarks help me size aisles, distribute seating, and specify lighting scenes that are adaptable to program shifts. I also keep a reference to WELL v2 (wellcertified.com) for circulation, acoustic intent, and inclusive wayfinding.

Core CAD Blocks Every Banquet Hall Library Should Include

I curate banquet CAD blocks in nested groups that can scale quickly. My essentials include: round tables (60", 72" common), rectangular banquet tables (6' and 8'), serpentine tables for buffet flow, cocktail rounds, chiavari/banquet chairs with realistic footprints, mobile staging platforms (typically 4' x 8' modules), lectern/podium, modular dance floor panels, floor power boxes, AV risers, buffet stations, carving stations, mobile bars, coat check counters, service carts, rolling partitions, and drape lines. I also maintain clearance blocks: chair pushback radius (~18"–24"), server pass lanes (minimum 36" clear, ideally 42"–48" for high-volume service), and ADA routes (36" clear min, widened at turns). These clearances keep the plan honest when density pressures rise.

Typical Room Ratios and Seating Densities

In banquet mode, a round 60" table seats 8–10, while a 72" seats 10–12 depending on chair width and tableware. I budget roughly 10–12 sq ft per person in banquet seating (including aisles), increasing to 12–15 sq ft for premium service, larger chairs, or lavish centerpieces. For cocktail receptions with scattered high-tops, 8–10 sq ft per person allows fluid mingling. Buffet lines function best with 6'–8' linear feet per 50 guests per station, with at least 4' clear in front and 3' behind for staff. The dance floor typically ranges from 2–4 sq ft per guest depending on event type; weddings lean toward the higher end.

Layout Logic: Sightlines, Circulation, and Back-of-House

I start from stage placement and primary sightlines. Keep table fronts orthogonal to the stage, limit angle offsets to maintain uniform visibility, and position AV risers away from primary guest circulation. Service corridors should loop between kitchen access, dish drop, bar, and buffet stations without crossing main guest pathways. Whenever I’m testing seating density against fire egress and server lanes, I simulate zones with a room layout tool to validate reach, conflict points, and turnaround areas before moving into design development.

room layout tool

Lighting Scenes: Dining, Presentations, and Transitions

Event halls need adaptable layers: ambient, task, accent, and decorative. For dining, I aim around 300–400 lux ambient with 2700–3000K warmth to flatter skin tones and food presentation. Presentations benefit from raising ambient to ~400–500 lux, introducing focused stage wash (often 3200–3500K), and controlling glare with proper beam angles and shading. I include DMX or DALI dimming where possible to smoothly transition between scenes without sharp contrast shifts that fatigue eyes. Glare is managed through indirect sources, baffled downlights, and low-reflectance finishes on nearby planes.

Acoustic Comfort and Speech Intelligibility

Dinners with speeches demand clear STI (Speech Transmission Index) without over-amplification. I balance absorptive panels (NRC ~0.7+ for ceiling clouds) with diffusive elements around walls to avoid flutter echo. Soft furnishings, table linens, and drapery raise absorption modestly; I specify resilient flooring underlayment where dance floors meet hard surfaces to reduce impact noise. Locate subwoofers away from reflective corners when possible and space ceiling speakers to avoid hot spots, maintaining consistent SPL across seating clusters.

Color Psychology and Material Selection

Warm neutrals and low-saturation hues create an inclusive base that adapts to varied event branding. From color psychology research, reds and ambers increase energy and perceived warmth, while blues promote calm—use accent lighting to modulate mood without repainting the envelope. Materials should prioritize maintenance and sustainability: performance textiles with stain resistance, high-abrasion ratings for chairs, low-VOC finishes, and modular flooring systems that support rapid reconfiguration and replacement. Keep reflective indices balanced; mirror and gloss are powerful but can cause glare with stage lighting.

Ergonomics: Chairs, Table Heights, and Access

Banquet chairs typically range 17"–19" seat height and 16"–20" seat width. For comfort over long sittings, I look for lumbar support, cushioned seats with adequate foam density, and a stable base that resists tipping when guests lean back. Standard table heights sit at 29"–30"; cocktail rounds at 42". Leave 18"–24" chair pull-back plus 36" minimum pass lanes; widen to 42"+ near service hubs. Ensure ADA access routes remain unobstructed and integrate at least one accessible seat per table cluster where possible.

Service Flow: Buffet, Plated, and Hybrid

Buffet events require directional guidance: start, plate pick-up, protein stations, sides, and carving moments with visual cues. Position hand-off points away from aisle choke spots, and mirror stations for high counts. For plated service, staging zones near the kitchen with hot/cold holding and plate-up lines are essential; I design dish drop paths that run parallel to guest aisles to avoid collisions. Hybrid formats benefit from satellite stations and runner lanes that bypass the dance floor.

Stage, AV, and Power Planning

Stage modules (4' x 8') allow flexible sizing; set front-of-stage clearance at 6'–8' minimum. Mark cable runs and power drops in the CAD plan early, including floor boxes and overhead rigging points. Distribute sightline cones for projector throw and screen height; avoid placing tall centerpieces in direct projection paths. Keep audio racks accessible but visually discreet, and provide quiet-back rooms for live streaming or recording.

Fire Egress and Codes

Block layouts must respect egress widths and exit access travel distances per local code. Maintain clear exit doors without decorative obstructions, and test table clusters against egress lane continuity. I annotate exit signs and emergency lighting locations in the CAD to prevent last-minute conflicts with drapery or branding walls.

Workflow: Building a Reusable CAD Block Library

I group blocks by scenario—banquet, classroom, theater, cocktail—so I can swap mode layouts in seconds. Attribute tags like capacity, clearances, and recommended aisle widths make schedules easy. I keep dynamic blocks for tables with adjustable seat counts, parametric dance floors, and buffet modules with swappable chafers or sneeze guard extents.

Testing Multiple Layouts Quickly

When the brief changes—guest count up by 20%, add a satellite stage, or convert buffet to plated—I test three variants and pressure the plan: capacity, egress, and sightlines. Rapid iteration with an interior layout planner helps me validate density without compromising comfort; it also reveals pinch points in server routes that aren’t obvious on paper.

interior layout planner

FAQ

How many guests fit per 60" round table?

Typically 8–10 guests depending on chair width and tableware. If you’re using wider chairs or oversized centerpieces, cap at eight for better elbow room.

What’s a safe aisle width between table rows?

Provide at least 36" clear for standard service; 42"–48" improves throughput during peak courses and accommodates ADA maneuvering more comfortably.

How much lighting is needed for banquet dining?

Aim for ~300–400 lux ambient at 2700–3000K for dining. For speeches or presentations, elevate to ~400–500 lux and add controlled stage wash per IES recommendations.

What size should the dance floor be?

Plan 2–4 sq ft per guest. Wedding receptions often prefer closer to 4 sq ft to keep the floor comfortable when the crowd peaks.

How do I manage acoustics in a reflective hall?

Combine ceiling clouds (NRC ~0.7+), wall diffusers, soft table linens, and strategic speaker placement. Avoid placing subs tight in corners and distribute ceiling speakers evenly.

Are serpentine tables useful beyond buffet lines?

Yes—serpentine modules shape circulation, break visual monotony, and can frame focal areas like chef stations or dessert bars.

What’s the best way to maintain ADA routes during reconfiguration?

Lock ADA corridors in your CAD as a non-editable layer. Tag table clusters that, if removed, preserve continuous 36" clear paths to exits and restrooms.

How do I prevent glare on projection screens?

Use indirect ambient lighting, baffle downlights near the screen, and choose low-gloss wall finishes. Control beam angles and dim decorative fixtures during presentations.

Can I switch from buffet to plated service mid-project?

Yes—design modular service hubs, add runner lanes parallel to guest aisles, and pre-wire power for heat lamps near plate-up lines.

What CAD attributes should I include in block metadata?

Capacity, recommended clearances, aisle widths, ADA notes, power requirements, and AV sightline cones. These make schedules and quick re-layouts efficient.

How do color choices affect event mood?

Warm tones (reds, ambers) create energy and social warmth; cooler hues (blues) encourage calm. Keep base finishes neutral and modulate accent lighting per event branding.

What’s the most common circulation mistake?

Underestimating chair pushback plus server tray width. Account for 18"–24" chair movement and a minimum 36" clear aisle—or you’ll get bottlenecks.
