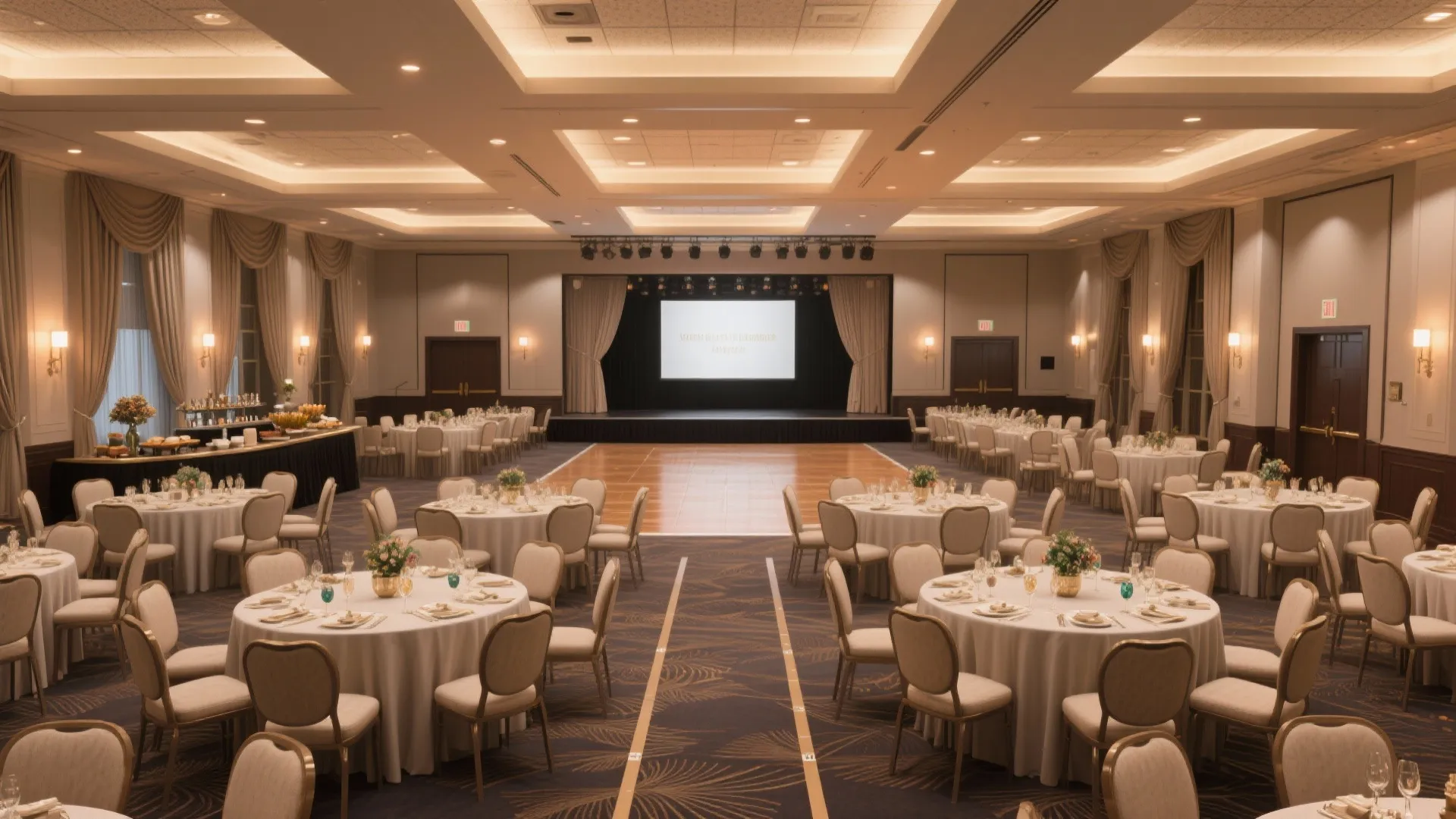

Banquet Hall CAD Block Solutions for Smart Space Planning: 1 Minute to Find Top Banquet Hall CAD Blocks & Fast-Track Your Design Workflow

Banquet halls succeed when spatial planning seamlessly integrates seating density, comfort, service flow, and lighting. I rely on well-structured CAD block libraries to prototype layouts faster, evaluate capacities, and test circulation under real constraints—then iterate for specific audiences and event types.

Capacity targets and comfort metrics anchor every decision. Steelcase research links workplace spatial effectiveness with perceived control and ease of collaboration—principles that apply to event settings where guests navigate tables, aisles, and service points (source: steelcase.com/research). WELL v2 recommends illuminance ranges of roughly 300–500 lux for multipurpose spaces, stepping up to 500–750 lux on task planes to support visual clarity (source: v2.wellcertified.com). These benchmarks help me tune seating density, sightlines, and lighting to reduce fatigue and maintain a cohesive atmosphere.

Design Intent: From Capacity to Experience

A banquet hall is not just a room with chairs; it’s an environment for arrival, interaction, dining, and celebration. CAD blocks give me repeatable, accurate geometries—tables, chairs, buffets, stages, dance floors, bars, AV towers, mobile partitions—so I can model guest behavior and service routes. I start by defining the event intention (wedding, gala, conference dinner) and set a primary ratio: seating area vs. circulation vs. service/staging. For formal dining, I keep primary circulation aisles at 1.5–1.8 m where staff carry trays, with secondary aisles at 1.2–1.5 m. Those widths balance capacity with stress-free movement.

CAD Block Essentials for Banquet Halls

My core library includes: 60" round tables (8–10 seats), 72" rounds (10–12 seats), 6' and 8' rectangles for conference-style seating, serpentine buffets, double-sided bars, modular stages, risers, dance floor tiles (typically 0.9–1.0 m modules), and ADA-compliant tables with clear floor space. I pair seating blocks with realistic chair footprints (500–550 mm depth, 500 mm width) and add swing arcs for chair pull-out to test aisle resilience. For AV, I use projector throw cones and screen height blocks to protect sightlines. These standardized elements keep drawings clean, reduce errors, and speed up decision-making.

Performance Benchmarks and Lighting

Lighting drives mood and safety. For dining, I design ambient levels around 300–500 lux with warmer tones (2700–3000K) to soften faces and food presentation; task or prep zones can reach 500–750 lux. Glare control is non-negotiable—shielding beam angles, diffusers, or indirect systems are essential. WELL v2 guidance supports these ranges and emphasizes visual comfort and circadian considerations. For presentations, I integrate layered lighting: dimmable ambient, accent on focal elements, and low-glare task light at staff stations. Acoustics follow suit: a combination of absorptive ceiling panels (NRC ≥ 0.70), soft floor coverings, and drapery reduces reverberation during speeches and lively dining.

Seating Strategies: Round vs. Rectangular

Round tables support social equity—everyone faces the center—while rectangles fit more tightly into long rooms and are better for line-of-sight to a stage. I use CAD blocks to simulate chair counts and analyze table-to-table distances: 1.8–2.1 m center-to-center for rounds, 1.5–1.8 m for rectangles with offset aisles. When speeches or performances are central, I shape seating in gentle fan layouts with 8–12° rotation per row to enhance sightlines and avoid straight tunnels.

Circulation and Service Flow

Flow is built into the drawing. I overlay service routes from back-of-house to bars, buffets, and the stage. Dead-ends create congestion, so I plan looped paths that allow staff to exit without cutting across key guest views. I place bars near but not at entries to disperse queues; buffets need 2.4–3.0 m clear frontage per line and return space behind staff. Using an interior layout planner or a room layout tool helps me stress-test circulation, simulate peak service moments, and confirm ADA routing around tables.

room layout tool

Ergonomics and Human Factors

Comfort starts at the table: 700–750 mm table height, 450–480 mm chair seat height, and 600–650 mm per person for place settings on round tables. I allow at least 900 mm from table edge to obstruction for minimal egress, 1,200 mm for active service, and more near VIP tables. Chair pull-out arcs often need 400–500 mm clearance—CAD arcs keep me honest. I model wheelchair seating with 900 mm clear width and 1,500 mm turning circles near egress points. These ergonomic baselines reduce friction, improve service speed, and elevate the guest experience.

Staging, Dance Floor, and AV Integration

Stages scale with audience size and program. For 200–300 guests, a 6×9 m stage with 1.0–1.2 m height typically supports speeches and small ensembles. Dance floors run 0.7–0.9 m² per dancing guest; I use modular tile CAD blocks to scale quickly for different crowd sizes. AV blocks include screen aspect ratios, projector throws, mic stands, and lighting truss footprints. Critical: avoid intersecting primary egress with AV cable runs—cord management paths and low-profile ramps are part of my standard block set.

Color Psychology and Atmosphere

Color sets emotional tone. For celebratory evenings, warm neutrals and desaturated jewel accents help food pop and skin tones look healthy. Calm conferences benefit from cooler, balanced palettes with controlled contrast to minimize visual fatigue. Research in color psychology emphasizes the effect of hue and saturation on mood and arousal (source: verywellmind.com/color-psychology). I calibrate finishes with lighting temperature to avoid color shifts on linens and décor.

Acoustic Comfort

Bouncing sound can undo otherwise perfect layouts. I aim for balanced absorption: acoustic ceilings, upholstered seating, and perimeter drapes break up flutter echoes. I avoid long parallel walls in seating clusters by staggering aisles and adding soft surfaces near hard corners. If the program includes live music, I test stage location with reflective and absorptive panels in CAD, then verify with on-site tuning.

Material Selection and Sustainability

Durable, cleanable surfaces are essential—stain-resistant fabrics, sealed wood or HPL for buffets, and high-performance carpet tiles where rolling loads move. I prioritize low-VOC finishes to maintain indoor air quality. Modular, reconfigurable elements reduce waste over the venue’s lifecycle. When venues refresh, I often retain structural pieces and swap textiles and lighting to update atmosphere with minimal material turnover.

Workflow: From CAD Blocks to On-Site Reality

My process: build a master CAD library; test capacities at 10% intervals; simulate service routes; check ADA; run lighting levels; coordinate AV sightlines; then output clear plan sets with notes for setup teams. I pair CAD with layout simulation tools for quick scenario testing, and I keep a detail sheet of aisle widths, clearances, and cable management rules so crews can execute consistently.

Common Layout Scenarios

- Wedding with central dance floor: seating arcs around the floor, alternating round and rectangular tables to tighten edges, 2.4 m buffers to stage and DJ.

- Gala dinner with speeches: fan-shaped seating focusing on stage, narrower tables near the back to increase count without harming sightlines.

- Conference dinner: rectangular tables with numbered aisles for guided seating and service, buffets at flanking walls to distribute queues.

FAQ

Q1: How do I estimate maximum seating without compromising comfort?

A1: Start with target aisle widths: 1.5–1.8 m for primary service, 1.2–1.5 m for secondary. Use standardized table and chair CAD blocks, then run capacity at 10% increments. Check wheelchair routes and turning circles before finalizing.

Q2: What illuminance levels work best for banquet dining?

A2: Aim for 300–500 lux ambient at table height with 2700–3000K warmth. Task or prep zones can be 500–750 lux. Dimming and glare control maintain comfort across program shifts.

Q3: Round or rectangular tables—how should I choose?

A3: Rounds support social interaction and are forgiving in irregular rooms. Rectangles achieve tighter fits and cleaner sightlines to a stage. Test both in CAD and compare center-to-center spacing (rounds 1.8–2.1 m; rectangles 1.5–1.8 m).

Q4: How big should the dance floor be?

A4: Allocate 0.7–0.9 m² per dancing guest. Scale modular tiles to expected peak participation rather than total attendance, and allow circulation on at least two sides.

Q5: What acoustic treatments make the greatest difference?

A5: High-NRC ceiling panels, soft floor finishes, and perimeter drapes reduce reverberation. Break up parallel surfaces with staggered aisles and upholstered partitions near hard corners.

Q6: How do I protect sightlines for speeches and presentations?

A6: Use AV CAD blocks for screen height, throw distance, and viewing cones. Fan seating by 8–12° per row and avoid placing bars or buffets in direct view paths. Keep cables out of primary egress with defined routing.

Q7: What are the key ADA considerations in banquet layouts?

A7: Provide 900 mm min clear widths, 1,500 mm turning circles near egress, and at least a few tables with clear floor space and accessible paths to amenities. Verify thresholds and ramp slopes for temporary stages.

Q8: How can CAD blocks speed up event turnover?

A8: Standardized blocks create repeatable layouts with clear counts and dimensions. Setup teams receive consistent plans, reducing mistakes and allowing faster transitions between event types.

Q9: What color strategies help long evening events feel comfortable?

A9: Warm neutrals with controlled contrast reduce eye strain. Accents in desaturated jewel tones add celebration without glare. Align palette with 2700–3000K lighting to keep skin tones flattering.

Q10: Where should bars and buffets be placed to avoid congestion?

A10: Near entries but offset from direct paths; provide 2.4–3.0 m frontage per buffet line and looped service routes. Use CAD to model queue spill and staff movement.

Q11: How do I plan for flexible head tables or VIP zones?

A11: Modular stages and risers with adjustable steps, slightly larger aisles (≥1.5 m), and controlled accent lighting. Keep VIP routes clear and avoid crossing service paths.

Q12: What materials hold up best under high turnover?

A12: Stain-resistant fabrics, sealed wood or HPL for food stations, high-performance carpet tiles, and low-VOC finishes to preserve air quality. Choose modular elements for fast reconfiguration.
