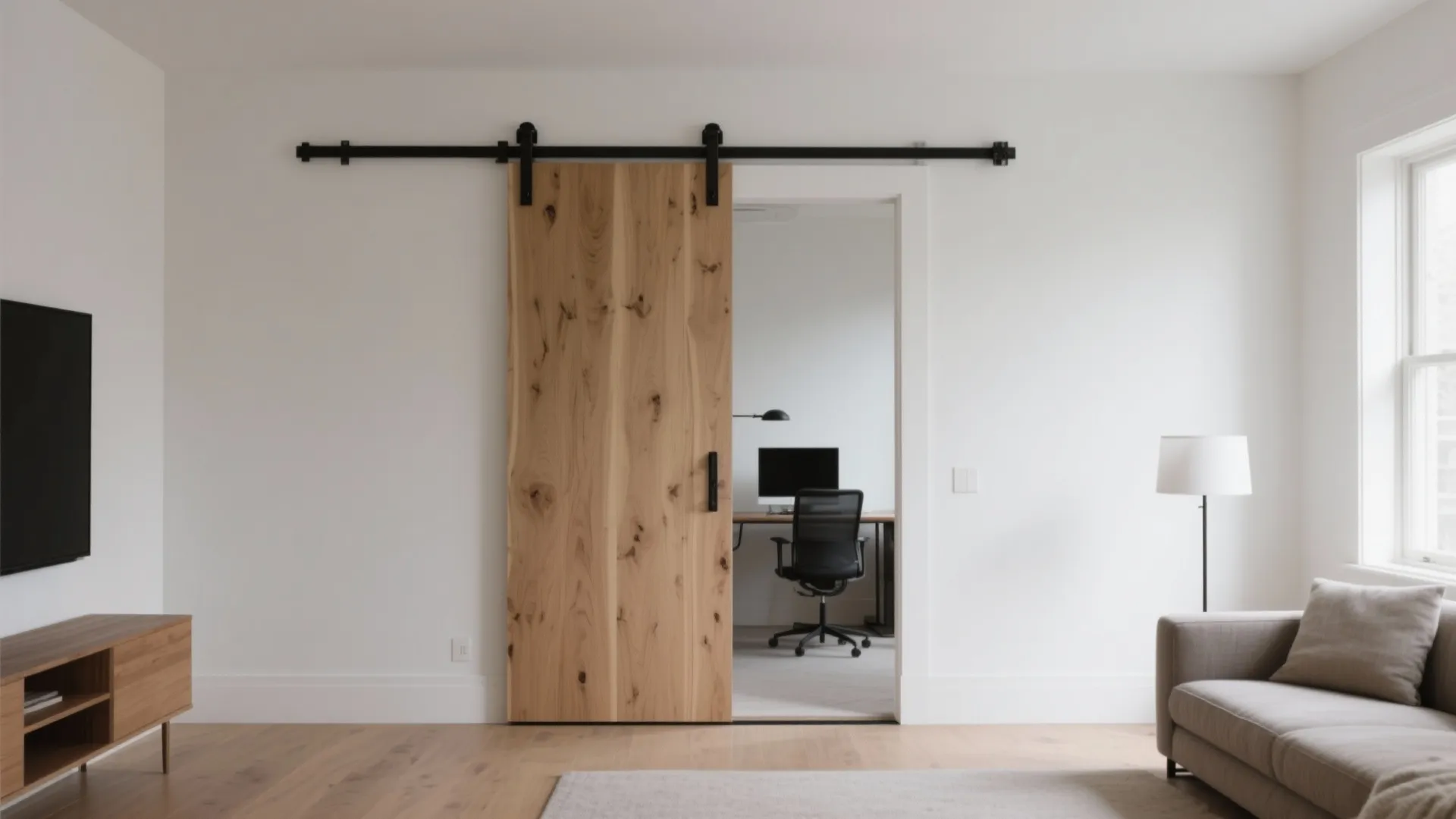

Barn Door DIY Plans: Step-by-Step Guide for Beginners: Fast-Track Guide to Building a Stylish Barn Door in Minutes

I’ve built and installed more sliding barn doors than I can count, both in residences and boutique hospitality projects. A good barn door is more than a rustic accent—it’s a precise piece of movable architecture. The goal here is to help you design, fabricate, and mount a door that glides smoothly, seals visually, and suits your space.

Plan the Opening and Clearances

Before picking up a saw, confirm that your wall can accept a sliding track and that you have enough lateral clearance for the door to park fully open. In small homes, movement and reach ranges matter; task zones benefit when operable elements stay within ergonomic reach. The Ergonomics Society notes that optimal frequently used reach sits roughly within 500–600 mm from the body to reduce fatigue, which translates into practical handle placement and easy panel access (ergonomics.org). If you’re planning this for a home office, consider WELL v2 guidance: projects targeting acoustic comfort often aim to limit noise transfer between spaces; a well-sited barn door with a soft-close track helps maintain quiet circulation (see v2.wellcertified.com).

Size the Door: Height, Width, and Overlap

Measure the rough opening (RO) height and width, then set the door panel to overlap the opening by 25–40 mm on each side for better visual coverage. For standard interior openings (around 813 mm/32 in wide), I typically size the door 860–915 mm (34–36 in) wide. Height should clear trim and provide a visual gap of 6–12 mm at the floor, depending on flooring type and desired light leak. In tight hallways, maintain at least 900 mm of free passage so the parked panel doesn’t choke circulation. If you need to visualize clearances and furniture adjacency, try a room layout tool to simulate track length and parked positions: room layout tool.

Choose Materials: Solid Wood, Plywood, or MDF

Material changes the door’s weight, stability, and finish. Solid wood (white oak, ash, poplar) looks authentic and finishes beautifully, but can move with humidity. A torsion-box core with paint-grade MDF skins provides a flat, stable surface at a lighter weight. For a classic plank look, use tongue-and-groove boards over a plywood core to prevent cupping. I aim for 30–40 mm (1-1/4–1-1/2 in) total thickness for structural rigidity and hardware compatibility. If weight is a concern, keep the panel under the track’s rated capacity—most quality residential kits handle 90–115 kg (200–250 lb), but verify the manufacturer spec.

Track and Hardware: Mounting, Soft-Close, and Handles

Pick a track kit with steel wheels, sealed bearings, and anti-jump guards. A soft-close mechanism is worth it; it prevents slamming and protects plaster. Track length should equal door width times two, or at minimum door width plus opening width, so the panel clears fully. Use lag bolts into studs or add a continuous backing board (19 mm/3/4 in) to spread loads, especially in plaster or masonry. Handle placement should land 900–1050 mm (35–41 in) AFF for comfortable reach; on bathrooms, include a low-profile finger pull on the back side to avoid interference with the wall when closed.

Design Styles: From Modern Minimal to Farmhouse

Style is the personality of the panel. A modern slab door with flush pulls reads clean and lets hardware be the hero. For farmhouse, consider Z-brace or double-X overlays with 90–120 mm battens for proportion. Keep rail and stile widths consistent (usually 90–120 mm) for visual rhythm. If you use a bold color, leverage color psychology: blues can promote calm and focus, while greens communicate balance—Verywell Mind references these responses in color psychology research (verywellmind.com/color-psychology). Matte finishes mute glare, which helps in daylight-heavy rooms.

Acoustic and Light Considerations

No sliding door seals like a swing door, but there are ways to improve acoustic comfort. Add perimeter brush seals or a concealed U-channel on the jamb side to reduce light leaks and reverberant sound transfer. In work areas, aim for softer surfaces nearby—rugs, upholstered seating, and cork—so sound doesn’t bounce. Keep top and bottom gaps minimal; I plan a 6–8 mm floor gap on smooth surfaces and up to 10–12 mm over thick rugs to avoid scraping.

Finish and Sustainability

Choose low-VOC paints or hardwax oils for healthier indoor air. Pre-finish components before assembly when possible to seal edges and reduce future movement. If you’re building with plywood, select formaldehyde-reduced panels (NAUF/E0). For high-wear homes, I lean toward catalyzed lacquer on paint-grade doors—fast curing, durable, and easy to repair.

Step-by-Step Build

1) Layout and cut: Mill rails, stiles, and any battens to width. Crosscut to length, keeping edges square.

2) Assemble core: For a plank look, glue and clamp a plywood core. For a frame-and-panel design, assemble the perimeter first.

3) Add skins or planks: Glue MDF or plywood skins, or tongue-and-groove boards. Use cauls to keep the surface flat.

4) Sand and seal: Orbital sand to 180 grits; seal with primer or first coat before trim pieces.

5) Apply trim/overlays: Set battens with glue and pins; keep consistent reveals (usually 6–10 mm).

6) Drill hardware points: Pre-drill for hangers and handle; reinforce with inserts on softer woods.

7) Finish coats: Paint, stain, or oil; let cure fully.

8) Install track: Locate studs, mount backing board, then the track. Level carefully.

9) Hang door: Add stoppers, anti-jump, and soft-close catches. Check glide and final clearances.

Installation Nuances

Walls are rarely perfectly plumb. Shim the backing board so the track is dead level; otherwise the door will creep. Maintain at least 12–19 mm (1/2–3/4 in) stand-off from the wall so trim doesn’t rub. If you have baseboard, add a spacer or riser to the bottom guide so the door remains aligned. For bathrooms, include an edge privacy latch solution and moisture-friendly finishes.

Layout Planning and Adjacent Furniture

Sliding paths should be kept clear of tall storage and protruding hardware. If the door parks over an outlet or thermostat, confirm accessibility. In narrow rooms, simulate movement arcs with an interior layout planner to avoid obstructions and pinch points: interior layout planner. Keep the handle side free so entering doesn’t require awkward side steps.

Common Mistakes I See

- Undersized track length that leaves part of the opening covered.

- Overly heavy doors on light-duty hardware, causing wobble and premature wear.

- No soft-close, leading to impact damage over time.

- Ignoring baseboard height and floor guide alignment.

- Handles placed too high, making operation fatiguing in daily use.

FAQ

Q1: How thick should a barn door be?

A: Aim for 30–40 mm (1-1/4–1-1/2 in). Thinner doors can warp or resonate; thicker adds weight that may exceed hardware ratings.

Q2: What track length do I need?

A: At minimum, door width plus opening width. Many installers choose 2x door width to ensure full clearance and room for stoppers.

Q3: Can a barn door be used for bathrooms?

A: Yes, but plan for privacy: add edge seals, a jamb channel, and a recessed privacy latch on the inside. Use moisture-resistant finishes.

Q4: How do I improve acoustics?

A: Use brush seals, a bottom guide, and soft-close hardware. Add absorptive materials near the opening to reduce reflections.

Q5: What’s the best wood for a paint-grade door?

A: Poplar or MDF skins over a stable core. Poplar machines cleanly and holds paint well; MDF provides a smooth, flat surface.

Q6: How high should handles be?

A: Typically 900–1050 mm (35–41 in) above finished floor. This falls within comfortable reach for most adults.

Q7: Do I need a floor guide?

A: Yes. A bottom guide prevents lateral swing and keeps the panel aligned—crucial for soft-close reliability.

Q8: Will a barn door block light switches or outlets?

A: It can. Map parked positions and confirm access. If unavoidable, choose low-profile hardware and relocate switches during remodels.

Q9: What finishes are healthiest indoors?

A: Low-VOC paints, waterborne lacquers, or hardwax oils. Pre-finish parts to reduce emissions during installation.

Q10: How do I handle baseboards and trim?

A: Use spacers behind the track or a mounting board to clear trim. Adjust the floor guide with a riser to match baseboard height.

Q11: What’s the ideal overlap beyond the opening?

A: 25–40 mm on each side helps visuals and reduces light leaks. More overlap may need a longer track and stronger hardware.

Q12: Can I retrofit into drywall without studs?

A: Add a continuous backing board anchored into multiple studs or blocking. Never rely solely on drywall anchors for track loads.
