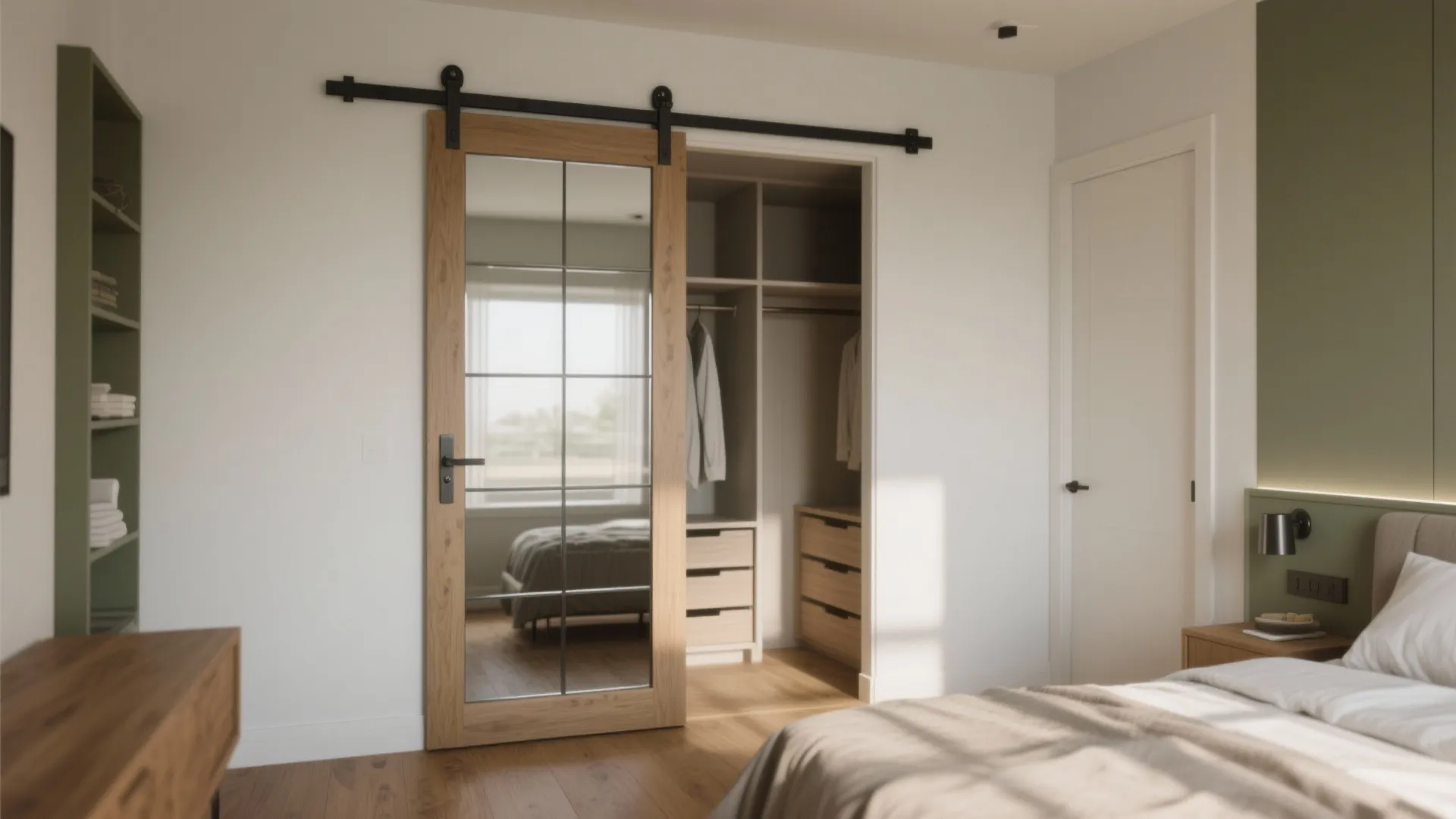

Barn Door with Mirror DIY: Step-by-Step Guide for Small Spaces: Fast-Track Guide to Building a Mirrored Barn Door in 1 Hour

I’ve built and specified more sliding barn doors than I can count, and pairing one with a full-length mirror is a small-space win: you get circulation-friendly access plus a daily-use vertical reflective surface without giving up wall area. A mirrored barn door can visually stretch a room, bounce useful light, and double as a dressing mirror. In compact bedrooms, studio apartments, and narrow laundry corridors, this single element can declutter traffic paths and sharpen routines.

There’s solid research behind the perceived spatial boost: Steelcase’s workplace studies note that increased vertical reflectance contributes to brighter perceived environments, which influences occupant comfort and task readiness. WELL v2 lighting guidance also emphasizes balanced luminance to limit glare and improve visual comfort (referenced broadly in their Light concept). Those principles translate at home—adding a mirror near daylight or a soft 3000–3500K ambient source helps calibrate contrast and expand the sense of depth.

Measured correctly, a sliding door can reclaim the swing footprint of a hinged leaf—often 8–10 square feet in tight interiors. In my projects, carefully chosen hardware and a tempered mirrored panel have lifted storage access and reduced door conflicts. Below is a practical, builder-level path with the finish-quality attention I’d expect on a professional install.

Key Benefits for Small Spaces

- Saves floor area by removing door swing, keeping circulation clear.

- Mirror amplifies light and sightlines, making the room feel larger.

- Better workflow: no bumping into furniture; easy access to closets and pantries.

- Clean, modern-meets-rustic aesthetic adaptable to bedrooms, baths, and utility spaces.

- Flexible fabrication—choose a full mirror panel or framed mirror insert.

Planning, Sizing, and Safety

Start with careful measurement. Measure the rough opening width and height, then add 2–4 inches to the door width for overlap that ensures privacy and light control at edges. Confirm at least twice the door width in clear wall space for the slide path. If you’re planning over a closet or bathroom, consider humidity and condensation: select sealed edges and moisture-safe finishes. For tempered mirror, specify safety backing film (commonly 1–2 mm) to retain shards if impact occurs.

Ergonomically, mount the handle between 36–42 inches above finished floor for natural reach, and keep the bottom of the mirror at least 8–12 inches above the floor if not full-length to avoid kick scuffs. From a lighting perspective, aim for 200–300 lux ambient in bedrooms and 300–500 lux in dressing zones, referenced by common residential practice influenced by IES recommendations for task visibility. These ranges help the mirror perform without harsh glare.

Materials and Hardware

- Door slab or frame: Solid wood, plywood core, or metal frame rated for mirror load.

- Mirror: Tempered, silvered glass with safety backing; full-length or panel insert.

- Sliding hardware: Track (typically 6–8 ft), hangers/rollers, anti-jump clips, stops, and a floor guide.

- Fasteners: Structural screws into studs; anchors if needed.

- Handle/pull: Comfortable grip, low profile to avoid wall dings.

- Optional soft-close: Helps prevent slam, protects mirror.

- Finish: Low-VOC clear coat or paint; moisture-tolerant if near baths.

Wall and Layout Considerations

Map the slide path for clearance. Avoid protruding switches, thermostats, and sconces. If you’re reworking furniture around the door, a quick digital mockup prevents surprises; a room layout tool can help simulate travel lines and handle reach: room layout tool.

Step-by-Step Build Guide

1. Confirm Structure and Studs

Use a stud finder along the track line (usually 6.5–7.5 inches above the door height, depending on hardware). You need solid fastener engagement for the track—ideally two studs minimum and proper spacing per the hardware manufacturer. If studs don’t align, install a hardwood header ledger into studs first, then mount the track to the ledger.

2. Fabricate the Door

Option A: Solid Slab with Surface-Mounted Mirror. Sand the slab, seal all faces, then mount the tempered mirror with structural adhesive rated for mirrors and mechanical mirror clips or a thin steel frame. Add a backing film to the mirror if not factory-applied.

Option B: Framed Mirror Door. Build a stiles-and-rails frame (e.g., 1x4 or 1x6 hardwood) with a central opening and a rabbet to seat the mirror. Use glazing points or a compression gasket and retainers; never rely solely on adhesive. Allow for expansion and cushion the glass with a neoprene or cork liner.

3. Edge Protection and Safety

Protect mirror edges with trim or metal U-channel. Add an anti-shatter film on the back. Round any exposed wood edges to R2–R3 for touch comfort.

4. Finish and Seal

Apply low-VOC finish or paint; seal edges fully, especially for bathrooms. If painting, prime with a bonding primer, then two top coats. Keep finishes off mirror surfaces.

5. Mount the Track

Level the track with a long spirit level; any error will telegraph to door drift. Pre-drill, then drive structural screws into studs or the ledger. Install end stops and anti-jump clips per the kit. Check roller alignment before hanging the door.

6. Hang the Door and Install Guide

Lift with two people. Set the bottom floor guide centered under the door path; a T-guide or U-channel guide prevents sway. Ensure 1/2–3/4 inch clearance to finished floor and at least 1/2 inch above trim or thresholds.

7. Handle, Soft-Close, and Fine Tuning

Mount the handle at ergonomic height. Add soft-close units if your kit supports them. Test for smooth roll, check for mirror vibration, and adjust stops to prevent wall contact. If glare occurs, tweak nearby lighting to 3000–3500K and add a dimmer.

Design Tips for Light, Color, and Acoustics

- Light: Position the mirror to catch lateral daylight, not direct beams, to avoid harsh reflections. Use warm-white LEDs in the 3000–3500K range for flattering skin tones.

- Color: Calmer palettes around mirrors reduce visual noise; Verywell Mind’s color psychology commentary highlights how cool hues can feel more spacious while warm accents add comfort.

- Acoustics: Sliding doors do not seal as tightly as swing doors. If privacy matters, add soft gaskets at jamb zones or a small drop seal. Use rugs and upholstered pieces nearby to absorb sound.

Small Bathroom and Closet Applications

In a bathroom, a mirrored barn door can modernize the threshold while amplifying light; ensure proper ventilation and avoid direct shower splash zones. For closets, the mirror becomes dressing central. Keep a 24–30 inch clear zone in front of the door for circulation, and consider a low-profile pull to avoid catching clothing.

Maintenance and Longevity

Clean with non-ammonia glass cleaner and a microfiber cloth. Check track screws every six months, and inspect anti-jump clips. Lubricate rollers sparingly with a dry lubricant if squeaks emerge. If the space is humid, re-seal wood annually.

Common Mistakes to Avoid

- Undersizing the door: always overlap the opening edges for privacy.

- Skipping safety backing on the mirror.

- Mounting the track into drywall only—always hit studs or a ledger.

- Ignoring floor guide alignment—this causes sway and edge wear.

- Over-bright, cool lighting that creates harsh mirror contrast.

Budget and Timeline

Expect a DIY budget of $250–$700 depending on mirror size, hardware quality, and finishes. A typical build-and-install can be completed over a weekend: day one for fabrication and finishing; day two for hardware mounting, hanging, and tuning.

FAQ

Q1: Is tempered glass mandatory for the mirror?

A1: Yes. Tempered mirror with safety backing dramatically reduces injury risk if the door is impacted, especially in bedrooms and bathrooms.

Q2: How wide should the door be relative to the opening?

A2: Add 2–4 inches to the opening width for edge overlap, which improves privacy and light control.

Q3: What mounting height should I use for the track?

A3: Follow your hardware kit’s spec. Typically the track sits 6.5–7.5 inches above the door height so rollers clear the header and trim.

Q4: Will a sliding barn door provide sound privacy?

A4: Sliding doors offer less acoustic seal than hinged doors. Add gaskets or brush seals at the edges and consider soft-close to minimize slam noise.

Q5: What color temperature is best around mirrors?

A5: 3000–3500K warm-white is flattering for skin tones and reduces glare, aligning with comfortable residential lighting practice influenced by IES visibility targets.

Q6: Can I install over tile or uneven floors?

A6: Yes, but use an adjustable floor guide and ensure the track is perfectly level. Shim the guide base to maintain vertical clearance.

Q7: How do I prevent the door from wobbling?

A7: Use a U-channel or T-style floor guide and anti-jump clips. Ensure the door bottom is straight and the rollers are aligned.

Q8: What’s the safest handle placement?

A8: Mount between 36–42 inches above the floor, centered on the vertical stiles. Choose low-profile pulls to avoid wall strikes at full open.

Q9: Will the mirror make my small room feel larger?

A9: Yes. The reflective surface extends sightlines and balances luminance. Steelcase research on visual comfort supports brighter perceived environments, which enhances openness.

Q10: Can I add soft-close later?

A10: Many hardware kits allow retrofitting soft-close on the track. Confirm compatibility with your roller brackets and space for the damper.
