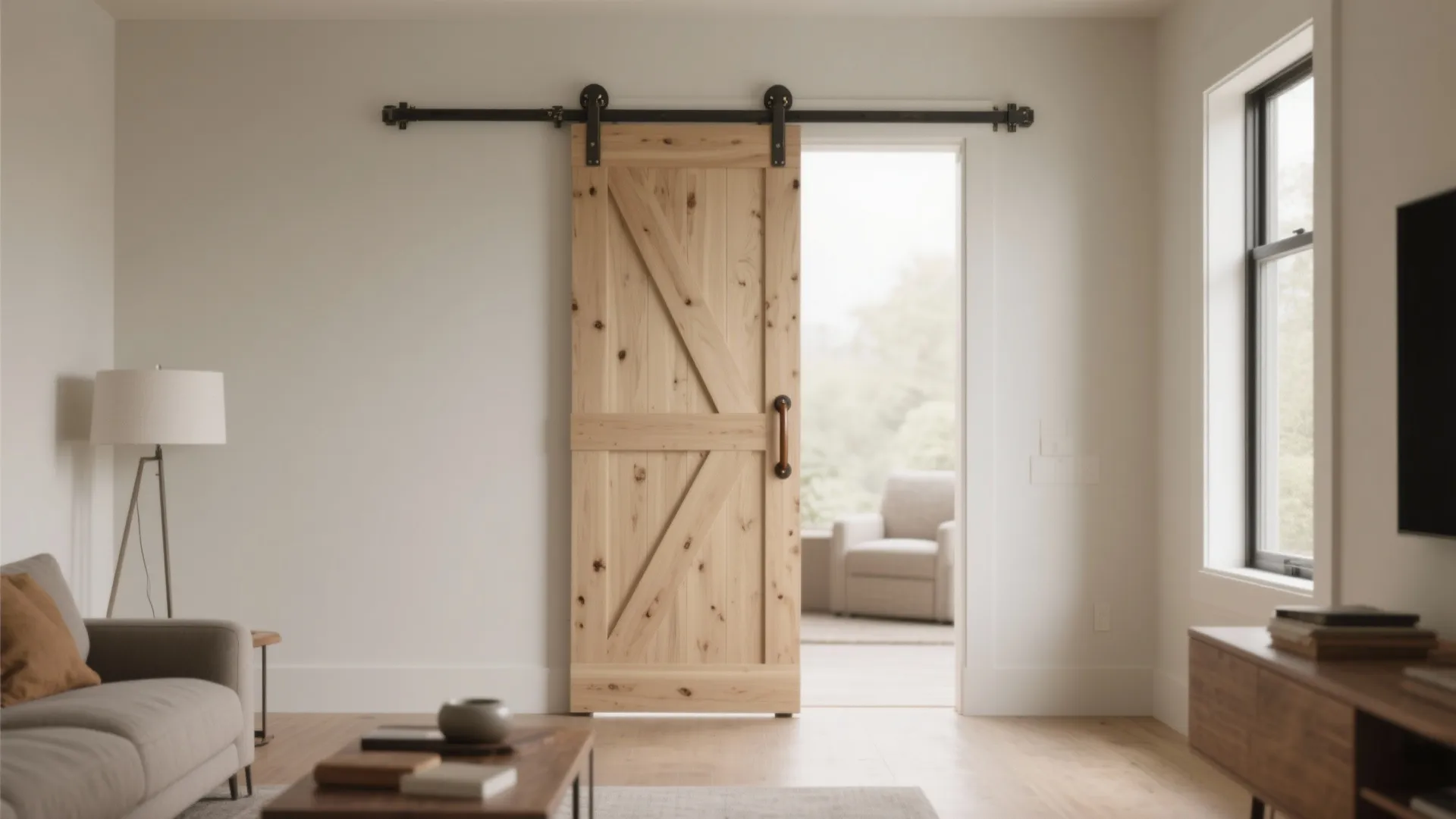

Blueprint DIY Barn Door Plans: Design & Build Your Own: 1 Minute to Master Blueprint DIY Barn Door Plans for Fast Installation

I’ve built and specified more barn doors than I can count, from rustic reclaimed designs to crisp modern panels. A successful DIY barn door hinges on three things: proportion, flatness, and a track system that’s tuned to your wall. Get those right, and the rest falls into place.

Before you pick up a saw, ground the plan with real numbers. For passage widths, I follow common residential standards: an interior door typically ranges 30–36 inches wide, with 36 inches preferred for accessibility. The National Kitchen & Bath Association notes 32 inches clear width as a minimum for bathroom access in many contexts, making a 36-inch barn door a safe baseline for comfortable clearance. On ergonomics, Herman Miller’s research links efficient physical movement with reduced fatigue, reinforcing the value of smooth glide hardware and handles placed 34–36 inches above the finished floor for easy reach. You’ll also find WELL v2 guidance prioritizes safe egress and unobstructed pathways—relevant when planning overlaps and clearances.

Hardware matters more than the timber you choose. Steel trolley hangers with sealed bearings reduce noise and drag, and soft-close dampers prevent slamming. In practice, I plan door width at least 2 inches wider than the opening for better light and sound control, and height 1 inch above the finished floor if there’s no threshold. For workplace and home research on circulation and human factors that support these choices, explore Gensler’s research library for data-backed insights into movement and comfort.

Core Dimensions and Proportions

Measure the rough opening (RO) and adjacent wall space. Your door must cover the opening fully and have room to slide open. I aim for door width = opening width + 2–3 inches; height = opening height + 1–2 inches. If your trim is proud, add its projection to prevent light leaks. Keep stiles between 4–6 inches; rails 4–6 inches; center panels proportioned so vertical lines align with handles and visual rhythm looks intentional.

For best ergonomics, mount the handle at 34–36 inches above the floor, with at least 2 inches grip clearance. Swing-free zones: leave 6–8 inches beyond the opening on the slide side for full clearance of hardware and fingers. Steelcase’s workplace studies often reference clear zones to reduce pinch points and collision—translate that thinking to your door path.

Layout Planning and Wall Prep

Confirm the wall can carry the load. A typical solid-wood barn door (36×84 inches, 1.5–1.75 inches thick) weighs 60–90 pounds depending on species. Add 20–30 pounds for glass or metal accents. Locate studs or add a continuous header ledger (2×6 or 2×8) lagged into studs at 16 inches on center. I pre-drill and lag with 5/16–3/8 inch structural screws, washered, into at least two studs.

If you want to visualize and test layout scenarios—clearance, furniture proximity, light spill—use a room layout tool to simulate door travel and overlaps: room layout tool.

Choosing Materials and Finishes

Wood species drive both look and performance. Poplar or pine is budget-friendly and paints cleanly; white oak brings durability and a timeless grain; ash offers a lighter contemporary character. For a classic Z-brace barn door, I use 1×6 tongue-and-groove boards over a stile-and-rail frame; for modern flush, I choose an MDF or plywood core with edge banded hardwood stiles.

Finish for durability and indoor air quality. Waterborne polyurethane with low VOCs keeps odor in check; oil finishes enrich grain but need more cure time. If the door partitions a bedroom or office, acoustic comfort matters: a solid core reduces transmission better than a hollow build, and perimeter brush seals help cut high-frequency leaks.

Hardware: Track, Hangers, and Guides

Pick a track length at least 2× the opening width. Heavier doors benefit from steel tracks with a 200–300 lb rating. Top-mount hangers keep the face clean; face-mount hangers add a rustic accent. I specify sealed-bearing trolleys, anti-jump tabs, and soft-close on both ends. Floor guides are essential: a T-slot or fin guide prevents sway; wall-mounted roller guides suit uneven floors.

Mount the track to a continuous header or directly into studs using a spacer that sets the door 1/2–3/4 inch off the wall to clear trim and handle projection. Verify plumb with a 78-inch level and check runout with a feeler gauge if you’re particular—small deviations amplify rattle.

Step-by-Step Build Blueprint

1. Frame and Panel

Rip stiles and rails to 4–6 inches wide from straight-grain stock. Join with pocket screws and glue, or traditional mortise-and-tenon for higher stability. Add a 1/2–3/4 inch plywood or MDF core panel. If using tongue-and-groove boards, glue lightly to allow seasonal movement; pin with brads into the frame.

2. Bracing

For the recognizable barn look, cut a center rail and diagonal brace (Z or X). Align the diagonal from the bottom hinge side to the opposite top for visual stability. Use pocket holes from the back, reinforce with glue blocks on hidden faces.

3. Edge and Flatness Control

Plane or sand edges dead straight; check with winding sticks to avoid twist. A slight 1/32 inch reveal on stiles and rails hides seasonal movement. Seal all faces and edges equally to minimize cupping.

4. Hardware Prep

Drill hanger holes per manufacturer template. Pre-install anti-jump tabs. Set the handle center at 36 inches AFF unless a specific user needs adjustment. If privacy is required, add a wall-mounted latch and a floor stop on the close side.

5. Mounting

Install the header ledger, shim to dead level, then mount the track. Hang the door, set the floor guide, and tune soft-close dampers so the door stops 1–2 inches before the jamb to avoid finger pinch.

6. Finish and Detailing

Sand to 180–220 grit. Apply stain or paint; topcoat with two to three coats of waterborne polyurethane. Consider a leather pull for warmth, or powder-coated steel for modern minimalism.

Light, Color, and Behavior

Sliding doors shape light and privacy. Aim for a color temperature near 2700–3000K in living spaces to keep warmth; if your barn door separates a workspace, 3500–4000K can feel crisper. Verywell Mind’s work on color psychology highlights blue-green hues for calm, while warm neutrals support comfort. A darker door can frame an opening, but if glare is an issue, matte finishes reduce specular highlights.

Acoustics and Seals

Barn doors are not perfect acoustic barriers, but you can improve performance. Choose a solid core, add brush seals at the jamb side, and a low-profile floor sweep for the close edge. If sound transmission is critical, consider a secondary gasketed stop or a pocket-slider alternative.

Sustainability Choices

Opt for FSC-certified lumber where possible. Waterborne finishes cut VOCs. Reuse reclaimed boards for character; just mill them flat and de-nail thoroughly. A simple repairable track with replaceable rollers extends lifecycle.

Common Mistakes I Avoid

Undersizing the door width so light leaks around trim; forgetting a continuous header; skipping soft-close so the door slams; placing handles too low or too high; ignoring floor out-of-level and ending up with a drift that fights the guide.

Cost and Timeline

Material costs vary with species and hardware quality. For a 36×84 solid wood door, expect $250–$600 in materials and $150–$300 for quality hardware. Build time is 1–2 weekends if you have basic tools: circular saw or table saw, drill/driver, clamps, sander, level, stud finder.

Simple Cut List (36×84 Door Example)

- Stiles: 2 pcs @ 84×5×1.5 inches

- Rails: 3 pcs @ 36×5×1.5 inches (top, mid, bottom)

- Panel: 1 pc @ 73×26×3/4 inches (adjust to fit)

- Diagonal brace: 1 pc ripped to 5 inches, cut to fit

- Ledger: 1 pc 2×8 @ track length

- Track: 84–96 inches depending on opening

- Floor guide and soft-close kit

Installation Checklist

- Verify studs and ledger fastening

- Level track and confirm plumb

- Set hanger spacing per template

- Install anti-jump, floor guide, and soft-close

- Test clearances, adjust stoppers

- Final finish touch-ups

FAQ

Q1: How wide should my barn door be?

A: Make the door 2–3 inches wider than the opening to reduce light and sound leaks. For common interior openings of 30–36 inches, a 34–38 inch door usually performs well.

Q2: What clearance do I need on the wall?

A: You need at least the full door width plus a few inches for stoppers and soft-close. Ensure the path is free of switches or art that could interfere with travel.

Q3: Can a barn door be used for bathrooms?

A: Yes, but plan for privacy: add a jamb-side seal, a hook-and-eye or sliding lock, and ensure the door overlaps the opening by at least 2 inches. NKBA’s accessibility guidance suggests a 32-inch clear width minimum; a 36-inch door is a good target.

Q4: What hardware rating should I choose?

A: For solid wood doors (60–90 lbs), pick track systems rated 150–300 lbs with sealed bearings, anti-jump tabs, and soft-close dampers.

Q5: How high do I place the handle?

A: Mount the handle center at 34–36 inches above the finished floor for comfortable reach across most users, aligning with common ergonomic recommendations.

Q6: Will a barn door block sound?

A: It improves privacy but isn’t airtight. Use a solid core, brush seals, and a floor sweep to reduce leakage. For high acoustic needs, consider pocket sliders with gaskets.

Q7: What finish holds up best?

A: Waterborne polyurethane offers durable protection with lower VOCs and quick recoat times. Oil finishes are beautiful but require longer cure and maintenance.

Q8: Do I need a ledger board?

A: If studs don’t align with track mounting points or you want a continuous structural base, install a ledger (2×6 or 2×8) lagged into multiple studs.

Q9: How do I keep the door from wobbling?

A: Use a floor guide—either T-slot, fin guide in a bottom groove, or a wall-mounted roller. Ensure the bottom edge is straight and the guide aligned.

Q10: What about thresholds and flooring changes?

A: If floors differ in height or material, set the door gap about 1 inch to clear transitions and choose an adjustable guide that compensates for unevenness.

Q11: Can I build with plywood?

A: Absolutely. A plywood or MDF core with hardwood edge banding creates a modern flush door that’s stable and cost-effective. Add a decorative veneer or paint.

Q12: How do I prevent warping?

A: Use kiln-dried lumber, balance the construction (equal materials both faces), seal all sides evenly, and store the door flat during finishing.
