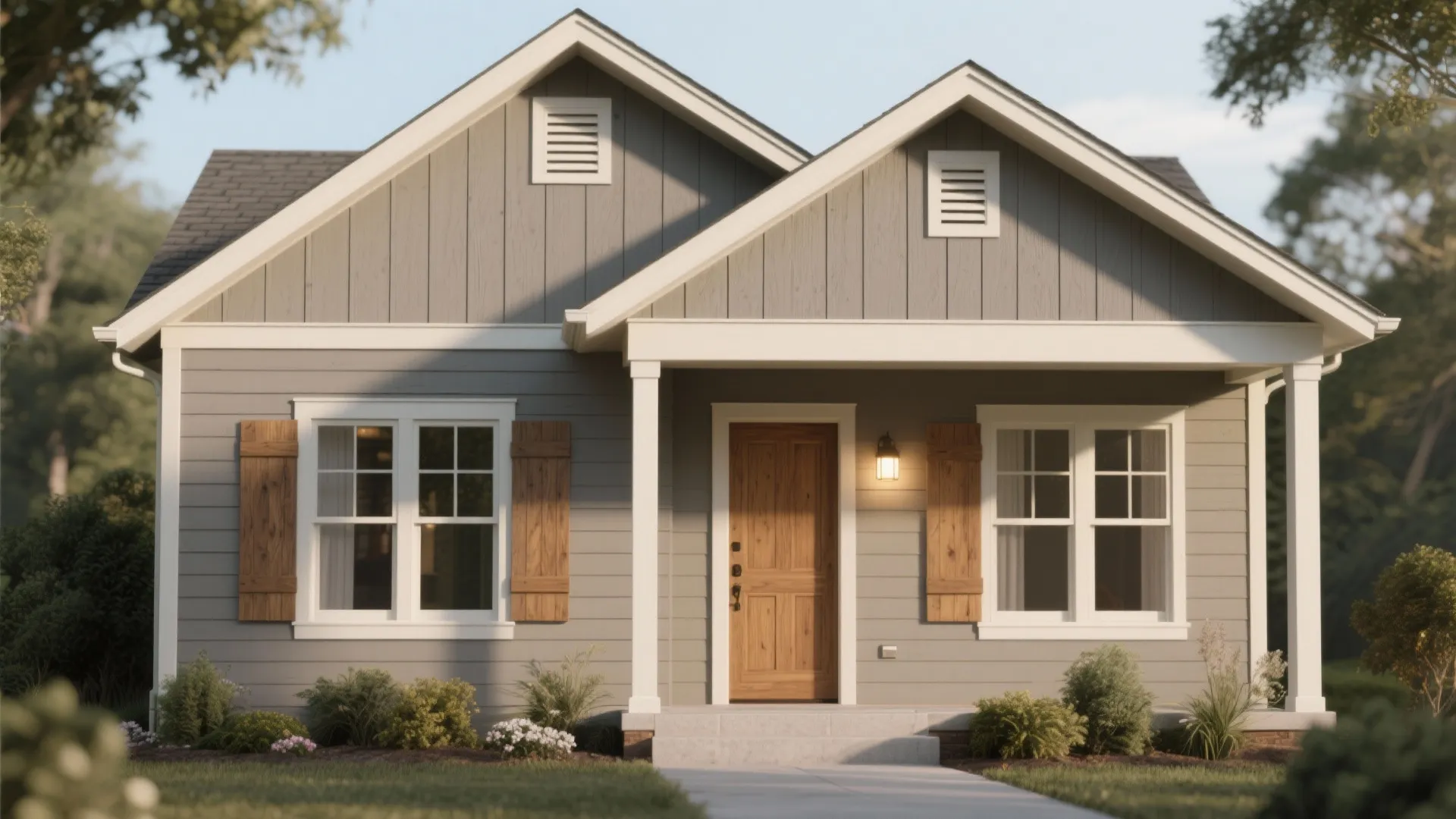

Board and Batten Siding for Small House: Design Tips & Inspiration: Fast-Track Guide to Elevating Your Small Home’s Style in Minutes

Board and batten siding can transform a small house with clean vertical rhythm, shadow play, and timeless curb appeal. I lean on proportion, material honesty, and light to keep compact facades elegant rather than busy. For performance, the WELL v2 materials concept highlights low-VOC finishes for healthier homes, and Steelcase research notes occupants spend roughly 90% of time indoors, making product emissions and durability decisions more consequential than aesthetics alone. On light reflectance, I use the IES recommendation to control glare and brightness contrast by balancing siding color LRV with window trim and soffit paint, keeping transitions comfortable to the eye.

Sizing battens and boards is not guesswork. A commonly effective module on small façades is 8–12 inch boards with 1.5–3 inch battens—tight enough to create vertical emphasis without visual noise. Steelcase workplace studies emphasize visual order as a contributor to cognitive ease; the same principle translates outdoors—consistent spacing and clean alignments reduce visual fatigue and enhance perceived quality. WELL v2 also guides moisture management and ventilation thinking indoors; outside, that means detailing rainscreens and breathable assemblies to mitigate mold risk and improve long-term indoor air quality.

Design Strategy: Scale, Rhythm, and Proportion

I start by mapping wall width, window placements, and door centers, then test modules that maintain symmetrical sightlines. On a 16–20 ft front elevation, a 10 in board with a 2 in batten at 12 in centers often reads calmer than narrower spacing. Moderate LRV colors (45–65) keep the façade luminous without glare, supporting comfortable luminance ratios around openings per IES guidance. Where windows cluster, I reduce batten count or run a flush panel field to avoid visual clutter and maintain a legible rhythm.

Material Choices: Wood, Fiber Cement, Engineered Composites

For small homes, material thickness affects shadow depth and edge crispness. Real cedar offers rich texture and reparability; fiber cement provides consistent reveals and low maintenance; engineered composites deliver stability with varied finishes. I prefer factory-primed, low-VOC topcoats, aligning with WELL v2 strategies around materials selection. Detailing is everything: a ventilated rainscreen (3/8–3/4 in cavity), corrosion-resistant fasteners, and sloped flashings at horizontal transitions keep boards dry and straight.

Color Psychology and Curb Appeal

Color sets perception. Light, warm neutrals can make a small home feel more welcoming, while deeper tones ground the mass and highlight verticality. For a compact lot, a mid-tone body with lighter trim balances contrast, minimizing harsh brightness shifts that can create glare outdoors. Where landscape is lush, cooler greens or grays keep harmony; in arid settings, sun-baked taupes or desaturated terracottas sit more naturally.

Detailing the Battens: Depth, Shadow, and Alignment

Battens should project just enough to cast a readable shadow without snagging runoff. A 3/8–1/2 in proud batten typically looks crisp and sheds water cleanly. I align battens to window mullions and door stiles whenever possible—this subtle alignment adds perceived craftsmanship. At corners, use built-up corner boards or mitered returns to keep the vertical language continuous.

Rainscreen and Moisture Management

Compact homes often have tight eave lines and short wall heights; water can concentrate at transitions. A ventilated cavity behind boards allows drainage and drying, reducing paint failure and keeping humidity from migrating inside. Pair this with self-adhered flashing at openings, kick-out flashing at roof-wall intersections, and capillary breaks at the base. I avoid direct ground contact—maintain 6–8 in clearance above grade, and 2 in above hardscapes.

Layout Planning on Small Elevations

When façade space is limited, module planning is critical. I sketch grids and test board centers to avoid fractional end conditions and awkward window overlaps. If you’re exploring variations before committing, a room layout tool can help visualize spacing against doors and windows:

room layout tool

Even though it’s geared to interiors, it’s useful for quickly simulating proportional relationships and view angles from the street.

Trim, Soffits, and Transitions

Trim frames the vertical rhythm. I keep trim thickness consistent with batten projection so shadows don’t fight each other. Where board-and-batten meets masonry or horizontal lap, introduce a reveal or shadow joint to signal an intentional transition. On soffits, a smooth or fine-groove finish in a lighter tone lifts the roof visually and manages luminance near entries.

Entry Focus: Human Factors and Touchpoints

Small houses benefit from a strong but simple entry statement. I use a slightly wider batten spacing around the door to create a calm field, then add tactile materials—wood door, good hardware, and warm lighting (2700–3000K). Keeping brightness ratios gentle around the entry reduces glare and improves comfort when moving from daylight to porch lighting, consistent with IES considerations on brightness adaptation.

Installation Essentials: Fasteners, Movement, and Maintenance

Plan for expansion and contraction. Pre-drill, use stainless or coated fasteners, and float battens where needed to prevent telegraphing. Back-prime boards, seal cut ends, and ventilate behind. Maintenance cycles depend on finish type; semi-transparent stains will need more frequent refresh than high-quality acrylic paints. Regular inspections at year one and year three catch early issues with joints and sealants.

Contemporary vs. Classic Board and Batten

Classic reads as narrower boards, pronounced battens, and warm palettes. Contemporary leans to wider boards, minimal battens, sharp reveals, and desaturated tones. On small homes, both can work—just keep the module legible and avoid over-layering. A simple gable with centered windows benefits from classic rhythm; asymmetrical modern volumes thrive with broader spacing and flush transitions.

Inspiration: Compact Elevations That Work

- Micro cottage with 10 in boards, 2 in battens, light gray body, warm white trim; deep front porch softens the verticals.

- Small ADU with fiber cement panels and thin applied battens, charcoal body, cedar door; minimal detailing keeps focus on form.

- Narrow-lot bungalow with mixed materials: lower third masonry, upper board and batten; reveal trim at the break and aligned battens to window mullions for quiet order.

FAQ

Q1: What board and batten dimensions work best on small houses?

A1: A balanced starting point is 8–12 inch boards with 1.5–3 inch battens. On a 16–20 ft façade, 10 in boards and 2 in battens keep rhythm clean without visual noise.

Q2: Which materials are most durable for compact exteriors?

A2: Fiber cement offers stable reveals and low maintenance; cedar provides rich texture but needs regular sealing; engineered composites deliver dimensional stability and consistent finishes.

Q3: How should I manage moisture behind board and batten?

A3: Use a ventilated rainscreen cavity (3/8–3/4 in), proper flashing at openings, kick-out flashing at roof-wall intersections, and maintain clearance above grade and hardscapes.

Q4: What colors help a small façade feel larger?

A4: Mid-to-light tones with moderate LRV (roughly 45–65) reflect light evenly and reduce harsh contrasts. Pair lighter trim with a slightly darker body for legible edges without glare.

Q5: How do I align battens with windows and doors?

A5: Center modules on the primary façade, then adjust spacing so battens align with window mullions and door stiles. This small move raises perceived craftsmanship and visual calm.

Q6: Is vertical siding noisy next to multiple windows?

A6: Reduce batten count near clustered openings or use a smooth panel field to avoid clutter. Keep reveals consistent and let trim simplify the visual field.

Q7: What lighting temperature suits the entry?

A7: Warm white around 2700–3000K complements natural wood and maintains comfortable brightness transitions per IES considerations, reducing glare when moving from daylight to porch light.

Q8: How often should finishes be maintained?

A8: Semi-transparent stains typically need refreshing every 2–4 years depending on exposure; high-quality acrylic paints can extend to 7–10 years. Inspect joints and sealants at year one and year three.

Q9: Can board and batten suit modern architecture?

A9: Absolutely. Use wider boards, thinner battens or flush panels, and restrained color. Clean reveals and alignment keep the language contemporary.

Q10: What fasteners should I use?

A10: Stainless steel or high-quality coated fasteners resist corrosion. Pre-drill, back-prime, and seal cut ends to prevent moisture ingress and telegraphing.
