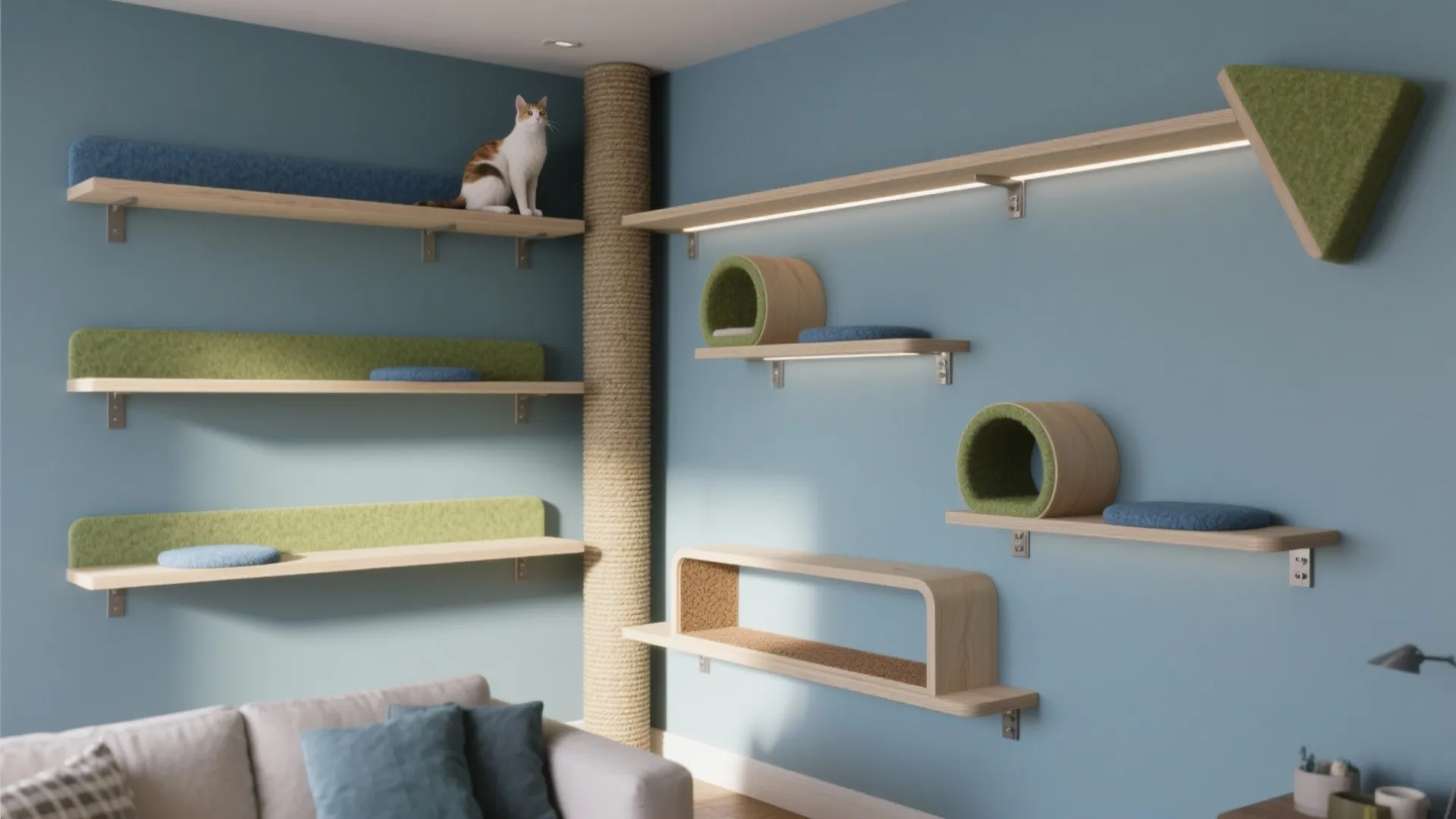

Cat Walls DIY: Creative Ideas for Feline-Friendly Spaces: 1 Minute to Build Thrilling Cat Walls—Save Space, Save Time!

I’ve designed and built more than a dozen cat walls for clients and my own home, and the best ones do three things well: they respect feline instincts, they protect your walls and cats, and they look like they belong in a grown-up interior. Cats are vertical explorers. Giving them layered routes, perches, and scratch-friendly materials reduces stress and keeps furniture safer. Done right, a cat wall becomes a behavioral solution and a design feature.

There’s solid evidence that structured vertical territory calms multi-cat homes. Steelcase’s workplace research notes that layered environments reduce territorial conflict in shared spaces; the same principle translates to pets—clear zones and multiple paths cut down on bottlenecks. WELL v2’s Light and Movement concepts also align: encouraging movement boosts well-being, and proper lighting reduces eye strain for both humans and animals. For lighting standards during installation, I use Illuminating Engineering Society (IES) guidance to keep ambient illuminance near 200–300 lux in living spaces, with task lighting on mounting points at 500 lux to see anchors and studs clearly (ies.org/standards).

Color and behavior matter. Verywell Mind’s color psychology research indicates blues and greens promote calm, while high-chroma reds heighten arousal—great for play zones, less ideal near sleeping perches (verywellmind.com/color-psychology). If you’re planning a multi-level run, map circulation like a miniature stair—treads (shelves), landings (perches), and safe passing spots so two cats can bypass each other without a stare-down.

Plan the Vertical Journey

I start with a quick adjacency plan: food and water stay low and quiet; play and exploration climb from waist height up; sleep perches settle high but not at the ceiling. Keep a gentle rise of 10–12 inches between shelves for kittens and seniors, 12–16 inches for agile adults. Route options—left and right branches—help mitigate dominance behavior. If you want to visualize options before drilling into studs, a layout simulation tool helps you test spacing and sequence using a room layout tool: room layout tool.

Safe Heights, Spacing, and Clearances

Think ergonomics and feline biomechanics. Typical cat stride and jump tolerance benefits from 8–10 inch shelf depths, 12–14 inch minimum lateral clearances, and a 16–18 inch “headroom” above each shelf so ears don’t clip soffits. Cap peak heights around 6.5–7.5 feet; any higher should include a ramp or descending route so cats aren’t forced to jump down hard. Avoid single-exit “dead ends”—they create pressure points where one cat can block another.

Materials That Work (and Age Well)

Use a layered material palette: structural hardwood or plywood core (3/4 inch), top surfaces in low-gloss, high-friction finishes. Felted wool or woven polyester with a 30–40 oz weight grips paws without trapping claws. Integrate sisal rope wraps on accent posts; natural sisal offers about the right fiber bite for scratching, and it’s replaceable. For sustainable choices, select FSC-certified plywood and water-based finishes. If acoustics matter, a thin cork underlay on shelves dampens landings so the wall doesn’t sound like a drum at 2 a.m.

Shelf Geometry and Rhythm

Visually, stagger shelves in a 2:1 rhythm—two shorter runs, one long run—so the eye reads a balanced cadence. Keep consistent alignments with a 6–8 inch reveal from wall edges or door casings to avoid visual clutter. Corner transitions can use triangular or quarter-round shelves to maintain flow. I often add one “express route” with larger spans for confident jumpers and a “local route” with tighter spacing for kittens or older cats.

Anchoring and Structural Integrity

Studs decide everything. Use 2.5–3 inch wood screws into studs; toggle anchors are last resort and only for light accessories. Each shelf should hold at least 25–30 lbs static (one cat plus dynamic load). If your wall is masonry, sleeve anchors rated 50+ lbs per point are ideal. Pre-drill, use washers on bracket connections, and test every shelf with a weighted load before inviting the cat up. I mark gentle anti-slip edges with a 1/4 inch lip—enough to prevent slides without catching paws.

Lighting for Comfort and Safety

Cats see well in low light, but humans don’t. Keep ambient lighting soft—2700–3000K warm-white for living rooms. Avoid glare bombs: no exposed bulbs directly above perches. Provide indirect light washing the wall to help depth perception. During installation and maintenance, target illuminance in the work zone at 500 lux so you can see anchors cleanly; I reference IES recommendations for task lighting to stay safe (ies.org/standards). If you add integrated LED strips under shelves, pick high CRI (90+) to render fur color naturally and maintain 1–2 inches setback so cats aren’t staring into light sources.

Color Psychology for Zones

Use calm hues for rest platforms—dusty blues, sage greens, or soft taupes. Save higher-energy accents—tomato red, marigold—for play nodes or sisal posts. This mirrors findings that cooler hues reduce arousal and warmer, vivid hues increase it, which helps tune behavior toward each zone (verywellmind.com/color-psychology). Keep finishes matte to cut specular highlights that can bother sensitive eyes.

Texture, Traction, and Paw Comfort

Balance grip and cleanability. Micro-loop textiles trap fur; short-pile, tight-weave fabrics vacuum easily. On ramps, add a 1–2 degree micro-camber or spaced traction bars. Avoid metal grates—claws can catch. If you want an all-wood look, score fine cross-hatching with a router for subtle traction.

Acoustic Considerations

Sound matters in small apartments. Use dense cores and decoupled brackets with neoprene gaskets to reduce vibration transfer. A few felt-backed panels behind high-traffic shelves tame slap-back echoes. This isn’t just for you—skittish cats settle better in quieter environments.

Routing, Entrances, and Retreats

Offer at least two access points—a lower “on-ramp” near a console and a mid-level hop near a window ledge. High perches should have visual control without direct alignment to loud zones (TV, speakers). Add one enclosed cubby with a 7–8 inch diameter entry; rotational entry prevents direct line-of-sight confrontations.

Maintenance and Hygiene

Design for cleaning. Removable textile pads with snap fasteners, wipeable edges, and finish-resistant to enzyme cleaners. Vacuum weekly and coil-replace sisal when it frays beyond 1/4 inch fuzz. If your cat sheds heavily, darker mid-tone shelves hide fur better than stark black or white.

Aesthetic Integration with Interiors

Make the cat wall feel intentional. Echo wood species from furniture, align shelf reveals with artwork, and repeat a single metal finish on brackets. If your style leans modern, use continuous veneer runs with concealed cleats. For eclectic homes, mix painted shelves in a tight palette—three colors max—to avoid visual noise.

Step-by-Step: A Reliable Starter Layout

1) Map studs with a stud finder and painter’s tape. 2) Sketch two routes: local and express. 3) Mount a base platform at 20–24 inches high, then step shelves up at 12–14 inch intervals. 4) Add a mid-level lounge at 42–48 inches with 12x18 inch depth. 5) Place a top perch at 72–78 inches with partial back panel to prevent roll-off. 6) Connect one ramp at 20–30 degrees if you have seniors. 7) Wrap a vertical post with sisal near the base to redirect scratching.

Safety Checks Before First Climb

Do a dynamic test—hold 35–40 lbs on each shelf for 10 seconds. Check wobble. Round all edges. Ensure no exposed screws. If a shelf sits above a doorway, pad the underside to avoid head bumps. Observe the first session: some cats prefer sniff-and-retreat; leave treats on low levels and let them own the timeline.

Budget Tips and Upgrades

Affordable: use pre-cut stair treads as shelves, add L-brackets with oak plugs, and felt pads. Upgrade: concealed French cleats, integrated LED, and custom veneered fronts. Always spend on anchors and bracket quality—pretty fails if physics disagrees.

When to Use a Planner

If you’re fitting around doors, windows, or a media wall, mock up options and test clearances with an interior layout planner before cutting lumber. It’s faster to move pixels than patch drywall. Try visualizing sequences and conflicts with a room design visualization tool: room design visualization tool.

FAQ

Q1: What shelf spacing is safest for most cats?

A: Aim for 12–14 inches vertical rise between shelves for adult cats, 10–12 inches for kittens or seniors. Provide at least two alternate routes so cats can bypass each other.

Q2: How deep should shelves be?

A: 8–10 inches works for transit shelves; 12–18 inches for lounges or nap spots. Add a subtle 1/4 inch front lip to reduce slips without snagging claws.

Q3: Which materials are best for traction without snagging?

A: Felted wool or tight-weave performance fabrics offer grip and are easy to clean. Natural sisal on posts satisfies scratching without shredding shelf surfaces.

Q4: How do I protect walls and reduce noise?

A: Use neoprene gaskets behind brackets, dense shelf cores, and a thin cork underlay to soften landings. Felt-backed wall panels behind high-traffic zones help tame echoes.

Q5: What lighting should I use around cat walls?

A: Warm-white 2700–3000K ambient light, with indirect sources avoiding glare at perches. For installations, target about 500 lux task lighting so you can see anchors and measurements clearly per IES guidance.

Q6: What colors calm versus energize cats?

A: Softer blues and greens promote calm for rest zones; vivid warm hues (reds, oranges) spur play. Keep finishes matte to minimize glare and overstimulation.

Q7: Are toggle bolts safe for heavy shelves?

A: Use studs whenever possible. Toggle bolts are acceptable only for light accessories, not main load-bearing shelves. For masonry, use sleeve anchors rated 50+ lbs per anchor.

Q8: How high should the top perch be?

A: 72–78 inches gives cats a commanding view while staying manageable for descent. Always include a safe return route—ramps or staggered shelves—so jumps aren’t extreme.

Q9: How can I integrate the cat wall with my decor?

A: Repeat existing wood species and metal finishes, align shelf edges with nearby art, and limit your color palette to two or three hues for visual cohesion.

Q10: What’s the best way to introduce a cat to the new wall?

A: Start low, place treats on initial shelves, and let the cat choose its pace. Avoid lifting the cat onto high perches on day one; autonomy builds confidence.

Q11: How often should I maintain or replace components?

A: Vacuum weekly, wipe surfaces monthly, and replace sisal wraps when fraying exceeds about 1/4 inch. Check fasteners every six months.

Q12: Can I build a cat wall in a rental?

A: Yes, with removable cleats anchored to studs and minimal holes. Modular freestanding frames can also bridge from floor to ceiling using compression posts.
