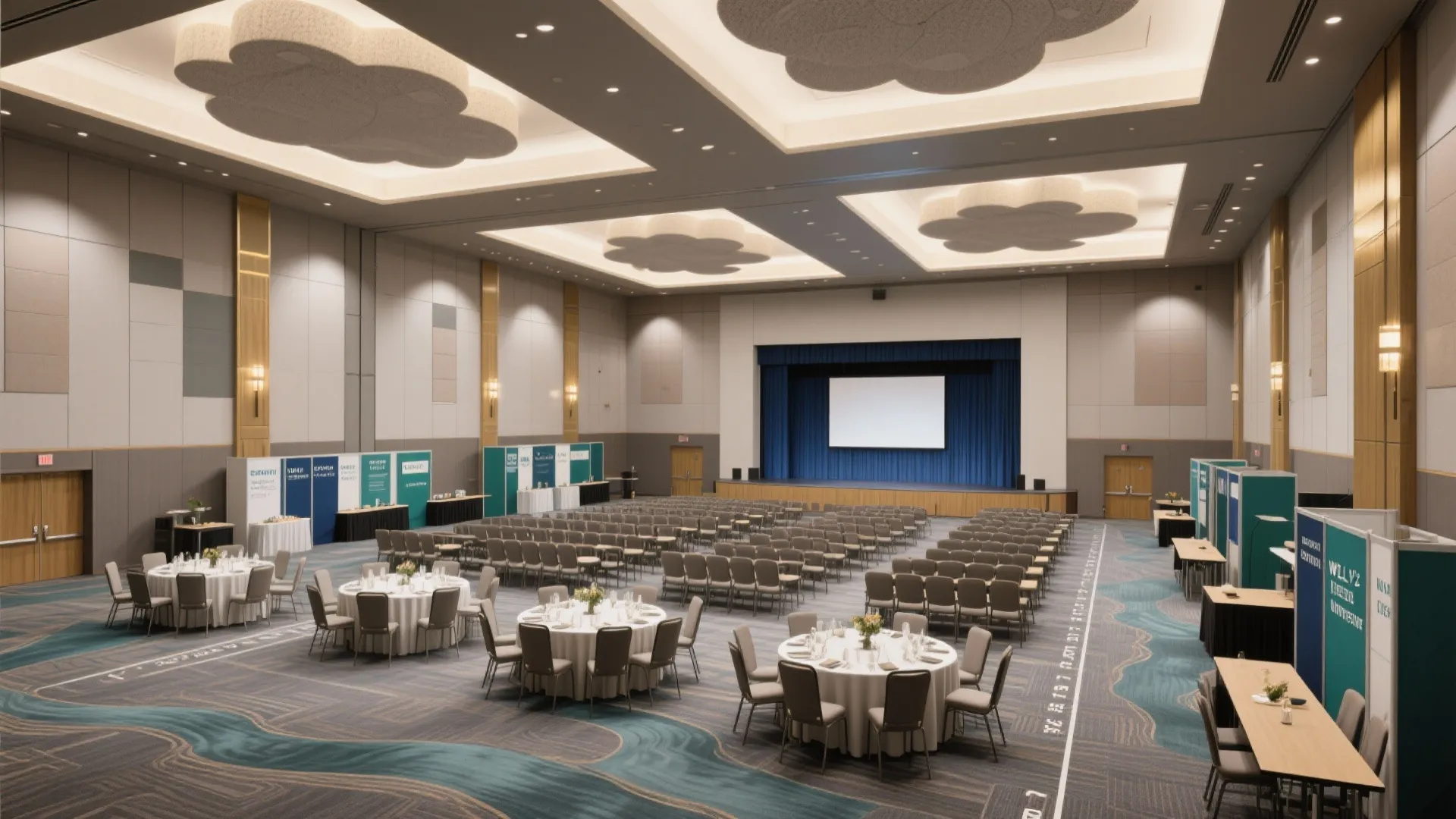

Cauvery Convention Hall Design Ideas & Space Planning Guide: Fast-Track Guide to Planning Your Event Venue Like a Pro

I’ve planned and delivered multi-functional convention halls for over a decade, and the best results come from aligning spatial ratios, acoustics, lighting, and circulation with the hall’s intended event mix. A Cauvery Convention Hall should feel effortless during a 600- to 1,200-guest wedding, a 400-seat conference, or a 100-booth expo. To set a baseline, I map capacities using clear metrics: Steelcase research indicates that workplaces with well-optimized spatial layouts can see a 10–20% improvement in perceived productivity and ease of wayfinding—an effect that carries into event environments where clarity of movement and seating density impact satisfaction. WELL v2 also emphasizes adequate illumination and acoustic comfort; for example, it calls for balanced background noise levels and controllable lighting to support cognitive performance and attendee wellbeing.

For seating, I work from conservative ratios: banquet seating at 10–12 sq ft per person, theatre seating at 6–8 sq ft per person, and classroom seating at 12–16 sq ft per person. These are practical planning ranges grounded in facility best practices and compatible with WELL v2’s emphasis on visual comfort and circulation. On the lighting side, I deliver ambient levels of 300–500 lux for general sessions, with 700–1,000 lux at task zones like registration and catering prep. IES standards support this range for multipurpose assembly spaces, ensuring presenters are visible without glare and guests can read programs comfortably. For behavioral flow, I design circulation paths sized at 1.5–2.0 meters minimum for two-way traffic, expanding to 3.0–3.6 meters near entrances, registration, and buffet lines where queuing and mingling peak.

Defining the Event Mix and Spatial Ratios

Before sketching a single line, I clarify the event portfolio: weddings, conferences, expos, cultural performances, and corporate banquets. Each format demands different seating densities and support spaces. I typically allocate 60–70% of the footprint to the main hall, 10–15% to pre-function and registration, 5–10% to backstage and green rooms, and the remainder to storage, F&B, and technical rooms. The result is a hall that can pivot from a 900-guest banquet to a 500-seat plenary with minimal turnaround time and clean sightlines. Where layouts need testing—like converting banquet clusters to theatre rows—I use a room layout tool to simulate seating counts, aisle widths, and emergency egress, ensuring ADA compliance and intuitive wayfinding.

room layout tool

Entrance, Pre-function, and Registration Strategy

Arrival sets the tone. I distribute the entrance sequence into three zones: threshold, orientation, and action. The threshold offers clear signage and a view into the pre-function area. Orientation includes a wide circulation spine with sightlines to registration, cloak, and restrooms. The action zone sets up queuing with 1.5-meter lanes and staff stations. Acoustically, I soften this space with absorptive ceiling clouds and wall panels to keep reverberation in check, preserving speech clarity for announcements. Lighting here is warmer (3000–3500K) to welcome guests, dimmable to manage peak and off-peak periods.

Main Hall Layouts: Banquet, Theatre, Classroom, Expo

For banquets, I favor 66-inch round tables spaced with 1.8–2.0 meters between centers and 1.2-meter aisles for service. The bridal or head table should maintain visual hierarchy but avoid cutting off circulation; I’ll place it to command sightlines to the stage and dance floor without forcing cross-traffic. Theatre layouts require straight or gently curved rows with 900–1,050 mm row spacing and lateral aisles that meet life safety codes. Classroom layouts increase spacing and add shared power along table edges to support laptops. Expos need 3.0–3.6-meter aisles for booth access, with lighting zones re-aimed to avoid hot spots and glare on product displays. A modular furniture package with ganging capability and dolly storage significantly reduces changeover times.

Stage, AV, and Sightline Control

Stage placement should consider ceiling height, column grid, and distance to the last row. I use a 1:8–1:10 eye-line ratio—if the stage deck is 1 meter high, the first row sits 8–10 meters away—to prevent neck craning. Projection screens align with the 1.5x rule: screen width equals roughly two-thirds of viewing distance for legibility. Lighting rigs mix wash lighting for presenters (300–500 lux on faces), accent lighting for decor, and flexible DMX control to modulate scenes. Acoustic design includes absorptive wall panels, bass traps in corners if live music is common, and carpet tiles with dense underlay to control footfall noise. Speech intelligibility improves with distributed loudspeakers rather than blasting from a single point.

Color Psychology and Hospitality Cues

Color sets behavior. Verywell Mind’s coverage of color psychology notes that warm hues can promote sociability and energy, while cooler tones calm and focus. I combine neutral bases (taupe, warm gray) with calibrated accents: deep terracotta or saffron near lounge clusters for conviviality, cooler greens in quiet zones for decompression. Upholstery and wall finishes should carry a 30/60/10 balance—30% dominant neutral, 60% supporting tones, 10% accent—to keep the hall adaptable across event types. Materiality leans tactile and durable: solution-dyed nylon carpets, performance vinyls, and hardwood or engineered wood at focal areas where ceremony photos are taken.

Lighting Layers: Ambient, Task, Accent, and Show

Layered lighting allows the hall to shift personality. Ambient lighting delivers uniformity without glare. Task lighting is tightened around registration, catering, stage steps, and control booths. Accent lighting adds drama to floral backdrops, mandaps, or product displays. The show layer—spotlights, gobos, pixel-mapped LEDs—adds spectacle but should be dimmable to protect guest comfort. Correlated color temperature ranges from 3000K for banquets to 3500–4000K for conferences, aligning with WELL v2 guidance on controllability and comfort. Always integrate blackout capability and reflective control to prevent washout on screens.

Acoustic Comfort: Reverberation, Noise, and Privacy

Excessive reverberation undermines speeches and music. I target an RT60 of 0.8–1.2 seconds for multipurpose halls, achieved with ceiling baffles, wall panels, and soft-surface flooring. If the hall hosts parallel breakout areas, add movable acoustic partitions with STC ratings that damp cross-talk. Mechanical noise must be tamed: line ductwork with acoustic lining, select low-Sones fans, and isolate equipment with vibration pads. A VIP lounge and green rooms benefit from sound doors and absorption to create privacy for performers and hosts.

Human Factors and Ergonomics

Guests and staff share the stage. Comfort lives in chair geometry (seat height around 450 mm, supportive back angles), table edge thickness (avoid sharp radii for forearms), and clear knee space (600 mm depth for classroom seating). Flow is about removing obstacles: flexible cable management, flush thresholds, slip-resistant transitions. Staff requirements include staging areas for trays, water stations near aisles, and service corridors that bypass guest zones to minimize disruption.

Materials, Sustainability, and Maintenance

Durability is non-negotiable. I specify stain-resistant textiles, high-abrasion upholstery, and durable flooring that can take rolling loads. Sustainable choices matter—low-VOC paints and adhesives, FSC-certified woods, and LED systems with high efficacy. The housekeeping plan is baked into design: generous storage, mop sinks near service doors, and resilient finishes at entrances where dirt loads are highest.

Wayfinding, Branding, and Ritual Moments

Clear signage and intuitive routing keep stress low. I prefer a layered hierarchy: primary directional signs at decision points, secondary labels near rooms, and temporary event signage anchored to pre-approved frames. Brand presence is integrated, not plastered: backlit logos at the welcome desk, subtle motifs on acoustic panels, and programmable lighting scenes reflecting the host’s palette. For weddings, ceremonial focal points (mandap, varmala stage) deserve balanced proportions, side access for photographers, and discreet cable runs.

Back-of-House Planning

Events succeed behind the curtain. Catering needs clear dock access, hot and cold holding zones, sanitation flow that separates clean and soiled paths, and adequate power. Storage gets categorized by furniture, linens, decor props, and AV, with aisle widths for dollies. A control room with sightlines to the stage and a quiet HVAC loop helps AV teams manage shows without disrupting guests.

Circulation and Safety

Egress must be obvious and sized correctly. I mark exits with direct lines of sight, avoid dead ends, and place glazing or transoms to pull natural light into transitional spaces. Tactile wayfinding—which can be as simple as floor pattern changes—guides movement during high-traffic transitions. Emergency lighting and signage should be visible under show conditions; test evacuation routes during rehearsals, not on event day.

Flexible Furniture and Storage Logic

Flexibility keeps revenue flowing. Stackable banquet chairs, folding training tables, mobile stages, and modular dance floors allow rapid reconfiguration. Invest in protective edge guards and labeled carts. Create a layout library mapped to typical events—wedding banquet, 500-seat theatre, expo grid—so staff can set the room quickly and consistently.

Designing for Local Identity

A Cauvery-inspired palette can connect guests to place without cliché. I use river tones—deep blues, mineral greens, and sand neutrals—then add metal accents (brushed brass or bronze) for warmth. Textural references, like woven panels or carved wood screens, add regional character while doubling as acoustic treatments.

Implementation Roadmap

Start with capacity and event mix. Validate layouts using an interior layout planner for alternate seating scenarios. Lock acoustic and lighting targets early, coordinate AV power and rigging points, and sequence procurement to prioritize long-lead items like lighting tracks and acoustic panels. Train staff on setup standards and safety protocols; the best design is only as good as the team deploying it.

FAQ

1) What is a safe planning capacity for a mid-size convention hall?

For a 10,000–15,000 sq ft hall, plan approximately 800–1,200 for banquet, 1,200–2,000 for theatre, and 600–900 for classroom, adjusting based on local codes, aisle widths, and stage size.

2) Which lighting levels suit mixed-use events?

Ambient 300–500 lux, task 700–1,000 lux at registration and catering prep, and flexible accent/show lighting. These ranges align with IES guidance for assembly spaces and WELL v2 comfort criteria.

3) How do I improve speech intelligibility?

Reduce reverberation (target RT60 around 0.8–1.2 s), distribute loudspeakers to avoid hotspots, and add absorptive finishes at walls and ceilings. Keep mechanical noise low and ensure a stable power supply for AV.

4) What aisle widths should I use for expos?

Plan 3.0–3.6 meters for main aisles, narrowing only where local code allows. Provide clear turning radii near corners and maintain ADA-compliant cross slopes.

5) Which seating ratios minimize crowding?

Banquet: 10–12 sq ft per person; theatre: 6–8 sq ft; classroom: 12–16 sq ft. Increase the ratio when adding large decor elements or wider circulation.

6) How can color influence guest behavior?

Warm tones encourage social energy in lounges and banquet zones, while cooler greens and blues calm breakout areas. Use accent colors sparingly to guide attention without visual fatigue.

7) What materials balance durability and elegance?

Solution-dyed nylon carpets, high-abrasion upholstery, performance vinyls, and engineered wood at focal areas. Opt for low-VOC finishes and LED lighting for sustainability.

8) How do I manage flexible layouts without chaos?

Create a layout library and train staff. Use an interior layout planner to test seating counts, aisle logic, and egress. Label carts and protect furniture to speed turnovers.

9) How should I plan back-of-house?

Separate clean and soiled paths, provide hot/cold holding, allocate power for AV and catering, and route service corridors to avoid guest zones. Dedicated storage categories reduce search time.

10) What color temperatures work best?

Use 3000K for banquets and hospitality moments, 3500–4000K for conferences and exhibitions, with dimming and control scenes to adapt during programs.

11) How can I integrate local identity without over-theming?

Reference regional palettes and textures—river tones, woven patterns, carved screens—applied as accents or acoustic features, keeping the base neutral for versatility.

12) What’s the simplest way to future-proof AV?

Provide ample conduit pathways, distributed power, rigging points, and a control room with clear sightlines. Favor modular systems that can scale with event complexity.
