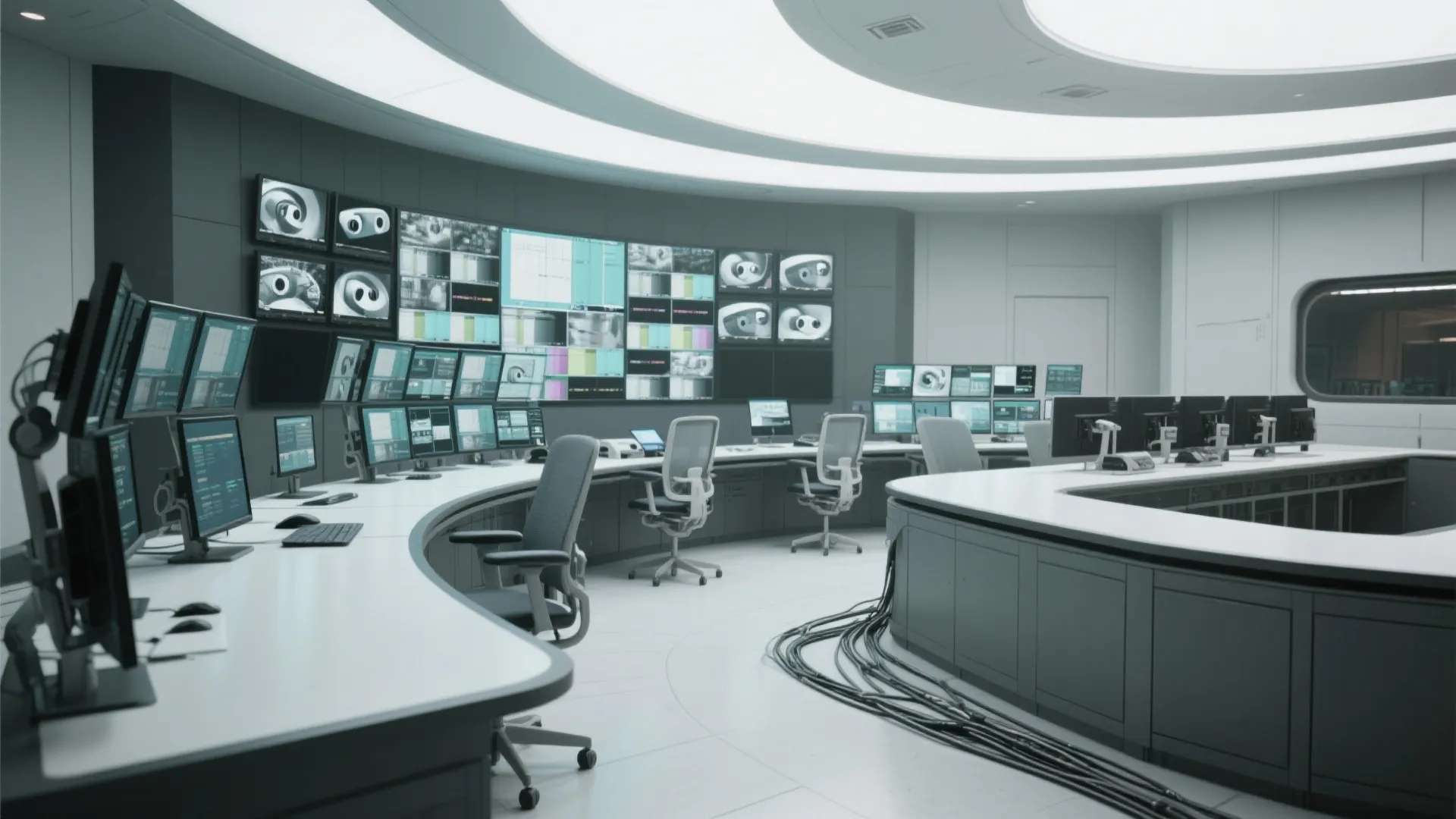

CCTV Control Room Design: Maximizing Efficiency and Comfort: Fast-Track Guide to Optimized CCTV Control Room Spaces

I’ve designed surveillance and security environments for over a decade, and the most effective CCTV control rooms share one thing: a finely tuned balance between ergonomics, visibility, and cognitive ease. Surveillance is a sustained attention task—operators make hundreds of micro-decisions per hour—so every choice in lighting, sightlines, acoustics, interface placement, and break strategy must reduce friction and fatigue while increasing signal-to-noise.

Real-world data backs this up. WELL v2 recommends 300–500 lux for typical work areas, with task lighting scaled to the visual demand; that range prevents eye strain while avoiding glare on screens (WELL v2, Light concept). Steelcase research highlights how posture variation and ergonomic fit significantly affect cognitive performance and comfort over time, especially in high-attention work (Steelcase Research). I design control rooms to meet these targets consistently across shifts.

Core Principles: Clear Sightlines, Intuitive Workflows

Layout dictates performance. Operators need uninterrupted sightlines to primary video walls, quick access to priority feeds, and easy collaboration without cross-talk. I use clustered stations with shallow arcs (110–135°) facing the main display, keeping the furthest screen within 30° horizontal viewing angle and 15° vertical tilt. Peripheral monitors sit slightly dimmer than critical feeds to guide visual hierarchy. For new builds or reconfigurations, an interior layout planner helps validate sightlines, walking paths, and adjacency decisions before construction using a room layout tool.

Ergonomics: Posture, Reach, and Eye-Level Precision

Multi-monitor setups demand strict ergonomic discipline. Top bezels should align near eye height, with the primary focal zone centered and the most-used UI within 20–28 inches viewing distance to reduce accommodation stress. Keyboard trays adjust for neutral wrist angles; mice or trackballs position within neutral shoulder range. I target sit-stand desks with 22–48 inch height adjustability and armrest heights that align to desk surfaces for shoulder relief. Cable routing stays off leg zones to keep sit-stand transitions frictionless.

Lighting: Lux Levels, Color Temperature, and Glare Control

Surveillance rooms benefit from layered, controllable light. Ambient lighting at 350–450 lux keeps the space legible; task lights add 100–200 lux where needed. I specify 4000–4500K for ambient (neutral-white) and 3500–4000K for task lighting to soften contrast. IES recommendations emphasize luminance balance and glare avoidance for screen-dense environments; fixtures should have cut-off optics or baffles to prevent reflections on monitors. Indirect ceiling washes, perimeter cove lighting, and localized dimmable task lights give operators control per station. No direct downlights over screens—ever.

Acoustic Comfort: Quiet Rooms, Clear Communication

Noise raises cognitive load quickly. I aim for 40–45 dBA in steady operation, using acoustic ceiling tiles (NRC 0.70+), wall absorbers in mid/high frequencies, and carpet tiles with underlay to damp footfall. Phone booths or huddle pods near the control room absorb escalated conversations; headsets with active noise reduction cut ambient hum and HVAC noise. Sound masking can help, but it must be tuned to avoid masking critical alerts.

Visual Hierarchy: Prioritizing the Right Feeds

Operators need instant clarity on what matters. I tier feeds into three levels: (1) critical, (2) conditional, (3) ambient. Critical feeds live center-high on the video wall and primary monitor; conditional sit within the immediate peripheral monitors; ambient data (weather, building status, occupancy heatmaps) stays low-contrast and off-axis. Consistent iconography and reserved color use prevents alarm fatigue.

Color Psychology: Calm Focus Over Time

Color choices affect vigilance. Research on color psychology notes that cool hues can support sustained attention and lower perceived stress compared to high-saturation warm tones (Verywell Mind, color psychology). I lean toward desaturated cool palettes—soft slate, graphite, muted teal—with warm accents in collaboration zones to differentiate focus vs. social areas. Avoid saturated reds for general UI backgrounds; reserve red for critical alerts.

Human Factors: Shift Work, Micro-Breaks, and Fatigue Management

Surveillance is marathon work. I plan micro-break protocols: 5 minutes every hour away from screens, hydration stations within 20–30 steps, and split task rotation to reset visual demand. Circadian-friendly lighting scenes change slightly over long shifts to reduce monotony: subtle warm-up in early hours, neutral plateau mid-shift, gentle warm-down late shift. Recovery rooms with softer light (<200 lux), acoustic separation, and reclined seating help operators reset without leaving the secure perimeter.

Technology Integration: Resilience and Ease of Use

Systems should fail gracefully. UPS-backed critical racks, redundant displays, clearly labeled patch panels, and cable management with service loops make maintenance clean and quick. I specify KVM extenders to keep heat and noise out of operator zones. UI simplification—grouped alerts, progressive disclosure—reduces cognitive noise. A central, dimmable status strip (low-luminance LED) communicates system health without visual glare.

Workflows and Collaboration Zones

High-stakes moments benefit from clear choreography. Adjacent collaboration counters with writable surfaces allow quick triage without flooding the operator floor with chatter. Paths remain at least 48 inches clear with zero blind corners; circulation avoids crossing primary sightlines. A layout simulation tool is useful to test how incident response flows when teams cluster, move, or escalate.

Display Wall Strategy: Scale, Pixel Density, and Redundancy

For video walls, clarity beats sheer scale. Determine viewing distance first, then match pixel pitch so text remains legible at a glance. Keep critical content mirrored on at least one secondary display in case of wall failure. Brightness should land in the 300–500 nit range with ambient light accounted for; higher brightness is fine if the room lighting is more elevated, but avoid extremes that cause eye fatigue.

Materials and Sustainability

Materials matter in long-running 24/7 rooms. Low-VOC paints, breathable fabrics, and antimicrobial surfaces improve air quality and reduce maintenance. Matte finishes on furniture and panels suppress specular glare. Modular flooring allows rapid replacement under stationary chair casters. Where possible, select recyclable acoustic panels and responsibly sourced wood laminates. Thermal comfort sits around 22–24°C with gentle, laminar airflow; avoid vents that blow directly onto operators.

Safety, Security, and Redundancy

Life-safety paths must remain visible in low light, with photoluminescent markings and non-slip surfaces. Access control should separate the operator floor from server rooms to reduce noise and thermal load. Redundant power and data routes should avoid single points of failure. Chairs get casters suitable for the flooring type to prevent roll drift.

Commissioning and Post-Occupancy Tuning

After installation, I run lux measurements, glare checks at multiple angles, and sound level readings at typical and peak loads. Operator feedback shapes UI color balance, alert volume, and micro-break policy. Small adjustments—slightly warming task light, lowering ambient luminance on secondary screens—can produce major reductions in fatigue.

FAQ

1) What lux levels work best for CCTV control rooms?

Ambient at 350–450 lux with task lighting adding 100–200 lux is a solid target. This aligns with WELL v2 guidance for visually demanding work while minimizing glare.

2) Which color temperature should I specify?

Use 4000–4500K for ambient neutrality and 3500–4000K for task lights. Cooler tones support alertness; avoid overly cool light that can feel harsh during long shifts.

3) How should multi-monitor stations be arranged?

Primary content centered at eye height, peripherals within a 30° horizontal cone. Maintain 20–28 inches viewing distance for clarity and reduced eye strain.

4) What acoustic targets reduce fatigue?

Aim for 40–45 dBA background noise with NRC 0.70+ on ceilings and selective wall absorption. Provide small phone booths or pods to offload louder conversations.

5) How do I prevent glare on screens?

Use indirect or shielded fixtures with cut-off optics; avoid direct downlights over monitors. Matte finishes on furniture and panels help reduce specular reflections.

6) Which chair and desk specs matter most?

Adjustable sit-stand desks (22–48 inch range) and chairs with lumbar support, adjustable armrests, and casters matched to flooring. Ensure neutral wrist and shoulder positions.

7) What’s a smart approach to video wall design?

Match pixel pitch to typical viewing distance, prioritize clarity over scale, and mirror critical feeds on secondary displays for redundancy. Keep brightness tuned to room lighting.

8) How can color psychology help operators?

Desaturated cool palettes support sustained attention. Reserve high-saturation warm colors—especially red—for critical alerts to avoid alarm fatigue.

9) Do micro-breaks really improve performance?

Yes. Short breaks every hour help reset visual focus and posture, lowering cognitive load. Combine with light scene changes and hydration access.

10) What standards should guide lighting decisions?

Use WELL v2 Light guidelines for illuminance and controllability and consult IES standards for glare control and luminance balance in screen-heavy spaces.

11) How do I plan circulation without obstructing views?

Maintain 48-inch clear paths, avoid crossing primary sightlines, and position collaboration zones off the operator arc. Validate the plan with an interior layout planner.

12) What thermal conditions are most comfortable?

Keep temperatures around 22–24°C with laminar airflow. Avoid vents that blow directly on operators to prevent localized discomfort.
