Centralized vs Distributed Exit Layouts in 2D Floor Plans: Understand which building exit strategy improves evacuation speed safety and space efficiency in modern floor plan design

Direct Answer

Centralized exit layouts group most evacuation routes toward a shared corridor or stair core, while distributed exit layouts spread exits across multiple points around the floor plan. Distributed exits usually reduce evacuation time and crowd congestion, but centralized exits can simplify circulation and structural planning in smaller or symmetrical buildings.

Quick Takeaways

1. Distributed exits typically shorten evacuation distance and reduce bottlenecks.
2. Centralized exits are easier to plan in compact or symmetrical buildings.
3. Building type and occupancy heavily influence the best exit layout.
4. Poorly placed exits often create hidden congestion during real evacuations.
5. Early floor plan modeling dramatically improves exit layout decisions.

Introduction

When people compare centralized vs distributed exits floor plan strategies, the discussion usually sounds simple: more exits equal safer buildings. After working on residential towers, offices, and retail layouts for more than a decade, I can tell you it’s rarely that straightforward.

The real challenge isn’t just the number of exits. It’s how people move through space under pressure. I’ve reviewed projects where the building technically met safety codes but still produced serious crowding during evacuation simulations. The problem was almost always the exit layout strategy.

Designers often discover these issues too late. By the time circulation cores and corridors are fixed, moving exits becomes structurally expensive. That’s why I recommend testing layouts early using tools that let you experiment with evacuation routes directly on a digital floor plan. Even simple layout variations can reveal major differences in travel distance and congestion.

In this guide, I’ll break down how centralized and distributed exit layouts actually perform in real building design. More importantly, I’ll show when each strategy works best and where designers often make mistakes.

save pin

What Is a Centralized Exit Layout

Key Insight: A centralized exit layout concentrates evacuation routes around a shared vertical circulation core, usually containing stairs, elevators, and main corridors.

This strategy is extremely common in mid‑rise offices, hotels, and apartment buildings. Instead of placing exits around the perimeter, designers funnel occupants toward one or two central stairwells.

Why architects use centralized exits

1. Simplifies structural and mechanical core placement
2. Reduces exterior wall interruptions
3. Works well with symmetrical building layouts
4. Often lowers construction complexity

However, centralized exits introduce one major risk: crowd concentration. During evacuation modeling on several commercial office projects, I’ve seen central corridors become bottlenecks long before stair capacity becomes the issue.

According to guidance from the International Building Code and NFPA egress standards, centralized systems must carefully control corridor width and travel distance to prevent congestion.

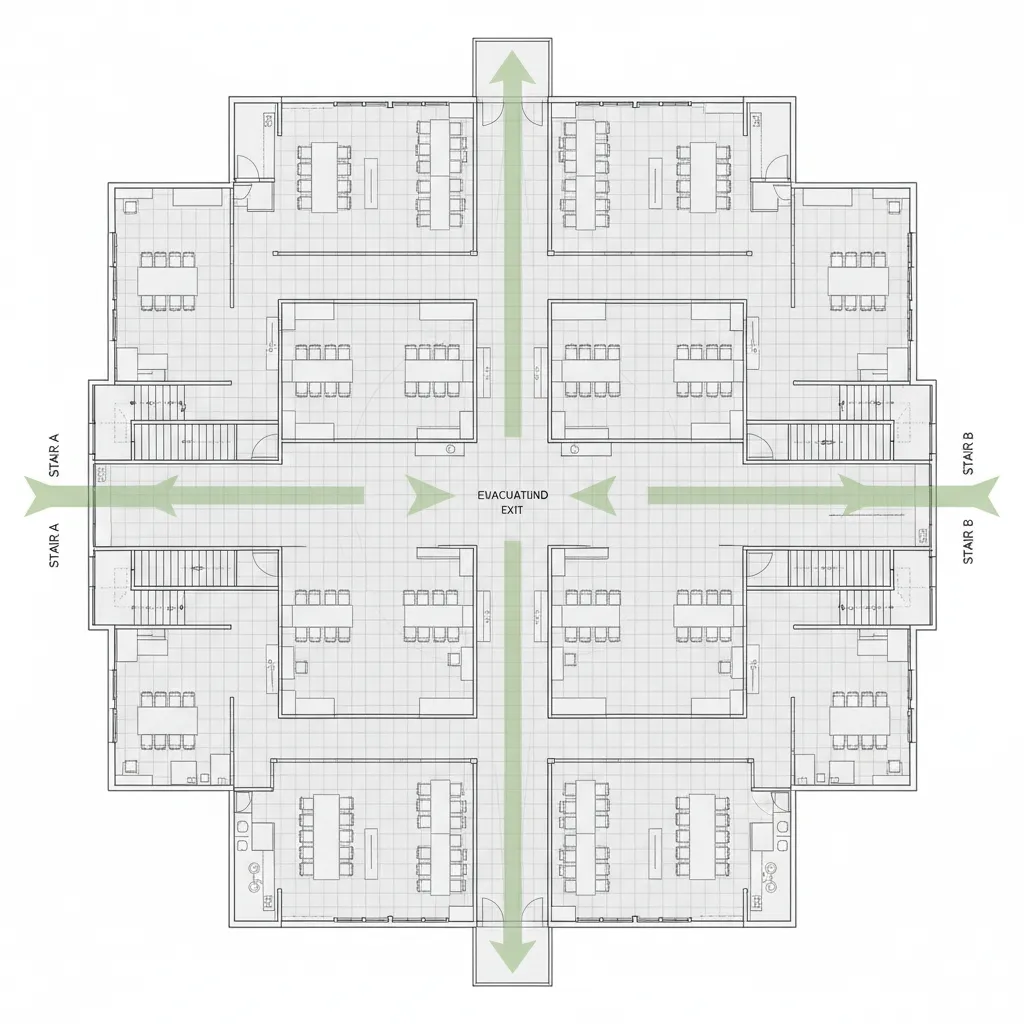

A simplified centralized layout typically looks like this:

1. One central corridor
2. Two stair cores at opposite ends
3. Rooms feeding into the main hallway

save pin

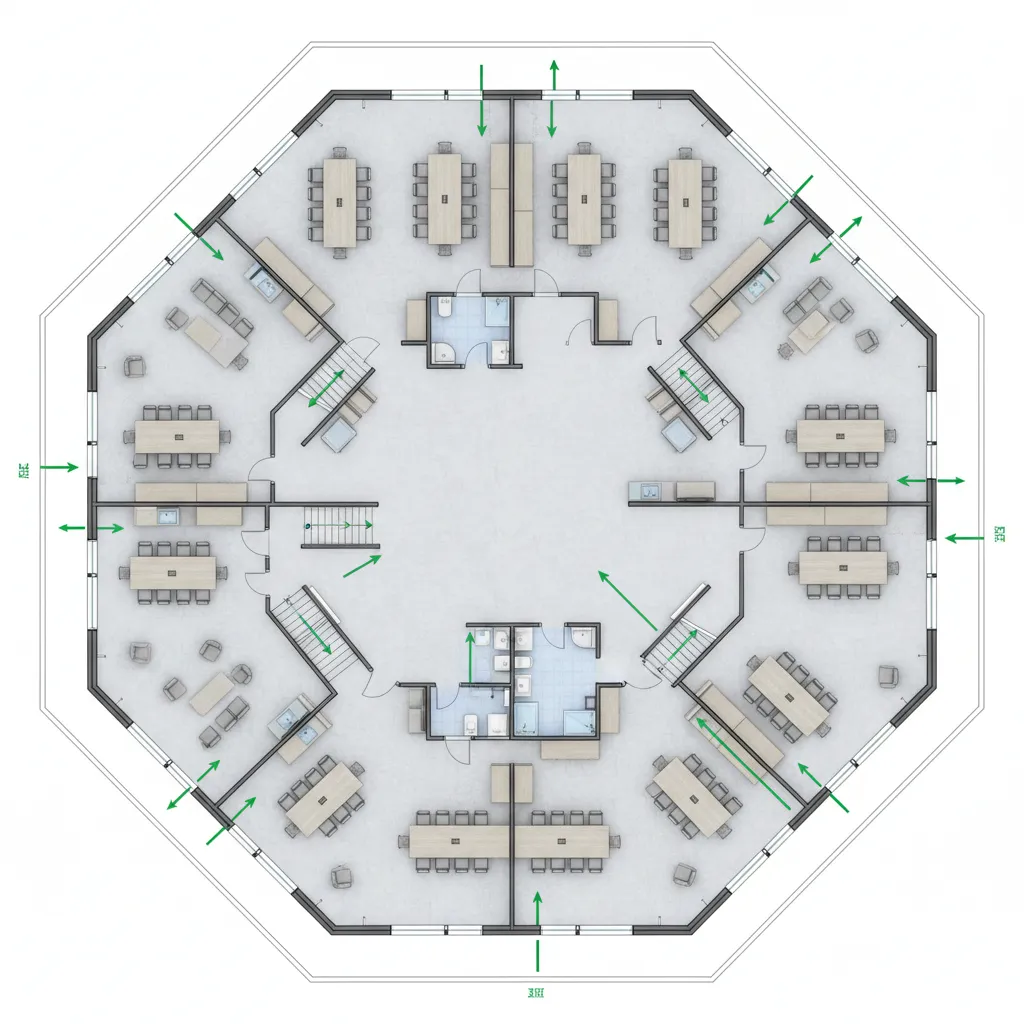

What Is a Distributed Exit Layout

Key Insight: A distributed exit layout places multiple exits around the building perimeter so occupants can evacuate through several independent routes.

This approach is increasingly popular in schools, hospitals, large offices, and retail complexes where crowd density is higher.

Instead of funneling everyone into one corridor, distributed exits shorten travel paths and divide occupant flow.

Typical characteristics of distributed exits

1. Multiple stairwells or exit doors located in different zones
2. Several evacuation paths instead of a single corridor
3. Shorter average travel distance
4. Lower risk of crowd bottlenecks

One interesting observation from recent commercial design trends: distributed exits often improve not just safety but also day‑to‑day circulation efficiency. In offices and campuses, people naturally spread through multiple corridors instead of overloading one hallway.

When evaluating distributed layouts, I often create multiple circulation tests using a visual 3D floor layout simulation for evacuation planning. Seeing movement paths visually tends to reveal issues that static drawings hide.

save pin

Safety and Evacuation Time Differences

Key Insight: Distributed exits generally reduce evacuation time because they divide occupant flow across multiple routes.

The difference becomes significant in larger buildings. Evacuation modeling studies consistently show that crowd density near exits is one of the biggest drivers of evacuation delay.

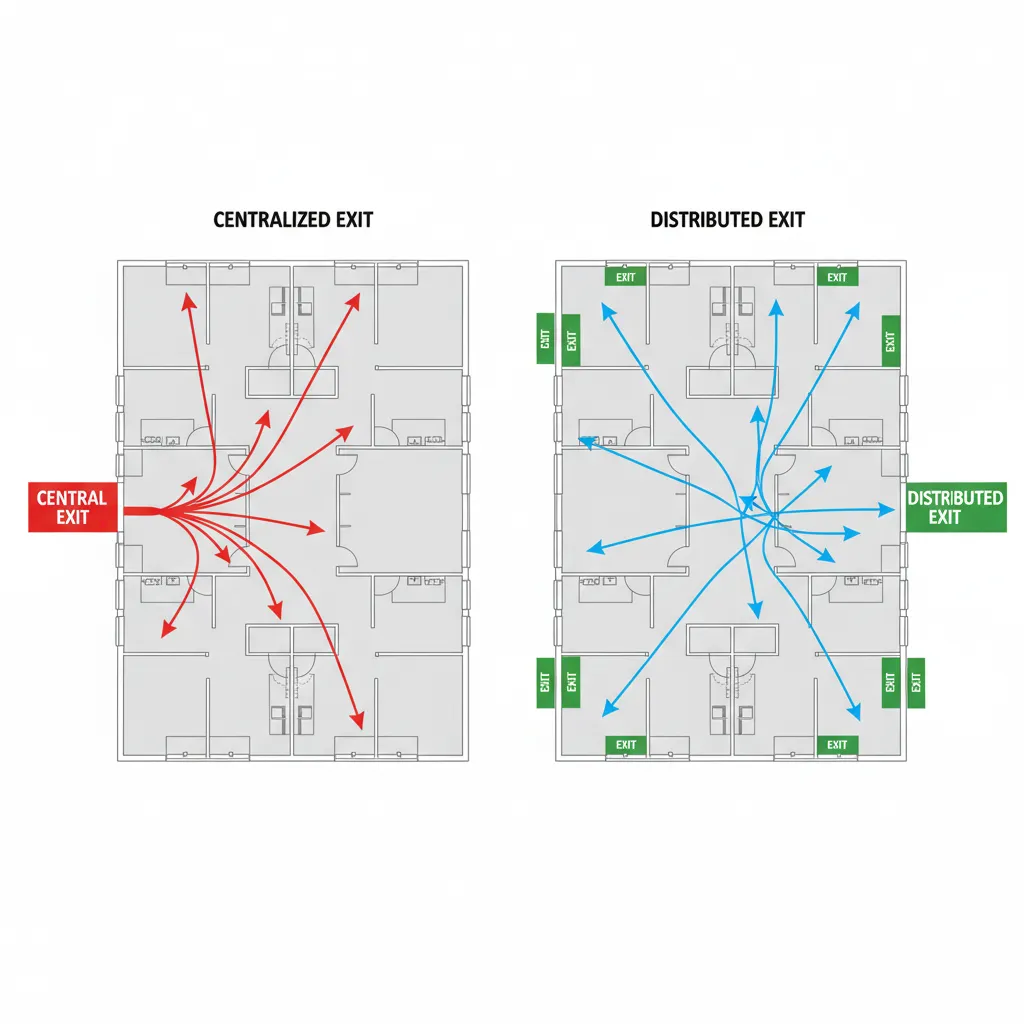

Centralized vs distributed evacuation dynamics

1. Centralized exits: crowd merges into fewer corridors
2. Distributed exits: occupant flow spreads across multiple directions

Hidden design mistake: many architects underestimate how quickly congestion builds when people converge from different rooms into a single corridor. A hallway that works perfectly during daily use may fail under emergency conditions.

Key factors affecting evacuation time include:

1. Maximum travel distance
2. Corridor width
3. Door capacity
4. Number of alternative routes

Research from the National Institute of Standards and Technology (NIST) highlights that distributing exits significantly improves evacuation resilience when one path becomes blocked.

Space Efficiency and Architectural Constraints

Key Insight: Centralized exits often use space more efficiently, while distributed exits require more structural coordination.

This trade‑off rarely gets discussed in basic guides, but it matters a lot during real projects.

Centralized exit advantages

1. Compact vertical circulation core
2. Simplified structural grid
3. Easier mechanical shaft alignment
4. Lower construction complexity

Distributed exit challenges

1. Additional stair towers
2. More structural openings
3. Complex fire separation zones
4. Potential exterior façade interruptions

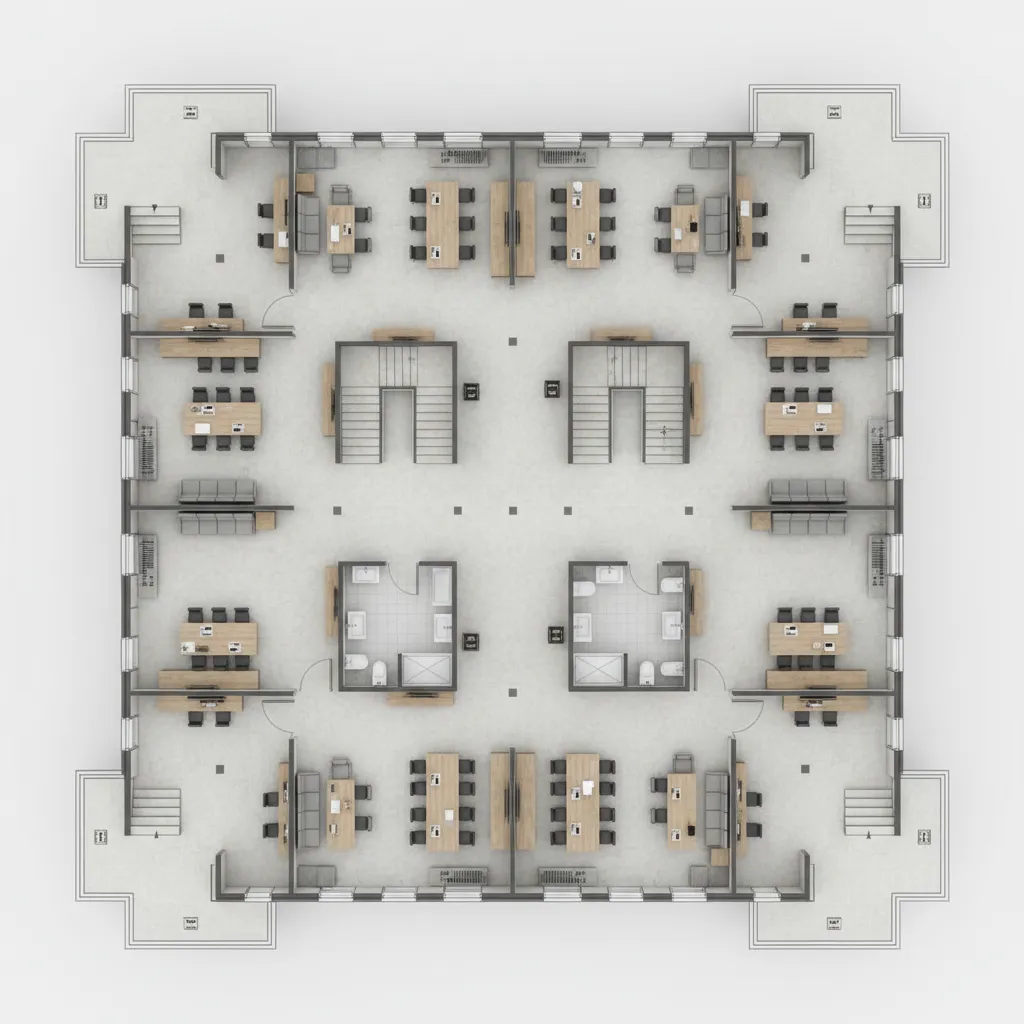

In high‑density commercial projects, I often see hybrid strategies emerge. A building might maintain a central core but add secondary perimeter exits to improve evacuation distribution.

save pin

Answer Box

Distributed exit layouts usually provide faster and safer evacuation because they reduce congestion and shorten travel distance. Centralized exits remain practical for smaller buildings where structural simplicity and space efficiency are priorities.

When Each Exit Layout Works Best

Key Insight: The best exit layout depends more on building size and occupancy than on design preference.

Through years of planning office and residential projects, I’ve noticed clear patterns where each strategy performs best.

Centralized exits work well for:

1. Small apartment buildings
2. Compact hotels
3. Symmetrical office floors
4. Mid‑rise towers with central cores

Distributed exits work better for:

1. Schools and universities
2. Hospitals
3. Retail centers
4. Large open office floors
5. Assembly spaces

These environments generate unpredictable crowd movement, making distributed exits much safer.

Choosing the Right Exit Strategy for Your Floor Plan

Key Insight: The best exit strategy balances safety code requirements, occupant movement patterns, and architectural constraints.

Before locking your exit configuration, evaluate these design checkpoints:

1. Maximum occupant load per floor
2. Average travel distance to exits
3. Corridor congestion points
4. Structural core placement
5. Potential evacuation obstacles

One technique I strongly recommend is testing several exit layouts early using a workspace layout planning environment that maps circulation flow. Small adjustments—like relocating one stairwell—can reduce evacuation distance across the entire building.

The biggest mistake I see in real projects is treating exit placement as a compliance checkbox rather than a circulation design problem.

Final Summary

1. Distributed exits typically provide faster evacuation and lower congestion.
2. Centralized exits simplify structural and mechanical planning.
3. Large or crowded buildings benefit most from distributed exit strategies.
4. Evacuation performance should be tested early in floor plan design.
5. Hybrid layouts often balance safety and efficiency.

FAQ

1. What is the difference between centralized and distributed exits in a floor plan?

Centralized exits concentrate evacuation routes around a shared core, while distributed exits place multiple exits across the building to shorten travel distance and reduce congestion.

2. Which exit layout is safer for large buildings?

Distributed exit layouts are generally safer for large buildings because they spread occupant flow and reduce bottlenecks during evacuation.

3. Are centralized exits allowed by building codes?

Yes. Most building codes allow centralized exits if travel distances, corridor widths, and stair capacities meet safety requirements.

4. Why do many office buildings use centralized stair cores?

Central cores simplify structural design, mechanical systems, and elevator placement, making them efficient for mid‑rise office buildings.

5. How many exits should a floor plan have?

The number depends on occupancy load, building size, and local code requirements. Many commercial buildings require at least two independent exits.

6. Do distributed exits increase construction cost?

They can. Additional stairwells and structural openings may increase costs compared with centralized exit systems.

7. What is the best exit layout strategy for buildings with high occupancy?

Distributed exits are usually the best exit layout strategy for buildings with large crowds because they divide evacuation routes.

8. How can designers test evacuation routes in a floor plan?

Using digital floor planning tools allows designers to visualize travel distances and identify congestion points before construction.
