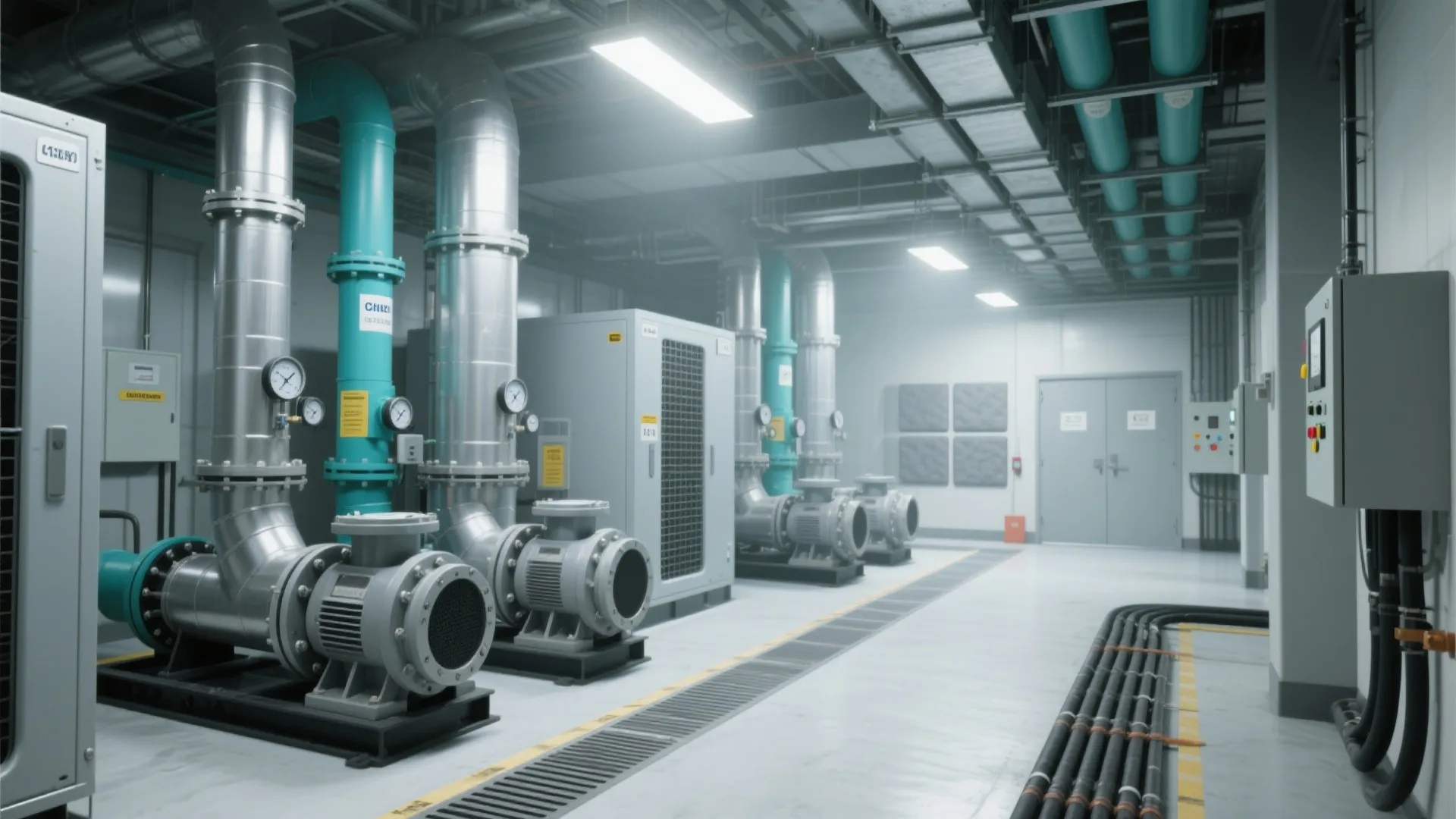

Chiller Room Design: How to Optimize Your Cooling Space: Fast-Track Guide to Creating an Efficient Chiller Room in Minutes

I’ve designed and retrofitted chiller rooms across offices, hospitals, and mixed-use developments, and the most successful spaces share three traits: clean airflow, rigorous maintenance access, and disciplined controls. When these basics align with good acoustics, lighting, and ergonomics, chillers run cooler, safer, and for longer.

Design Objectives and Measurable Benchmarks

Chiller rooms are mission-critical; downtime ripples through entire buildings. A reliable baseline is keeping condenser water return temperatures steady while ensuring service reach to all sides of equipment. WELL v2 recommends maintaining mechanical spaces within comfortable lighting ranges for safe tasks, typically 300–500 lux for detailed maintenance; I target ~400 lux on work surfaces with glare kept below uncomfortable thresholds (WELL v2 Light concept). Steelcase research links physical comfort and environmental quality to performance; in practice, consistent thermal and acoustic control in technical areas reduces error rates during maintenance and improves response times.

Acoustic exposure is just as vital. The International WELL Building Institute references noise management as part of occupant and operator well-being; I design for sound pressure levels in chiller rooms commonly below ~75–80 dBA at operator stations, adding isolation zones where feasible to reduce fatigue during inspections. For lighting practice, I follow IES recommendations for task illumination and uniformity; well-planned vertical illuminance ensures readable gauges and labels, minimizing misreads.

More broadly, workplace research (Steelcase and Herman Miller) repeatedly shows that well-designed environments boost efficiency. Translating that into chiller rooms means safe clearances, legible labeling, intuitive circulation, and quick diagnostic access—all lowering mean time to repair (MTTR). These are small design moves with large operational returns.

Spatial Planning and Clearances

Start with accurate equipment footprints plus manufacturer-required service zones—typically 900–1200 mm (3–4 ft) on service sides and more for tube pulling on water-cooled chillers. Maintain direct paths to strainers, pumps, control panels, isolation valves, and differential pressure sensors. Avoid dead-end corners around compressors and heat exchangers; future you will thank present you when a technician can wheel in a tube puller without dismantling half the room.

For layout exploration and clash avoidance in tight rooms, a layout simulation tool helps visualize access arcs, lift paths, and clearance conflicts, especially when coordinating with structural columns or fire risers. I also reserve ceiling service corridors for trays and overhead monorails to lift heavy components safely.

Airflow, Ventilation, and Heat Rejection

Chillers generate significant sensible heat and require controlled ventilation. Separate intake and exhaust paths, pressure-balance the room, and protect air intakes from hot discharge recirculation. For air-cooled units, ensure adequate discharge throw and free area around condenser sections; for water-cooled systems, prioritize condenser water treatment and tower placement upstream. Keep combustion appliances out; the room should focus on cooling equipment with proper make-up air, filtration, and smoke control designed per local codes.

Maintain design ambient temperatures within manufacturer limits, usually 5–40°C depending on unit type. If the room tends to overheat, consider dedicated supply air, heat recovery for preheating elsewhere, or localized exhaust near drives and controls. I add temperature sensors at both operator height and near compressor intakes to track stratification and catch hot spots.

Pipework, Valves, and Serviceability

Plumbing must be readable and reachable. Color-code chilled water supply and return, mark flow direction on all lines, and mount gauges at ergonomic heights (1050–1200 mm is comfortable for most). Provide spool pieces and isolation valves near strainers, pumps, and heat exchangers. Design straight runs for tube pulling on shell-and-tube chillers and maintain the manufacturer’s minimum extraction lengths. Flexible connections at pumps reduce vibration transmission; expansion joints require proper anchors and guides to prevent pipe whip.

Electrical, Controls, and Redundancy

Dedicated panels, safe working clearances (commonly 900–1200 mm depending on code), and clean cable management are non-negotiable. Drives need ventilation; place them away from high-vibration areas. Group sensors logically—temperature, pressure, flow—and label them consistently for quick diagnostics. Consider N+1 redundancy for critical pumps and controls. I map failure scenarios and ensure manual overrides are physically accessible with clear signage.

Lighting Strategy and Visual Ergonomics

Good light prevents mistakes. Aim for uniform 300–500 lux across work planes with task lighting at panels and gauges. Control glare with diffusers or indirect schemes, and keep color temperature neutral (4000–5000K) for high-contrast readability. Vertical illumination matters; faces of equipment, labels, and valves need consistent light so maintenance photos and readings are crisp. Referencing IES guidance for industrial tasks helps fine-tune uniformity and contrast ratios.

Acoustic Comfort and Vibration Control

Compressors, pumps, and drives are noisy; protect operators and adjacent spaces. Use vibration isolators under equipment, flexible connectors, and inertia bases for larger pumps. Treat walls and ceilings with sound-absorbing finishes where allowed; dense constructions with decoupled layers cut transmission. Establish quiet zones for monitoring—locate control panels away from peak noise sources and consider acoustic screens around particularly loud equipment.

Drainage, Leak Management, and Housekeeping

Chiller rooms collect condensate and maintenance runoff. Floor gradients toward trench drains, raised equipment pads, and clear housekeeping paths keep the room safe. Drip pans and secondary containment under potential leak points reduce slip hazards. Plan for water treatment areas with splash protection and chemical storage ventilation. Keep a dedicated housekeeping corner—mops, absorbents, PPE—so response is immediate.

Thermal Insulation and Energy Efficiency

Insulate chilled water lines and vessels with closed-cell materials to prevent condensation, and seal all joints meticulously. Specify vapor barriers on insulation in humid climates. Limit thermal bridges at supports and consider insulated hangers. Energy meters on pumps and chillers tied to the BAS help track efficiency and identify drift. Setpoints should be conservative and stable; unnecessary hunting wastes energy and stresses equipment.

Color, Legibility, and Wayfinding

Color psychology supports faster recognition: high-contrast label backgrounds improve readability, and standardized color coding (e.g., blue for chilled water supply, red for return if adopted internally) reduces cognitive load. Verywell Mind’s discussion of color perception indicates that cooler hues enhance clarity and focus; I lean toward neutral palettes with distinct accent colors for hazards and controls. Use large, consistent typography for equipment IDs and flow arrows.

Safety, Compliance, and Human Factors

Guard moving parts, shield hot surfaces, and provide clear lockout/tagout points. Handrails, anti-slip flooring, and adequate headroom are essential. Place emergency stops and first-aid kits at intuitive locations, and maintain unblocked egress paths. From an ergonomics standpoint, keep frequently used panels within comfortable reach zones to reduce awkward postures and fatigue. Regular drills ensure that teams know the room and can respond calmly.

Commissioning, Monitoring, and Lifecycle Planning

Commission thoroughly: verify flows, temperatures, vibration thresholds, and control sequences. Log baseline readings with photos of gauges and installation details. Ongoing monitoring—seasonal trend analysis of kW/ton, approach temperatures, and pump curves—reveals early inefficiencies. Plan for replacements with extraction paths and ceiling loads accounted for. A well-documented room stays reliable and safe years down the line.

Authority and Further Reading

For lighting and visual comfort standards, see guidance from IES and WELL v2: Illuminating Engineering Society standards and WELL v2 Light concept.

FAQ

Q1: What lighting levels should a chiller room target for safe maintenance?

A: Aim for 300–500 lux on work planes, with task lighting at gauges and panels. Follow IES guidance for industrial tasks and keep glare controlled for accurate readings.

Q2: How much clearance is needed around chillers?

A: Provide at least 900–1200 mm (3–4 ft) on service sides; follow manufacturer tube-pull requirements for shell-and-tube chillers, which may require several meters of straight clearance.

Q3: How can I reduce noise exposure for technicians?

A: Use vibration isolators, flexible connectors, acoustic linings, and locate monitoring stations away from peak noise. Keep typical operator areas under ~75–80 dBA when possible.

Q4: What color temperature is best for visibility?

A: Neutral white (4000–5000K) balances contrast and comfort. Combine with high-contrast labeling to improve legibility.

Q5: Is dedicated ventilation necessary?

A: Yes. Separate intake/exhaust, maintain pressure balance, and prevent hot air recirculation. Add localized exhaust near drives and controls if hotspots develop.

Q6: How should piping be labeled and arranged?

A: Color-code supply/return, mark flow direction, and mount gauges at ergonomic heights (around 1050–1200 mm). Provide spool pieces and isolation valves near service points.

Q7: What redundancy is recommended for critical systems?

A: N+1 pumps and key controls for mission-critical buildings. Ensure manual overrides are accessible and clearly labeled.

Q8: How do I manage condensate and leaks?

A: Grade floors to trench drains, use raised pads, drip pans, and secondary containment at risk points. Keep a housekeeping station ready with absorbents and PPE.

Q9: Which insulation strategies prevent condensation?

A: Closed-cell insulation with sealed joints and proper vapor barriers in humid climates. Avoid thermal bridges at supports and consider insulated hangers.

Q10: What metrics should be monitored after commissioning?

A: Track kW/ton, approach temperatures, energy use of pumps and drives, and vibration levels. Trend data seasonally to catch inefficiencies early.

Q11: Can layout tools help avoid service conflicts?

A: Yes. A room layout tool lets you simulate access arcs, lift paths, and clearances, reducing clashes during installation and future maintenance.

Q12: What safety features are non-negotiable?

A: Clear egress, lockout/tagout points, guarded moving parts, anti-slip flooring, and accessible emergency stops. Keep signage consistent and legible.
