Chiller Room Design: Maximize Efficiency in Small Spaces: Fast-Track Guide to Designing Chiller Rooms in Minutes

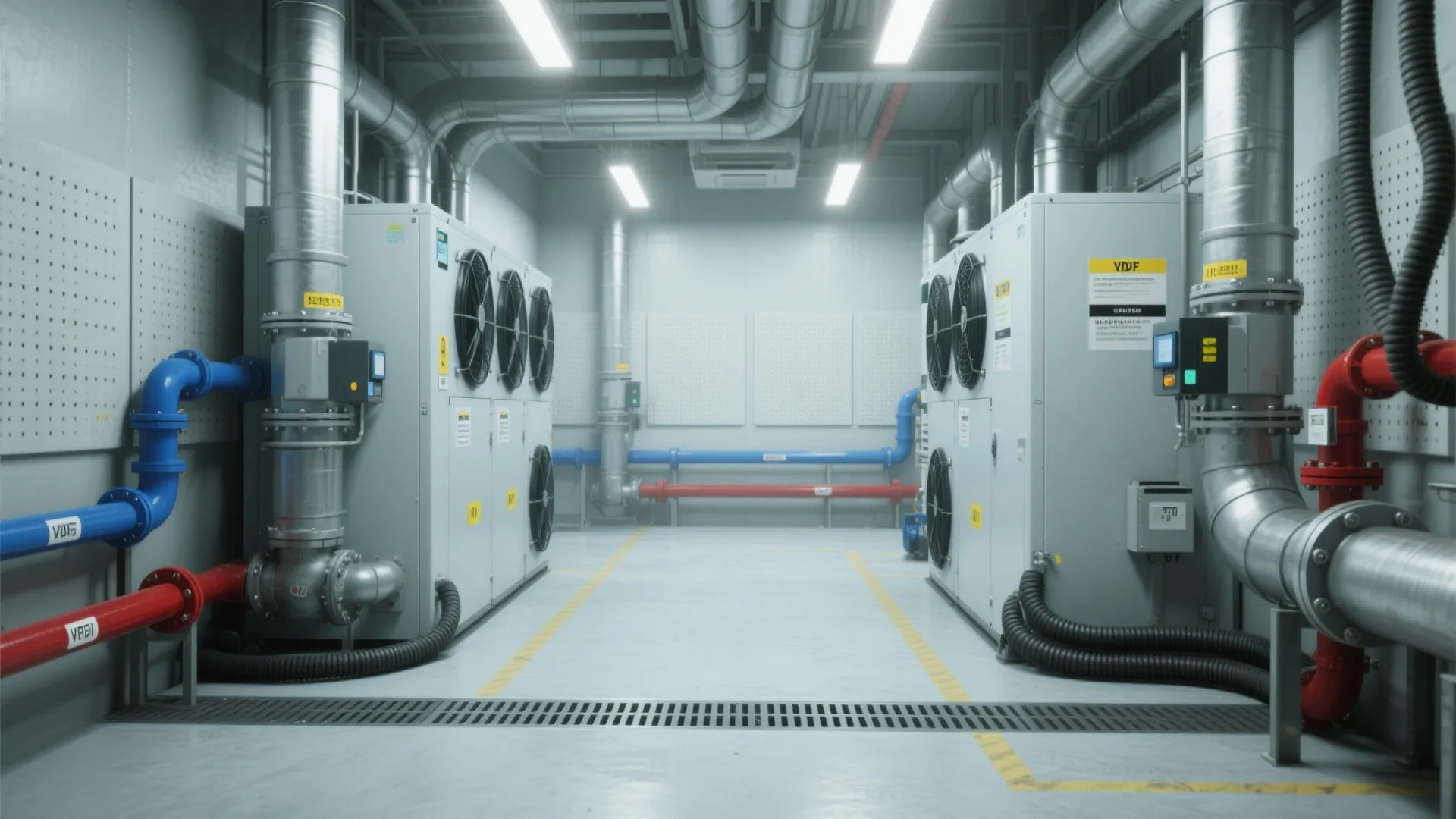

Designing a compact chiller room is a balance of thermodynamics, maintenance workflows, and human factors. In tight footprints, every inch affects energy performance, uptime, and safety. From my experience planning mechanical rooms for hospitality, healthcare, and mixed-use projects, the best results come from disciplined clearances, clean piping logic, and high-integrity ventilation that respects both equipment and people.

Evidence backs the move toward efficiency-first layouts. WELL v2’s Thermal Comfort concept emphasizes controllability and system optimization as foundations for occupant satisfaction, directly influenced by plant performance (referenced in WELL v2 Framework). Gensler’s research shows workplace performance gains when environmental systems maintain consistent thermal and acoustic baselines; consistent delivery often starts with resilient central plants and service-friendly mechanical rooms. In practice, I’ve seen compact chiller rooms cut parasitic losses and maintenance time by 10–20% simply through smarter layout hierarchies and streamlined access. For further reading on thermal and building system performance, see the WELL v2 framework at WELL v2.

Small-space chiller rooms magnify consequences of poor planning: congested pipe runs, inaccessible valves, and heat buildup can spike energy use and risk downtime. Steelcase research on workplace performance highlights how reliable environmental conditions support cognitive focus; consistent chilled water delivery is part of that reliability chain. In tight rooms, ensuring service corridors, valve legibility, and safe egress keeps the plant maintainable and reduces unscheduled interruptions that ripple out to the entire building.

Right-size the Equipment and Define Clearances

Start with equipment selection that suits the cooling load without oversizing. Smaller centrifugal or scroll chillers, modular air-cooled units, or variable-speed compressors can deliver high part-load efficiency. Define manufacturer-recommended service clearances and lock them into the layout: front service bays, side coil pulls, tube bundle extraction zones, and overhead lift paths. Maintain 900–1200 mm of dedicated service aisle where feasible, and protect that aisle from piping encroachment. When floor area is tight, consider two-tier rack frames for pumps and strainers while ensuring safe working heights and guardrails.

Plan Pipe Logic Like a Transit Map

Compact rooms need clean hydraulic logic. Keep primary headers legible: chilled water supply/return at consistent elevations, isolation valves at entry points, and strainers upstream of pumps. Use color-coded jackets and directional arrows for instant recognition, aligning with human factors principles. Balance loops with differential pressure control to prevent hunting. Where layout permutations are complex, a room layout tool can be invaluable for testing clearances and flows across scenarios: room layout tool.

Optimize Pumping and Controls for Part-Load Reality

Most buildings operate at part load for most hours. Variable frequency drives (VFDs) on pumps and compressors, differential pressure sensors, and sequencing that prioritizes best-efficiency units reduce energy draw. Keep sensor locations clear of hydraulic noise and place them at representative points in the loop. For redundancy, N+1 pumps on compact skids preserve uptime without expanding footprint, provided service access is protected.

Ventilation, Heat Rejection, and Acoustic Comfort

Chiller rooms tend to run hot. Provide dedicated exhaust and make-up air sized to maintain safe ambient temperatures, considering internal gains from motors, VFDs, and transformers. Follow IES guidance on glare control when task lighting is needed near instrument panels; diffuse, flicker-free lighting in the 3500–4000K range preserves legibility and reduces eye strain. Acoustic comfort matters for technicians: line mechanical walls with mineral wool and perforated metal, isolate pump bases, and use flexible connectors to minimize vibration transmission.

Lighting That Supports Safe Maintenance

Service tasks demand high vertical illuminance. Target work-plane illuminance of 300–500 lux for general mechanical areas, with task lighting reaching 500–750 lux at panels and gauges, following typical engineering practice. Avoid specular glare on glossy enclosures by specifying matte finishes and uniform light distribution. Emergency lighting should mark egress routes and critical equipment points without creating harsh contrast.

Ergonomics and Human Factors in Tight Rooms

Technicians perform repetitive tasks. Keep valve handles between 800–1400 mm height, center heavy filters and strainers near hip-to-chest height, and provide knee clearance in front of electrical panels. Labeling should be readable at 1–2 meters with high-contrast typography. Safety stations—eye wash, spill kits, and lockout-tagout boards—must be immediately accessible and not blocked by temporary storage.

Resilient Layouts: Redundancy Without Clutter

Redundancy is worth the floor area if it’s clearly organized. In compact rooms, stagger redundant pumps along a single service corridor and use quick-release couplings to speed swap-outs. Mount critical spares (gaskets, belts, sensors) on shadow boards near the entry to shorten mean time to repair. Intuitive sequencing—lead/lag indicators and simple BMS graphics—helps operations teams keep systems efficient and avoid running multiple units at inefficient partial loads.

Materials, Drainage, and Cleanability

Prioritize non-slip resinous flooring with integral cove base for easy wash-down. Introduce trench drains with removable grates, sloped to floor sinks so spills are controlled. Use corrosion-resistant supports and unistrut, and seal penetrations with rated intumescent materials. Paint mechanical walls a light, low-gloss neutral to improve visibility and reduce visual clutter. Mark equipment footprints and pull zones on the floor to preserve clearances over time.

Thermal and Electrical Safety

Segment high-voltage pathing and clearly mark arc-flash boundaries. Maintain separation between chilled water piping and electrical conduits to minimize condensation risk near power. Provide insulation thickness appropriate to ambient conditions to prevent sweating and slip hazards. Temperature sensors should be shielded from radiant heat sources (compressor bodies, VFD cabinets) to avoid false readings.

Commissioning and Data-Driven Tuning

Good design pays off during commissioning. Validate pump curves, sensor calibration, valve authority, and sequencing logic at both low and high loads. Capture baseline kW/ton and trend it across seasons. WELL’s performance mindset encourages ongoing monitoring—set targets for part-load efficiency and schedule periodic tune-ups to preserve them. I’ve seen simple control tweaks and filter maintenance regain 5–8% efficiency in small plants.

Space Planning Moves for Ultra-Compact Rooms

When space is truly constrained, stack functions vertically with service ladders and fold-down platforms, but keep three-point contact safe. Use sliding rails for heavy components that require extraction. Consolidate gauges and flow meters into high-visibility manifolds near entries. Where layouts are fluid during design development, an interior layout planner helps simulate traffic, service arcs, and conflict points: interior layout planner.

Color and Wayfinding for Faster Service

Color aids cognition. Verywell Mind’s color psychology overview notes that high-contrast cues can improve recognition and reduce errors. Apply a restrained palette: blue for chilled supply, red for return, safety yellow for hazards, and white backgrounds for labels. Use floor and wall graphics to mark flow direction and equipment zones so new technicians can navigate without guidance.

Maintenance Workflow and Storage Discipline

Dedicate a compact storage niche for consumables, PPE, and cleaning gear to avoid spillover into service aisles. Implement 5S principles in labeling and tool placement. Place laptop shelves and power outlets near the BMS panel to support diagnostics. The outcome is shorter maintenance windows and less accidental damage in tight quarters.

Future-Proofing: Modularity and Upgrades

Design connections with unions and flanges for modular upgrades. Leave capped tees for future sensor points. If refrigerant changes are likely, plan coil access and piping routes that can accommodate reconfiguration. Reserve ceiling anchors for hoists so heavy components can be maneuvered safely in tight spaces.

FAQ

How do I size equipment for a small chiller room without overspecifying?

Model realistic part-load profiles and choose variable-speed chillers and pumps that peak near expected operating ranges. Avoid chasing rare peak loads—include short-term thermal storage or demand management instead.

What illuminance should I aim for in mechanical rooms?

Provide 300–500 lux general lighting and 500–750 lux task lighting at panels and gauges, with uniform, low-glare distribution. Align controls labeling height with the light field.

How can I reduce noise and vibration in tight mechanical spaces?

Use inertia bases for pumps, flexible connectors on suction and discharge, acoustic panels on reflective surfaces, and isolate equipment from structural resonance paths.

What are essential service clearances I must protect?

Front access to panels, tube bundle pull zones, valve handle swing arcs, and a 900–1200 mm service aisle. Mark these on the floor and enforce them operationally.

Do color-coding and wayfinding really improve maintenance time?

Yes. High-contrast color coding and directional graphics reduce search time and errors, especially for new technicians. Keep schemes simple and consistent.

How should I handle ventilation and ambient temperature?

Size exhaust and make-up air for internal gains from motors and electronics. Maintain safe ambient temperatures and avoid creating localized hot spots around controls.

What control strategies boost efficiency at part load?

Lead/lag sequencing based on efficiency curves, differential pressure control, sensor placement away from hydraulic noise, and periodic tuning informed by kW/ton trending.

How do I balance redundancy with limited floor area?

Use modular skids, stagger equipment along one service corridor, and quick-release couplings. Keep spares organized and accessible to shorten repair times.
