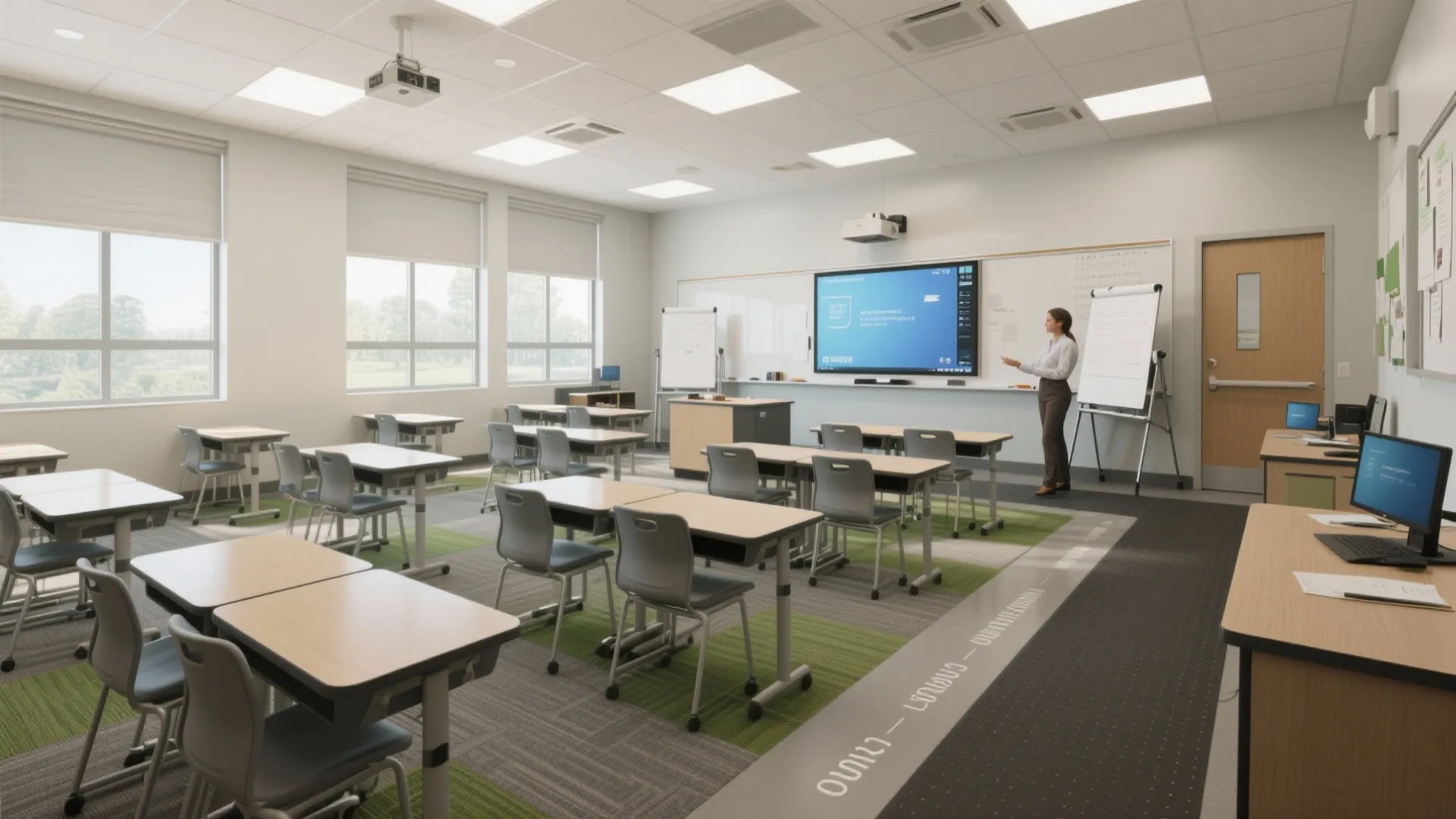

Class Room 3D Model: Transforming Learning Spaces Made Simple: 1 Minute to Visualize Your Dream Classroom in 3D

I’ve spent years refining classrooms that balance pedagogy, ergonomics, and the realities of daily use. A well-built 3D model isn’t just a pretty rendering—it’s a fast, low-risk way to test sightlines, acoustics, circulation, and technology before a single desk is moved. When I simulate room proportions and seating arrays in 3D, I can validate line of sight to displays, daylight penetration, and teacher mobility with far more accuracy than a 2D plan.

Data backs the rigor behind these choices. The WELL Building Standard v2 highlights the impact of visual and acoustic comfort on cognitive performance, emphasizing glare control, daylight access, and speech intelligibility as critical to learning environments. Steelcase research also notes that active-learning classrooms can improve student engagement by enabling proximity, quick reconfiguration, and equitable sightlines—principles that are easier to verify in 3D models. To dive deeper into environmental quality, I reference WELL v2’s lighting and acoustic guidance, and research summaries from Steelcase’s learning spaces insights.

Design Intent: Start with Learning Behaviors

Every classroom I model begins with the behavior we want to support—lecture, discussion, project work, or blended modes. If the goal is active learning, I’ll prioritize movable furniture, wide circulation paths (at least 900–1200 mm), and zones for small-group collaboration. For seminar-style rooms, I tighten the spatial rhythm, keeping sightlines unobstructed and seats at ergonomic distances from focal points.

Ergonomics and Human Factors

Comfort is non-negotiable. For desks and tables, I model heights in the 710–740 mm range for middle to high school; chairs typically provide lumbar support and a seat height of 430–460 mm for teens. I simulate reach and interaction zones: 600–750 mm per student in fixed seating; 900–1000 mm for flexible seating that includes backpacks and personal tech. I test walking loops that allow teachers to move freely, maintaining a minimum aisle width of 900 mm so supervision and peer support are effortless.

Visual Comfort: Light, Color, and Sightlines

In 3D, I evaluate daylight orientation, glare off screens, and vertical illumination on teaching walls. The Illuminating Engineering Society recommends task illuminance in the range of 300–500 lux for classrooms, which I check against both ambient and task lighting layers. Color plays a quiet role: calm hues near 4800–5500 K lighting temperature keep focus steady, while saturated accent colors are limited to collaboration corners to avoid visual fatigue.

Acoustic Comfort: Make Speech Intelligible

I simulate sound paths and test reverberation by material selection. Carpet tiles, acoustic ceiling panels (NRC 0.70+), and soft wall treatments help reduce echo and improve clarity. In 3D, I place absorptive finishes where reflections are strongest—usually opposite whiteboards or displays—and verify that group work zones don’t spill noise toward quiet task areas.

Technology Integration: Seamless, Not Distracting

Power and data must be invisible yet accessible. I model floor boxes or perimeter raceways and test cable routing to keep tripping hazards out of circulation paths. Displays are positioned with the centerline roughly 1100–1300 mm above floor level, and no seat should exceed a 30-degree viewing angle from the screen. I also ensure camera lines for hybrid teaching capture the entire front zone without glare.

Flexible Layouts: Model, Test, Iterate

Reconfigurability is a design strategy, not an afterthought. I prototype three core modes in 3D—lecture, team studio, and exam—so staff can pivot quickly. For planning and rapid visualization, a room layout tool helps me iterate adjacency, aisle width, and furniture clusters in minutes, then validate with simulated circulation and sightline checks.

room layout tool

Material Selection: Durable, Cleanable, Sustainable

Classrooms face heavy use, so I select finishes with high abrasion resistance and cleanability. Vinyl composition tile or rubber flooring in high-traffic areas, carpet tiles in collaboration zones for acoustic control, and high-pressure laminate on tabletops perform well. Where budgets allow, I specify low-VOC materials and daylight-friendly finishes to support wellness priorities called out in WELL v2.

Circulation, Ratios, and Visual Balance

Good classrooms read clearly the moment you enter. I keep the teaching wall visually calm, balance storage on opposite walls, and avoid clutter near entries. In 3D, I maintain a simple spatial ratio: roughly 60–70% open floor for circulation and collaboration and 30–40% for fixed elements. The rhythm of repeated desk modules creates order, while one or two accent nodes (pin-up walls or maker benches) add energy without producing chaos.

Daylight and Shade Strategy

For south-facing windows, I model layered shading—light-filtering roller shades plus side fins where applicable—to keep glare off screens. I test the angle of shades in the model during peak hours, ensuring lit zones are balanced and teaching surfaces remain readable. Even small moves—tilting the projection surface slightly or relocating the display—pay big dividends in real-world comfort.

Common Classroom Layouts I Model

Lecture/Presentation

Rows with 900 mm aisles, strong sightlines, minimal visual noise around the teaching wall, task lighting over desk planes.

Discussion/Seminar

U-shape or horseshoe to maintain face-to-face contact; maximum seat depth limited so no student is beyond two rows from the focal area.

Active Learning Studio

Clusters of 4–6 seats with shared surfaces; mobile whiteboards subdivide space; circulation loop for instructor support and tech troubleshooting.

Validation Workflow with 3D Models

My routine is straightforward: define behaviors, block adjacencies, model circulation, set light and acoustic targets, drop in furniture modules, then stress test with reconfiguration scenarios. I capture quick renders and a short walk-through so stakeholders can judge clarity: Can every student see, hear, and reach what they need?

Authority References

To ensure decisions are grounded, I consult WELL v2 for lighting and comfort guidance and Steelcase research on active learning and engagement. Both sources have consistently informed my classroom modeling and post-occupancy evaluations.

FAQ

1) How do I know my classroom has adequate light levels?

Target 300–500 lux on desktops, validated with a lighting plan or a simple meter. In 3D, simulate ambient plus task lighting and check glare near displays.

2) What chair and desk dimensions work for most students?

Desk height around 710–740 mm and chair seat height 430–460 mm suit middle to high school. Leave 600–750 mm per student for comfortable working space.

3) How can I reduce noise during group work?

Use absorptive materials (carpet tiles, acoustic panels NRC 0.70+), position group zones away from teaching walls, and break up large open areas with soft partitions.

4) What layout improves engagement in active learning?

Clusters of 4–6 seats with mobile furniture, clear circulation loops (900–1200 mm), and shared writable surfaces. This arrangement supports quick pivoting between modes.

5) Where should I place displays for clear sightlines?

Centerline at roughly 1100–1300 mm above floor level; ensure no seat exceeds a 30-degree viewing angle and minimize glare with perpendicular window orientation.

6) Which materials stand up to heavy classroom use?

High-pressure laminate for desks, rubber or VCT in high-traffic zones, carpet tiles for acoustics, and low-VOC finishes for better indoor air quality.

7) How do 3D models help with teacher mobility?

They make circulation visible. Test 900 mm minimum aisles, map routes to every cluster, and ensure the instructor can reach all students without obstacles.

8) How do I plan for hybrid teaching?

Model camera sightlines to the teaching wall, control glare, position microphones toward speech zones, and keep cable management off main circulation paths.

9) What color strategies support focus?

Use calm, desaturated hues on major surfaces; reserve brighter accents for collaboration corners. Pair with 4800–5500 K lighting to avoid visual fatigue.

10) How often should I reconfigure layouts?

Align with curriculum cycles—monthly for project-based courses, per unit for lecture-heavy subjects. Model the three core modes so transitions take minutes, not hours.

11) Can I validate accessibility in 3D?

Yes. Model wheelchair turning circles (1500 mm diameter), clear door widths, and accessible seating integrated across the room, not isolated.

12) What’s the quickest way to plan a new classroom layout?

Start with a layout simulation in a room design visualization tool, test aisles and furniture clusters, and iterate view angles before pushing to procurement.
