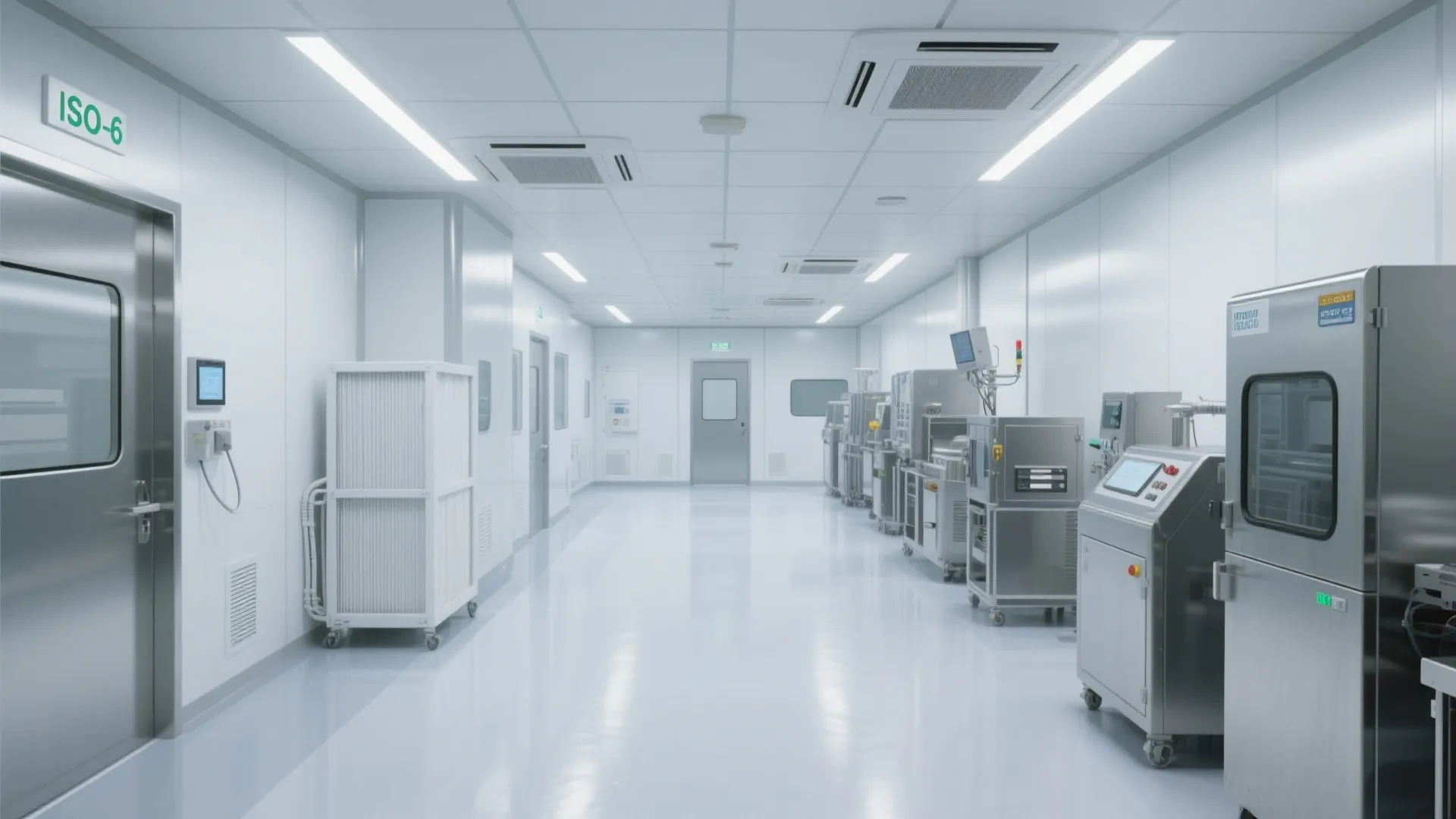

Clean Room Lighting: Efficient Solutions for Pristine Spaces: Fast-Track Guide to Bright, Spotless Environments

Clean rooms place unusual demands on lighting. Light has to support contamination control, accurate visual tasks, and efficient operations without stirring air, creating glare, or shedding particles. In my projects, the most robust solutions balance sealed luminaires, uniform illuminance, tuned color, and controllable systems that respect airflow and maintenance protocols. Measurable outcomes matter: the WELL v2 Light concept targets appropriate illuminance and circadian considerations that have been linked with improved alertness and comfort; and Gensler’s 2023 workplace research found that 48% of workers cite lighting quality as a top factor impacting their effectiveness—underscoring that good light is mission-critical even in controlled environments.

Standards guide the baseline. The Illuminating Engineering Society (IES) generally recommends task illuminance for precision workstations in the 500–1,000 lux range, with lower ambient levels for circulation and gowning zones; clean manufacturing often sits around 300–500 lux for general tasks while inspection pushes higher. WELL v2 also emphasizes glare control, recommending maximum Unified Glare Rating (UGR) targets for visual comfort and calling for color rendering quality that supports accurate perception—key when reading labels, detecting particulates, or matching materials. These reference points help translate cleanliness protocols into lighting specifications that hold up in the field.

Design Priorities in Clean Room Lighting

I start with three pillars: contamination control, visual performance, and serviceability. Contamination control means fully sealed, smooth luminaires with NSF-rated or IP65/66 topside protection and gasketing to the ceiling system. Visual performance means uniform planes (ceiling-integrated troffers or edge-lit panels), adequate vertical illuminance for faces and walls, and color rendering of CRI 90+ where inspection or color-critical tasks are performed. Serviceability means from-below maintenance, minimal penetrations, and drivers placed outside the clean envelope where possible to reduce in-room heat and maintenance frequency.

Illuminance Targets and Uniformity

For ISO 5–7 suites, I aim for 500 lux average on task planes with uniformity ratios (avg:min) near 1.6:1 or better to avoid “hot spots” that encourage eye strain. Gowning and airlocks can sit around 200–300 lux, while inspection benches may reach 750–1,000 lux with adjustable task lights. I maintain ample vertical illuminance (≥150–250 lux at eye level) along circulation to improve facial recognition for safety and teamwork. That vertical component also helps reduce shadows on equipment faces, which improves cleaning verification.

Glare, Reflections, and Visual Comfort

Semi-specular floors and stainless surfaces can bounce light aggressively. I mitigate glare with diffusing optics, microprismatic lenses, and edge-lit sources that spread luminance across a larger emitting surface. Target UGR values in the low-to-mid range (often ≤19 in inspection and ≤22 in general work areas) keep eyes fresh during long shifts. Avoiding small, high-nit point sources near reflective equipment matters; indirect-perimeter lines or large luminous panels maintain comfort and legibility on screens and gauges.

Color Rendering and Temperature Strategy

Color rendering at CRI 90+ (with strong R9 for reds) is preferred for inspection, labeling, and health monitoring of personnel. For general spaces, CRI 80–90 is typically sufficient, but I standardize higher CRI across suites to simplify procurement. Correlated color temperature (CCT) at 4000–5000K supports task alertness; where teams rotate shifts, tunable-white (3,500–5,000K) can synchronize to shift schedules to support circadian stability, aligning with WELL guidance that ties appropriate light exposure to wellbeing and performance.

Ceiling Systems and Airflow Compatibility

Lighting must respect laminar flow and pressure regimes. I coordinate fixture placement with HEPA filter locations so luminaires do not disrupt unidirectional airflow. Low-profile, sealed troffers integrated into gasketed grid systems keep the plenum tight. Where return air schemes rely on perimeter draws, I avoid lighting that blocks air paths. During early planning, a layout simulation tool can help test light spacing around equipment and filters while preserving flow and service clearances—try a room layout tool to visualize combinations without compromising the clean ceiling strategy: room layout tool.

Controls, Sensors, and Modes

Clean rooms benefit from scene-based controls: operational mode (full output), cleaning/inspection mode (boosted output with high CRI task lights), and standby mode (reduced output for off-hours). Closed-loop daylighting is rare in core labs but useful in ante rooms with windows. Occupancy sensors should be sealed and selected for low false triggers from equipment. I specify networked controls that report runtime hours for proactive maintenance without opening clean envelopes, and lock out manual overrides except in designated workstations.

Energy and Thermal Management

LED efficacy helps, but the HVAC energy penalty in clean rooms is substantial. Every watt of lighting adds thermal load, so I favor high-efficacy luminaires (130–160 lm/W where available) with remote drivers located outside the clean zone if feasible. Reducing luminaire count via higher efficacy and better optics can lower heat gains and make airflow easier to stabilize. Dimming to 30–50% during unoccupied windows meaningfully reduces both electric and cooling load without compromising readiness.

Material, Sealing, and Cleanability

Luminaires should feature smooth, non-porous housings with minimal seams, solvent-resistant lenses, and stainless or coated hardware compatible with disinfectants like IPA and hydrogen peroxide vapor. Front-access service, captive fasteners, and tool-less lens removal (where allowed) reduce contamination risk. I avoid foam gaskets that degrade under cleaning agents; silicone and closed-cell alternatives last longer.

Acoustics, Visual Rhythm, and Human Factors

Even in hard, cleanable shells, acoustic comfort matters. Using continuous luminous lines can visually “stretch” spaces while leaving room for acoustic wall panels outside clean-core areas. A consistent grid rhythm (e.g., 2x4 fixtures aligned with filters) aids navigation and reduces cognitive load for teams who move equipment frequently. Adequate vertical light on faces supports communication through masks and shields, improving team coordination in gowning and procedures.

Maintenance Strategy and Lifecycle

I plan maintenance windows with swappable sealed light engines and standardized drivers across rooms to minimize inventory. L70 of 60,000–100,000 hours is typical; still, I set thresholds based on lumen depreciation and color shift to schedule group relamping or module swaps before visual degradation shows up in inspections. Remote driver racks outside the clean zone make replacements faster and safer.

Commissioning and Verification

Before turnover, I measure task-plane illuminance, vertical illuminance, CCT, and flicker percentage, and verify UGR targets via calculation. I coordinate with facilities to ensure fixtures are bonded to the ceiling seal, controls are mapped, and emergency light levels meet code without breaching pressure regimes. Periodic re-commissioning catches lumen depreciation and controls drift.

Clean Room Lighting Layout: A Practical Workflow

My workflow starts with zoning (process, inspection, gowning, circulation), then equipment blocking and HEPA locations. I place primary luminaires in a consistent grid between filters, reserve higher-CRI task lighting for inspection benches, and add vertical-light elements at critical communication or signage points. To quickly iterate spacing, mounting heights, and task locations around equipment, use an interior layout planner to visualize conflicts and sightlines: interior layout planner.

When to Consider Specialty Fixtures

Explosion-proof or chemical-resistant models are appropriate for solvent-heavy processes. UV-C disinfection lighting should be engineered cautiously to avoid material degradation and safety risks; if used, interlocks and occupancy sensing are mandatory. For micro-inspection, high-CRI, narrow-beam task heads with localized shielding reduce disability glare on glossy substrates.

Future Trends: Data-Driven and Human-Centered

Looking ahead, networked sensors will track illuminance, energy, temperature at the luminaire, and runtime to predict maintenance. Circadian-aware schedules for rotating shifts will become standard in pharma and microelectronics, and low-flicker drivers with deep dimming will protect vision during high-magnification tasks. Material advances will further reduce seams and fasteners, improving cleanability without sacrificing performance.

Approved References for Benchmarks

For design targets and research on performance and comfort, consult WELL v2 Light guidelines at wellcertified.com and workplace effectiveness research from Gensler at gensler.com/research. These sources align with practical outcomes we measure during commissioning.

FAQ

Q1: What illuminance should I target for clean-room inspection tasks?

A1: Plan for 750–1,000 lux on the task plane with CRI 90+ and high R9 for color-critical cues. Keep ambient uniform and control glare to maintain visual acuity during long inspections.

Q2: How do I prevent lighting from disrupting laminar airflow?

A2: Use low-profile, sealed luminaires integrated into gasketed grids and align them between HEPA filter modules. Coordinate early with mechanical design so lighting does not obstruct supply or return paths.

Q3: What UGR should I aim for in clean manufacturing areas?

A3: In general work areas, target UGR ≤22; for inspection or microscope work, aim closer to ≤19 using diffusers, microprismatic lenses, or larger luminous surfaces to reduce contrast.

Q4: Is tunable-white worthwhile in clean rooms?

A4: Yes for shift-based operations. A 3,500–5,000K range can support alertness and circadian stability for rotating teams, especially when paired with scene controls.

Q5: Which materials hold up to aggressive cleaning?

A5: Smooth housings with solvent-resistant lenses (acrylic or tempered glass as specified), stainless hardware, and silicone or closed-cell gaskets. Avoid foam gaskets that degrade with IPA or vaporized hydrogen peroxide.

Q6: Can I reduce energy without compromising cleanliness?

A6: Use high-efficacy LEDs, dim to 30–50% during unoccupied periods, and keep drivers out of the clean envelope to reduce heat load. Fewer, better luminaires with uniform optics help maintain targets at lower power.

Q7: How do I manage maintenance in high-class ISO rooms?

A7: Select from-below serviceable, sealed fixtures with remote drivers outside the clean zone. Standardize components and use networked controls that log runtime to schedule proactive replacements.

Q8: What color rendering is necessary for pharmaceutical labeling?

A8: CRI 90+ with strong red rendering (R9) ensures accurate reading of labels, safety markings, and any color-based inspection criteria.

Q9: Are occupancy sensors appropriate in clean rooms?

A9: Yes, if sealed and specified to avoid false triggers from machinery. Scene-based controls can lock modes to prevent accidental shutoff during critical operations.

Q10: How should I handle reflections on stainless equipment?

A10: Use diffused, wide-aperture luminaires, orient fixtures to minimize specular reflections, and keep luminance balanced across the field of view to avoid veiling glare.

Q11: What commissioning checks are essential?

A11: Verify task and vertical illuminance, CCT, flicker, glare indices, seal integrity, controls mapping, and emergency egress levels—all documented against design criteria.

Q12: Do I need different light levels in gowning and airlocks?

A12: Typically 200–300 lux is sufficient, with vertical light on faces for donning verification. Uniform, shadow-free light improves compliance and speed.
