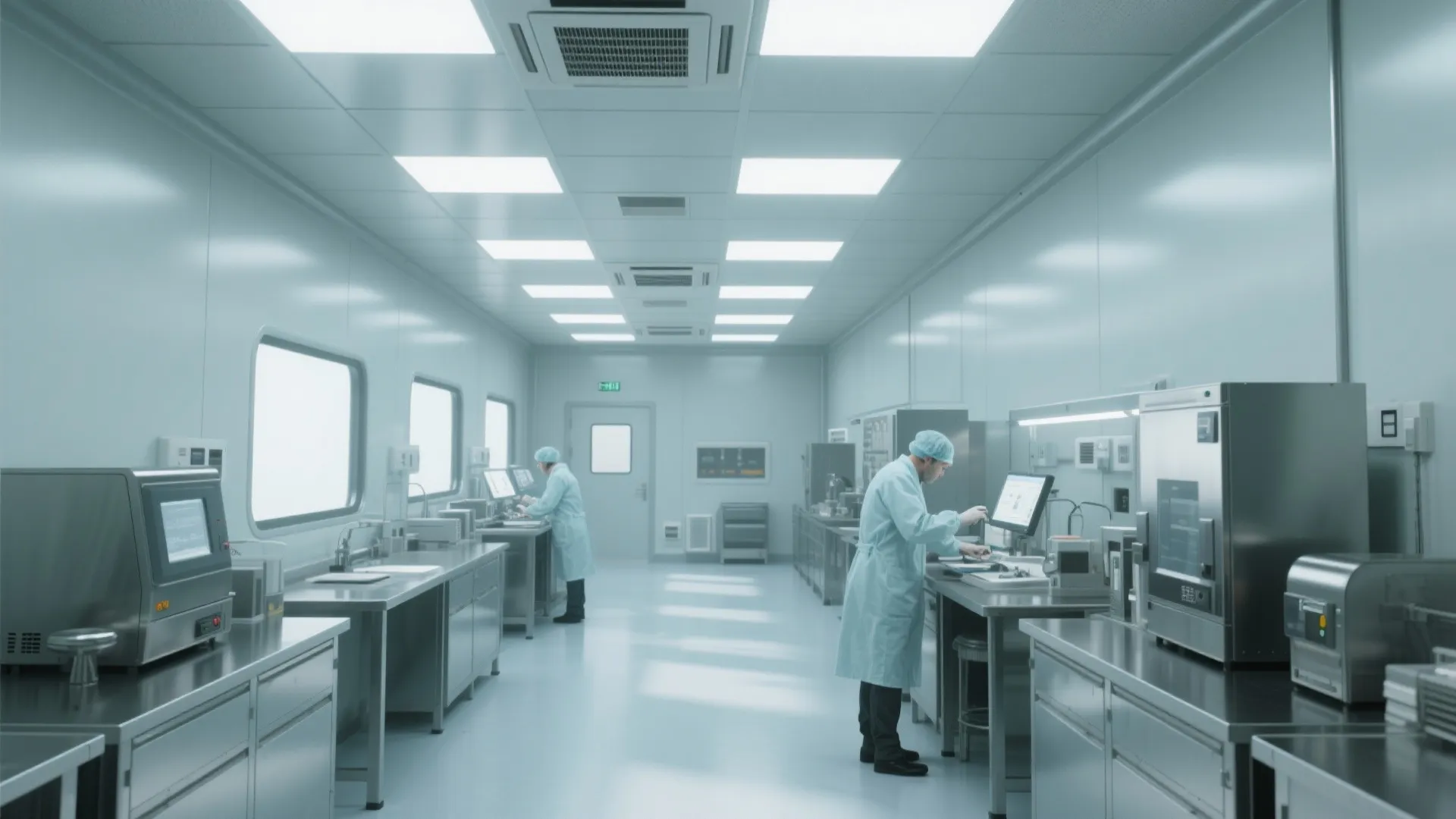

Clean Room Lighting: How to Get Spotless Results: Fast-Track Guide to Spotless Lighting Solutions for Every Clean Room

Clean rooms demand lighting that does more than brighten a space—it must protect sterile processes, enable visual precision, and support people working for long, focused shifts. I design for clarity, controllability, and compliance: correct illuminance for tasks, spectral quality that preserves color fidelity, optics that prevent dust accumulation, and controls that keep energy and thermal loads in check.

Data anchors the specification. The IES recommends 300–1,000 lux for typical laboratory/clean room tasks, with higher targets for inspection zones (IES RP-29/30 guidance). WELL v2 Feature L08 encourages a minimum of 200 EML (Equivalent Melanopic Lux) at the eye for circadian support in day-active spaces—useful when clean room staff spend extended hours indoors. On color fidelity, Rf ≥ 80 per TM-30 is a reliable baseline for accurate visual assessment, while many ISO 5–7 spaces benefit from 90+ CRI for product inspection. For human factors, Steelcase research links better lighting and posture to improved cognitive performance and reduced fatigue in extended-focus work. See WELL Light and Steelcase research for reference.

In fast-moving production, measurable outcomes matter. Gensler’s workplace studies have shown that access to high-quality ambient and task lighting correlates with significantly higher perceived effectiveness; Herman Miller’s research ties glare control and ergonomic positioning to fewer visual complaints. In sterile environments, the unglamorous details—sealed housings, laminar-friendly photometrics, and low-UV output—quietly prevent failures. I plan lighting so it reinforces airflow strategy, simplifies cleaning, and stays consistent across shift changes.

Defining the Lighting Brief for Clean Rooms

Start with the process, not the fixture. Identify the clean room class (ISO 5–9), critical tasks (inspection, assembly, compounding), visual targets (lux, UGR, CRI/TM-30 Rf/Rg), and environmental constraints (temperature, pressure, humidity, chemical exposure). Lock in maintenance strategy early—if ceiling plenums are sealed and access is limited, select long-life LED engines (L90 ≥ 50,000–100,000 hours) with field-replaceable drivers to minimize downtime. For work zones, map illuminance: 500–1,000 lux for assembly/inspection, 300–500 lux for circulation/service corridors, and 1,000–1,500 lux for micro-inspection or microscopy-adjacent prep areas, adjusted by task and surface reflectance.

Regulatory and Research Touchpoints

Align with IES clean room and healthcare-adjacent standards for illuminance and glare control. Reference WELL v2 Light features for circadian-aligned exposure in long-shift environments and L09 glare management strategies. I adopt TM-30 metrics (Rf/Rg) over CRI alone for spectral quality decisions, especially where color differentiation is critical. For ergonomics, Steelcase and Herman Miller research on posture, visual comfort, and task performance helps justify task/ambient layering and flexible control scenes. Explore IES standards and WELL v2 guidance for detailed thresholds and strategies.

Fixture Selection: Sealed, Smooth, and Serviceable

Choose IP65 or higher, NSF/ISO-rated, sealed-edge luminaires with smooth, non-lipped trims to prevent dust accumulation. Recessed, flat-lens troffers or sealed grid-integrated backlit panels maintain laminar flow and simplify wipe-down. Specify high-transmission diffusers with microprismatic optics to limit UGR < 19 in precision zones. For task-critical stations, add sealed under-shelf or pendant task lights with high CRI/TM-30 Rf ≥ 90 and Rg ~ 100 for accurate color rendering.

Optics and Photometrics that Respect Airflow

Clean rooms rely on predictable airflow. Use low-profile, laminar-compatible housings that avoid turbulence; maintain setback from HEPA filters and coordinate cfm patterns with mechanical engineers. Narrow-to-medium distributions reduce stray light and minimize particulate disturbance. Keep uniformity ratios tight (avg:min ≤ 1.6:1 in critical areas) to avoid shadows where inspection accuracy matters.

Glare Control without Compromising Cleanability

Glare is the silent productivity killer. I control luminance with micro-baffle lenses, layered ambient/task lighting, and matte finishes on adjacent surfaces (LRV 30–70 across working planes for balanced contrast). Avoid deep louver cavities that trap dust; instead, specify sealed microprismatic or engineered film optics. For visual display terminals, aim monitors away from luminaires and maintain luminance ratios around 3:1 between task and surround.

Circadian and Shift-Friendly Strategies

Long shifts strain alertness. Following WELL-aligned guidance, I use cooler CCT (4,000–5,000K) during day shifts and shift toward neutral (3,500–4,000K) in the evening to reduce melatonin suppression before rest periods, while preserving color accuracy for tasks. Deliver sufficient vertical illuminance at the eye—achieved via high-ceiling ambient layers or indirect components outside the clean envelope (e.g., gowning areas)—to support alertness without adding glare on the line.

Color Rendering and Visual Accuracy

For product or pharmaceutical inspection, use TM-30 with Rf ≥ 90 and balanced gamut (Rg 95–105) to prevent hue bias. Avoid strong spectral peaks that distort material perception. Where fluorescence detection is used, reserve specialized spectral fixtures for dedicated stations and ensure they are interlocked to avoid exposure in general areas.

Thermal and Energy Considerations

Every watt becomes a thermal load the mechanical system must offset. High-efficacy LED luminaires (≥130 lm/W typical for sealed panels) reduce cooling demand. Pair with vacancy sensors, scheduling, and scene presets to lower energy during noncritical periods without compromising readiness. Keep drivers outside the most critical zones when possible for easier maintenance and lower heat concentration.

Controls and Commissioning

Programmed scenes—Start-up, Standard Operation, Inspection Boost, and Sanitation—standardize operations. Use dim-to-min without flicker (IEEE 1789-informed drivers) to protect microscopes and camera-based QA tools. Commission lux levels on site; measure vertical and horizontal illuminance at work height and confirm UGR and uniformity targets. Record baseline settings and train staff to prevent drift.

Surfaces, Reflectance, and Visual Balance

Surface finishes matter as much as lumens. I target wall reflectance of 70–80%, ceilings 80–90%, and work surfaces 30–50% to maintain contrast while controlling glare. Non-porous, matte or satin finishes minimize specular highlights and ease wipe-downs. Consistent color temperature across adjacent rooms (clean room, airlock, gowning) prevents visual adaptation stress.

Acoustic and Visual Quietness

Clean rooms can hum with equipment noise. Lighting should not add to it. Specify drivers with low acoustic noise and luminaires without rattling components. Use indirect lighting in support spaces to soften the environment and relieve cognitive load between intensive tasks.

Layout Coordination with Equipment and Workflow

Lighting follows process flow. Align fixtures to equipment banks and inspection lines; avoid casting shadows across conveyor sightlines or biosafety cabinet sashes. Maintain service aisles with lower illuminance to cue circulation. For planning iterations and clash checks, a room layout tool can help rapidly simulate fixture grids against equipment footprints and maintenance clearances: room layout tool.

Maintenance, Cleanability, and Lifecycle

Design for wipe-down cycles and chemical exposure. Choose gaskets and lenses compatible with common disinfectants (IPA, peroxide). Favor field-replaceable drivers and standardized form factors. Document L70/L90 projections and plan relamping intervals to maintain target lux over time; verify lumen maintenance with TM-21 data.

Validation and Ongoing Monitoring

After commissioning, schedule periodic light-level audits to catch output depreciation or optic haze. Integrate sensors to log usage and trigger maintenance prompts. In GMP environments, keep change-control records for any driver or board swaps.

Common Pitfalls I Avoid

- Over-bright ambient without task layering, yielding glare and visual fatigue.

- Deep-louver fixtures that collect dust and complicate cleaning.

- Ignoring vertical illuminance for staff alertness during long shifts.

- Spectral choices that distort color-critical inspection.

- Uncoordinated fixture grids that fight laminar flow or HEPA layouts.

Authority Resources Worth Bookmarking

For deeper benchmarks and research-backed strategies, explore WELL v2 Light features and IES lighting standards and recommended practices for laboratories and clean spaces.

FAQ

Q1. What illuminance levels should I target for clean room tasks?

A1. Typical assembly and compounding perform well at 500–1,000 lux on the work plane. Circulation can sit at 300–500 lux. Precision inspection may require 1,000–1,500 lux, verified on site. Use IES guidance and task analysis to fine-tune.

Q2. How do I reduce glare without creating dust traps?

A2. Use sealed, flat-lens luminaires with microprismatic optics to keep UGR < 19. Avoid deep louvers; rely on matte finishes and layered lighting to manage contrast. Position monitors to minimize reflected luminance.

Q3. Which color rendering metrics matter most?

A3. Prioritize TM-30: Rf ≥ 90 for accurate fidelity and Rg around 100 for balanced saturation. CRI 90+ is a simple proxy, but TM-30 gives a clearer picture for color-critical inspection.

Q4. Do I need tunable white in clean rooms?

A4. It helps in long-shift operations. Cooler CCT during day shifts supports alertness, while neutral evening settings reduce after-shift sleep disruption. Keep spectra consistent where color judgment is critical.

Q5. How should lighting coordinate with laminar airflow and HEPA filters?

A5. Choose low-profile, sealed fixtures compatible with laminar patterns, maintain setbacks from HEPA outlets, and avoid large protrusions that cause turbulence. Coordinate with mechanical drawings early.

Q6. What about maintenance in sealed environments?

A6. Select long-life LED engines (L90 50,000–100,000 hours), field-replaceable drivers, and chemical-resistant lenses/gaskets. Plan maintenance windows and document lumen maintenance with TM-21 projections.

Q7. How do controls support productivity and compliance?

A7. Program scenes for Standard, Inspection Boost, and Sanitation. Use vacancy sensors and schedules to reduce load off-shift. Ensure flicker-safe dimming (IEEE 1789-informed) for cameras and microscopes.

Q8. What surface reflectances work best to balance contrast?

A8. Aim for ceilings 80–90% reflectance, walls 70–80%, and work surfaces 30–50%. This stabilizes luminance ratios, reduces glare, and supports accurate visual judgment.

Q9. How can I validate that lighting meets targets?

A9. Commission on site: measure horizontal and vertical illuminance, check uniformity ratios, and verify UGR via photometric software. Re-audit annually to account for lumen depreciation.

Q10. Are there special considerations for pharmaceutical vs. electronics clean rooms?

A10. Pharma often emphasizes chemical resistance and sanitation cycles; electronics may require stricter ESD controls and highly uniform illumination to spot defects. Both demand sealed optics and airflow-compatible housings.

Q11. What efficacy should I expect from sealed clean room fixtures?

A11. Quality sealed LED panels and troffers commonly deliver 120–140 lm/W. Higher efficacy eases cooling loads and supports energy targets without sacrificing output.

Q12. Where should I place task lighting?

A12. Integrate sealed under-shelf or localized pendants at inspection stations, ensuring no shadows cross the task. Keep luminaires outside airflow-critical paths and confirm glare-free angles.
