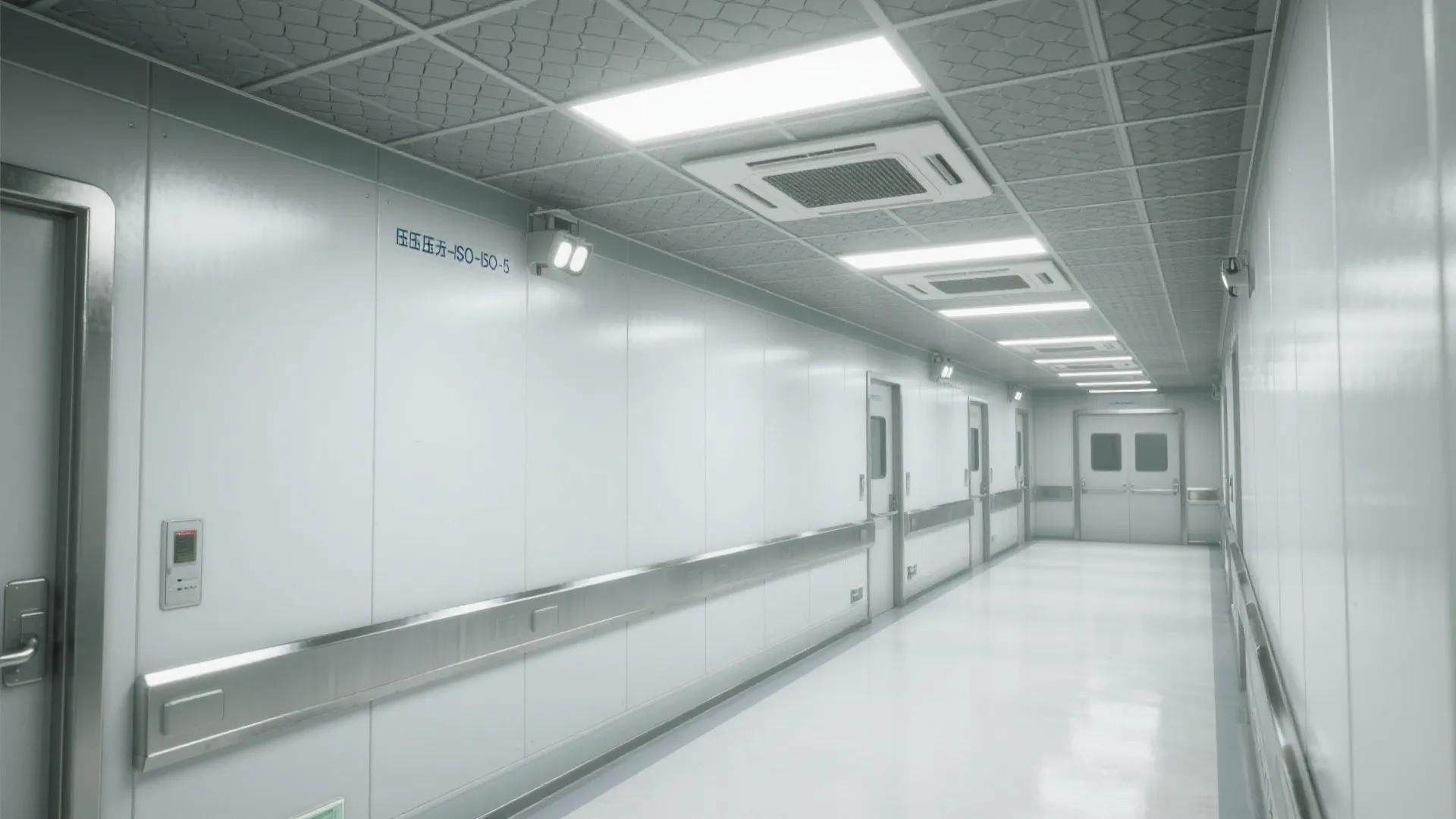

Clean Room Panels: Ultimate Guide for Spotless Spaces: Fast-Track Guide to Picking, Cleaning, and Maintaining Clean Room Panels

I’ve designed and upgraded clean rooms for pharma, microelectronics, and food labs where the panel choice quietly determines everything—from contamination risk and cleanability to lifecycle cost and audit outcomes. Panels aren’t just walls: they’re the pressure boundary, the cleaning surface, the microbial defense, and the cable/MEP chase. Getting them right means aligning materials, seams, and penetrations with the exact ISO class, process chemistry, and cleaning protocol your team lives with every day.

Performance targets must be grounded in measurable outcomes. Steelcase reports that environments controlling noise and visual clutter can boost task accuracy by 10–15%, a reminder that both acoustics and surface continuity matter in operator performance inside clean zones (source: Steelcase Research). WELL v2 further ties material emissions to occupant health by restricting VOCs and mandating cleanability in health-supportive environments (WELL v2, Materials and Cleaning protocols). For teams planning room adjacencies and airlocks, a room layout tool can help simulate flows and pressure boundaries before committing to panel types: room layout tool. For broader planning guidance on user behavior and workflow, see design research from Gensler Research.

What Clean Room Panels Do—Beyond the Surface

Clean room panels form a sealed, non-shedding enclosure that maintains pressure differentials, supports laminar flow, and withstands aggressive cleaning. Panels must deliver four outcomes: (1) ultra-low particle generation, (2) rapid cleanability and chemical resistance, (3) airtightness at joints and penetrations, and (4) structural stability under pressure cycling. Every decision—core, facing, seam, cove, gasket—affects these outcomes.

Core Types: Strength, Fire, and Moisture Behavior

Different cores balance stiffness, fire performance, and moisture resistance:

1. Aluminum honeycomb: Lightweight, very flat, dimensionally stable, excellent for ceilings and doors; good fire performance; higher cost.
2. Mineral wool: Noncombustible, robust fire ratings, decent acoustics; heavier; edges need careful sealing.
3. PIR/PUR foams: Strong and light; good thermal performance; check fire approvals and compatibility with solvents.
4. High-density EPS (limited use): Cost-effective but rarely preferred in higher ISO classes due to solvent sensitivity and fire concerns.

For pharma and ISO 5–7, I typically specify honeycomb or mineral wool cores for critical zones, reserving PIR for support spaces where solvent exposure is limited.

Facing Materials: Cleanability and Chemical Resistance

Surface chemistry dictates longevity. Typical options:

1. Powder-coated galvanized steel: Durable, economical, good scratch resistance; verify coating hardness and solvent tolerance.
2. Stainless steel (304/316L): Highest chemical resistance and thermal robustness; 316L preferred near chlorides and aggressive sanitizers; premium cost.
3. High-pressure laminate (HPL) or compact laminate: Smooth and cleanable; check compatibility with hydrogen peroxide vapor (VHP) and peracetic acid.
4. Glass fiber reinforced polyester (FRP): Non-porous, good chemical resistance; ensure food/pharma-grade resins.

Match finish to disinfectants: quats and alcohols are forgiving; oxidizers (VHP, sodium hypochlorite, peracetic acid) demand stainless or high-grade coatings rated for repeated exposure.

Seams, Joints, and Coving: Where Failures Start

Most contamination originates at transitions. I use flush, gasketed joints with concealed fasteners and continuous silicone (FDA-compliant) or welded PVC trims. Specify:

1. Floor-to-wall cove: 50–100 mm radius aluminum or PVC to prevent microbial harborage and allow mop clearance.
2. Ceiling-to-wall cove: Continuous to reduce turbulence pockets in high-velocity areas.
3. H-bottom tracks with double gaskets: Limits leakage and makes panel swaps faster during retrofit.
4. Pre-formed window frames with back-to-back flush glazing: Eliminates ledges; slope internal sills 3–5° to shed condensate.

Door frames and service chases are common leak points; I detail compressible gaskets and removable covers to support maintenance without breaking the pressure boundary.

Fire, Codes, and Testing You Should Actually Check

Don’t assume equivalence. Request current listings and test reports: ASTM E84 (surface burning), NFPA 286 (room corner), ASTM E119/UL 263 (fire resistance, when required), and ISO 14644 suitability declarations. In multi-tenant sites, confirm local fire ratings at corridors and shafts; sometimes only perimeter walls need a 1-hour rating, allowing lighter non-rated panels inside clean suites. Verify load and deflection under ±50–75 Pa pressure differentials typical for ISO 5–8 zones; ceiling panels should maintain flatness to protect laminar flow performance.

Acoustic and Behavioral Considerations

Clean rooms aren’t quiet by default—fans and HEPA turbulence add noise. Mineral wool cores improve speech privacy in gowning and QC rooms. Reducing reflected glare and visual clutter improves operator focus; research ties calmer environments to fewer errors, which aligns with Steelcase’s findings on performance uplift when distractions are controlled. Matte, low-gloss finishes reduce veiling reflections without compromising cleanability.

Lighting, Glare, and Color Strategy

Target even illuminance with minimal shadowing: 500–1,000 lux in most inspection and assembly zones, coordinated with IES task criteria. Keep correlated color temperature around 4000–5000K for visual acuity; avoid harsh 6500K unless process-specific. Use shallow-recess luminaires flush with the panel plane, sealed IP65+. Neutral, low-saturation wall colors reduce eye fatigue; color accents should guide behavior—e.g., coded airlocks and gowned pathways—without introducing pigment shedding.

Doors, Windows, and Penetrations

Flush-glazed view panels improve supervision and reduce entries. Use double-acting hinges or interlocks on airlocks to preserve pressure cascades. Penetrations (for utilities, sensors, pass-throughs) should be factory cut with welded sleeves; field cuts introduce burrs and particle traps. Provide stainless crash rails where carts pass and reinforce at equipment bump points.

Detailing Floors and Interfaces

Floors typically run resinous (EP, PU, or MMA) or dense sheet vinyl. I prefer a monolithic resin floor turned up the wall behind the cove by 100–150 mm. Coordinate expansion joints: seal with chemical-resistant, flush elastomeric sealants; avoid exposed metal covers in high-clean zones. Ensure flush thresholds at doors to avoid turbulence and snag points.

Ceilings and HEPA Integration

Ceiling panels carry filters, lights, and sprinklers. For ISO 5–6, a walkable aluminum-honeycomb grid with gasketed filter modules maintains flatness and allows above-ceiling access without entering the clean zone. Seal all grid intersections; specify deflection limits to protect laminar velocity uniformity across the work plane.

Planning the Suite: From Gowning to Grade A

Arrange spaces to maintain directional flow: general corridor → support → gowning → airlock → critical zone, with pressure steps of roughly 5–15 Pa per transition. Early in design, I map people, product, and waste flows on a layout simulation tool to test adjacency conflicts and interlocks before procurement: layout simulation tool. This reduces costly rework when panel runs and service cores are already ordered.

Cleaning Protocols and Material Longevity

Match surfaces to your SOPs. If you fog VHP weekly, prioritize stainless or VHP-rated coatings; if you rely on IPA, high-quality powder coat may suffice. Specify rounded fasteners, captive hardware, and removable trims to accelerate wipe-down. Document compatible agents and maximum exposure cycles in closeout manuals; it saves panels years 3–7 when teams rotate disinfectants.

Installation, Commissioning, and Maintenance

Require factory drawings with panel IDs, joint maps, and penetration schedules. On site, enforce clean cuts, sealed edges, and protection film until handover. During commissioning, smoke-pencil or tracer visualize leakage at joints and door undercuts; verify pressure cascades under door cycling. Plan a panel spare kit—extra coves, gaskets, and two full-height panels for rapid swap after an impact incident.

Cost, Lead Times, and Lifecycle

Panels are a long game: stainless and honeycomb cost more up front but reduce replacement frequency under harsh cleaning. Consolidate door and window types to compress lead times. If expansion is likely, use demountable panel systems with repeatable modules (e.g., 300/600/1200 mm widths) and standardized chase bays for future utilities.

Specification Checklist (Cut-and-Use)

1. Core: honeycomb or mineral wool in critical zones; PIR in support areas with documented fire approvals.
2. Facing: stainless 316L or high-grade powder coat rated for your disinfectants.
3. Joints: flush, gasketed, concealed fasteners; FDA-compliant sealants; continuous coves.
4. Openings: flush glazing, interlocked doors, reinforced crash points.
5. Ceiling: gasketed, walkable where needed; deflection and flatness criteria.
6. Fire: referenced test standards with current listings.
7. Lighting: flush, sealed, 4000–5000K, 500–1,000 lux where tasks require.
8. Acoustics: mineral wool where speech privacy matters; matte finishes to reduce glare.
9. Maintenance: documented cleaning compatibility; spare kit; removable trims.

FAQ

What panel core is best for ISO 5 areas?

I prefer aluminum honeycomb or mineral wool. Honeycomb provides excellent flatness and low weight; mineral wool offers noncombustibility and better acoustic absorption. Choose based on fire requirements, ceiling loads, and chemical exposure.

How do I prevent particle traps at panel joints?

Use flush, gasketed joints with concealed fasteners, continuous coves at floor and ceiling, and factory-finished penetrations. Avoid surface-mounted trims that create ledges.

Are powder-coated steel panels compatible with vaporized hydrogen peroxide (VHP)?

Some are, some aren’t. Request third-party compatibility data and cycle-tested results. If VHP is frequent, stainless 316L or verified coatings are safer.

What illuminance and color temperature should I target?

Provide 500–1,000 lux for inspection and assembly, coordinated to IES task guidance, at 4000–5000K CCT to balance visual acuity and comfort. Use sealed, flush luminaires to maintain the clean envelope.

Do clean room panels need fire ratings?

Only where code requires (e.g., along corridors or separations). Inside suites, many partitions are non-rated. Verify with local code and require ASTM/NFPA test reports for rated assemblies.

How do doors maintain pressure cascades?

Use interlocks on airlocks, proper undercut seals, and closer timing to reduce pressure loss. Double-check leakage with smoke tests during commissioning.

Can I reconfigure demountable panels later?

Yes. Modular systems with standardized widths and gasketed tracks allow relocation. Plan spare modules and keep a joint map for faster rework.

What’s the best way to manage penetrations for utilities?

Factory-cut openings with welded or sealed sleeves are ideal. Field cuts should be minimized and sealed immediately with compatible trims and sealants.

How do panels impact acoustics and operator performance?

Mineral-wool cores and matte finishes reduce reverberation and glare, improving focus. Research from Steelcase links reduced distractions to measurable gains in task accuracy.

Which colors support visual comfort in clean rooms?

Neutral, low-gloss finishes in light grays or warm whites minimize glare and eye fatigue. Reserve saturated colors for wayfinding and zone coding, not large wall fields.

What maintenance plan extends panel life?

Document approved cleaners, train staff on dwell times, inspect gaskets quarterly, replace damaged trims immediately, and stock spare panels and coves for rapid repairs.

How should ceilings be detailed around HEPA filters?

Use gasketed filter modules integrated into a flat, rigid ceiling grid with tight deflection limits to protect laminar flow and prevent bypass.
