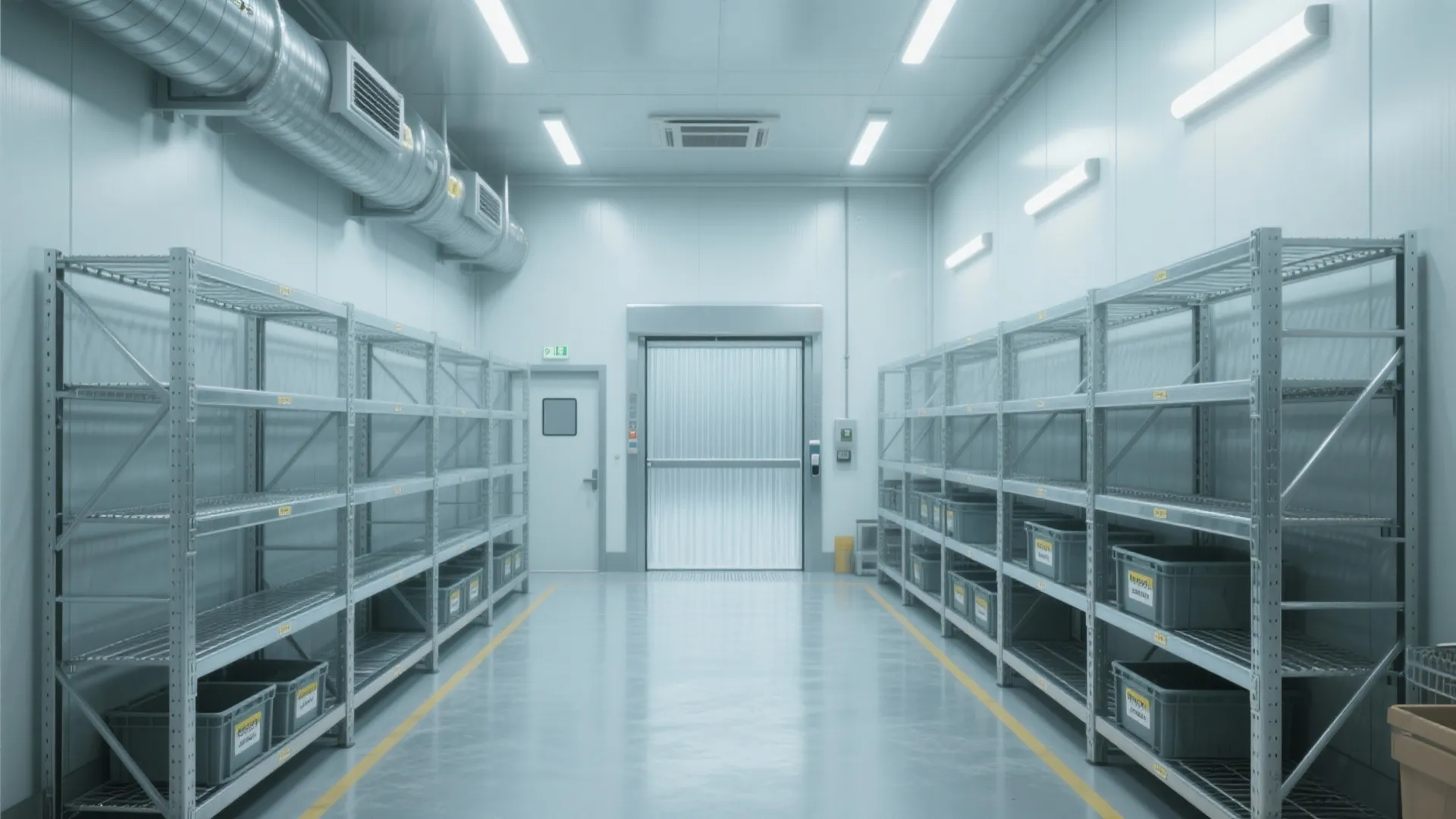

Cold Room Freezer Design: Essential Tips for Efficient Storage: 1 Minute to Master Cold Room Freezer Setup & Save on Energy Costs

I’ve designed and audited dozens of walk-in freezers and cold rooms across food service, pharma storage, and specialty retail. The best-performing spaces always pair disciplined layout with rigorous environmental control—temperature, humidity, light, acoustics, and workflow all matter. Storage density is important, but never at the expense of safe circulation, thermal stability, or maintenance access.

Two data points guide my early decisions. First, lighting heat load: modern LED luminaires can cut lighting energy by roughly 50%–70% compared with legacy sources and reduce unwanted heat gain—WELL v2’s Light concept emphasizes glare control and flicker mitigation that also benefit visual performance in cold, high-reflectance environments (see WELL v2 L04–L08 at v2.wellcertified.com). Second, workflow utilization: Gensler’s workplace research consistently shows that clear, intuitive circulation improves process efficiency; in storage environments, I target continuous 900–1,200 mm (36–48 in) aisles for picking zones and 1,500 mm (60 in) for pass-throughs supporting carts and pallet jacks, balancing density with safety (gensler.com/research).

Standards also shape the lighting layer: I design task illuminance near picking faces at 200–300 lux using sealed, NSF-rated LED fixtures with 4000–5000K CCT for crisp color rendering and low afterimage in reflective foil packaging. IES recommendations on vertical illuminance and glare control help tame specular reflections on shrink-wrap and stainless finishes (ies.org/standards). These numbers keep visibility high without adding unnecessary heat or encouraging frost melt–refreeze cycles.

Plan the Thermal Envelope First

The envelope sets your ceiling for efficiency. I specify high-R insulated panels with thermal-break cam-lock joints, continuous vapor barriers, and insulated floors with load-rated substructures. Pay attention to door strategy—swing and sliding doors need aggressive gaskets, heated thresholds as required, and tight closers to prevent infiltration. For high-traffic openings, pair strip curtains with fast-roll doors and a vestibule when footprint allows to limit warm, moist air ingress that drives frost and compressor cycling.

Map Workflow and Circulation Before Racking

I start with inbound-to-outbound flow: receiving near the door, quarantine or staging, then primary storage, then picking/packing. Where layout is still flexible, I validate different aisle widths, turning radii, and pallet positions with a room layout tool to avoid dead zones and unsafe pinch points: room layout tool. Keep at least one continuous loop for circulation to avoid backing with pallet jacks; reserve straight, unobstructed lanes to evaporator units and electrical panels for service.

Select Racking Systems That Match Load and Temperature

Static selective racks offer the best SKU accessibility and are ideal for high-mix, low-volume operations. For higher density, consider drive-in/drive-through for homogeneous pallets or mobile racking where vibration and rails are acceptable. In pharmaceutical cold rooms, I favor epoxy-coated wire shelving to prevent dust accumulation and allow uniform air circulation around totes. Shelf depth should align with product cartons to avoid shadowed zones that trap warm air.

Air Distribution and Coil Placement

Evaporator coils should not blow directly onto doorways or picking stations; aim for a slow, uniform air sweep across faces of stored goods. Avoid locating coils over high-traffic paths where condensation risk increases. I maintain clearances per manufacturer guidance (often 450–600 mm around coils) and keep racking tops at least 300 mm below the ceiling to prevent short-circuiting airflow. Use baffles to mitigate drafts where staff linger and to prevent stratification in tall rooms.

Lighting: Bright, Sealed, and Low-Heat

In freezers, LEDs with sealed housings and IP65 or higher ratings are non-negotiable. I target 200–300 lux on vertical faces, glare index control with diffusers, and consistent 4000–5000K color temperature for contrast on labels. Occupancy sensors reduce run-time; pairing them with slow-fade off prevents nuisance darkness during brief stillness. Emergency egress lighting must be independent and cold-rated. Lower heat gain from LEDs trims compressor load—an indirect but meaningful energy win supported by WELL v2’s emphasis on efficient, comfortable lighting practice.

Ergonomics and Human Factors at Subzero

Cold affects dexterity and perception. Keep heaviest items between knee and chest height (roughly 500–1,400 mm) and use handles or perforated totes that can be gripped with gloves. Establish frequent micro-warm breaks for staff. High-contrast label schemes improve read rates in 4000–5000K light; avoid glossy label stock to prevent glare. Vertical signage should be mounted outside primary airflow from coils to prevent frosting.

Moisture Management and Frost Control

Frost is a design problem, not just a maintenance one. Reduce door cycles with batching; add air curtains or vestibules for high-frequency access. Heat tracing at thresholds and door frames prevents ice bonding; pitched floors (1–2%) towards heated drains keep meltwater from pooling. Specify non-slip, low-porosity surfaces and avoid open grates that can freeze. Ensure defrost cycles are scheduled to avoid peak picking windows; verify condensate routing is heat-traced all the way to temperate zones.

Material Selection and Hygiene

In food and pharma applications, choose finishes that handle repeated thermal cycling, washdowns, and sanitizers: stainless or food-grade aluminum for kick plates and guards, high-build epoxy for floors with aggregate for traction, and antimicrobial gaskets where allowed. Wire shelving outperforms solid shelves for air circulation; closed bins require venting or should be spaced off the wall to prevent cold pockets and condensation.

Acoustic and Vibration Considerations

Cold rooms can be loud—evaporator fans, defrost crackle, and forklifts create a harsh soundscape. Soft materials are limited by hygiene, but targeted vibration isolation on equipment and door hardware reduces structure-borne noise. Where staff dwell, incorporate rubber toe plates, wheel materials with lower noise profiles, and schedule louder defrosts off-shift.

Controls, Monitoring, and Redundancy

Install independent temperature and humidity sensors at multiple heights and locations, not just near the thermostat. Data logging with alerts is essential for critical storage. Redundant compressors or N+1 capacity for high-value inventories protect against spoilage; hot gas defrost and EC fan motors improve efficiency. Calibrate sensors regularly and test alarms under load.

Space Ratios and Visual Balance

As a rule of thumb, I allocate roughly 65–75% of floor area to storage, 15–20% to circulation, and the remainder to staging and service access, then iterate based on SKU profile and pallet turns. Keep sightlines clear from the entrance to key zones; maintain consistent bay widths to support visual rhythm and reduce operator errors in fast picks.

Commissioning and Maintenance Access

Design the room so it can be cleaned and serviced: removable kick plates, coil catwalks where ceiling heights exceed 4 m, and swing clearance for panels. Mark maintenance aisles on the floor and enforce them. Commissioning should include light level measurements, airflow balancing, defrost validation, and door seal pressure tests.

Scalability and Future-Proofing

Plan for growth: oversize electrical capacity for additional LED runs and sensors, leave wall chases for future data lines, and choose racking that can add a level without replacing uprights. If you might introduce mobile racks later, coordinate floor flatness, rail recesses, and load capacity at the slab design stage.

Quick Checklist

1. Envelope: high-R panels, continuous vapor barrier, insulated floor
2. Doors: heated thresholds as needed, vestibule for high-traffic
3. Layout: continuous loop circulation; validate with an interior layout planner
4. Racking: match to SKU mix; protect airflow and clearances
5. Lighting: 200–300 lux vertical, 4000–5000K, IP65, occupancy sensors
6. Ergonomics: heaviest items between 500–1,400 mm; high-contrast labels
7. Moisture: pitched floors, heated drains, scheduled defrost
8. Monitoring: multi-point sensors, alerts, and redundancy for critical loads

FAQ

1) What aisle widths work best in a freezer?

For hand picking, 900–1,200 mm (36–48 in) is efficient; for pallet jacks or two-way passing, target 1,500 mm (60 in). Maintain dedicated service aisles to coils and panels.

2) How much light do I need without adding heat?

Design for 200–300 lux on vertical picking faces using sealed LED fixtures at 4000–5000K. LEDs cut heat gain compared to legacy lamps and maintain visibility in reflective packaging.

3) Which racking is most efficient for high SKU variety?

Selective static racking provides direct access and faster picks. Drive-in or mobile systems suit homogeneous, high-volume pallets but reduce selectivity.

4) How do I reduce frost at doorways?

Combine fast-roll doors with strip curtains, add a small vestibule if possible, heat-trace thresholds, and schedule consolidated picking to reduce door cycles.

5) What materials hold up to washdowns and subzero temps?

Use insulated metal panels with food-safe coatings, stainless guards, epoxy aggregate floors, and epoxy-coated wire shelving. Avoid porous finishes that trap moisture.

6) Where should evaporator coils be installed?

Place coils to promote uniform airflow across racking, not at doorways or above dwell areas. Preserve 300 mm clearance to the ceiling and 450–600 mm around units for service.

7) How do I integrate sensors and alarms effectively?

Install multiple temperature and humidity sensors at different heights and zones, connect to data logging with thresholds and notifications, and test under load during commissioning.

8) Can lighting improve accuracy in cold rooms?

Yes—consistent 4000–5000K light with controlled glare enhances contrast on labels, improving read rates and reducing errors, especially with foil or glossy packaging.

9) What floor design prevents ice and slips?

Specify a slight slope (1–2%) toward heated drains, non-slip epoxy with aggregate, and avoid open grates that can freeze. Keep squeegees and mats for entry zones.

10) How do I plan for future expansion?

Reserve electrical capacity, include empty conduits, coordinate slab capacity and flatness for potential mobile racking, and choose modular racking that can add levels.

11) What color temperature is best for product identification?

Use 4000–5000K to keep whites neutral and text crisp. Cooler CCTs aid contrast without the starkness that can cause visual fatigue in low-reflectance packaging.

12) How often should defrost cycles run?

Follow manufacturer guidance and schedule away from peak picking; monitor frost buildup and adjust frequency to minimize product temperature drift and condensation.
