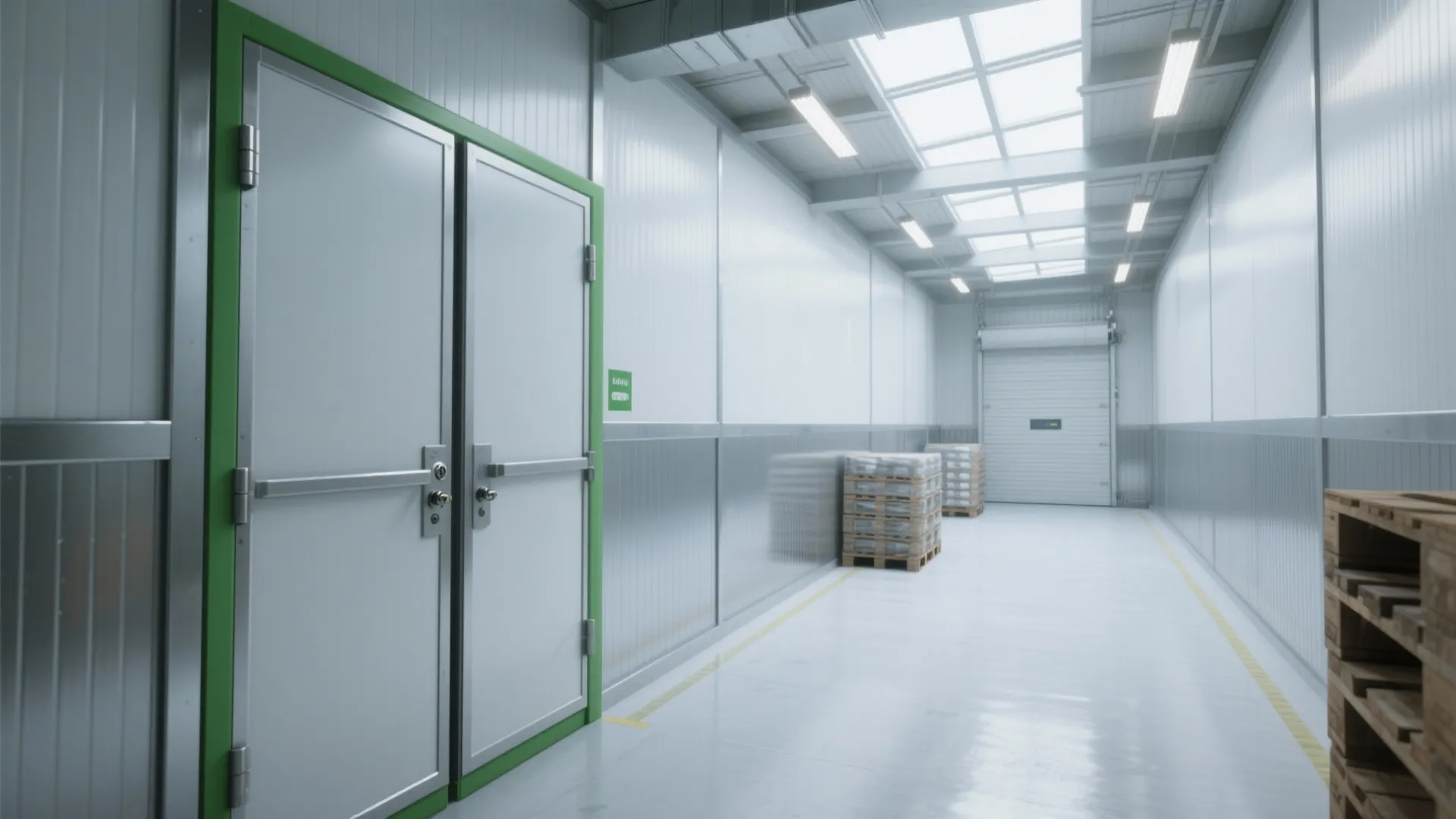

Cold Room Panels: The Ultimate Guide for Efficient Insulation: Fast-Track Guide to Choosing Cold Room Panels in 1 Minute

I design cold rooms for food service, pharma, and floriculture clients who need dependable temperature control and predictable operating costs. Cold room panels—insulated, modular wall, ceiling, and floor components—sit at the heart of that performance. Done right, they lock in temperature, control moisture, and deliver airtight continuity across doors, junctions, and penetrations. Done poorly, you get energy drift, frost, and product loss.

Energy use in cold storage is no small line item. According to WELL v2 guidance on thermal comfort and envelope integrity, maintaining tight thermal zoning reduces energy waste and occupant risk in conditioned environments. Steelcase research has documented that well-calibrated ambient conditions impact human performance, with temperature and acoustics forming part of overall environmental comfort, which matters in service corridors and packing zones adjoining cold rooms. From my projects, tightening envelope leakage and resolving thermal bridges typically yields 8–15% energy savings compared to baseline builds.

Light matters too, especially at the threshold between cold and ambient spaces. The Illuminating Engineering Society (IES) recommends appropriate horizontal illuminance for task areas; most staging and packing zones perform well at 300–500 lux, while cold room interiors used for quick retrieval often work at 200–300 lux with low-glare fixtures to minimize reflection off white panels and condensation. Matching panel finishes with glare-controlled luminaires reduces visual fatigue for staff rotating between environments.

Understanding Cold Room Panels

Cold room panels are factory-fabricated sandwich assemblies—typically a metal skin bonded to a rigid insulation core—with interlocking joints for rapid installation and airtight continuity. Panels form walls, ceilings, and sometimes floors, integrating with vapor barriers, doors, and service penetrations. The goal: high R-value, low thermal bridging, robust moisture control, and a cleanable, food-safe surface.

Core Materials: PIR, PUR, and Mineral Wool

I choose the core by balancing thermal performance, fire behavior, and cost. Polyisocyanurate (PIR) offers higher R-value per inch than polyurethane (PUR), making it ideal when space is tight. PUR remains a cost-effective workhorse with good thermal resistance. Mineral wool brings non-combustibility and acoustic dampening, useful for server-adjacent or mixed-use facilities, although it has lower R-value per thickness than PIR/PUR. In most food storage applications, PIR wins on performance-to-thickness; for extended fire resistance or acoustic separation, mineral wool is a strategic insert.

Panel Skins and Finishes

Exterior skins are typically pre-painted galvanized steel (often food-safe coatings), stainless steel in high-abrasion or corrosive zones, or aluminum for lightweight applications. I specify ribbed profiles for stiffness on large spans and smooth panels in wash-down rooms for hygiene. Finishes should be chemical-resistant, low-porosity, and color-stable. Color psychology plays a subtle role: neutral whites and light grays improve visibility and perceived cleanliness; high-chroma accents on door frames aid wayfinding under low temperatures where visual acuity drops.

Thermal Performance: R-Values and U-Factors

When calculating panel thickness, I target whole-assembly performance—panel R-value plus joints, fasteners, and interfaces. PIR panels commonly achieve R-6 to R-8 per inch. For -18°C freezers, 120–150 mm PIR can be appropriate depending on climate and runtime; for +2°C coolers, 80–120 mm may suffice. Pay attention to joint design: cam-locks and tongue-and-groove edges reduce linear thermal bridging. I pair this with thermally broken fasteners at structural interfaces where feasible.

Vapor Control and Hygrothermal Behavior

Vapor pressure wants to move from warm to cold. A continuous interior vapor barrier—often the panel’s metal skin and sealed joints—prevents moisture ingress, ice formation, and mold. I specify sealants compatible with low temperatures and repeated wash-downs. All penetrations (conduit, piping) get oversized sleeves, insulated collars, and vapor-tight gaskets. Keep electrical boxes off cold-side surfaces where possible to reduce cold spots and condensation.

Joint Integrity and Airtightness

Physics beats caulk. The best assemblies rely on mechanical continuity: interlocking joints, continuous gaskets, and cam-lock compression. I test seams with smoke or pressure methods ahead of commissioning. Airtightness drives energy performance and frost control; gaps at corners, floor-wall junctions, and ceiling interfaces are the most common culprits.

Floor Systems and Thermal Breaks

Floors take a beating from pallet jacks and moisture. In freezers, I specify insulated floors with vapor barriers and heat tracing or subfloor ventilation to avoid frost heave. Thermal breaks at door thresholds and structural steel reduce cold migration. Non-slip, food-safe finishes with coves ease cleaning and protect joints from water intrusion.

Doors, Hardware, and Traffic Planning

Doors are the biggest energy leak if mis-specified. I use insulated swing or sliding doors with tight seals, heated frames in freezers to prevent icing, and fast roll-up doors for high-traffic docks. Installing air curtains at busy portals helps stabilize temperature layers. Hardware should be ergonomic with gloved operation, and kick plates or bumpers protect panel edges from carts.

Lighting and Visual Comfort

Under cold conditions, lamp output and color rendering change. I favor sealed LED luminaires rated for low temperatures, 3500–4000 K for balanced visibility in staging, and 3000–3500 K inside rooms where glare control matters more than color pop. Following IES task lighting targets reduces eye strain and improves accuracy. Anti-glare diffusers and strategic fixture placement cut specular reflection off glossy panels.

Acoustic Comfort Around Cold Rooms

Compressor hum and door roll-up assemblies create noise. In mixed-use facilities, mineral wool panels in corridor walls and acoustic ceilings in staging areas help keep levels reasonable. Steelcase research has tied acoustic comfort to error reduction and wellbeing; the same principle holds at docks where teams coordinate under time pressure.

Layout and Modularity

Panelized construction shines when layouts need to evolve. I plan clear service corridors, straight-line traffic for pallet flow, and buffer vestibules between ambient and cold zones. For clients anticipating growth, modular bays and demountable partitions reduce future downtime and waste. To visualize adjacencies and aisle widths before committing to panel runs, a room layout tool can accelerate iterations and reduce errors during coordination: room layout tool.

Hygiene, Cleaning, and Material Durability

Cold rooms invite condensation and organic residue. I specify smooth, sealed corners, food-safe coatings, and floor-to-wall coves to avoid grime traps. Stainless steel skins in high-splash zones and reinforced panel bases near floor level improve longevity. Cleaners should be compatible with coatings; verify chemical resistance as part of submittals.

Fire and Safety Considerations

Choose cores with documented fire performance and verify local code compliance. Mineral wool adds resilience in egress corridors; PIR/PUR panels must carry appropriate approvals. Mark exits and routes with cold-rated signage and luminous markings that remain legible at low temperatures.

Sustainability and Lifecycle

Sustainability begins with envelope performance and extends to service life. Durable skins reduce replacement cycles; modularity improves reuse. I evaluate global warming potential of insulation, panel recyclability, and the impact of reduced energy demand. Smart controls—door alarms, occupancy-triggered lighting, and temperature monitoring—tighten operations without compromising workflow.

Installation Best Practices

Good installs start with level substrates and verified square. I choreograph panel runs from corners outward, checking joint compression and gasket continuity. Penetrations are pre-planned and sealed immediately. Doors and thresholds get set last to avoid damage. Commissioning includes thermal imaging and seal checks before loading product.

Maintenance and Monitoring

Quarterly inspections catch seal failures, hinge misalignment, and coating wear. Calibrate thermometers and data loggers; review patterns for drift that might hint at a joint or door issue. Keep spare gaskets and fasteners on hand for quick turnarounds.

Cost Planning and ROI

Upfront costs vary with core type, thickness, skins, and doors. I build ROI cases around energy savings, reduced product loss, and maintenance. Thicker PIR panels and properly heated door frames pay back in colder climates. Modularity cuts renovation costs when programs shift.

Authority Resources

For envelope wellness criteria and environmental comfort, see guidance from WELL v2: v2.wellcertified.com. For task lighting levels and low-temperature fixture considerations, consult relevant IES standards: ies.org/standards.

FAQ

What panel thickness is typical for walk-in freezers?

For -18°C freezers, 120–150 mm PIR is common, depending on climate, runtime, and target energy use. Joint quality and door specification can be as important as thickness.

Is PIR always better than PUR?

PIR offers higher R-value per inch and often better fire performance, but PUR may be more cost-effective. I match the core to temperature setpoint, fire requirements, and budget.

Do I need an insulated floor?

Freezers usually require insulated floors with vapor barriers and measures against frost heave (heat tracing or subfloor ventilation). Coolers may work with thermal breaks and high-quality thresholds depending on slab conditions.

How do I prevent condensation at doors?

Use heated frames, tight seals, fast roll-up doors for high-traffic zones, and consider air curtains. Ensure vapor-tight continuity at jambs and overhead tracks.

What lighting levels work inside cold rooms?

For quick retrieval tasks, 200–300 lux with low-glare LED fixtures is effective. In staging and packing areas, 300–500 lux per IES recommendations improves accuracy.

Can panels be reconfigured later?

Yes. Modular, cam-lock panels can be demounted and reinstalled. Plan structural clearances and service routing so future changes are straightforward.

How do I verify airtightness?

Perform smoke or pressure tests at seams, thermal imaging during commissioning, and monitor temperature drift via data loggers. Inspect corners, floor-wall, and ceiling junctions closely.

Are mineral wool cores suitable for food storage?

They are useful where fire resistance and acoustics dominate, but their lower R-value means thicker assemblies. For most food cold rooms, PIR or PUR are preferred for thermal efficiency.

What finish should I choose for hygiene?

Smooth, food-safe coated steel or stainless steel in splash zones. Avoid microtextured coatings that trap residue; specify coved transitions at floors.

How do acoustics impact adjacent work areas?

Compressor noise and door mechanisms can elevate stress and error rates. Adding acoustic treatments and mineral wool partitions reduces exposure and supports performance.

What’s the typical payback for thicker panels?

In colder climates, upgrading from 100 mm to 150 mm PIR can pay back within a few years through energy savings, provided doors and joints are well detailed.

Do I need special hardware for low temperatures?

Yes. Choose gloved-operation handles, cold-rated gaskets, and corrosion-resistant hinges. Heated door frames are essential in freezers to prevent icing.
