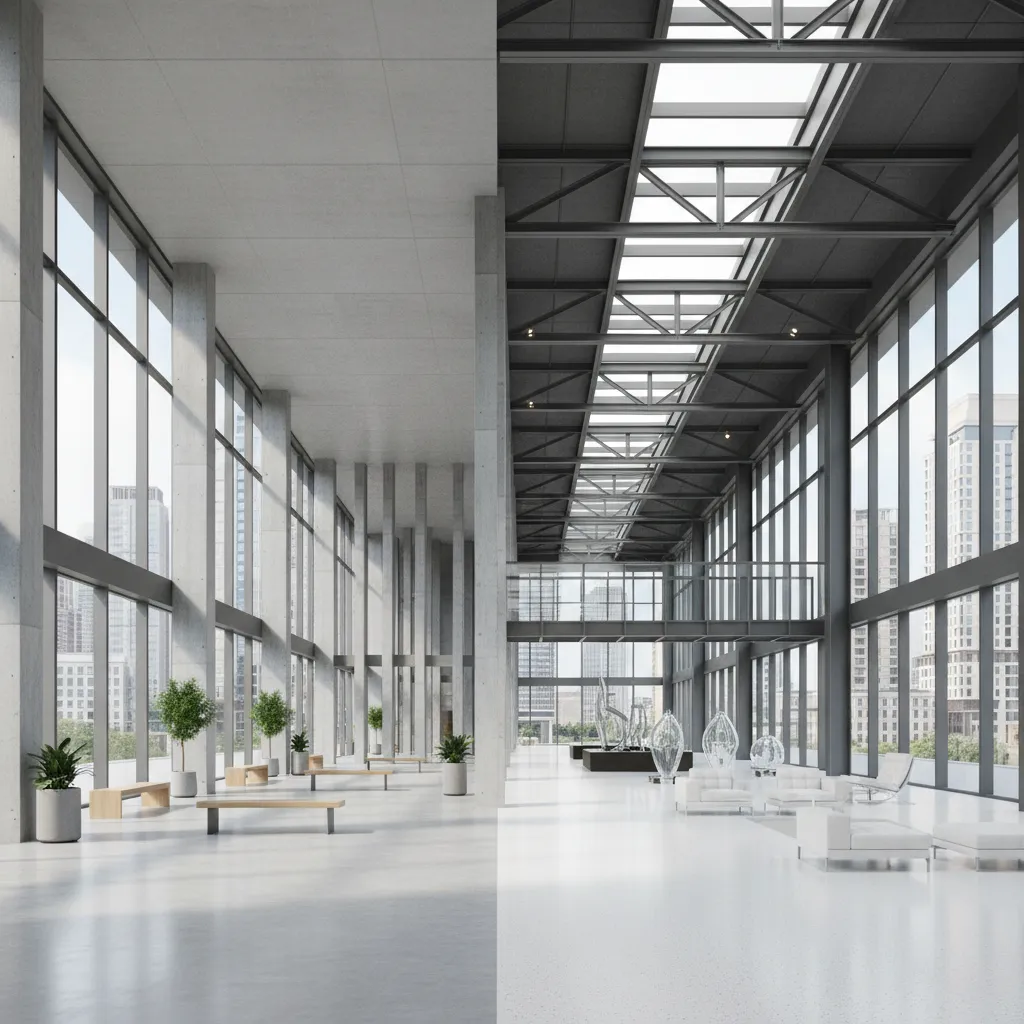

Column Grid vs Long Span Beam Systems for Open Floor Plans: How structural systems shape flexible interiors and determine how many columns your open floor plan really needs

Direct Answer

Column grid systems use frequent structural columns to support floors, while long span beam systems rely on deeper beams or girders to carry loads across larger distances. For open floor plans, long span systems reduce interior columns and increase layout flexibility, but they usually cost more and require deeper structural members.

Choosing between them depends on span length, budget, building type, and how important uninterrupted interior space is to the design.

Quick Takeaways

1. Column grid systems are typically the most economical structural solution.
2. Long span beams reduce interior columns and enable large open floor plans.
3. Longer spans often require deeper beams or steel framing.
4. Architectural flexibility increases as column density decreases.
5. Structural decisions early in design strongly affect interior layout freedom.

Introduction

In almost every open-plan project I've worked on, the same tension shows up early in design meetings: architects want fewer columns, while engineers want efficient load paths. That debate usually leads to one key decision—whether the building will rely on a column grid or a long span beam system.

The difference between these two structural systems directly shapes how open your interior can be. Restaurants, offices, retail floors, and modern residential buildings all depend on wide spans to create flexible layouts.

But here's something many guides miss: removing columns is not just a structural question. It affects ceiling height, mechanical routing, cost per square foot, and even furniture planning. I’ve seen projects redesign entire layouts after realizing the structural grid conflicted with interior circulation.

If you're trying to visualize how structural spacing affects room layouts, experimenting with different span scenarios in a digital floor plan layout planning workflowcan reveal conflicts before construction documents begin.

In this article, I'll walk through how column grid and long span beam systems actually perform in real buildings, where each approach shines, and the hidden trade‑offs that most comparison guides gloss over.

save pin

Why Column Density Matters in Open Floor Plans

Key Insight: The number of structural columns directly determines how flexible an interior layout can be.

In structural engineering, column spacing defines the "structural grid." This grid becomes a permanent framework that everything else must work around—walls, mechanical shafts, furniture layouts, even lighting patterns.

From experience, once columns are placed, designers rarely move them later without major cost increases.

Common span ranges in commercial buildings:

1. Concrete column grid: 20–30 ft spans
2. Steel composite framing: 30–40 ft spans
3. Long span steel beams or trusses: 40–80+ ft spans

Why this matters for design:

1. Fewer columns allow flexible office or retail layouts.
2. Columns can disrupt circulation paths.
3. Large spans support future layout changes.

According to the American Institute of Steel Construction, longer spans often increase structural depth but dramatically reduce interior obstructions, which is why retail stores and convention spaces favor wide-span framing.

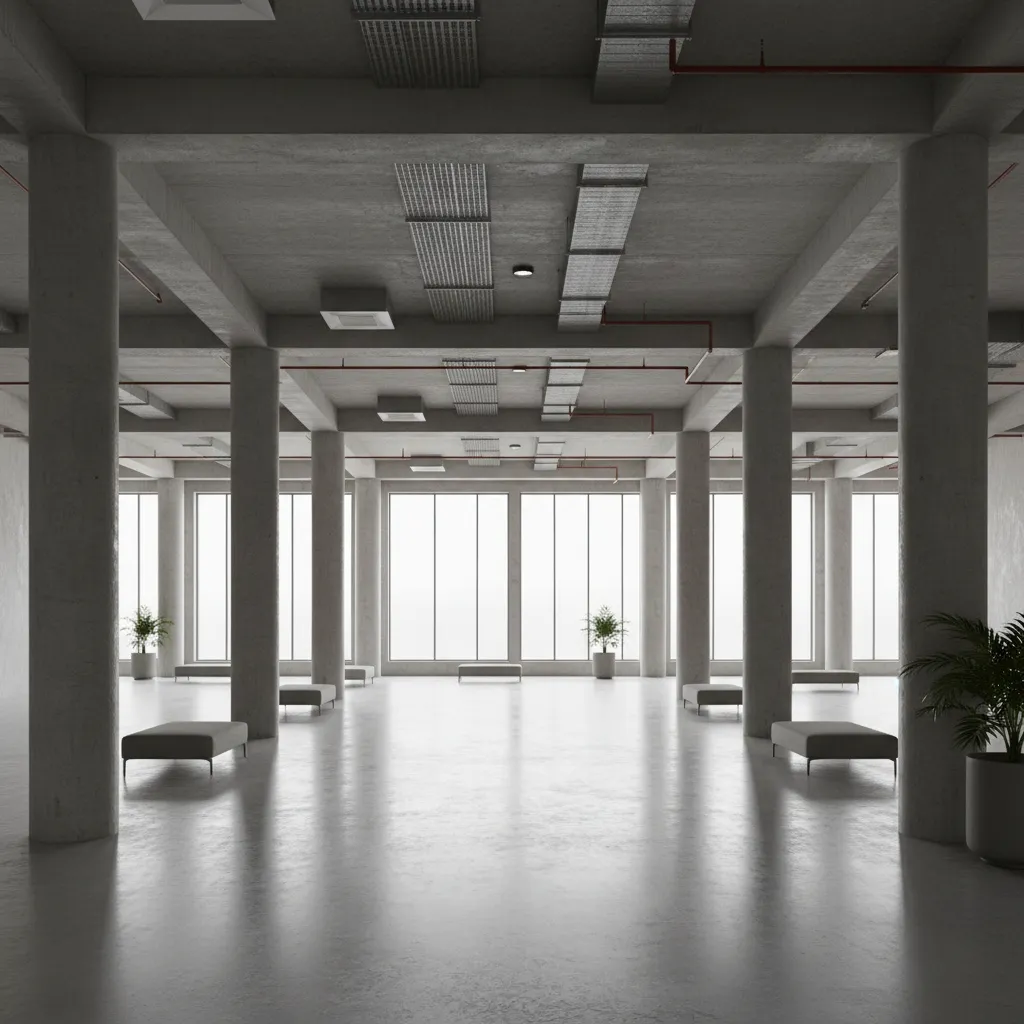

Traditional Column Grid Systems Explained

Key Insight: Column grid systems prioritize structural efficiency and cost control by distributing loads through many closely spaced supports.

This is the most common structural approach in mid‑rise buildings. Loads transfer from slab to beams to columns at regular intervals.

Typical characteristics:

1. Regular grid spacing (often 20–30 ft)
2. Shallower beams
3. Lower material cost
4. Simpler engineering

Advantages of column grid structures:

1. Lower structural steel or concrete usage
2. Predictable load paths
3. Efficient construction sequencing

Hidden limitation designers often overlook:

1. Columns frequently land in inconvenient locations for interiors.
2. Furniture layouts become constrained.
3. Future renovation flexibility decreases.

In office renovations I’ve consulted on, column spacing was often the biggest constraint when companies tried converting traditional office floors into collaborative open workspaces.

save pin

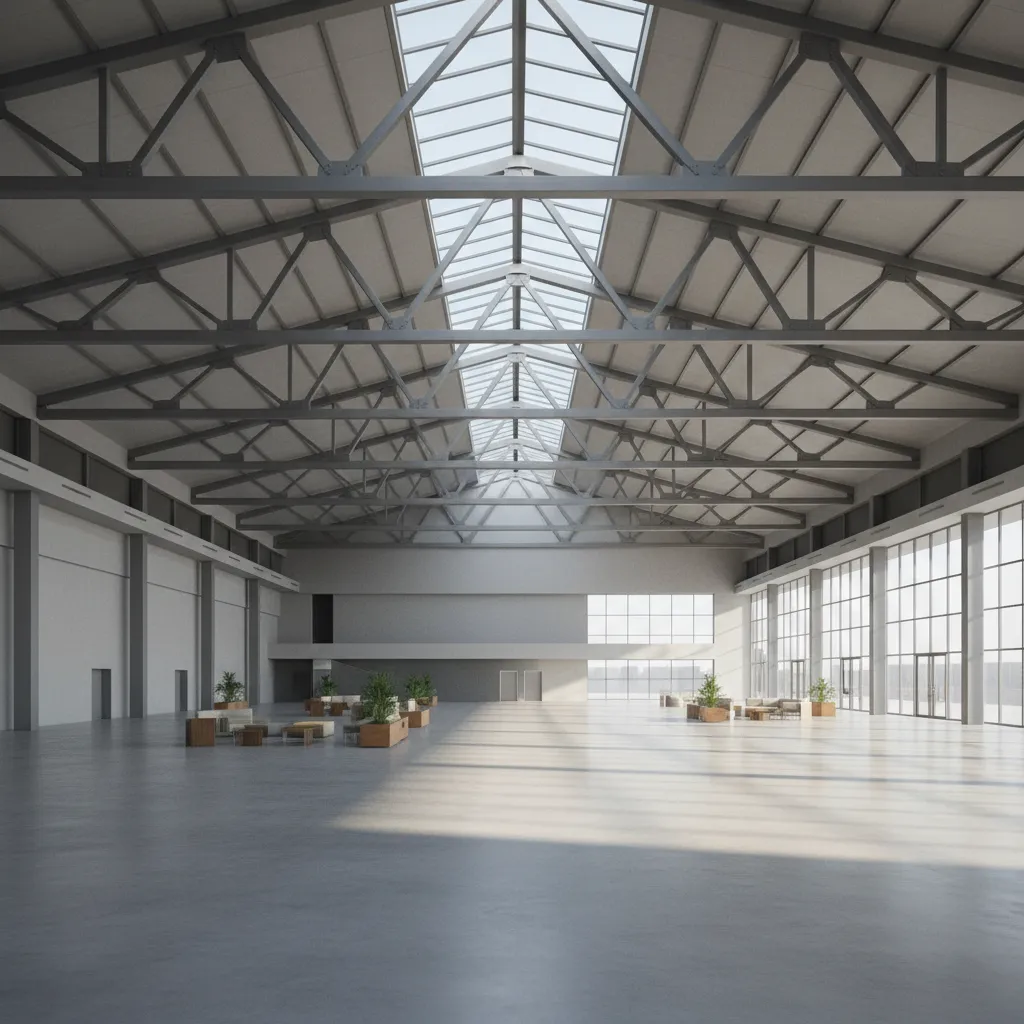

Long Span Beam and Girder Systems

Key Insight: Long span structural systems trade higher material cost for dramatically larger unobstructed interior space.

Instead of relying on many columns, long span systems use deeper beams, trusses, or girders that can carry loads across much wider distances.

Common long span systems:

1. Steel wide‑flange beams
2. Steel trusses
3. Post‑tensioned concrete
4. Glulam timber beams

Typical span capabilities:

1. Steel beams: 40–60 ft
2. Steel trusses: 60–100 ft
3. Post‑tensioned concrete: 35–50 ft

Industries that frequently rely on long span systems:

1. Retail buildings
2. Airport terminals
3. Sports facilities
4. Modern coworking offices

One overlooked design issue is ceiling depth. Larger beams require deeper structural zones, which may reduce clear ceiling height unless the building section is adjusted.

save pin

Structural Efficiency and Cost Comparison

Key Insight: Column grids minimize structural cost per square foot, while long span systems increase material cost but reduce spatial constraints.

Typical comparison factors include:

1. Material quantity
2. Construction complexity
3. foundation loads
4. mechanical routing

General cost tendencies observed in projects:

1. Column grid systems: lowest structural cost
2. Long span beams: higher steel tonnage
3. Trusses: higher fabrication cost but extreme span capability

However, cost analysis shouldn't stop at structure alone.

For example:

1. Fewer columns can simplify tenant layouts.
2. Retail floor efficiency increases with open spans.
3. Future renovations become cheaper.

I've seen commercial developers choose long span framing specifically because the leasing flexibility outweighed the initial structural premium.

Answer Box

Column grid systems are cheaper and structurally efficient but create more interior columns. Long span beam systems cost more but enable large unobstructed spaces, making them ideal for flexible open floor plans.

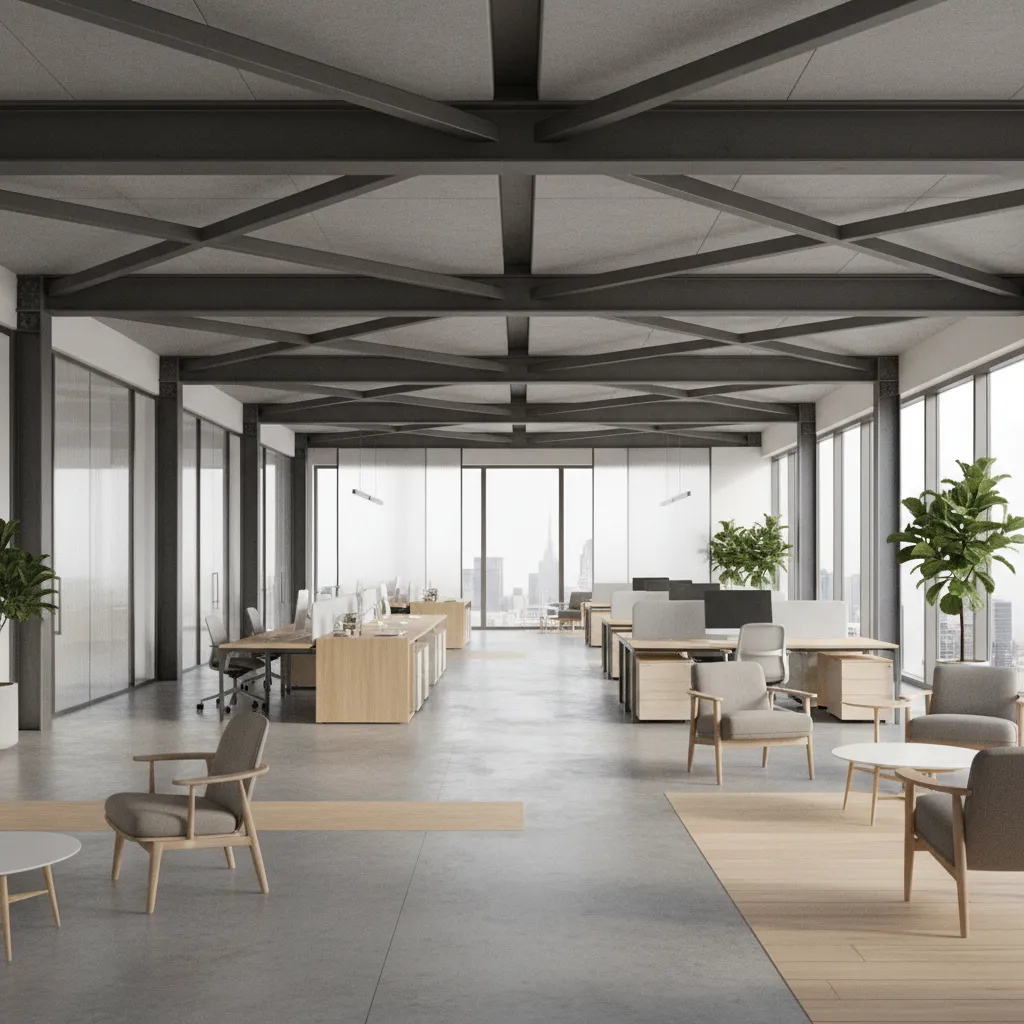

Design Flexibility and Architectural Impact

Key Insight: Structural span decisions strongly influence how adaptable a building remains over its lifetime.

Architects often prefer wider spans because interior design evolves faster than structural systems.

Design impacts include:

1. Clear sightlines across spaces
2. Flexible partition layouts
3. Improved daylight penetration

When designers test alternative structural spacing in early planning models, conflicts become obvious. Running layout studies with a 3D floor layout visualization workflowhelps reveal where columns interfere with circulation or furniture placement.

In adaptive reuse projects, column spacing often determines whether an old building can realistically support modern open interiors.

save pin

When Each System Is the Better Choice

Key Insight: The right structural system depends less on engineering capability and more on how the space will actually be used.

Column grid systems work best when:

1. Budgets are tight
2. Interior walls are common
3. building spans are moderate

Long span systems work best when:

1. Large open areas are essential
2. Layouts may change frequently
3. visual openness is a priority

Typical real‑world examples:

1. Residential towers → column grids
2. Big‑box retail → long span steel
3. Airports → trusses or mega spans

Before committing to a system, many design teams test structural spacing alongside interior concepts using realistic visualization such as a photorealistic interior rendering workflow to evaluate how columns affect sightlines and circulation.

Final Summary

1. Column grids offer the most economical structural solution.
2. Long span beams reduce interior columns dramatically.
3. Fewer columns increase layout flexibility and future adaptability.
4. Wide spans often require deeper beams and higher material cost.
5. The best system depends on how the building will be used.

FAQ

What is the difference between column grid and long span beam systems?

A column grid uses closely spaced columns for support. Long span beam systems carry loads across larger distances, reducing the number of interior columns.

Which system is better for an open floor plan?

Long span beams are typically better for open floor plans because they reduce structural columns and allow flexible interior layouts.

Are long span structural systems more expensive?

Usually yes. They require larger beams, more steel, or specialized framing systems.

How far can long span beams reach?

Typical steel beams span 40–60 feet, while trusses can exceed 80–100 feet depending on loads and structural design.

Do column grid systems limit interior design?

They can. Frequent columns may interfere with circulation paths, furniture layouts, and partition flexibility.

Can open floor structural system comparison affect ceiling height?

Yes. Long span systems often require deeper beams, which can reduce clear ceiling height if not planned carefully.

Which buildings typically use long span beams?

Retail stores, convention centers, airports, and sports arenas frequently rely on long span framing.

Is column grid vs long span beams open floor plan a common early design decision?

Yes. Structural span strategy is usually established during early schematic design because it influences layout flexibility.

References

American Institute of Steel Construction (AISC)

Structural Engineering Institute ASCE publications

Building Construction Illustrated by Francis D.K. Ching
