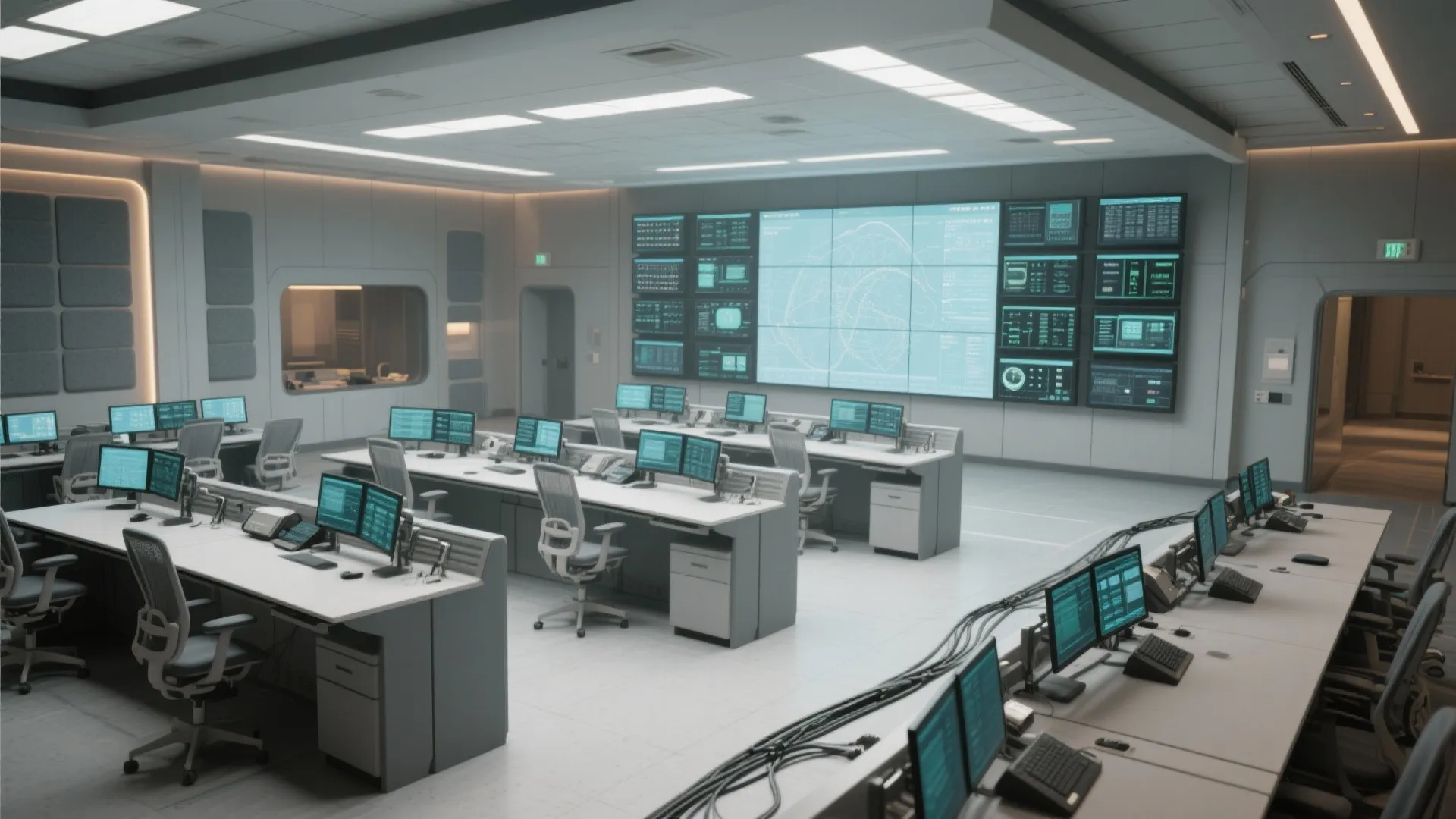

Command and Control Room Design: Essentials for Efficiency: Fast-Track Guide to Pro-Level Command and Control Room Layout

High-performing command and control rooms are built around clarity, speed, and human endurance. From traffic management and utilities to security operations and broadcast, these environments demand precise sightlines, ergonomic consistency, and resilient technology integration so teams can read, decide, and act without friction.

Performance is measurable. WELL v2 recommends ambient lighting in work areas at roughly 300–500 lux with task lighting up to 500–1,000 lux for high-detail work, while IES standards outline luminance ratios that help avoid glare and visual fatigue by keeping contrast between screens and surrounding surfaces in check (see WELL v2 and IES standards). Steelcase research has shown that employees spend nearly a quarter of their day navigating distractions; in command spaces, thoughtful acoustic zoning and visual organization are essential to keep cognitive load low and response times high.

Mission-Critical Design Principles

Every decision in a control room should serve situational awareness. I prioritize clean monitor arrays with consistent heights, avoiding stacked screens beyond comfortable eye angles (roughly 15° below horizontal for sustained viewing). Peripheral data belongs to secondary displays or shared walls, keeping critical feeds within the primary focal band. Lighting layers—ambient, task, and accent—are tuned to prevent reflections on glossy panels and to maintain stable contrast throughout shift changes.

Ergonomics and Human Factors

Operator endurance hinges on ergonomics. Adjustable sit-stand consoles reduce static postures; desk heights from 650–1250 mm cover most users when paired with fully adjustable chairs. Monitor distance typically sits between 600–800 mm for readability without head thrust. Clearances behind consoles should be a minimum of 900–1200 mm to allow maintenance and swift egress. I group controls by frequency of use: high-frequency input devices belong within the primary reach envelope (~400 mm), placing less-used controls beyond 600 mm to prevent clutter and misfires during intense moments. Color temperatures around 3500–4000K avoid the blue fatigue of cooler light while maintaining alertness.

Visual Hierarchy and Color Psychology

Color and contrast guide attention. Neutral, low-gloss finishes (Munsell values in mid-grays) stabilize perceived brightness around screens and reduce reflected glare. Accent color is reserved for wayfinding, status indicators, and emergency equipment; saturated hues should appear sparingly to preserve their signal value. According to widely referenced color psychology research, blue-green palettes support sustained focus while warm accents can signal zones of collaboration—use these cues intentionally rather than as decoration.

Acoustic Strategies for Focus

Noise competes with cognition. Target a background sound level around 40–45 dBA in operator zones, rising slightly in collaboration areas so speech privacy holds. Combine high-NRC ceiling systems with broadband absorbers on rear walls and controlled diffusion on side walls to avoid flutter echo. For open operations floors, create acoustic neighborhoods: critical pods shielded by partial-height baffles, collaboration tables set in semi-enclosed alcoves, and phone booths for escalated conversations. Alarms must be audibly distinct without being startling—calibrate tone sequences and volumes relative to ambient levels.

Sightlines, Distances, and Shared Displays

Shared video walls are only effective if every seat can read them comfortably. Keep eye-to-screen distances aligned with pixel pitch; as a rule of thumb, minimum viewing distance in meters approximates pixel pitch in millimeters (e.g., 1.5 mm pitch works best beyond ~1.5 m). Place the wall within a 25–30° vertical viewing envelope from the back row to reduce neck strain. Critical dashboards should use high-contrast themes with limited color sets and avoid excessive animation that taxes peripheral vision.

Workflow Zoning and Circulation

Mission rooms operate as choreography. I divide the floor into intent-based zones: monitoring (quiet, inward-facing), triage (near supervisors and shared displays), collaboration (soft-seated or standing huddle areas), and resilience (breakout and wellness). Circulation loops should prevent cross-traffic through critical pods; aim for 1,200–1,500 mm main aisles and 900–1,200 mm secondary aisles. When testing adjacency options, a layout simulation tool helps validate sightlines, egress, and team proximity before construction: room layout tool.

Lighting Layers for 24/7 Operations

Control rooms never sleep, so lighting must flex. Ambient illumination provides uniformity; task lights add precision at consoles; perimeter grazers subtly brighten boundaries to reduce visual tunnel effect. Dimming schedules and tunable white systems support circadian cues across shifts—warmer evenings, balanced mid-day. Glare control starts with indirect luminaires, matte finishes, and avoiding downlights directly above screens. Keep luminance ratios between screens and adjacent surfaces in the 1:3 to 1:5 range to limit eye strain (aligned with IES guidance).

Technology Integration and Redundancy

Hardware should be invisible until needed. Under-console cable management trays, hot-swappable KVMs, and modular mounts speed maintenance. Plan power with dual feeds and UPS coverage; distribute patch points to keep technicians out of operator lanes during incidents. Ventilate equipment bays independently to prevent heat spill onto operators—horizontal laminar airflow along consoles works better than overhead blasts.

Materials, Durability, and Sustainability

Choose materials that reduce micro-reflections and withstand high use. Low-VOC, low-sheen laminates, anti-glare glass, and textured composites handle fingerprints and cleanings. Opt for flooring with high slip resistance and underlay that adds footfall absorption. Sustainable wins come from LED systems with high efficacy, modular furniture that extends life cycles, and acoustics made from recycled content. Resilience factors—fire ratings, cleanability, and repairability—beat flashy finishes every time.

Operator Wellness and Shift Resilience

Long shifts demand micro-breaks, hydration, and movement. Provide quiet wellness nooks with softer light, slightly warmer color temperatures, and tactile materials to decompress. Height-adjustable consoles encourage posture variation; I like to program reminder prompts for stand cycles every 45–60 minutes during non-critical windows. Visual access to daylight—even via reflective light shelves—helps maintain circadian rhythm without glare on screens.

Spatial Ratios and Visual Balance

Balance dense technology with calm surfaces. A practical ratio is one feature wall or video surface to two quieter planes; ceiling articulation should frame, not compete with, the display. Keep furniture lines consistent and horizontal, letting the shared wall become the visual anchor. Rhythm comes from repeating console modules and lighting bays at regular intervals, creating a readable grid that supports wayfinding and maintenance.

Commissioning, Testing, and Iteration

Pre-occupancy testing is non-negotiable. Run simulated incident drills to stress adjacency, alarm audibility, and queue management. Measure light levels at consoles, check contrast on dashboards, and log operator feedback on reach, glare, and noise. After move-in, schedule a 30-, 60-, and 120-day review cycle to refine lighting scenes, console spacing, and acoustic treatments based on real behavior.

Common Pitfalls to Avoid

Over-bright screens, shiny surfaces, and misaligned sightlines are the triad that sabotage performance. Don’t overload color on dashboards; reserve red and amber for true alerts. Avoid placing collaboration tables in direct alignment with operator bays—side adjacency keeps energy without spillover. And never compromise egress paths for more consoles; add a second row only after confirming visibility metrics from all seats.

FAQ

1) What illuminance levels work best for control rooms?

Keep ambient at 300–500 lux and task lighting up to 500–1,000 lux for detailed work, aligning with WELL v2 guidance and IES practice. Dimming and tunable white help operators adapt across shift changes.

2) How should monitor arrays be configured for comfort?

Maintain the primary focal band within ~15° below horizontal, 600–800 mm viewing distance, and avoid tall stacks that force neck extension. Use matte finishes around screens to reduce reflected glare.

3) What acoustic targets improve focus?

Aim for 40–45 dBA background levels in operator zones. Combine absorptive ceilings, rear-wall broadband absorption, and side-wall diffusion. Create enclosed phone booths for escalated calls.

4) How wide should aisles be?

Main aisles at 1,200–1,500 mm support swift movement and equipment service; secondary aisles at 900–1,200 mm maintain egress while minimizing cross-traffic.

5) How can we design dashboards for fast comprehension?

Use high contrast with limited color palettes, reserve red/amber for true alerts, and minimize animation. Confirm legibility from all seats during commissioning.

6) What color temperature keeps operators alert without fatigue?

Target 3500–4000K for general operation, with warmer scenes in late shifts to support circadian comfort while avoiding blue-heavy glare.

7) How do we integrate redundancy without clutter?

Specify dual power feeds with UPS, modular mounts, and hot-swappable KVMs. Separate equipment ventilation from operator airflow and route cables under consoles.

8) What materials reduce glare and wear?

Low-sheen laminates, anti-glare glass, and textured composites minimize micro-reflections and fingerprints. Use durable, low-VOC finishes for health and longevity.

9) How do we support operator wellness on long shifts?

Provide sit-stand consoles, wellness nooks with softer light, hydration stations, and micro-break prompts. Ensure access to daylight or indirect daylighting where possible.

10) What’s the best approach to shared video walls?

Set viewing distances based on pixel pitch, keep the wall within a 25–30° vertical envelope, and verify sightlines from back-row seats to avoid neck strain.

11) How often should we recalibrate lighting?

Commission scenes pre-occupancy, then review at 30, 60, and 120 days to tune levels, ratios, and schedules based on operator feedback and measured data.

12) When should a second row of consoles be added?

Only after confirming visibility metrics, egress capacity, and acoustic zoning. Use mockups or a layout simulation tool to test before committing to construction.
