Common Problems When Designing a 2D Floor Plan With Exits and How to Fix Them: Learn how to spot evacuation route mistakes early and correct exit placement before a floor plan becomes a safety risk

Direct Answer

The most common problems when designing a 2D floor plan with exits involve poor exit placement, blocked evacuation routes, insufficient exits for the building size, and confusing corridor flow. These issues usually appear during early layout planning and can lead to unsafe evacuation paths. Fixing them requires clear path visibility, code‑aware exit spacing, and corridors that naturally guide people toward exits.

Quick Takeaways

1. Exit placement mistakes usually happen when designers prioritize aesthetics over evacuation logic.
2. Evacuation routes must remain direct, visible, and unobstructed from every major occupied space.
3. Buildings often require more exits than designers initially expect.
4. Corridors should guide people naturally toward exits instead of forcing turns or dead ends.
5. Exit visibility and signage should be considered during floor plan design, not after.

Introduction

Over the past decade working on residential and commercial layouts, I've noticed that many designers treat exit planning as a final compliance step rather than an early design decision. That approach is exactly why 2D floor plan exit design problems show up late in the process.

In early concept sketches, rooms are placed first, corridors are squeezed in afterward, and exits end up wherever leftover wall space exists. On paper the layout may look balanced, but once you trace evacuation paths, the weaknesses become obvious.

One practical way designers avoid this issue today is by mapping circulation and exits before furniture or partitions. If you want to see how professionals structure this workflow, this guide on visualizing circulation paths while building a digital floor layoutshows how early planning tools help reveal exit problems before construction drawings begin.

In this article I'll walk through the most common exit placement mistakes I see in real projects, why they happen, and how to fix them before a floor plan becomes a safety liability.

save pin

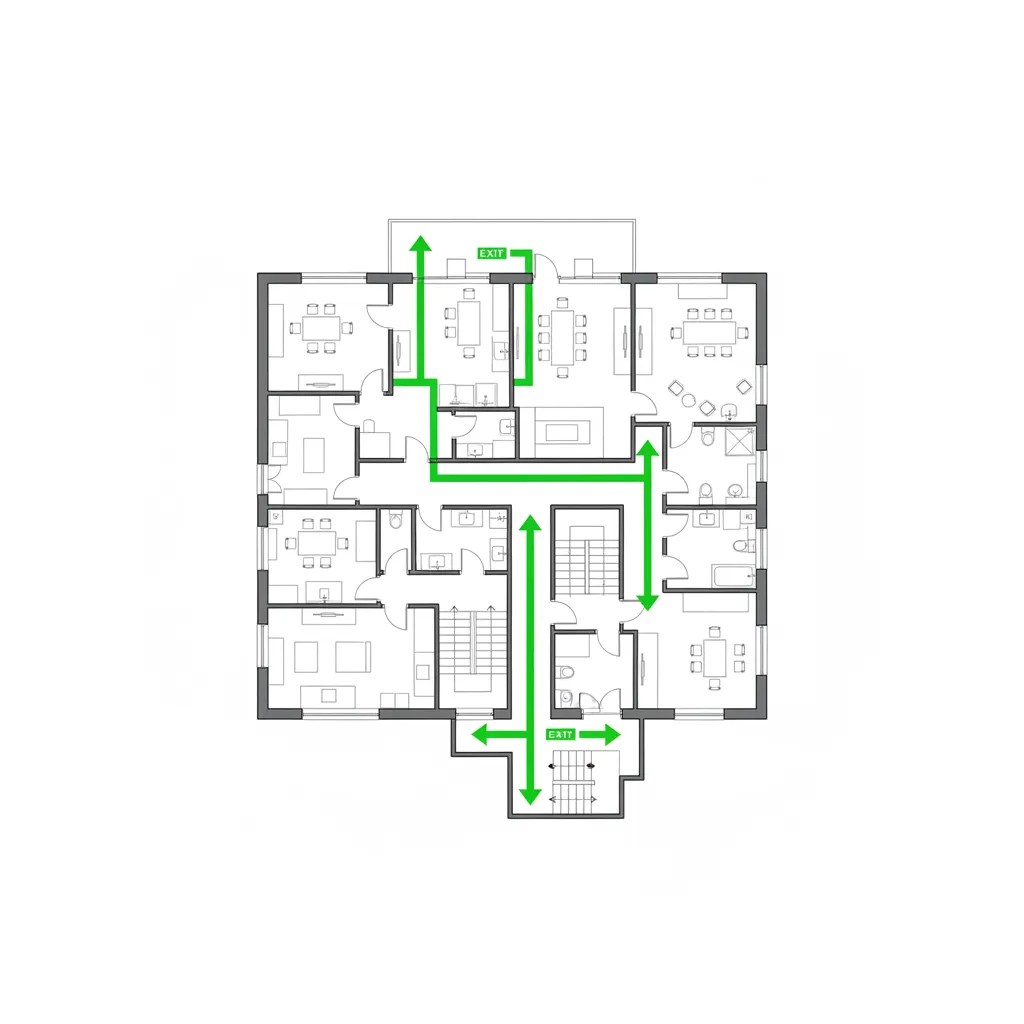

Why Exit Placement Often Fails in Early Floor Plan Designs

Key Insight: Exit placement usually fails because designers start with room arrangements instead of evacuation logic.

In many early layouts, designers focus on visual balance or functional zoning. Living areas, offices, kitchens, and meeting rooms get arranged first. Exits are then added wherever they "fit".

The problem is that evacuation planning works in the opposite direction. Safety design begins with movement patterns—how people leave the building under stress.

Common early design mistakes include:

1. Exits located at the far ends of long corridors
2. Rooms that require multiple turns before reaching an exit
3. Exits hidden behind partitions or service areas
4. Layouts where both exits rely on the same corridor

According to guidance from the International Building Code (IBC), egress routes should provide clear and unobstructed travel paths with minimal directional confusion. When exits are planned after room placement, that principle is easily violated.

The fix is simple but often overlooked: sketch evacuation paths before locking the floor plan.

Try this workflow:

1. Place the main exits first.
2. Draw primary evacuation lines toward those exits.
3. Position corridors along those lines.
4. Only then arrange rooms around the circulation structure.

This small shift dramatically reduces exit placement mistakes in floor plans.

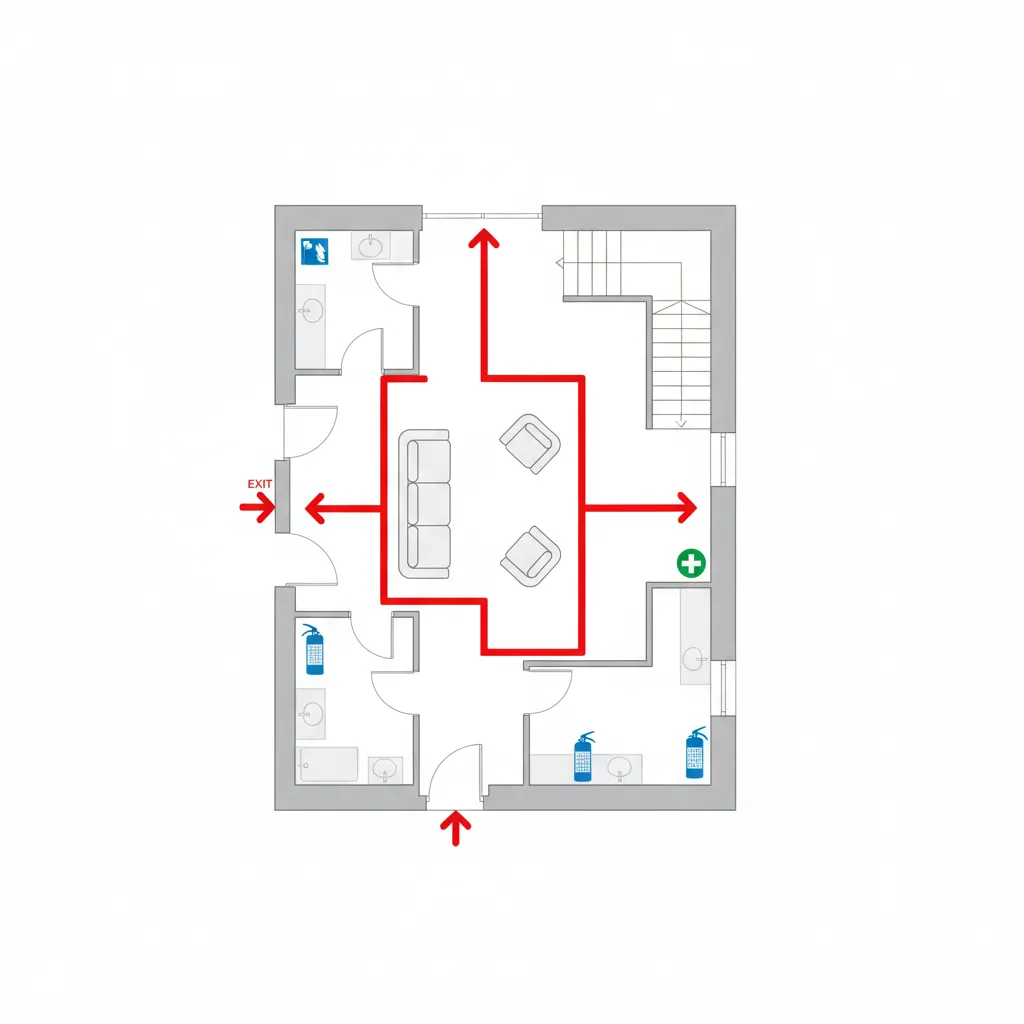

Blocked or Indirect Evacuation Paths

Key Insight: Evacuation paths fail when everyday layout decisions create hidden obstacles.

One of the most dangerous design errors is an evacuation route that technically exists—but becomes blocked during real use.

I often see this problem in mixed-use buildings or offices where designers underestimate how furniture and storage evolve after occupancy.

Typical blockage risks include:

1. Storage cabinets placed along narrow corridors
2. Reception desks narrowing access to exit corridors
3. Furniture islands interrupting circulation paths
4. Door swings conflicting with exit routes

In a recent office redesign project, a corridor technically met code width requirements on paper. But once printers, cabinets, and seating were installed, the path narrowed dramatically. During evacuation drills, people naturally detoured around furniture, slowing the flow.

To prevent these troubleshooting emergency exit layout issues, designers should evaluate routes using three checks:

1. Straightness – routes should minimize turns
2. Clear width – account for furniture and door swings
3. Visual guidance – occupants should instinctively see where to go

save pin

Too Few Exits for the Building Size

Key Insight: Many buildings require more exits than designers initially assume, especially as occupancy increases.

A surprisingly common problem in early floor plans is simply not providing enough exits.

This usually happens because designers estimate occupancy informally rather than calculating it based on floor area.

Typical miscalculations include:

1. Open office areas that hold more people than expected
2. Retail or event spaces with fluctuating occupancy
3. Multi-use rooms that change capacity over time

Building codes often require:

1. Two exits for most occupancies
2. Three exits when occupancy increases
3. Four exits for large assembly spaces

Another overlooked factor is exit separation. If two exits are located too close together, they may function as a single point of failure during emergencies.

Designers reviewing common egress design errors in buildings should always verify:

1. Occupant load calculations
2. Minimum exit count
3. Distance between exits
4. Maximum travel distance to an exit

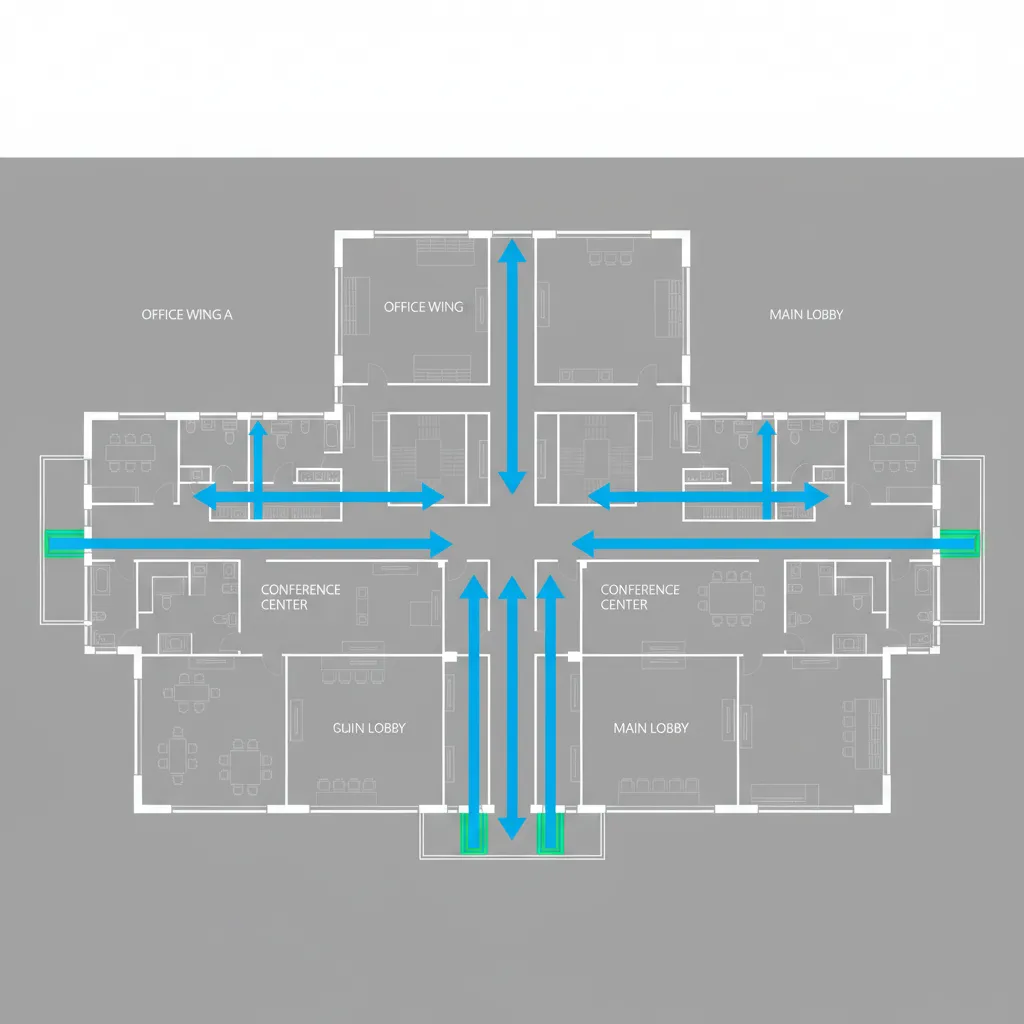

Poor Corridor Flow Toward Exit Points

Key Insight: Corridors should guide occupants naturally toward exits without requiring complex decisions.

One subtle design flaw I often see is corridor layouts that technically connect to exits but don't intuitively lead people there.

In stressful situations, people follow visual cues rather than reading floor plans. When corridors branch excessively or create loops, evacuation slows dramatically.

Problematic corridor patterns include:

1. T‑junctions that split traffic away from exits
2. Dead‑end corridors longer than recommended limits
3. Circulation loops with unclear exit direction
4. Corridors that end at rooms instead of exits

A helpful technique is to simulate "first‑time visitor navigation." If someone unfamiliar with the building can't easily find an exit within seconds, the corridor flow likely needs improvement.

Many designers now sketch corridor networks using tools that allow quick layout revisions before construction drawings begin. For example, experimenting with layouts using a browser‑based tool for quickly sketching evacuation‑friendly layoutsmakes it much easier to test multiple circulation patterns.

save pin

Fixing Visibility and Signage Issues in Floor Plans

Key Insight: Exit visibility should be designed into the architecture rather than relying only on signage.

Another hidden mistake in many layouts is assuming exit signs will solve navigation problems.

Signs help, but they cannot compensate for poor spatial logic.

Visibility problems usually appear when exits are:

1. Hidden behind corners
2. Located inside recessed alcoves
3. Blocked by partitions
4. Outside the natural line of sight

Instead of relying solely on signage, designers should improve architectural visibility through:

1. Direct sightlines from corridors
2. Aligned corridor axes leading to exits
3. Lighting that emphasizes exit locations
4. Distinct door framing or color contrast

In commercial buildings, these strategies significantly improve evacuation speed. Studies from fire safety engineering research show that people respond faster to visible architectural cues than to signage alone.

Answer Box

The safest 2D floor plan exit layouts prioritize direct travel paths, adequate exit numbers, and intuitive corridor flow. Designers should plan exits first, build circulation around them, and ensure occupants can visually identify exits without relying solely on signs.

Checklist for Reviewing Exit Layout Before Finalizing

Key Insight: A structured exit review checklist catches most evacuation design mistakes before construction documentation.

Before finalizing any floor plan, I recommend running a quick egress audit.

Practical exit layout checklist:

1. Are there enough exits for the expected occupant load?
2. Are exits separated and accessible from multiple directions?
3. Can occupants reach an exit without passing through another room?
4. Are evacuation routes visually obvious?
5. Are corridors free from potential furniture blockage?
6. Do routes avoid long dead‑end corridors?

Design teams working on larger workplaces often test this by modeling evacuation movement inside a digital layout environment. If you're exploring these strategies, this resource on planning workplace layouts that improve circulation and safetyexplains how professionals validate movement flow early.

save pin

Final Summary

1. Exit planning should start before room layouts are finalized.
2. Evacuation paths must stay clear, direct, and visually obvious.
3. Buildings often require more exits than designers initially expect.
4. Corridor layouts strongly influence evacuation efficiency.
5. Visibility and architectural cues matter as much as exit signage.

FAQ

What are the most common exit placement mistakes in floor plans?

The most common mistakes include placing exits too close together, creating long dead‑end corridors, and forcing occupants to make multiple turns before reaching an exit.

How can I improve evacuation routes in a building layout?

Focus on direct paths, minimize corridor branching, and ensure exits are visible from major circulation areas.

How many exits should a building have?

Most buildings require at least two exits, but the exact number depends on occupant load, building size, and local building codes.

What is the maximum travel distance to an exit?

Travel distance limits vary by occupancy type and fire protection systems, but codes often restrict how far occupants can travel before reaching an exit.

Why do 2D floor plan exit design problems happen so often?

They occur when exits are added after the room layout is finalized rather than planned as part of the circulation structure.

Can furniture affect evacuation routes?

Yes. Furniture placement often reduces corridor width and creates unexpected obstacles during emergencies.

How do I check if my exit layout works?

Trace evacuation routes from every occupied room and verify that paths remain direct, unobstructed, and clearly visible.

What helps improve exit accessibility in floor plans?

Use wider corridors, clear sightlines to exit doors, and corridor layouts that guide movement naturally toward exits.
