Common Problems When Designing Shop Floor Layouts with Free Tools: Practical fixes for scaling errors, crashes, and layout mistakes when using free shop floor planning software

Direct Answer

Free shop floor layout tools often struggle with scaling accuracy, large factory files, equipment model imports, and alignment precision. These limitations usually come from simplified geometry engines, limited memory handling, and restricted feature sets designed to keep the software lightweight. Most issues can be reduced by simplifying models, standardizing file formats, and applying manual layout checks during the design process.

Quick Takeaways

1. Free shop floor planning tools frequently fail when factory layouts exceed their memory and rendering limits.
2. Incorrect scale settings are the most common cause of inaccurate factory floor plans.
3. Equipment file incompatibility often comes from mixing STEP, DWG, and OBJ formats.
4. Alignment issues usually result from grid settings or snapping conflicts.
5. Many missing features can be replaced with simple workflow workarounds.

Introduction

Designing a shop floor layout with free software sounds simple at first. In practice, it often becomes frustrating once the layout grows beyond a few machines.

Over the past decade working on manufacturing facility planning projects, I've seen teams start with free tools to draft production lines, only to run into scaling errors, crashes, or equipment import problems halfway through the project. These problems are not always obvious at the beginning, which is why they tend to slow down real-world planning.

If you're currently troubleshooting problems with free shop floor layout software, you're not alone. The majority of layout errors I review in early factory planning stages come from tool limitations rather than design mistakes.

Before diving into the common issues, it's worth understanding how modern planning tools structure layouts visually. If you want to see how planners typically construct machine zones and production flow, this example of creating a clear production layout using a 3D floor planning workflowshows how layout visualization helps identify issues early.

Below are the most common problems teams encounter and the practical fixes I recommend after years of reviewing factory floor layouts.

save pin

Why Free Shop Floor Planning Tools Sometimes Fail

Key Insight: Free layout tools prioritize simplicity and accessibility, which means they often sacrifice stability, precision, and large-project performance.

Most free planning tools are designed for small interior layouts, not complex manufacturing environments. A typical shop floor might contain dozens of machines, safety zones, storage areas, and material flow paths. That level of spatial complexity quickly exceeds the architecture of lightweight software.

Three technical limitations usually cause failures:

1. Geometry limits: Many free tools simplify shapes to reduce processing load.
2. Memory restrictions: Large floor plans with many objects consume more RAM than the browser or app allows.
3. Feature gating: Advanced features like parametric constraints or collision detection are often removed.

According to Autodesk's manufacturing layout documentation, professional factory planning software relies heavily on constraint-based modeling to maintain spacing and relationships between equipment. Free tools usually skip this system entirely, which leads to overlapping objects or inconsistent measurements.

This doesn't make free tools useless—it just means you need to understand their limits before trusting the layout for operational decisions.

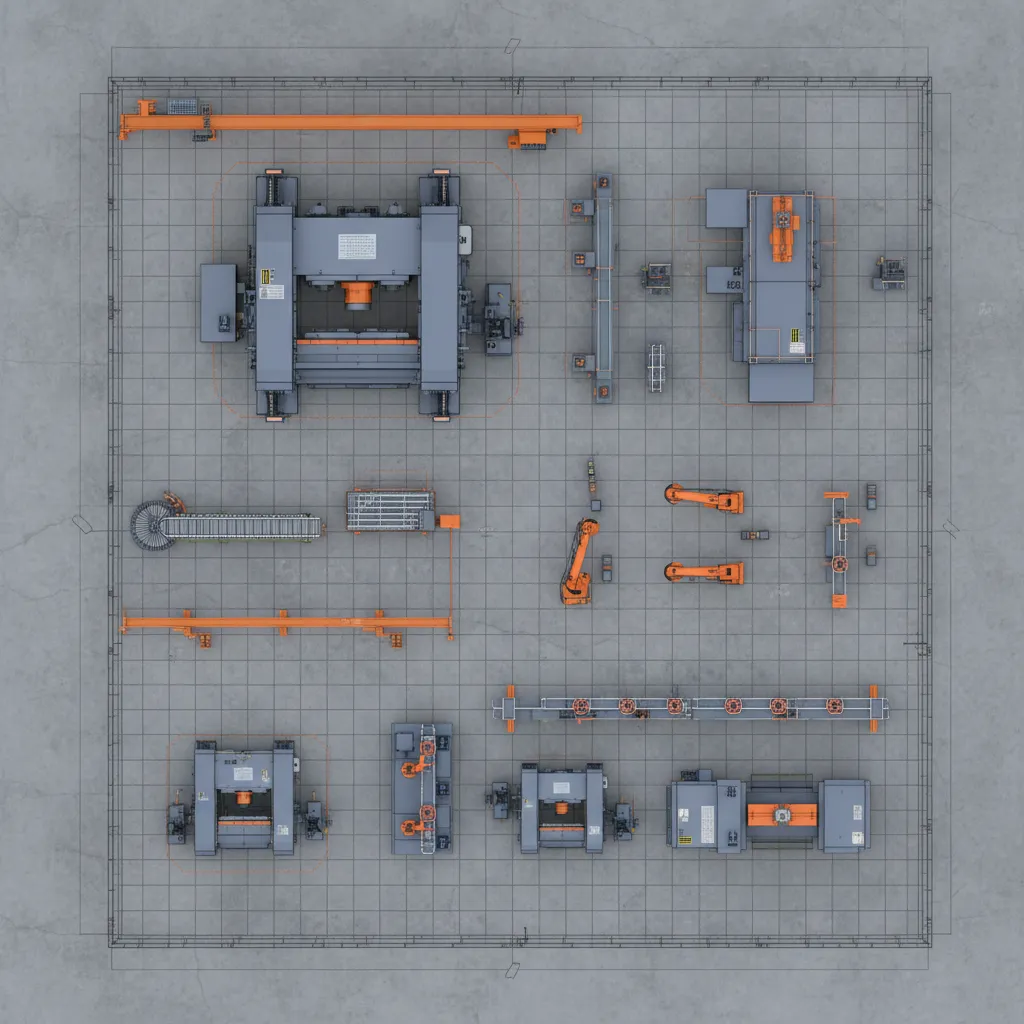

Scaling and Measurement Errors in Layout Software

Key Insight: Most scaling issues occur because users import drawings or equipment models that use different measurement units.

In my experience reviewing factory layouts, scale problems are the single most common mistake in early-stage shop floor plans.

Typical example: a machine model exported in millimeters is imported into a plan configured in inches. The result is equipment that appears 25.4 times larger or smaller than it should be.

Common scale error sources include:

1. DWG files exported in millimeters
2. STEP files created in metric units
3. Floor plans configured in feet or inches
4. Auto-scaling settings inside layout tools

Steps to fix scaling problems:

1. Check the base unit in your layout tool before importing anything.
2. Confirm the unit system used in the source CAD file.
3. Disable automatic scale adjustments if available.
4. Test import using a known reference object such as a 1‑meter cube.

Industrial designers frequently keep a reference object inside their layout template specifically to validate scale after imports.

save pin

Importing Equipment Models and File Compatibility Issues

Key Insight: File compatibility problems happen because free layout tools support far fewer 3D and CAD formats than professional factory planning software.

Manufacturing equipment vendors typically provide machine models in formats like STEP, IGES, or native CAD formats. Many free planning tools only support lightweight geometry such as OBJ, FBX, or simplified DWG files.

This mismatch causes several problems:

1. Models fail to import completely
2. Machine parts disappear
3. Files become extremely heavy and slow
4. Geometry becomes distorted

Practical workaround used by layout engineers:

1. Convert equipment models to simplified mesh files
2. Remove internal mechanical components
3. Keep only outer dimensions required for spacing

For layout planning, you rarely need full mechanical detail. What matters is footprint, clearance zones, and operator access space.

If you are creating large factory zones, tools designed for structured layouts often handle object libraries better. This walkthrough on building structured industrial layouts with a free floor plan creator demonstrates how simplified models improve stability.

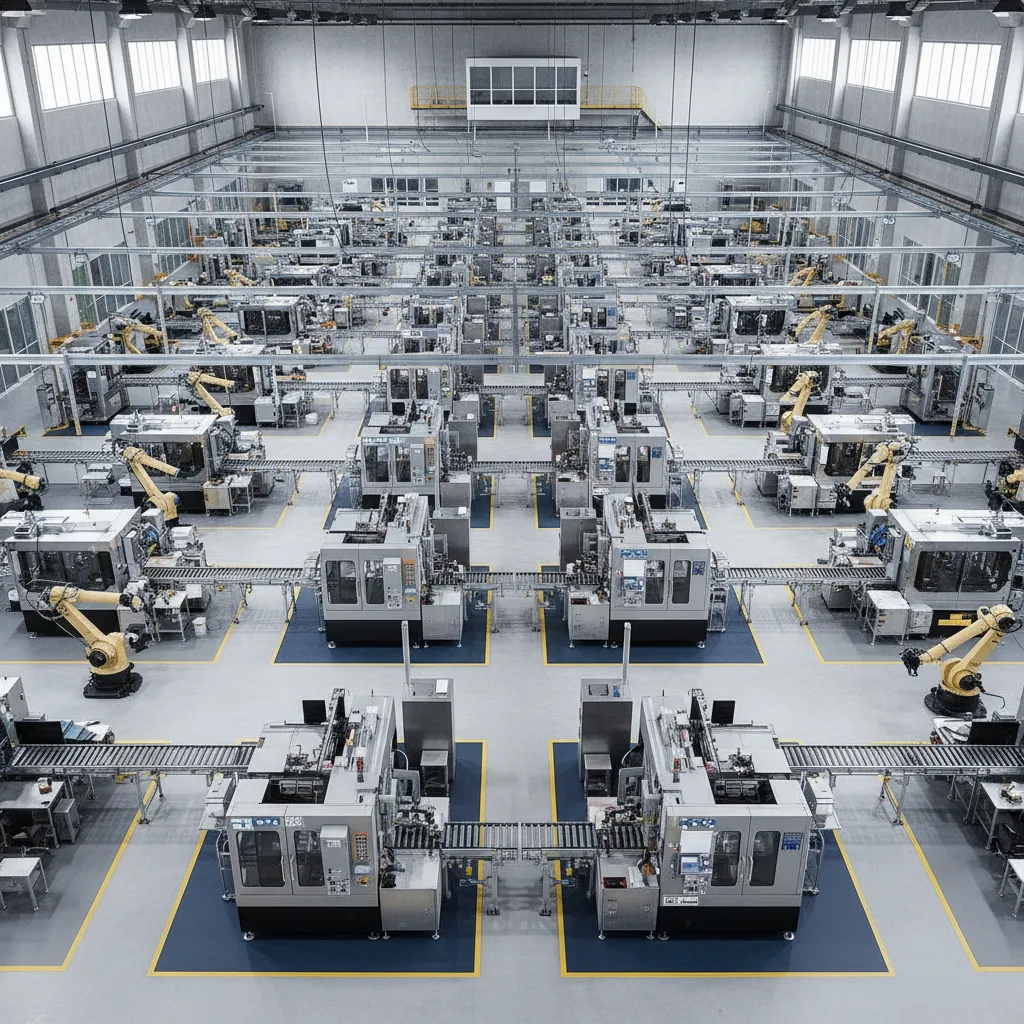

Performance Problems with Large Factory Layouts

Key Insight: Free tools often crash because they render every object in real time rather than using optimized industrial visualization techniques.

Factory layouts quickly become data-heavy. A medium-size shop floor may contain:

1. 40–100 machines
2. storage racks
3. safety barriers
4. material paths
5. operator zones

Many free planning tools rely on browser rendering engines. When object counts exceed a few hundred items, frame rates drop and crashes become common.

Ways to reduce crashes:

1. Break layouts into multiple zones
2. Replace complex models with simple blocks
3. Disable shadows and advanced rendering
4. Hide layers when not editing them

In professional facility planning, it's common to maintain separate files for production lines, warehouse zones, and logistics corridors. The same technique works well in free tools.

save pin

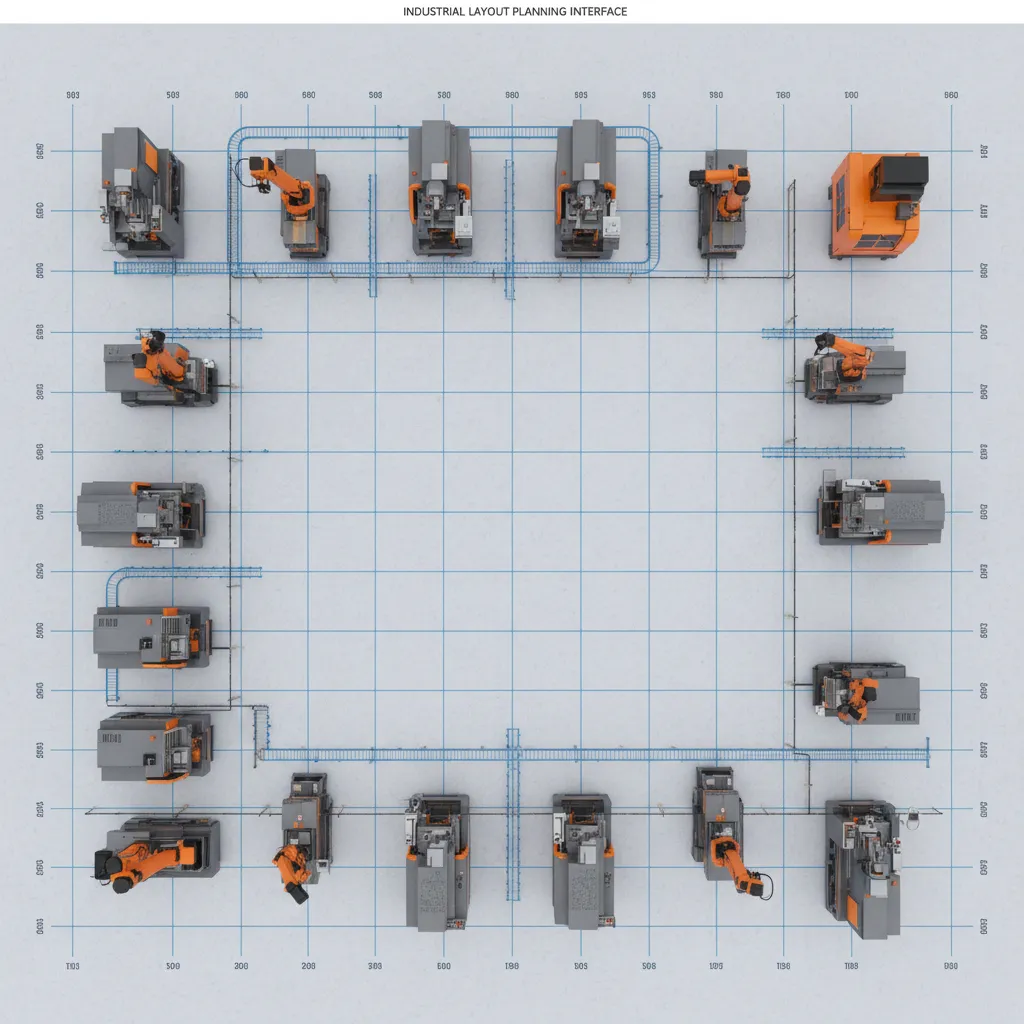

How to Fix Alignment and Spacing Problems

Key Insight: Alignment problems usually happen because grid snapping and object snapping compete with each other.

Many planners assume the software is inaccurate when machines refuse to align correctly. In reality, conflicting snap settings often cause the issue.

Common alignment problems:

1. Machines slightly overlapping
2. Inconsistent spacing between equipment
3. Production lines drifting off axis
4. Walkways becoming uneven

Simple alignment workflow:

1. Enable grid snapping for base layout.
2. Disable object snapping temporarily when placing machines.
3. Align primary equipment along a reference line.
4. Apply equal spacing using duplication instead of manual placement.

Many industrial layout specialists start with a "spine line" down the center of a production line and align all machines relative to it. This dramatically reduces cumulative spacing errors.

Workarounds When Free Tools Lack Key Features

Key Insight: When free tools lack industrial planning features, structured workflows often compensate better than switching software immediately.

Some missing capabilities you'll likely encounter include:

1. No material flow simulation
2. No clearance automation
3. Limited dimension tools
4. No collision detection

Experienced planners typically handle these limitations with manual methods.

Effective workarounds:

1. Create safety clearance blocks around each machine
2. Use colored floor zones for material flow
3. Add simple arrows to represent movement paths
4. Maintain a separate spreadsheet for spacing requirements

Another trick I recommend is validating layout flow visually using simple 3D visualization. Even lightweight render previews can reveal congestion points in operator movement. This example showing how spatial visualization improves layout planning decisionsillustrates how visual context often exposes layout flaws that floor plans alone miss.

save pin

Answer Box

The most common problems with free shop floor layout software include scaling mismatches, equipment file incompatibility, performance crashes in large layouts, and alignment errors. These issues can usually be resolved by standardizing units, simplifying machine models, segmenting large layouts, and using structured alignment workflows.

Final Summary

1. Scaling errors are usually caused by mixed measurement units.
2. Large factory layouts often exceed the performance limits of free tools.
3. Simplified equipment models improve stability dramatically.
4. Grid and snap settings are the main cause of alignment issues.
5. Manual workflow techniques can replace many missing software features.

FAQ

Why do free shop floor layout tools crash with large factory layouts?

Most free tools rely on lightweight rendering engines that cannot efficiently handle hundreds of objects, detailed machine models, or complex geometry.

How do I fix scaling issues in factory floor plan tools?

Verify that both the layout software and imported files use the same unit system such as millimeters, meters, or inches.

What file formats work best for equipment imports?

Simplified OBJ or lightweight DWG files usually perform better than complex STEP or IGES models.

Why do machines overlap in my shop floor plan?

This usually happens when snapping settings conflict or when equipment models include hidden geometry.

Can free shop floor layout software handle full factory planning?

It can work for early concept layouts but may struggle with large facilities or detailed production simulations.

How can I reduce lag when editing large layouts?

Simplify machine models, hide inactive layers, and divide the facility into multiple layout files.

What causes alignment problems in layout design tools?

Conflicting grid snapping and object snapping settings often cause small positioning errors.

Is free factory layout software reliable for planning production lines?

Free tools can work for rough planning, but final validation should typically be done with more robust layout software.
