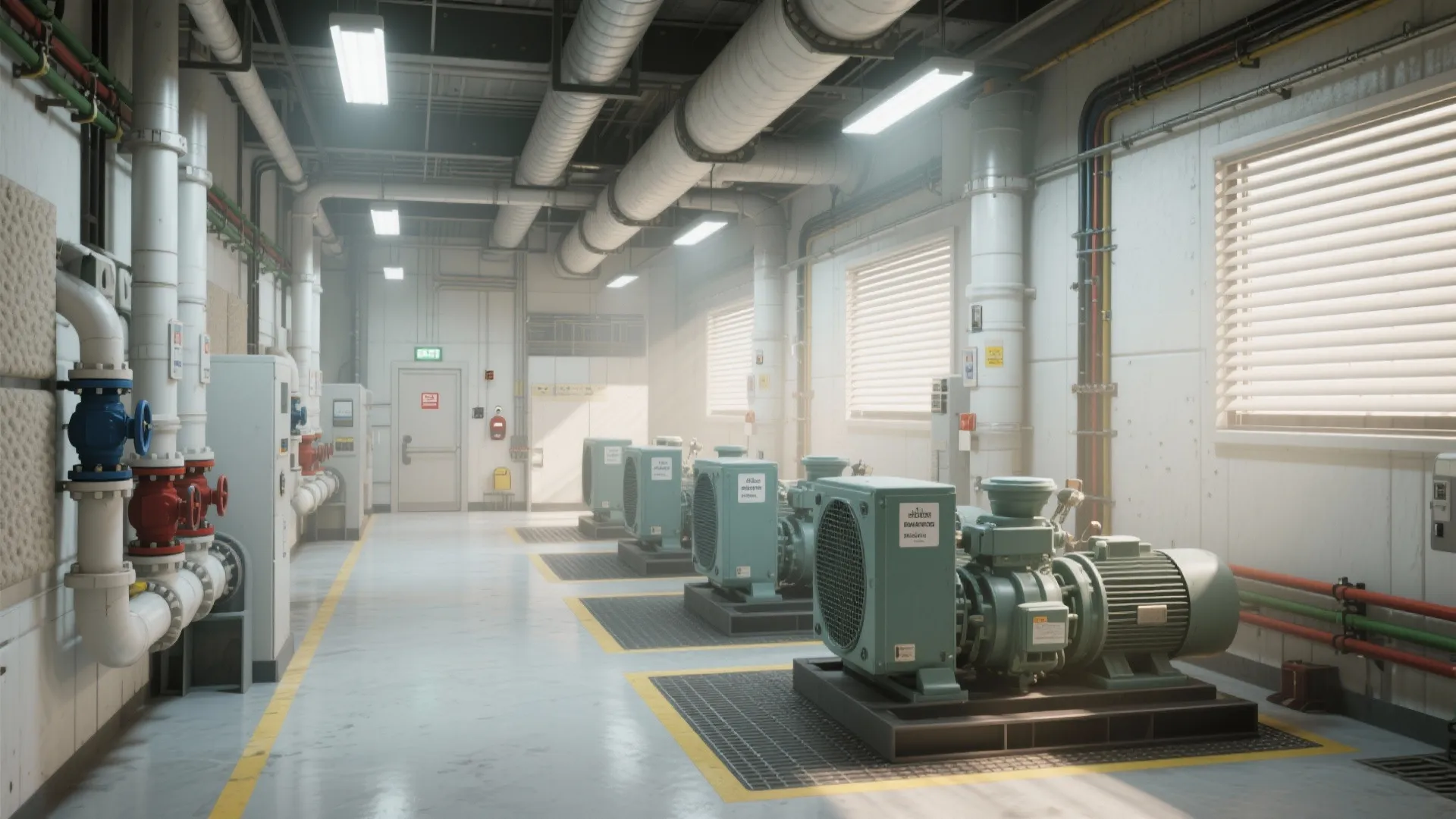

Compressor Room Design: Best Practices for Any Space: Fast-Track Guide to Designing a Safe and Efficient Compressor Room

I approach compressor rooms as high-energy, high-heat environments that demand disciplined planning. The goal is simple: stable output, safe operation, and predictable maintenance. Well-designed circulation, separation of heat loads, acoustic control, and service access make the difference between a room that runs itself and one that constantly trips alarms.

Ventilation is the first line of defense. According to IES guidance, task areas in industrial settings typically target illuminance from 300–500 lux, but the thermal side is equally critical: the WELL Building Standard notes that maintaining thermal comfort bands improves perceived performance and reduces fatigue. WELL v2 also cites that adequate fresh air and filtration reduce particulate exposure, which matters in compressor intake quality. Bringing these metrics into the room keeps people sharper and machines cooler. For workflow, Steelcase research has shown that environmental comfort measurably influences task efficiency—designing the room to reduce heat soak and noise contributes to downstream productivity.

Air-cooled compressors generate substantial waste heat. A pragmatic rule is to size exhaust airflow to the compressor’s heat rejection (BTU/hr) and design duct paths that prevent recirculation. I typically provide direct, short exhaust to the exterior and make-up air that sweeps past the compressor inlets, using pressure differentials to avoid hot spots. If the envelope restricts duct length, consider adding a discharge plenum and low-resistance louvers. For water-cooled units, isolate piping manifolds, add leak containment, and maintain clear access to strainers and heat exchangers.

Access, Clearances, and Serviceability

Reliability hinges on how quickly technicians can get in, lock out, and service. I keep 900–1200 mm clear on all service sides, 1500 mm in front of control panels, and full swing arcs for doors. Group filters, dryers, receivers, and condensate management along a logical service spine, color-code piping, and mount gauges at eye level to reduce misreads. For constrained footprints, use a room layout tool to simulate service envelopes and transport paths—this prevents painful surprises when swapping a motor or receiver.

room layout tool

Thermal Strategy and Airflow Control

Heat rejection must leave the room without passing over intakes. I separate intake and discharge elevations (e.g., low intake, high discharge) and employ baffles that create laminar flow zones. Integrate high-temperature cutouts and differential pressure sensors across filters; alarms should be visible and audible. Where multiple compressors stage, ensure each has independent intake paths so one unit’s exhaust doesn’t starve another.

Electrical, Controls, and Safety Protocol

Provide dedicated circuits with clear labeling, emergency stops at exits, and lockout points reachable without crossing hot discharge paths. Cable trays should avoid high-heat zones—thermal stress shortens insulation life. I set control HMIs outside the primary heat plume and include remote monitoring so technicians don’t linger in exposure. For hazardous locations (oil mist, solvents nearby), confirm classification and seal penetrations.

Acoustic Comfort and Vibration Management

Acoustic control protects both staff and adjacent spaces. Line the room with absorptive panels rated for humid, dusty environments; decouple compressors with inertia bases and elastomer mounts. Duct silencers reduce tonal peaks from discharge air. If the room sits under offices, float the slab or introduce resilient breaks in structural transmission paths. Maintaining speech-range noise below 65–70 dBA near doors keeps adjacent areas usable.

Lighting and Visual Ergonomics

Good visibility reduces error rates. I set 300–500 lux ambient using sealed industrial luminaires and add 500–750 lux task lighting above maintenance zones. Neutral-white 4000–4500K helps color rendering on gauges and indicator LEDs without harsh glare. Position fixtures away from reflective ductwork and polished piping to prevent specular glare; diffusers with appropriate UGR control keep sightlines comfortable.

Material Selection and Durability

Choose noncombustible, easy-clean surfaces: epoxy-coated floors with anti-slip aggregate, light-reflective wall panels, and corrosion-resistant hardware. Oil-resistant mats around service stations reduce slips. Keep penetrations neatly sleeved and sealed to prevent dust migration. Where condensate can drip, slope floors to sumps and install trench drains with accessible traps.

Air Quality, Filtration, and Condensate Handling

Place pre-filters before dryers to reduce load and extend media life. Provide particulate and coalescing filtration stages based on end-use (instrument air vs. general plant air). Condensate must be separated and treated; route to an oil/water separator and comply with local discharge codes. Drain lines should be visible, sloped, and protected from mechanical damage.

Layout Logic for Multi-Unit Rooms

When rooms host primary and backup compressors, align units parallel to airflow with common headers sized for future expansion. Staging controls should be accessible, with clear bypass options. Maintain independent isolation valves and non-return checks to prevent backfeeding. Use an interior layout planner during concept design to evaluate equipment adjacency, duct routes, and service corridors.

interior layout planner

Behavioral Patterns and Operational Flow

Technicians favor predictable routines: quick visual checks, filter changes, condensate audits, and HMI reviews. Build the room to support those habits: place daily-check elements along a single path from the entry, keep tools and PPE storage near exits, and position whiteboards or digital displays for shift notes away from noise hotspots.

Sustainability and Energy Efficiency

Waste heat is an asset if captured. Consider ducting discharge air to temper adjacent service bays in winter, with bypasses for summer. Variable-speed drives reduce cycling losses; integrate occupancy-based lighting and demand-based ventilation tied to compressor staging. Select low-VOC finishes and durable products to extend replacement cycles.

Commissioning and Maintenance Routines

Commission airflow balance, verify alarm logic, and test emergency stops. Thermal imaging during load tests reveals recirculation or electrical hot spots. Create maintenance zones with labeled spare filters, gaskets, and lubricants. Log baseline noise and temperature profiles so deviations are detectable.

Common Pitfalls I Avoid

- Recirculating hot discharge air back into intakes

- Undersized make-up air that depressurizes adjacent spaces

- Overbright, high-glare lighting that obscures gauges

- Noisy plenum designs without silencers

- Tight clearances that turn every routine service into a shutdown

FAQ

Q1: How much ventilation do most compressor rooms need?

A1: It depends on the heat rejection of the specific units. Size exhaust to match the total BTU/hr load, ensure make-up air flows past intakes, and avoid recirculation with separated intake/discharge paths.

Q2: What illuminance levels work best for maintenance?

A2: Target 300–500 lux ambient and 500–750 lux at task zones. Neutral-white 4000–4500K supports legible gauge reading while controlling glare in reflective environments.

Q3: How should clearances be planned?

A3: Keep 900–1200 mm on service sides, 1500 mm in front of panels, and full door swing arcs. These envelopes allow filter changes, belt tensioning, and motor swaps without risky contortions.

Q4: What are effective noise-reduction strategies?

A4: Combine absorptive wall/ceiling panels, duct silencers, and resilient equipment mounts. Break structural transmission paths and keep the door zone below ~65–70 dBA for adjacent-area comfort.

Q5: Do I need special filtration for instrument air?

A5: Yes. Add finer particulate and coalescing filters, and ensure dryers meet dew point requirements for the instrumentation spec. Place gauges at eye level for quick verification.

Q6: How can I capture waste heat efficiently?

A6: Duct discharge air to serve nearby spaces in colder seasons, with bypass dampers for summer. Coordinate with controls so heat recovery never compromises compressor intake temperature.

Q7: What’s the safest place for emergency stops?

A7: At exits and near the primary operating position, reachable without crossing hot discharge streams. Label lockout points clearly and keep viewing access to alarms unobstructed.

Q8: Are variable-speed drives worth it?

A8: In multi-load scenarios they reduce cycling and energy use. Pair VSDs with staged ventilation and demand-based lighting to compound savings.

Q9: How do I prevent intake air from being contaminated?

A9: Pull intake from clean, cool zones; avoid drawing from areas with oil mist or exhaust. Use filtered louvered intakes and maintain positive flow away from discharge streams.

Q10: What commissioning tests matter most?

A10: Airflow balance, alarm logic checks, emergency stop validation, and thermal imaging during full-load operation to detect hot spots or recirculation paths.

Q11: When is water-cooling preferable?

A11: In high-heat environments or constrained rooms where exhaust routing is limited. Ensure leak containment, accessible strainers, and isolation for maintenance.

Q12: How should condensate be handled?

A12: Route to an oil/water separator, comply with local discharge standards, and keep drains sloped and visible to catch blockages early.
