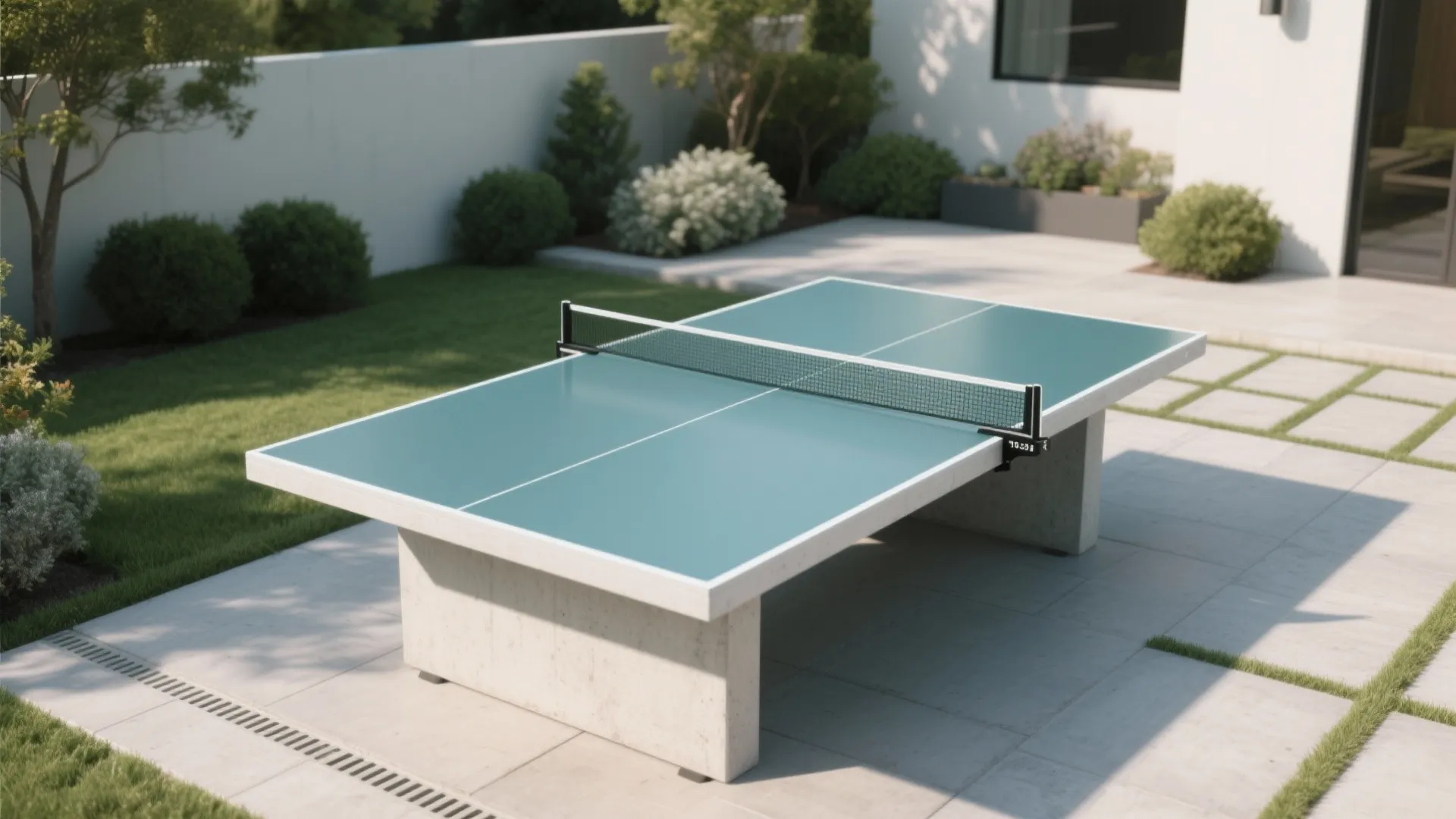

Concrete Ping Pong Table DIY: Build Your Own Durable Table: Fast-Track Guide to Creating an Outdoor Concrete Ping Pong Table in 1 Day

I’ve specified, cast, and installed several outdoor concrete game tables over the last decade, and the projects that age best follow a disciplined approach: respect regulation dimensions, engineer for load and drainage, and finish the surface for consistent bounce and playable speed. A concrete ping pong table is heavier and more durable than timber or composite units, but it demands careful planning around sub-base, reinforcement, curing, and acoustic/ergonomic considerations.

Before design, it helps to benchmark human performance and comfort data. Net height is 15.25 cm and table height is 76 cm, which aligns with common desk-height ergonomics that reduce trunk flexion and shoulder elevation. In workplace research, optimal task heights cluster around 70–80 cm for standing light tasks, supporting this dimension for comfort over longer play sessions. From a safety and wellness perspective, the WELL v2 Access to Nature and Movement concepts emphasize usable outdoor activity zones and glare management; for exterior tables, controlling veiling reflections with a matte, mid-value finish improves visual comfort (WELL v2 – Light).

Durability rises with the right concrete recipe and reinforcement. The IES recommends 300–500 lux horizontal illuminance for visual tasks; for evening play, plan lighting to those levels to maintain contrast on the net and edges without harsh glare (IES standards). In team settings, Gensler research shows that well-designed recreational spaces can support social cohesion and reduce stress, which is a good argument for placing the table where visibility and casual interaction are high (Gensler Research Institute). These considerations shape layout, materials, and the experience of play as much as the slab itself.

Project Overview and Regulation Dimensions

A regulation table measures 2.74 m (9 ft) long, 1.525 m (5 ft) wide, and 76 cm (30 in) high, with a 15.25 cm (6 in) net. For a permanent concrete build, plan at least 1.5 m (5 ft) clear space around the perimeter for safe play, and 2.1–2.4 m (7–8 ft) vertical clearance to avoid paddle strikes on overhead elements. If the table is near planting beds or turf, detail a clean edge or mow strip to keep grit off the surface.

Site, Sub-base, and Drainage

Outdoor installations succeed or fail at the ground. Excavate to a minimum depth of 150–200 mm (6–8 in) for the sub-base. Place 100–150 mm (4–6 in) of compacted crushed stone (well-graded, e.g., 3/4 in minus) to 95% Proctor density for stability and drainage. Screed a slight slope (0.5–1%) away from the play area or use discreet weep holes in the table pedestals. If frost is a concern, found the pedestals below frost line to prevent heave.

For layout testing before you set forms, a quick digital mockup helps spot circulation conflicts with seating, grills, or planters. If you’re juggling multiple backyard elements, try a room layout tool to simulate clearances and sightlines: room layout tool.

Structural Strategy: Monolithic vs. Modular

You have two viable approaches: a monolithic cast (top slab and legs in one pour) or a modular system (separate top and pedestals). Modular is easier to move and level, while monolithic is theft-resistant and has fewer joints.

Recommended Dimensions

• Top slab thickness: 60–80 mm (2.4–3.1 in) for stiffness and rebound consistency.

• Pedestals: 100–150 mm (4–6 in) wall thickness if hollow, or 300–400 mm (12–16 in) square if solid. Provide a broad base (450–600 mm / 18–24 in) for stability.

Reinforce the top with welded wire mesh (6x6 W2.9 or similar) and two or three #3 rebar runners lengthwise, keeping steel 25–30 mm (1–1.25 in) from the surface using chairs. Tie the net post sleeves or through-bolts into embedded inserts during form-up.

Concrete Mix and Additives

A 28 MPa (4000 psi) mix is a dependable baseline for durability. For exterior freeze-thaw zones, specify 5–7% entrained air to resist spalling. A low water–cement ratio (around 0.45) improves strength and reduces shrinkage. Add 3/8 in (10 mm) aggregate for a dense, smooth finish, and consider polypropylene microfibers to limit plastic shrinkage cracking. If you plan a deep green or charcoal pigment, use integral color for even tone rather than topical stains.

Formwork and Surface Flatness

Use melamine-faced plywood or sealed HDO plywood for smooth forms; chamfer any exposed edges (10–12 mm / 3/8–1/2 in) to resist chipping. Install a perimeter screed rail at the top elevation to control flatness. Your goal is a maximum 2 mm (1/16 in) variation across any 600 mm (24 in) span; this keeps bounce predictable. Place form ties to avoid patching in the play field.

Pour, Consolidation, and Curing

Place concrete in lifts, vibrate lightly with a pencil vibrator or tap forms to release air, and bull float immediately to close the surface. Avoid overworking with water, which brings paste to the top and weakens the finish. After initial set, trowel to a closed, slightly matte surface—polished finishes glare and play too fast outdoors. Begin curing as soon as bleed water dissipates: cover with wet burlap plus plastic or apply a curing compound. Maintain moisture for at least 7 days; strength gain and surface hardness depend on it.

Jointing and Crack Control

Introduce control joints in the pedestals and any large masses to guide inevitable shrinkage. For the top slab, keep reinforcement continuous and minimize penetrations. If you cast the table in two halves with a center joint, bridge the seam with concealed steel plates or threaded rods at 300–450 mm (12–18 in) intervals, grouted after alignment.

Finishing for Playability: Texture, Bounce, and Lines

Bounce consistency comes from density, flatness, and surface microtexture. I aim for a 60–80 gloss unit matte seal—enough to protect, not enough to glare under sun or 300–500 lux evening lights. A light orbital hone with 200–400 grit pads can knock down trowel marks before sealing. Test bounce with a standard 40 mm ball from 300 mm (12 in): you’re looking for repeatable height with less than 3–5% variance across zones.

Stripe the table with outdoor-grade two-part epoxy or polyurethane line paint. Standard lines are 20 mm (3/4 in) wide around the perimeter and a 3 mm (1/8 in) centerline for doubles. Mask carefully; crisp edges matter for depth perception and serve judging.

Color and Visual Comfort

Color affects visual tracking and perceived speed. Mid-value blues and greens enhance ball visibility against outdoor foliage and sky. Research in color psychology notes that blue-green hues can support focus and calm, which helps during competitive play (see Verywell Mind on color psychology). Avoid pure black; it overheats and shows dust. If you illuminate the table at night, choose 3000–4000 K LED luminaires with good vertical illuminance on the net and low UGR optics to reduce veiling reflections.

Acoustics and Neighborhood Etiquette

Concrete reflects sound sharply. In tight yards, soften acoustics with perimeter planting (dense shrubs), a timber wind screen, or porous surfaces nearby. Rubber feet under paddles or slightly softer balls can reduce peak impact noise without dulling play too much.

Edge Protection and Net Hardware

Embed stainless sleeves or threaded inserts during the pour for removable net posts; powder-coated steel or 316 stainless resists corrosion. For a permanent concrete net, cast a 30–40 mm (1.25–1.6 in) thick web at midline with a 15.25 cm (6 in) height and chamfered top edges; add rebar pins at 300 mm (12 in) spacing to keep it monolithic with the slab.

Sealers and Maintenance

Seal with a breathable, UV-stable, low-sheen penetrating sealer (silane/siloxane or lithium-based densifier plus guard). Recoat every 2–3 years depending on exposure. Clean grit before play to protect paddles and maintain friction. In freeze-thaw zones, avoid de-icing salts directly on the slab; sand for traction instead.

Accessibility and Human Factors

Plan an ADA-compliant route (1:20 max running slope where possible), firm surfacing, and turning space near the table. Table height at 76 cm works well for most users; ensure at least 1.5 m clear behind each end for wheelchair maneuvering. Rounded corners reduce bruising risk during fast play.

Lighting for Evening Play

Mount two poles set back 1.5–2.0 m from the sidelines, luminaires at 3–3.5 m height, canted to avoid direct view. Target 300–500 lux horizontal on the table with uniformity of 0.6:1 or better and controlled glare per IES recommendations. Warmer 3000–3500 K renders skin tones well and keeps insects slightly less attracted than higher CCT.

Bill of Materials (Typical)

• 0.5–0.8 m³ of 28 MPa concrete (varies by pedestal design)

• Welded wire mesh + #3 rebar

• Melamine/HDO plywood, form ties, chamfer strips

• Stainless inserts or sleeves for net posts

• Two-part exterior epoxy/poly line paint

• Penetrating sealer (UV-stable, low sheen)

• Crushed stone sub-base (0.75–1.5 m³)

• Optional: integral pigment, microfibers, curing blankets

Build Sequence (At a Glance)

1) Excavate and compact sub-base; set conduits if lighting is planned.

2) Form pedestals and/or set precast footings below frost line.

3) Form the top slab with melamine, install rebar/mesh on chairs.

4) Place anchor sleeves/inserts and net hardware provisions.

5) Pour, consolidate lightly, screed, float, and trowel to a low-gloss finish.

6) Moist cure 7 days; protect from sun and wind.

7) Hone lightly if needed; seal with penetrating sealer.

8) Mask and paint regulation lines; install net posts.

9) Final level check, bounce test, and touch-ups.

Common Pitfalls to Avoid

• Overly glossy sealers causing glare and slippery play.

• Too-thin top slab leading to drummy bounce or microcracking.

• Skipping sub-base compaction—settlement cracks the finish.

• Anchoring net posts after the pour—retrofits are weak and messy.

• Ignoring drainage; standing water stains and degrades sealers.

FAQ

Q1. What are the exact regulation dimensions and clearances I should follow?

A1. The top is 2.74 m x 1.525 m at 76 cm height with a 15.25 cm net. Keep at least 1.5 m clear space on all sides (more at the ends if players are advanced).

Q2. What surface finish gives the most consistent bounce outdoors?

A2. A dense, troweled surface lightly honed to knock down highs, then sealed with a low-sheen penetrating sealer. Aim for matte, not glossy, to avoid glare and overly fast play.

Q3. How thick should the concrete tabletop be?

A3. 60–80 mm (2.4–3.1 in) works well. Thicker improves stiffness but adds weight; balance with your pedestal design and reinforcement.

Q4. Can I cast a permanent concrete net instead of using posts?

A4. Yes. Cast a 30–40 mm thick web to the 15.25 cm height, reinforced with pins into the slab. Chamfer top edges to reduce chipping.

Q5. What lighting levels should I target for evening play?

A5. 300–500 lux on the table with good uniformity and low glare is a practical target referenced by IES task lighting ranges. Place fixtures off-axis to avoid direct view.

Q6. Which color improves ball visibility outside?

A6. Mid-value blues or greens provide contrast with both orange and white balls and reduce heat gain. Color psychology literature associates blue-green with calm and focus, helpful in gameplay.

Q7. How do I prevent cracks?

A7. Use a low w/c mix, proper reinforcement on chairs, cure at least 7 days, and provide control joints in pedestals. Ensure a compacted, draining sub-base.

Q8. How should I anchor the net posts?

A8. Install stainless sleeves or threaded inserts during formwork so posts bolt in after curing. This keeps the top uncracked and hardware square.

Q9. What about freeze-thaw durability?

A9. Specify 5–7% air entrainment, use a penetrating sealer, avoid de-icing salts, and ensure drainage away from edges.

Q10. Can I move the table after casting?

A10. Only if modular. A monolithic table can exceed 800–1000 kg and is not safely movable without machinery and lift points.

Q11. How often should I reseal?

A11. Typically every 2–3 years depending on UV exposure and abrasion. Clean and dry the surface; apply thin, even coats.

Q12. Does concrete make play too loud?

A12. It can be reflective. Add soft landscaping nearby, select lower-rebound balls, or play during reasonable hours to maintain neighborhood comfort.

Q13. What if my yard is slightly out of level?

A13. Level the pedestals with shims or non-shrink grout pads. Keep the tabletop flat and true; minor site slope can be absorbed below the pedestals.

Q14. Is pigment or paint better for color?

A14. Integral pigment yields uniform tone and hides wear; lines should still be painted with UV-stable epoxy/poly for crispness.
