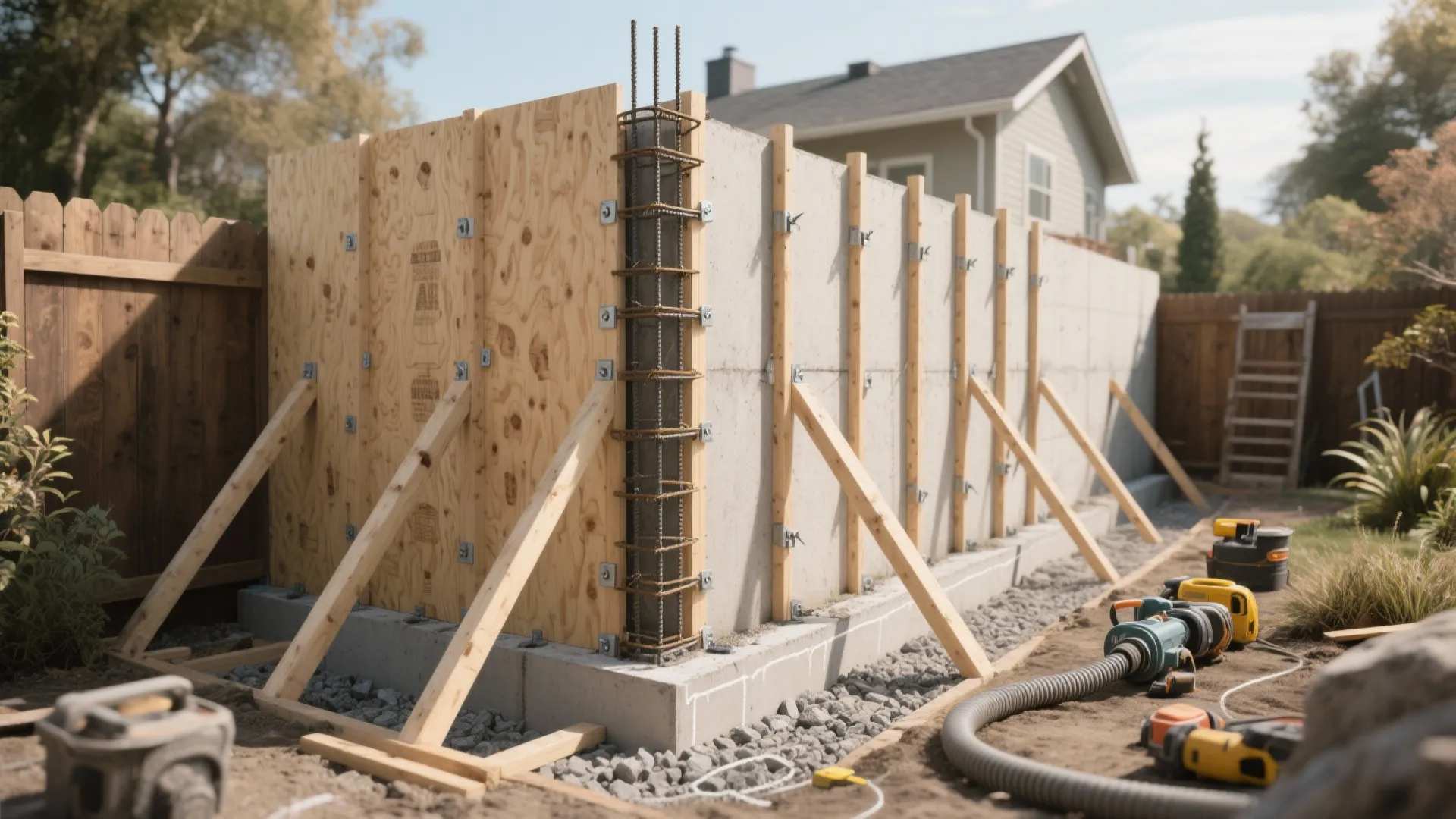

Concrete Wall Forms DIY: Build Strong Walls Easily: 1 Minute to Concrete Wall Forms DIY: Fast-Track Guide to Sturdy Home Projects

I’ve built and supervised dozens of small residential concrete walls—retaining edges, garden planters, frost walls, and garage additions—where the formwork decides everything: structural integrity, finish quality, cost, and how much you’ll sweat on pour day. Good DIY concrete wall forms aren’t complicated, but they demand consistency in layout, bracing, and pour control. Done right, you’ll get crisp lines, true plumb, and a wall that cures strong without blowouts.

Before anything else, make decisions with data. ACI and industry practice commonly target 3,000–4,000 psi compressive strength for residential walls, and temperature matters during curing; WELL Building Standard v2 highlights thermal comfort ranges of roughly 68–75°F for indoor environments, which aligns with good curing conditions to avoid rapid evaporation during finishing. From the workplace side, Steelcase research has repeatedly shown how order and clear workflows reduce error rates; on a jobsite, that translates to staged materials, labeled form panels, and defined roles during the pour.

Plan the Wall: Loads, Footing, and Height

I start with purpose and load. A low garden wall with soil behind needs a thicker section and possibly rebar closer to the tension face; a non-retaining stub wall can be slimmer. Typical residential footings fall in the 12–18 in width range depending on soil and wall load. For frost zones, check local code for depth. Confirm concrete mix (commonly 3,000 psi for non-structural, 4,000 psi for structural), and plan rebar cages: #4 bars (1/2 in) at 12–18 in on center is a common DIY-friendly layout. If you’re mapping the footprint and rebar spacing visually, a room layout tool can help you simulate spacing and clearances: layout simulation tool.

Select Materials: Ply, Form Ties, and Hardware

I use 3/4 in exterior-grade plywood or purpose-made form panels, backed with 2×4 studs at 12–16 in spacing. Use snap ties or through-bolts with sleeves for repeatable spacing; on DIY walls under 4 ft high, staggered 24 in vertical tie spacing typically holds if bracing is robust. Choose form release agents compatible with your ply—fragrant oils are a mistake; use proper release to avoid stains. For rebar, tie wire and chairs keep cover consistent (minimum 2 in cover for exterior exposure is standard practice). Add rubber or foam joint filler at cold joints and control joints if you expect movement.

Layout and Ergonomics: Keep It Straight, Work Safer

Formwork is an ergonomic puzzle. Keep all fasteners at accessible heights; pre-drill and label panels. I align to snapped chalk lines, nail a bottom cleat to resist lateral slip, and shore with diagonal braces at 45 degrees every 4–6 ft. Steelcase and Herman Miller research on workflow efficiency consistently shows that staging reduces error—apply that by setting up a clean path for the pump hose, a tool station near the form, and a wash-out area.

Real-World Pour Strategy: Head Pressure, Lift Heights, and Vibrating

Wet concrete exerts hydrostatic pressure that increases with wall height and placement rate. To avoid a midnight blowout, pour in lifts of 12–18 in, working around the form in sequence. Internal vibrating consolidates the mix—do short dips (5–10 seconds), keep the head moving, and never over-vibrate fine aggregates. Tapping the exterior panel with a rubber mallet helps release air at edges. Keep slump in the 4–5 in range for most DIY walls; higher slump risks bulging unless your formwork is overbuilt.

Bracing and Alignment: The Difference Between Crisp and Crooked

Diagonal braces into stakes are your insurance policy. I maintain two braces per panel bay minimum, plus walers (horizontal 2×4s) at mid-height and near the top. Check plumb with a long level both sides. String lines across the top plates help maintain uniform thickness. If wind threatens, add temporary kickers. The goal is visual rhythm: evenly spaced ties, straight walers, and consistent panel seams—details that produce clean shadow lines on the finished wall.

Rebar Placement: Cover, Spacing, and Ties

Rebar does the heavy lifting for tensile capacity. Chairs or dobies keep bars off the form; never rest rebar directly on the panel. For a 6–8 in wall, I typically run vertical #4s at 16 in on center with horizontal ladders at 12–18 in on center. Maintain 2 in cover at soil sides and surfaces exposed to weather. Tie intersections with a simple saddle tie, trim sharp ends, and check alignment before closing the second panel.

Form Assembly: Fasteners, Joints, and Release

Pre-drill 3/8–1/2 in holes for ties at consistent vertical increments. Use exterior screws rather than nails for better withdrawal control, and set them in from edges to avoid splitting. Seal seams with construction tape or foam gasket to prevent paste leaks; a cleaner seam yields a smoother surface. Apply a thin film of form release uniformly—too much will streak.

Pour Day Protocol: Roles, Timing, and Safety

I assign roles: one controls hose, one vibrates, one monitors bracing, one screeds and levels top. Rotate every 15–20 minutes to avoid fatigue. Keep PPE standard: gloves, eye protection, boots, and hearing protection when vibrating. Maintain communications; short, clear commands keep pace and quality up. If the mix seems hot and the temperature rises, lightly mist forms to reduce edge drying during the finish window.

Finishing and Curing: Edge Quality and Strength Gain

Strike off the top with a straightedge and finish lightly with a steel trowel only after bleed water dissipates. Protect from rapid drying; damp burlap or curing blankets work well. Typical mixes reach about 70% of design strength at 7 days and near full design strength at 28 days. Keep heavy loads off the wall during early curing; avoid drilling anchors until the 7-day mark unless your engineer specifies otherwise.

Prevent Blowouts: Small Checks that Save the Day

Run a dry fit of panels, inspect every tie, and pre-load braces slightly. Watch corners; add corner straps or extra walers where pressure concentrates. If you see bulging during the pour, stop, vibrate the opposite side gently, and add temporary bracing. The best cure is prevention—consistent tie spacing and a controlled pour rate.

Surface Options: From Raw Concrete to Architectural Finish

For a board-formed look, line the inside with clean planks; seal edges to avoid paste leaks. For a satin finish, use high-quality phenolic-coated panels. Pigments can be integrally added, but sample first; colored concrete amplifies any surface inconsistency. Consider acoustic implications: textured surfaces diffuse sound better than mirror-smooth planes if the wall is part of an outdoor living area.

Drainage and Control Joints: Retaining Walls that Last

Any wall that holds soil needs drainage. Install perforated pipe with gravel backfill and geotextile, and add weep holes at set intervals. Control joints reduce random cracking; plan them at 20–25 ft intervals or where geometry changes. Use joint filler and backer rod if you expect thermal movement.

Tool List and Prep

Expect: level, string lines, chalk, circular saw, drill/driver, wrench set for ties, rebar bender/cutter, tie wire, vibratory tool (rented), buckets, wheelbarrow or pump access, PPE, curing blankets, release agent, and plenty of stakes and braces. Pre-stage everything so the pour is a choreography, not chaos.

Color and Context: Make the Wall Belong

Color psychology isn’t just for interiors. Verywell Mind’s synthesis on color suggests earth tones calm and ground—ideal for garden walls—while darker grays feel more formal and restrained. Blend finishes with surrounding materials: warm woods, rust-resistant steel accents, and native plants soften the concrete’s mass and shift the space’s emotional tone.

Common Mistakes I See—and How to Avoid Them

Skipping chairs, uneven tie spacing, pouring too fast, and neglecting release agents—these show up in almost every failed DIY attempt. Set a measured pour rate, check plumb every lift, and keep a checklist for every panel bay. If you’re unsure about layout, use an interior layout planner to visualize spacing and brace lines: room design visualization tool.

FAQ

How tall can a DIY concrete wall be without professional engineering?

For non-retaining, low walls (under ~4 ft), many DIYers proceed with standard practice. Anything retaining soil or exceeding 4 ft should be engineered and permitted. Local code governs, and soil pressure can escalate quickly.

What concrete mix is best for small residential walls?

A 3,000–4,000 psi mix is common. If you need improved durability, specify air entrainment for freeze-thaw climates. Keep slump around 4–5 in to balance workability and form pressure.

Do I need rebar in a short garden wall?

Yes, if it retains soil or faces impact. Use #4 rebar at 12–18 in on center and maintain 2 in cover. Short non-retaining decorative walls may use minimal reinforcement, but cracking control still benefits from steel.

How do I prevent form blowouts?

Use consistent tie spacing, add walers, install diagonal braces every 4–6 ft, pour in lifts, and avoid high slump. Tight seams and proper release reduce leaks that weaken edges.

Should I vibrate the concrete?

For walls, internal vibration helps consolidate and reduce voids. Dip the head briefly and avoid over-vibrating. Light tapping on the form face helps at edges and around ties.

What’s the right curing method?

Protect from rapid drying: use damp burlap, curing blankets, or curing compounds. Expect roughly 70% strength at 7 days and design strength at 28 days under normal conditions.

How do I integrate drainage in a retaining wall?

Install perforated drain tile at the base, backfill with clean gravel, add geotextile to prevent fines migration, and provide weep holes. Waterproof the soil side and maintain proper grading.

Can I achieve a smooth architectural finish with DIY forms?

Yes—use high-quality phenolic panels, tight seams, accurate vibration, and a controlled pour rate. A good release agent and even tie spacing produce clean tie-hole patterns and shadow lines.

How do I handle corners and intersections?

Use corner form angles or double walers at corners, increase tie density near intersects, and pre-fit rebar cages. Align seams so pressure is evenly distributed.

Is there a sustainable approach to concrete walls?

Specify supplementary cementitious materials (like fly ash or slag) where available to lower cement content, design for longevity, and consider recycled form panels. Optimize wall thickness to genuine structural needs.
