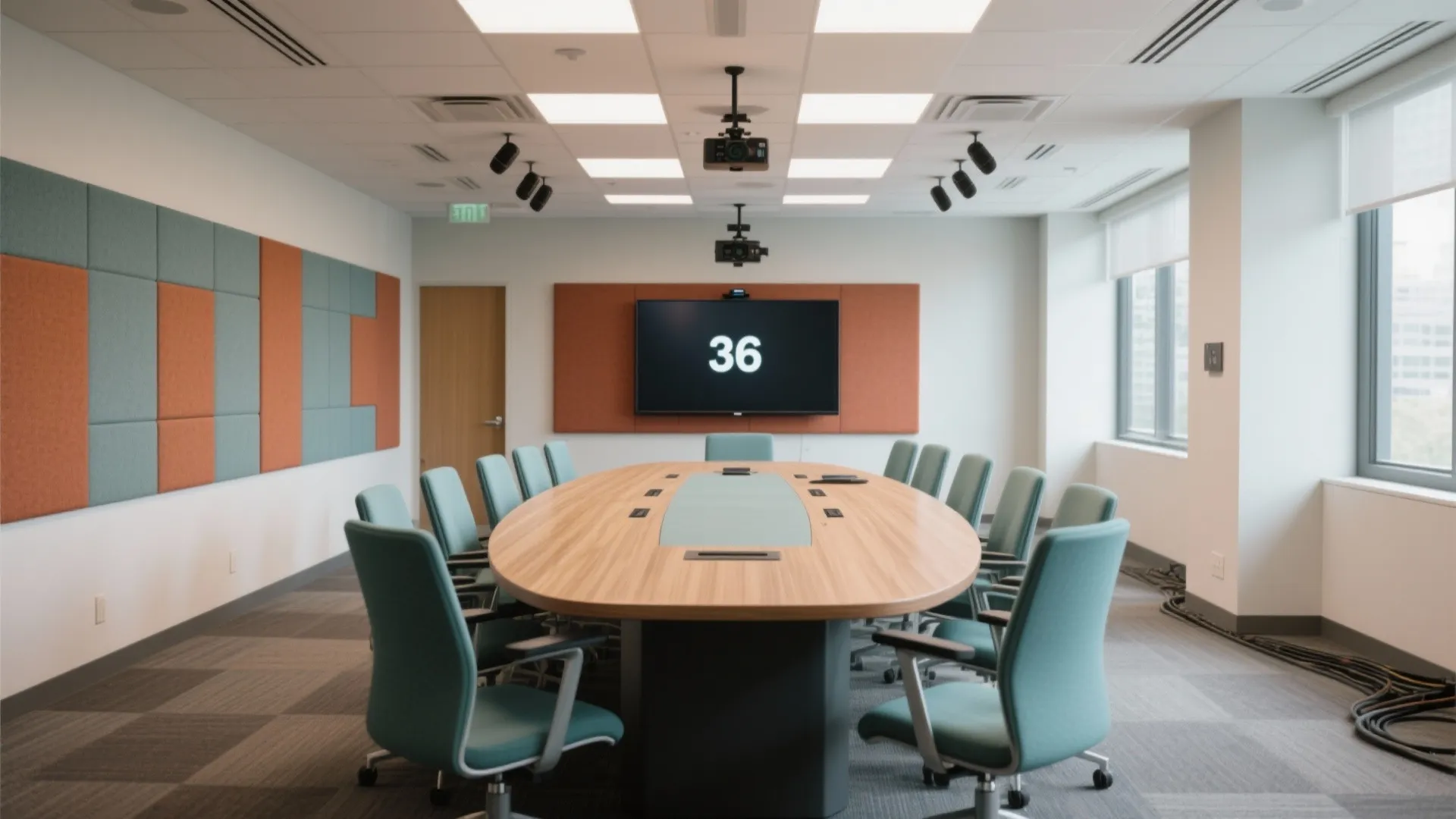

Conference Room CAD Block: Essential Guide for Designers: 1 Minute to Find, Choose, and Use the Perfect CAD Blocks

I rely on well-structured CAD blocks to speed up conference room planning, reduce coordination friction, and protect sightlines, ergonomics, and acoustics. A robust block library becomes a single source of truth for furniture footprints, clearances, AV, and lighting—so a room can be sketched, iterated, and signed off quickly without sacrificing performance.

Before placing a single chair, I check data that affect decisions: Steelcase research found that around 70% of meetings involve hybrid participation, which increases demand for front-of-room visibility and camera-friendly seating arcs. WELL v2 also recommends lighting strategies that support visual acuity and circadian health; for task areas, 300–500 lux is generally appropriate, with careful glare control to avoid washout on displays. These benchmarks shape how I build and deploy my blocks.

Quantitative guidance helps right-size blocks. Herman Miller’s workplace studies point to collaboration areas benefiting from flexible layouts that can transition in minutes; I bake that agility into my CAD families by including adjustable tables (1200–1800 mm depth ranges) and stackable chairs with 600 mm circulation arcs. The result is a library that can be flipped from boardroom to workshop swiftly while maintaining comfort and code compliance.

Core Components of a Conference Room CAD Block Library

I group blocks by function: tables, seating, presentation wall, AV equipment, power/data, lighting, storage, and accessibility overlays. Each block stores dimensions, recommended clearances, and annotation tags for fast plan-checks.

1. Tables: Rectangular (2400–3600 mm), boat-shaped (3000–4800 mm), and modular (600 × 1200 mm segments). Include leg positions to avoid knee clashes and under-table cable paths.
2. Seating: Footprints at 600 × 600 mm with 300 mm minimum elbow clearance; swivel chairs need 800 mm effective radius. Add seat height notes (430–460 mm) for ergonomic consistency.
3. Presentation wall: Screen block with diagonal (55–98”), mount height (eye level near 1050–1200 mm seating), and camera block centered on the audience arc.
4. AV & power: Table grommets, floor boxes, wall plates, and ceiling mic arrays. Tag each with cable direction and capacity.
5. Lighting: Downlight grids, wall washers, and task lights with target illuminance ranges (300–500 lux general, 150–250 lux on walls to enhance visual hierarchy). Include glare shields around the display.
6. Storage & hospitality: Credenza footprint (450–600 mm depth) and mini-pantry units for longer sessions.
7. Accessibility overlays: 900 mm minimum circulation routes, 1500 mm turning circles, and clear space beside doors at 300–600 mm.

Recommended Spatial Ratios and Clearances

I keep a few ratios constant across projects because they reduce rework during stakeholder reviews.

1. Chair-to-chair: 600–750 mm centerline spacing for standard conference seating; 750–850 mm when frequent laptop use is expected.
2. Table edge to wall: 900–1200 mm for comfortable passage; 1200–1500 mm near the primary entrance.
3. Sightline cone: 30–35° viewing angle to the display from the farthest seat; seat-to-display distance often set between 1.2–1.6 × screen diagonal.
4. Camera height: Align near seated eye level (1150–1200 mm), centered on the audience arc to reduce foreshortening.
5. Acoustic buffer: Aim for 0.6–0.8 seconds RT60 in small to mid rooms using absorptive wall panels and carpet tiles; keep hard parallel surfaces broken by bookshelves or diffusers.

Lighting and Visual Comfort Built Into Blocks

Lighting blocks carry notes for illuminance targets and luminaire types. The aim is even distribution without glare on the display or faces.

1. Ambient: 300–400 lux with high CRI (90+) to keep skin tones natural on camera.
2. Task: Add adjustable fixtures over writing surfaces at 400–500 lux.
3. Accent: 150–250 lux on side walls to reduce contrast and eye strain.
4. Glare control: Keep luminaires out of the camera’s direct line; shield or dim fixtures nearest the display.

For lighting standards and wellness guidance, WELL v2’s Light concept provides target ranges and strategies for glare and circadian support, while IES offers best-practice illuminance recommendations. These references ground my block annotations so the design holds up during technical reviews.

Color Psychology and Material Notes

I annotate finishes inside blocks to align with behavioral goals. Cool neutrals with a warm accent (muted terracotta or desaturated teal) support focus without visual fatigue. Verywell Mind highlights how blues can promote calm, while greens are linked to balance—useful cues for long strategy sessions. For materials, I prioritize low-VOC paints, acoustic fabric panels, and FSC-certified wood veneer; sustainability tags in blocks help procurement stay aligned.

Seating Arrangements for Different Meeting Modes

Blocks for seating must adapt to agendas:

1. Boardroom: Single table, camera centered on the long axis, 600–750 mm chair spacing.
2. U-shape: 900–1200 mm aisle inside the U for presenters; strong sightlines to display.
3. Classroom: 900 mm row spacing; power strip blocks along every second row.
4. Workshop: Modular tables with 1200 mm circulation rings and mobile whiteboard blocks.

When I explore multiple seating options, I often test them quickly with a room layout tool to confirm circulation and sightlines. Try layout simulation tool for fast scenario toggling: room layout tool.

AV Integration: Blocks That Prevent Last-Minute Surprises

Common pitfalls come from mismatched cable paths and mic coverage. I include cable routing arrows, ceiling mic pickup circles, and camera fields of view in each block. Table blocks note grommet positions aligned to floor boxes. A simple rule: never cross high-voltage and low-voltage paths without separation; keep 300 mm spacing to minimize interference. For hybrid meetings, add an auxiliary camera block on a tripod near the presenter for content capture.

Ergonomics and Human Factors

Ergonomic footnotes embedded in seating and table blocks reduce discomfort:

1. Seat height: 430–460 mm, desk height: 720–740 mm.
2. Monitor center: near seated eye level; avoid extreme vertical angles for remote participants.
3. Arm clearance: 300 mm per seat, especially for laptops.
4. Accessible seating positions: closest to entrances with clear 900 mm routes.

For detailed ergonomics context, I often reference WELL v2’s ergonomic requirements and guidance documents that support neutral postures and reduced strain for prolonged meetings.

Acoustic Comfort Embedded in CAD Blocks

Acoustic tags specify surface types (absorption vs diffusion) and percentage coverage. For mid-size rooms, I aim for balanced absorption (30–40% wall area) with soft floor finishes and a portion of diffusive elements to prevent dead sound. Add ceiling baffles where the RT60 exceeds 0.8 s in testing. Microphone coverage circles are included to highlight dead zones before construction.

Workflow: Building, Naming, and Maintaining Your Library

Consistency wins. I keep a naming convention that encodes size, finish, and variant (e.g., TB_BOAT_3600_WALNUT_V2). Blocks carry layers for furniture, power/data, AV, lighting, and accessibility, each with distinct lineweights to boost readability. Each revision logs date and change notes—vital for coordination with AV consultants and facility managers.

Dimensioning and Annotation Standards

A CAD block is only as good as its annotations. I include:

1. Overall dimensions and critical clearances
2. Sightline arcs and camera fields
3. Illuminance targets with fixture IDs
4. Power/data symbols and counts
5. Accessibility overlays

By standardizing annotations, every plan and elevation communicates the same constraints, reducing RFIs and late-stage redesigns.

Common Mistakes and How I Avoid Them

1. Underestimating chair spacing: a 50 mm shortfall multiplies discomfort across the entire room.
2. Ignoring glare: place luminaires to avoid display washout and camera shine.
3. Forgetting cable slack: allow 10–15% extra length and strain relief at grommets.
4. Unclear naming: vague block names slow everyone down.
5. No acoustic plan: add basic absorbers and set RT60 targets from the start.

FAQ

How large should a conference table block be for 8–10 people?

I start at 3000–3600 mm length with 1200–1400 mm width, allocating 600–750 mm per seat and 900–1200 mm circulation around.

What screen size block fits a 6–8 m deep room?

A 75–98” display typically works; keep the farthest seat within about 1.2–1.6× the screen diagonal and maintain a 30–35° viewing angle.

How much light should I tag in my lighting blocks?

General ambient 300–400 lux, task 400–500 lux at the table, and 150–250 lux on walls to reduce contrast. Reference WELL v2 and IES standards for validation.

What’s the minimum aisle clearance I should annotate?

900 mm is my baseline; near entrances I prefer 1200–1500 mm for smooth flow.

How do I capture hybrid meeting needs in CAD blocks?

Add camera FOVs, mic coverage circles, and power/data points at every seat cluster. Steelcase research on hybrid patterns reinforces the need for camera-centric seat arcs.

What acoustic targets should I include?

For small to mid rooms, RT60 around 0.6–0.8 s. Use absorptive panels, carpet tiles, and diffusers to avoid echoes and dead spots.

Any tips for table cable management blocks?

Show grommet locations, route arrows, and separation from power by 300 mm. Provide 10–15% cable slack and strain relief.

How should I name and version my blocks?

Use clear codes: element_type_size_finish_version (e.g., TB_BOAT_3600_WALNUT_V2). Log changes and dates to keep teams aligned.

What chair spacing works best for laptop-heavy meetings?

Prefer 750–850 mm center-to-center, giving extra elbow clearance and reducing screen bumping.

Do I need accessibility overlays in every plan?

Yes. Include 900 mm routes, 1500 mm turning circles, and door-side clearances. These overlays catch conflicts early.

Which finishes support focus without fatigue?

Cool neutrals with a warm accent; blues and greens are linked to calm and balance. Pair with low-VOC paints and acoustic fabrics.
