Conference Room Microphone and Speaker System Setup Guide: Fast-Track Guide to Professional Conference Room Audio in Minutes

I’ve configured dozens of conference rooms across open offices, glass-box boardrooms, and compact huddle spaces. The systems that consistently perform share three traits: intentional mic placement, controlled acoustics, and calibrated signal flow. Across hybrid teams, clarity is currency—poor capture or muddy playback kills trust and momentum.

Two data points guide my baseline decisions. First, speech intelligibility rises when reverberation time (RT60) is managed between roughly 0.4–0.6 seconds for small to midsize rooms; that aligns with best practice targets and supports higher STI (Speech Transmission Index) scores under typical meeting SPLs according to industry lighting and building wellness discussions in WELL v2 Feature S04 (Sound). Second, user frustration with hybrid meetings is widely linked to poor audio capture; Steelcase research notes audio quality ranks among top friction points for distributed collaboration, reinforcing why mic coverage and acoustic treatment matter as much as video framing. For deeper reading on workplace experience research, see Steelcase Research and WELL v2 Sound concepts (no hyperlinks shown).

Define the Room and Set the Audio Strategy

Start with the room’s intent and occupancy. A 6–8 person huddle room (120–180 sq ft) differs from a 12–16 seat boardroom (250–350+ sq ft) in acoustic and mic strategy. Identify: seating plan, table type (rectangular, boat, round), ceiling height, surface reflectivity (glass, gypsum, concrete), HVAC noise, and camera locations. I aim for NC 25–30 background noise for voice-centric rooms and RT60 near 0.4–0.6 s. If the room layout is still fluid, mock arrangements with a room layout tool to test mic zones and sightlines before committing hardware: room layout tool.

Select the Right Microphone Topology

Choose capture based on seating density, table geometry, and ceiling height:

1. Table boundary mics: Great for 4–10 seats, low profile, strong direct speech pickup. Space them 24–36 inches from the nearest talker. Avoid placing directly at table edges where laptop fans blow across.
2. Gooseneck mics: Precise pickup for formal boardrooms. Position 18–24 inches from the talker’s mouth; use shock mounts to reduce thumps.
3. Ceiling array mics (beamforming): Ideal when tables are movable or cable-free aesthetics are required. Keep ceiling height within vendor spec (commonly up to ~9–12 ft for best results) and verify coverage lobes match seating.
4. Wireless handheld/lavalier: Useful for presenter-led rooms and training spaces. Manage RF and battery logistics; keep spare charged packs.

Plan mic zones so the far end hears consistent levels regardless of who speaks. I keep nominal gain uniform across inputs, then rely on AEC and auto-mix to manage crosstalk.

Speakers: Coverage, Clarity, and Isolation

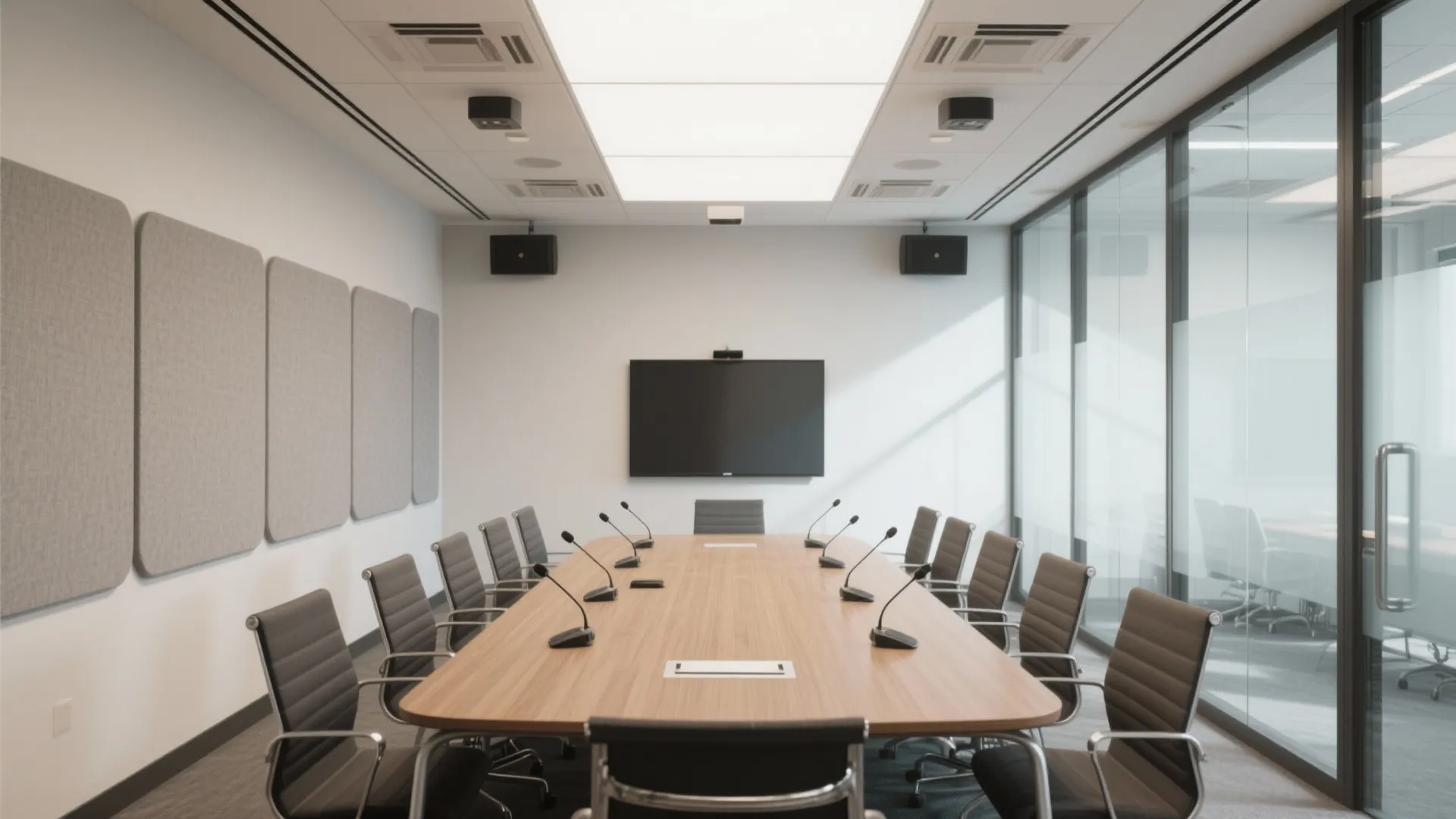

Even, non-fatiguing playback beats brute volume. Use distributed ceiling speakers in larger rooms to avoid hot spots; for smaller rooms, a pair of wall speakers flanking the display keeps speech anchored to the visual. Orient speakers away from microphones where possible and leverage directional patterns to limit spillback. Target comfortable playback around 65–72 dBA at seating with peaks that don’t exceed 80 dBA in normal operation. Calibrate to keep speech clear without masking room talkers.

Signal Flow and DSP Essentials

A stable chain matters more than brand badges. Typical flow: mics → DSP with AEC/NR/auto-mix → amplifier → speakers; and far-end audio (USB/HDMI/VoIP) → DSP → amplifier → speakers. Enable AEC per mic bus, not globally, to avoid artifacts. Use gentle noise reduction and avoid aggressive gating that chops syllables. High-pass mics around 80–120 Hz to roll off HVAC rumble. Apply light compression (2:1) on the far end return to keep sudden loud remote talkers in check without pumping.

Room Acoustics: The Silent Partner

Hard surfaces bounce consonants and smear intelligibility. Treat early reflection points along side walls and behind the talkers. A blend of broadband absorptive panels (NRC 0.8+) and soft finishes on floors and ceiling clouds can pull RT60 into the 0.4–0.6 s pocket that supports clear speech, consistent with WELL v2 Sound recommendations. Add modest diffusion at the rear wall to maintain a natural room feel. Keep glass walls—if unavoidable—paired with ceiling baffles and perimeter curtains for flexible control.

Camera and Mic Geometry

In hybrid rooms, avoid the “ceiling mic, low camera” disconnect where voices feel detached from faces. Place primary mics where people sit, and align speakers near the display to anchor remote voices to the screen. Keep mics out of projector fan wash and away from HVAC diffusers. Maintain clean cable routing to prevent mechanical noise and accidental disconnections.

Power, Network, and Redundancy

Provide POE/POE+ for ceiling arrays and networked DSPs. Separate AV and IT VLANs as required by policy. Use UPS on DSP, switch, and codec/PC to survive brief outages. Keep a spare power supply for critical endpoints. Label every patch and document IPs and firmware revisions. A five-minute power blip should never derail a 20-person board meeting.

Tuning Checklist and Commissioning

1. Baseline noise: Measure background NC with HVAC on. Aim for NC 25–30 at seats.
2. Gain staging: Set mic preamps so average speech hits −18 to −12 dBFS on the DSP meters with 12 dB headroom.
3. AEC reference: Confirm the loudspeaker feed is the reference input and polarity is correct.
4. EQ: Apply modest subtractive EQ to tame room modes (often 120–250 Hz) and brightness (3–6 kHz) if harsh.
5. Auto-mix: Enable NOM attenuation to prevent multi-mic buildup; start with −3 dB per open mic.
6. Playback calibration: Pink noise at −20 dBFS to set target SPL evenly across seats.
7. Test scenarios: One-on-one, multi-speaker cross talk, soft talkers, and remote participant at high level to check AEC stability.

User Experience and Ergonomics

Simple controls beat feature bloat. A single touch panel with “Start Meeting,” volume, mute, and camera presets reduces errors. Place the panel within ergonomic reach of the primary seat (typically the head of table) and add a secondary wall keypad for volume/mute near the display. Cable cubbies with USB-C/HDMI and clear labels reduce fumbling. Train users on table etiquette: avoid tapping near boundary mics and rustling paper.

Color, Lighting, and Behavioral Cues

Good audio thrives in calm rooms. Neutral wall tones reduce visual clutter; warm whites (3000–3500K) avoid glare and fatigue during long calls. Maintain vertical illuminance on faces (150–250 lux) to help lip-reading and camera exposure, dovetailing with user comfort noted across workplace research. Avoid fixtures that buzz near mic locations. Dimmable, indirect lighting keeps ceiling arrays shadow-free.

Hybrid Standards and Research Touchpoints

I align room sound targets with WELL v2 Sound Intent and use workplace research from Steelcase to benchmark user expectations around hybrid collaboration and fatigue. For standards-based reading, review WELL v2 Sound features and Steelcase workplace research for clear audio and engagement correlations.

Step-by-Step Setup Summary

1. Map seating and camera views; simulate placement using an interior layout planner if furniture is not final: interior layout planner.
2. Select mic topology (table/ceiling/wireless) based on room size, height, and reconfigurability.
3. Design speaker coverage for even SPL; avoid direct aim into mic lobes.
4. Specify DSP with AEC, auto-mix, and sufficient I/O; plan clear USB/VoIP integration.
5. Treat acoustics to reach ~0.4–0.6 s RT60 and NC 25–30.
6. Commission: gain stage, AEC reference, EQ, auto-mix NOM, and playback calibration.
7. Train users on mute etiquette, laptop placement, and volume control.
8. Document everything: diagrams, IPs, presets, firmware.

Maintenance and Lifecycle

Schedule quarterly checks: firmware, AEC tuning, and battery health for wireless. Re-verify SPL distribution after seating changes. Keep a log of anomalies and user feedback; patterns often trace to a single loose connector or post-update setting.

FAQ

1) How many table microphones do I need for an 8-seat room?

Two boundary mics typically suffice if placed centrally and within 24–36 inches of talkers. For uneven seating or larger tables, add a third to maintain uniform pickup and rely on auto-mix to manage open mics.

2) Ceiling array or table mics—what’s better for hybrid calls?

Table mics usually deliver higher direct-to-reverberant ratio and clearer consonants. Ceiling arrays excel when furniture is reconfigurable or cable-free aesthetics are critical. Keep ceiling height within spec and treat the room to keep RT60 near 0.4–0.6 s.

3) What SPL should I target for speaker playback?

A comfortable range is about 65–72 dBA at seating with headroom for peaks. Even coverage matters more than absolute loudness; avoid hotspots near the display.

4) How do I prevent feedback and echo for remote participants?

Use proper AEC with the loudspeaker feed as reference, maintain physical separation and directional aim between speakers and mics, and avoid excessive mic gain. Auto-mix NOM attenuation helps reduce buildup.

5) Which acoustic treatments make the biggest difference?

Broadband absorption at first reflection points (walls and ceiling) and a soft floor surface. Add ceiling baffles or clouds above the table and consider curtains for glass walls. Aim for RT60 ~0.4–0.6 s.

6) Can I rely on software noise suppression alone?

It helps, but hardware/DSP AEC plus room treatment is essential. Over-aggressive software suppression can distort speech and clip soft talkers. Start with light NR and good mic placement.

7) How should I place speakers relative to the display and microphones?

Anchor far-end audio near the display so voices feel tied to the visuals; avoid firing directly into mic lobes. In longer rooms, distribute ceiling speakers for even coverage.

8) What about small huddle spaces with glass walls?

Use table mics with tight pickup, add a rug, wall panels on the non-glass sides, and ceiling baffles. A short curtain track you can draw during calls tames reflections without changing the look all day.

9) Is wireless worth it for presenters?

Yes for training or board updates. Use quality lavs or handhelds, manage RF spectrum, and keep charged spares. Still include a room mic strategy for participant questions.

10) How do I handle multiple platforms (Teams, Zoom, Meet)?

Standardize on a USB audio interface from the DSP and test each platform’s echo cancellation (disable double-processing when your DSP handles AEC). Keep presets per platform if needed.

11) What lighting settings support better audio meetings?

Use warm-white 3000–3500K, avoid buzzing fixtures near mics, and maintain 150–250 lux vertical illuminance on faces for better camera exposure and lip-reading cues.

12) How often should I recalibrate?

Quarterly, or after any furniture/occupancy change. Quick checks: RT60 snapshot, SPL uniformity, AEC tail performance, and mic gain staging.
